Toyota Hilux
1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General
Discontinued model
Data version 2007-07

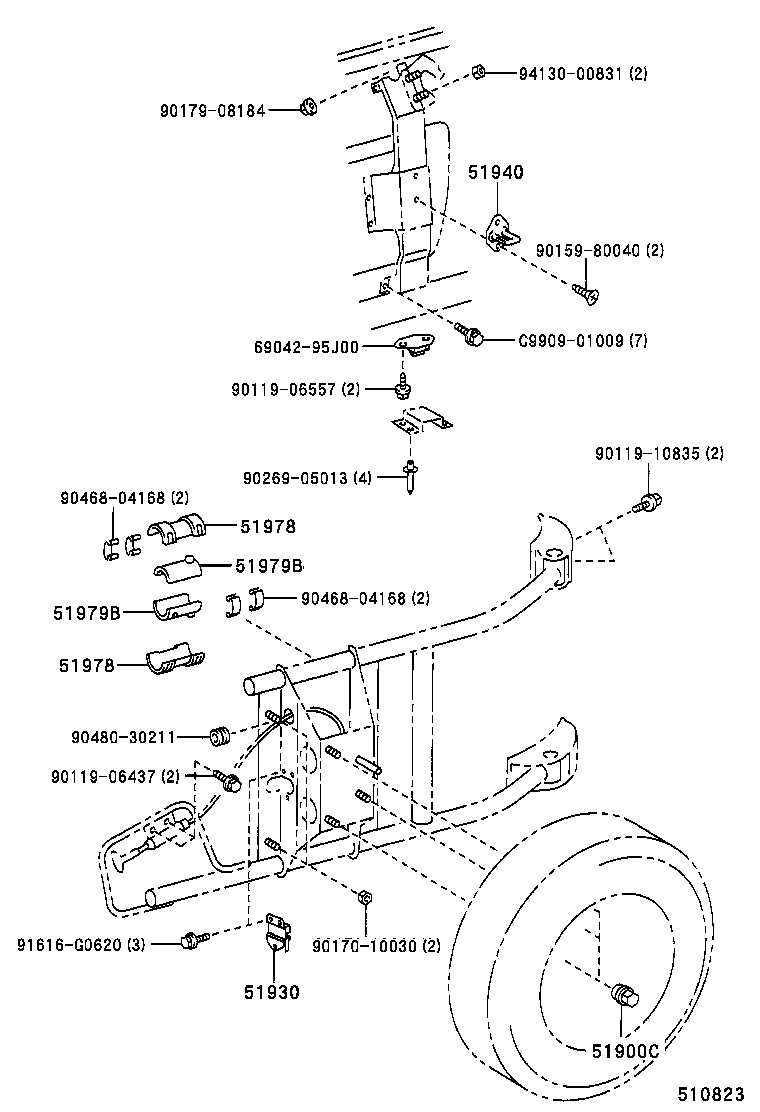

Spare Wheel Carrier
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51900 | Carrier Assy, Spare Wheel |
| 51900C | Nut, Spare Wheel, Hub |
| 51930 | Lock Assy, Spare Wheel Carrier |
| 51933B | Stopper, Spare Wheel Carrier, RH |
| 51934B | Stopper, Spare Wheel Carrier, LH |
| 51940 | Striker Assy, Spare Wheel Carrier Lock |
| 51978 | Protector, Spare Wheel Carrier |
| 51979B | Cushion, Spare Wheel Carrier Protector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
