Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

10 part groups · 8 illustrations

Illustrations

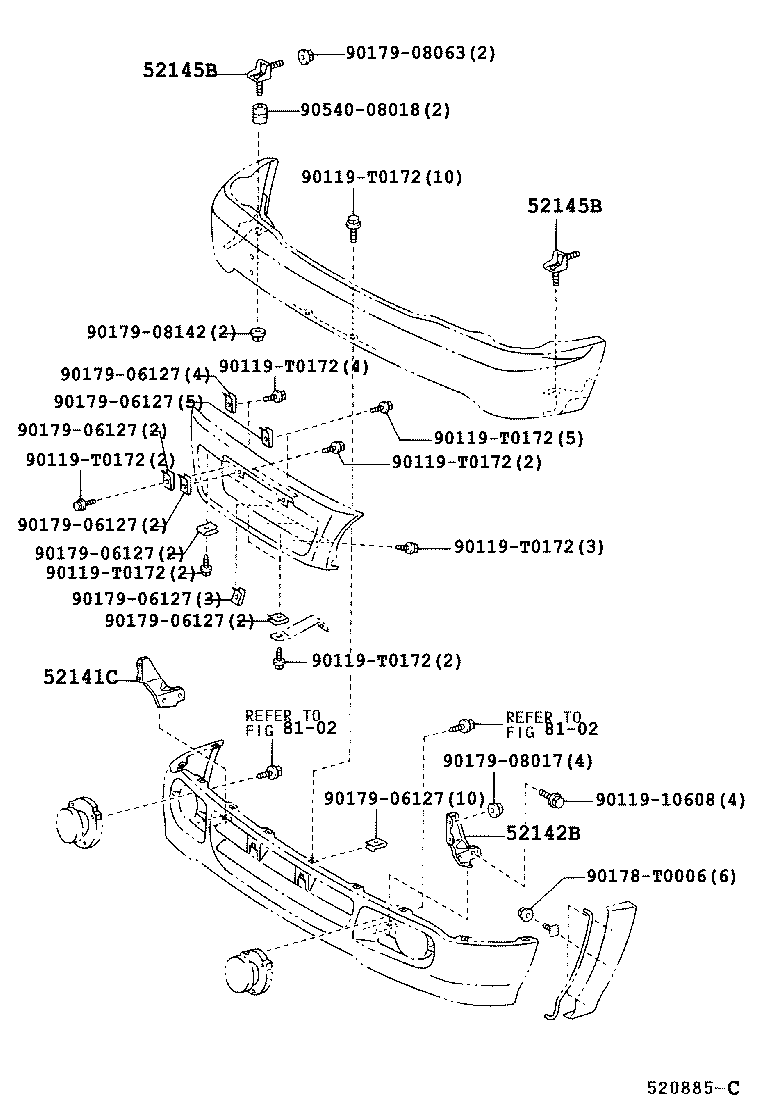

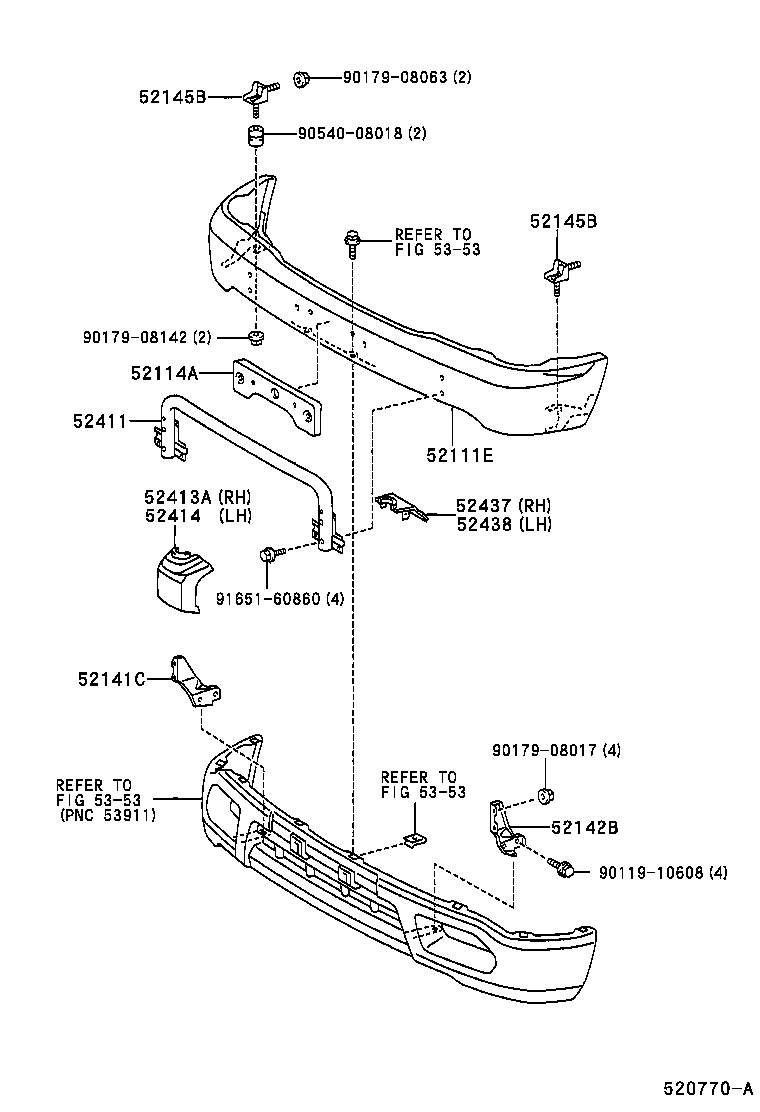

Figure 520301 520301 1997-08 → 2001-08 Figure 520301 520301 2001-08 → 2001-09 Figure 520301 520301 2001-09 → 2002-03 Figure 520770A 520770A 2001-08 → 2001-09 Figure 520770A 520770A 2001-09 → — Figure 520770A 520770A 2002-03 → 2005-04 Figure 520770A 520770A 2002-06 → — Figure 520885C 520885C 2002-08 → 2004-11

Part groups

PNCDescription
52111E Bar, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52141C Arm, Front Bumper, RH
52142B Arm, Front Bumper, LH
52145B Bracket, Front Bumper Side Mounting
52411 Guard, Front Bumper
52413A Pad, Front Bumper Guard, RH
52414 Pad, Front Bumper Guard, LH
52437 Cover, Front Bumper Guard, RH
52438 Cover, Front Bumper Guard, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
