Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 11 illustrations

Illustrations

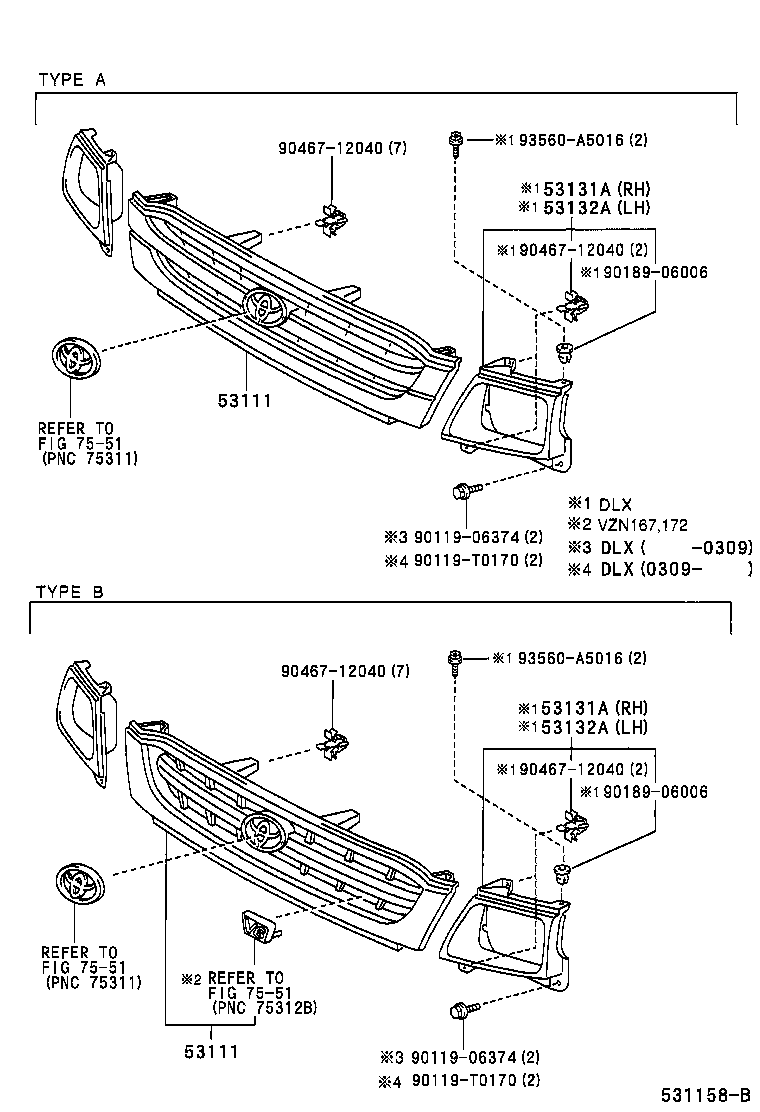

Figure 530503 530503 1997-08 → 2001-08 Figure 530503 530503 2001-08 → 2001-09 Figure 530503 530503 2001-09 → 2002-03 Figure 531158B 531158B 2001-08 → 2001-09 Figure 531158B 531158B 2001-09 → — Figure 531158B 531158B 2002-03 → — Figure 531158B 531158B 2002-06 → — Figure 531158B 531158B 2002-09 → — Figure 531158B 531158B 2003-02 → — Figure 531180C 531180C 2001-09 → — Figure 531334 531334 2002-08 → —

Part groups

PNCDescription
53111 Grille, Radiator
53114A Grille, Radiator, Inner
53131A Door, Headlamp, RH
53132A Door, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
