Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

13 part groups · 6 illustrations

Illustrations

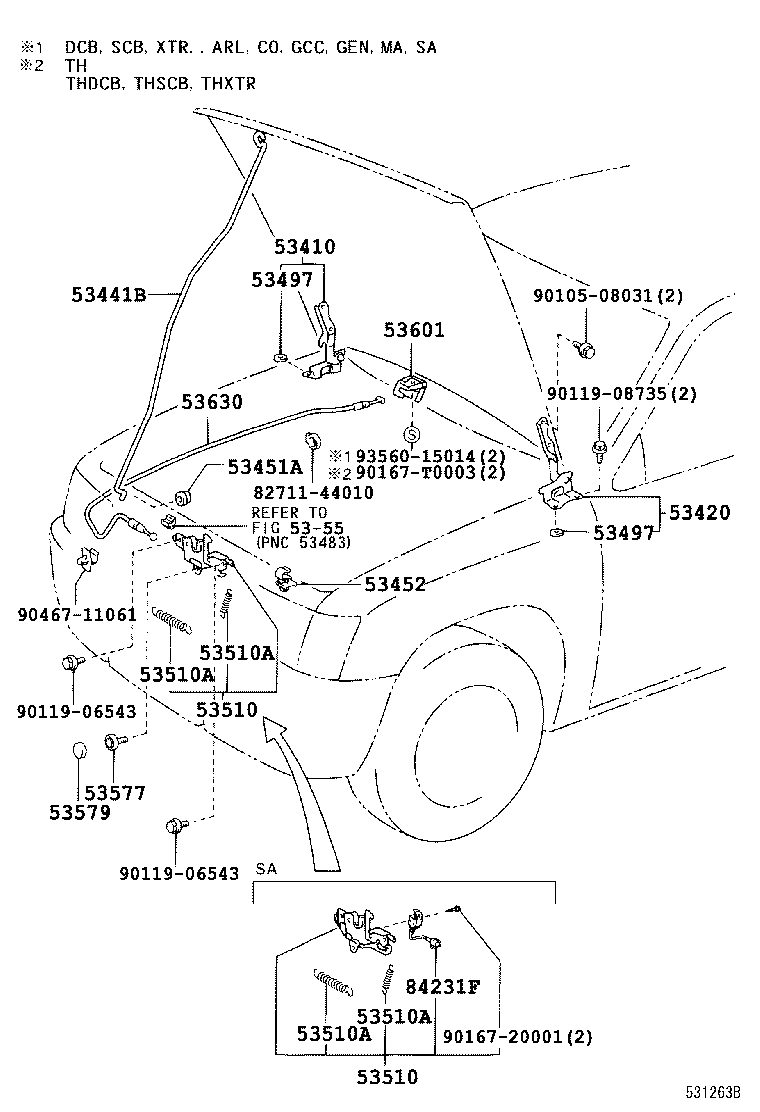

Figure 530477C 530477C 1997-08 → 2001-08 Figure 530477C 530477C 2001-08 → 2001-09 Figure 530477C 530477C 2001-09 → 2002-03 Figure 531263B 531263B 2001-08 → 2001-09 Figure 531263B 531263B 2001-09 → 2002-03 Figure 531263B 531263B 2002-03 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53441B Support, Hood
53451A Grommet(FOR HOOD SUPPORT ROD)
53452 Holder, Hood Stay
53497 Pad, Hood Hinge, NO.1
53510 Lock Assy, Hood
53510A Spring, Tension(FOR HOOD LOCK)
53577 Bolt, Hood Lock
53579 Cap, Hood Lock Nut
53601 Lever Sub-assy, Hood Lock Control
53630 Cable Assy, Hood Lock Control
84231F Switch, Courtesy Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
