Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

8 part groups · 3 illustrations

Illustrations

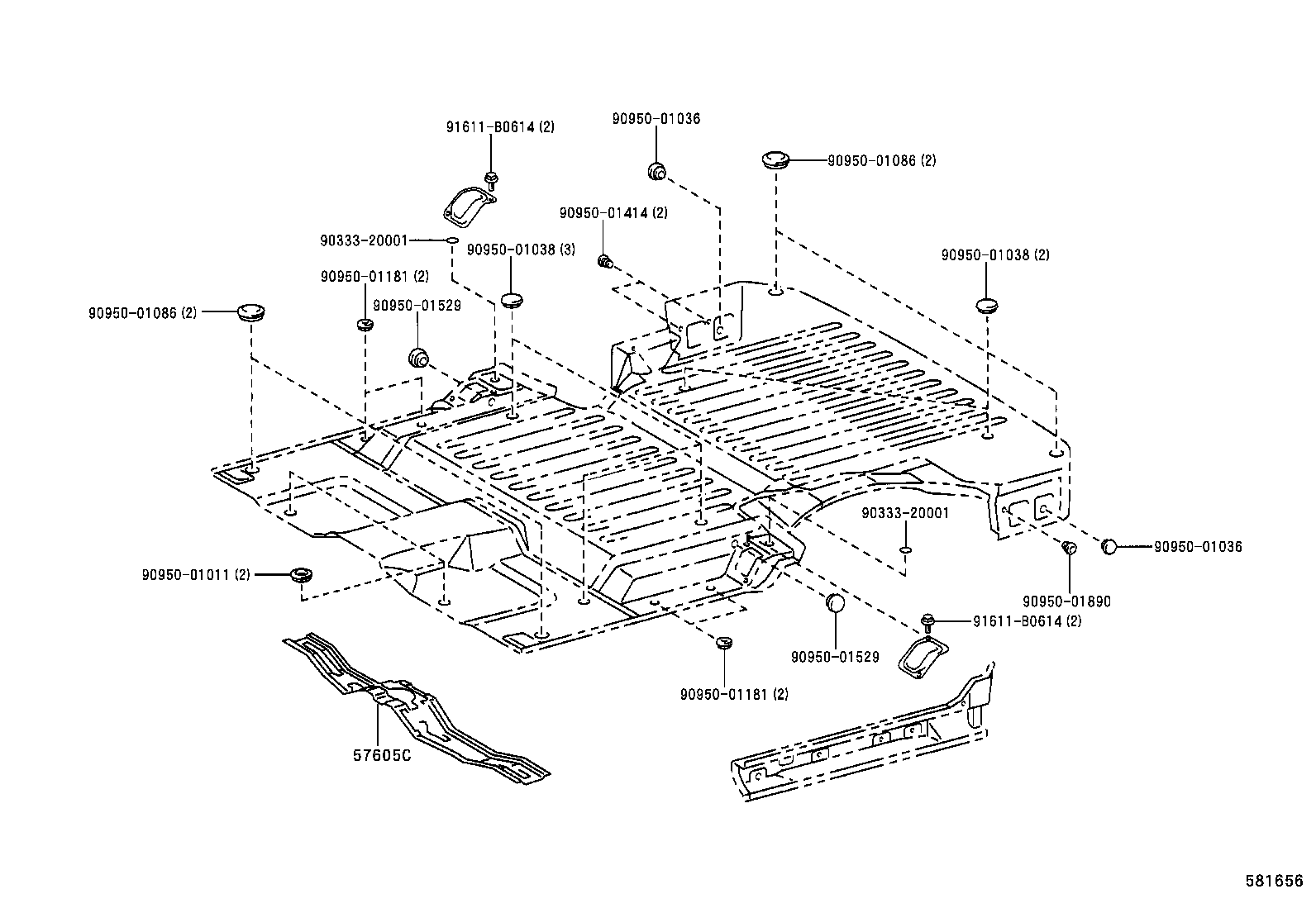

Figure 580729B 580729B 1997-08 → — Figure 580852 580852 1997-11 → — Figure 581656 581656 2002-08 → —

Part groups

PNCDescription
57605C Member Sub-assy, Rear Floor Cross
57606C Member Sub-assy, Rear Floor Cross, NO.2
58225B Plate, Front Floor Side, Lower RH
58309E Plate Sub-assy, Rear Floor
58316E Retainer, Rear Seat Set
58351B Reinforcement, Rear Floor Panel, RH
58352C Reinforcement, Rear Floor Panel, NO.2
58353F Reinforcement, Rear Floor Panel, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
