Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

13 part groups · 3 illustrations

Illustrations

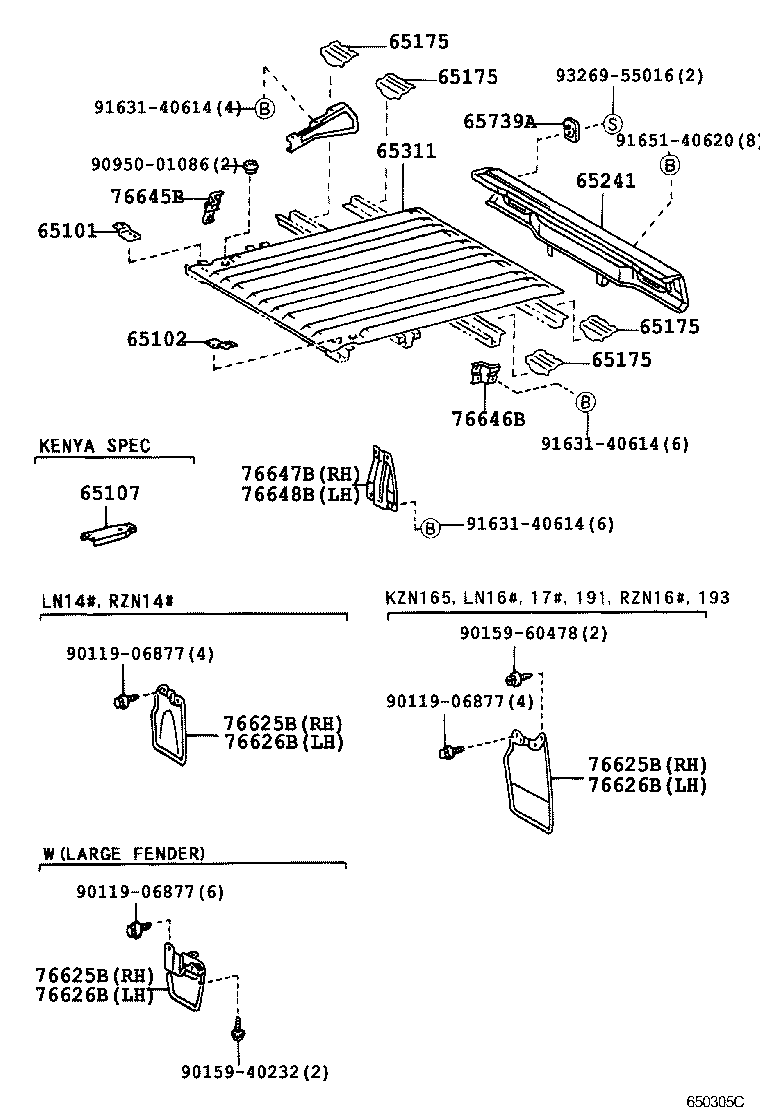

Figure 650148K 650148K 1997-08 → — Figure 650148K 650148K 2002-08 → — Figure 650305C 650305C 1997-08 → —

Part groups

PNCDescription
65101 Bracket Sub-assy, Main Sill Mounting, NO.1
65102 Bracket Sub-assy, Main Sill Mounting, NO.2
65107 Bracket Sub-assy, Mounting, NO.4
65175 Gusset, NO.3 Cross Sill
65241 Sill, Rear Cross
65311 Panel, Floor, Center
65739A Bumper, Tail Gate
76625B Mudguard, Rear Body, RH
76626B Mudguard, Rear Body, LH
76645B Bracket, Rear Body Mudguard, RH
76646B Bracket, Rear Body Mudguard, LH
76647B Support, Rear Body Mudguard, RH
76648B Support, Rear Body Mudguard, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
