Seat & Seat Track

117 part groups · 14 illustrations

Illustrations

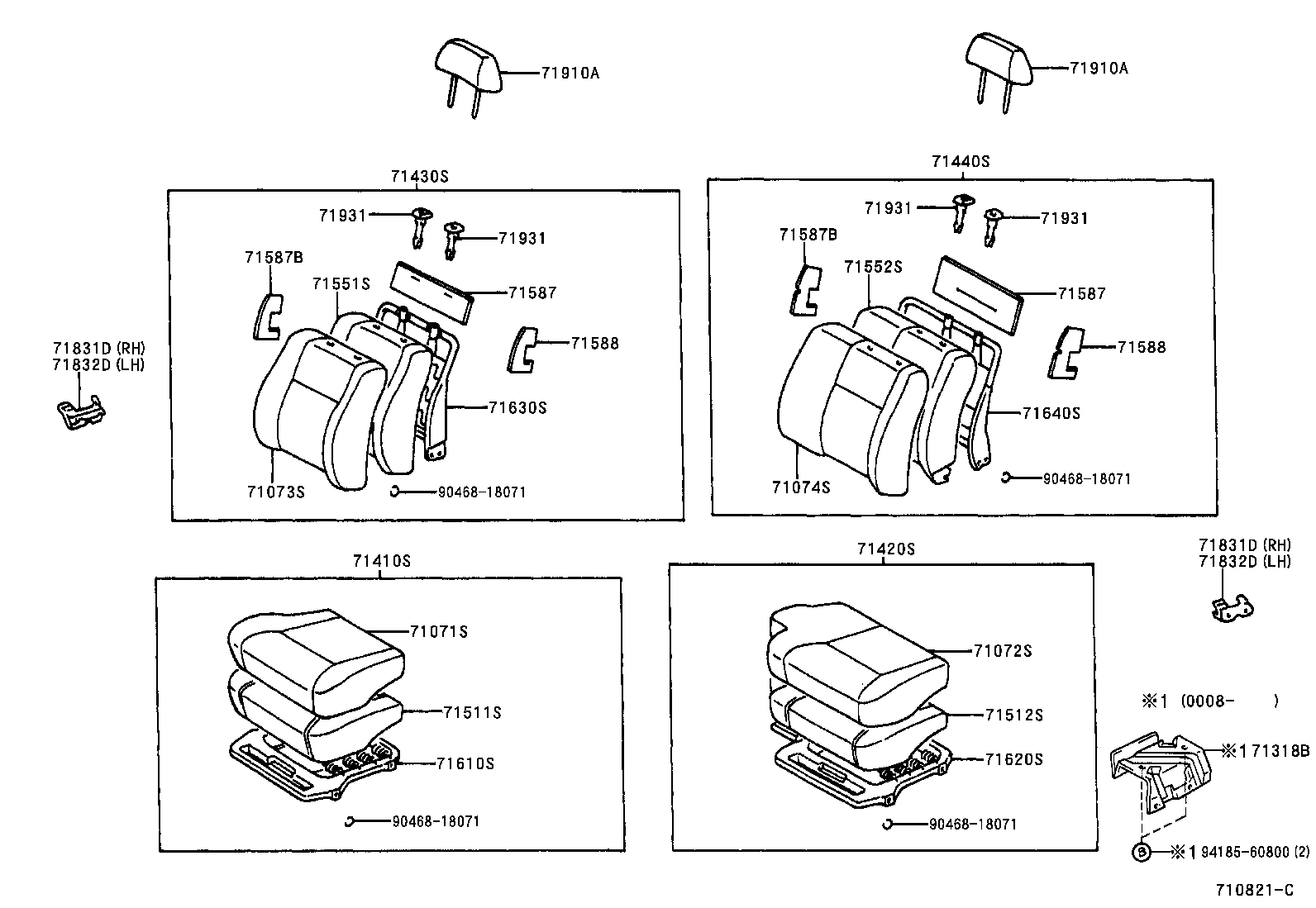

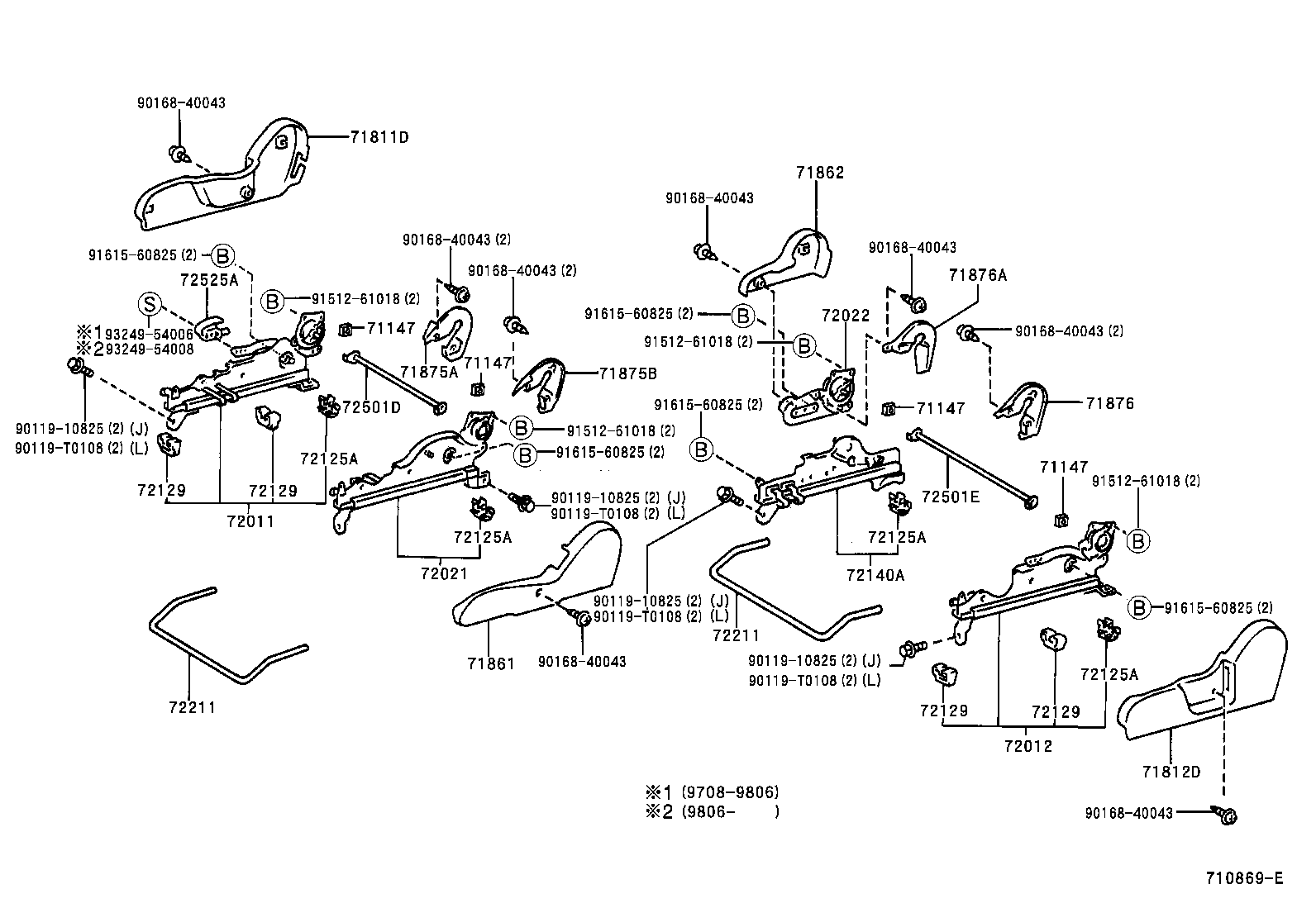

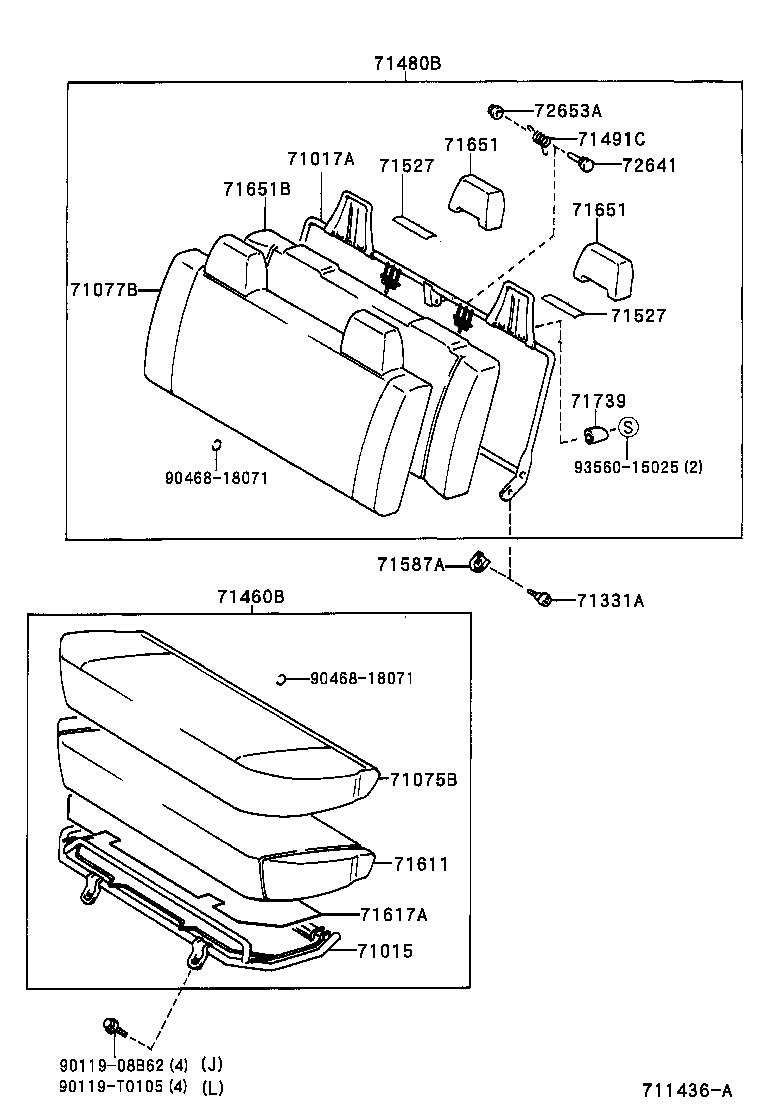

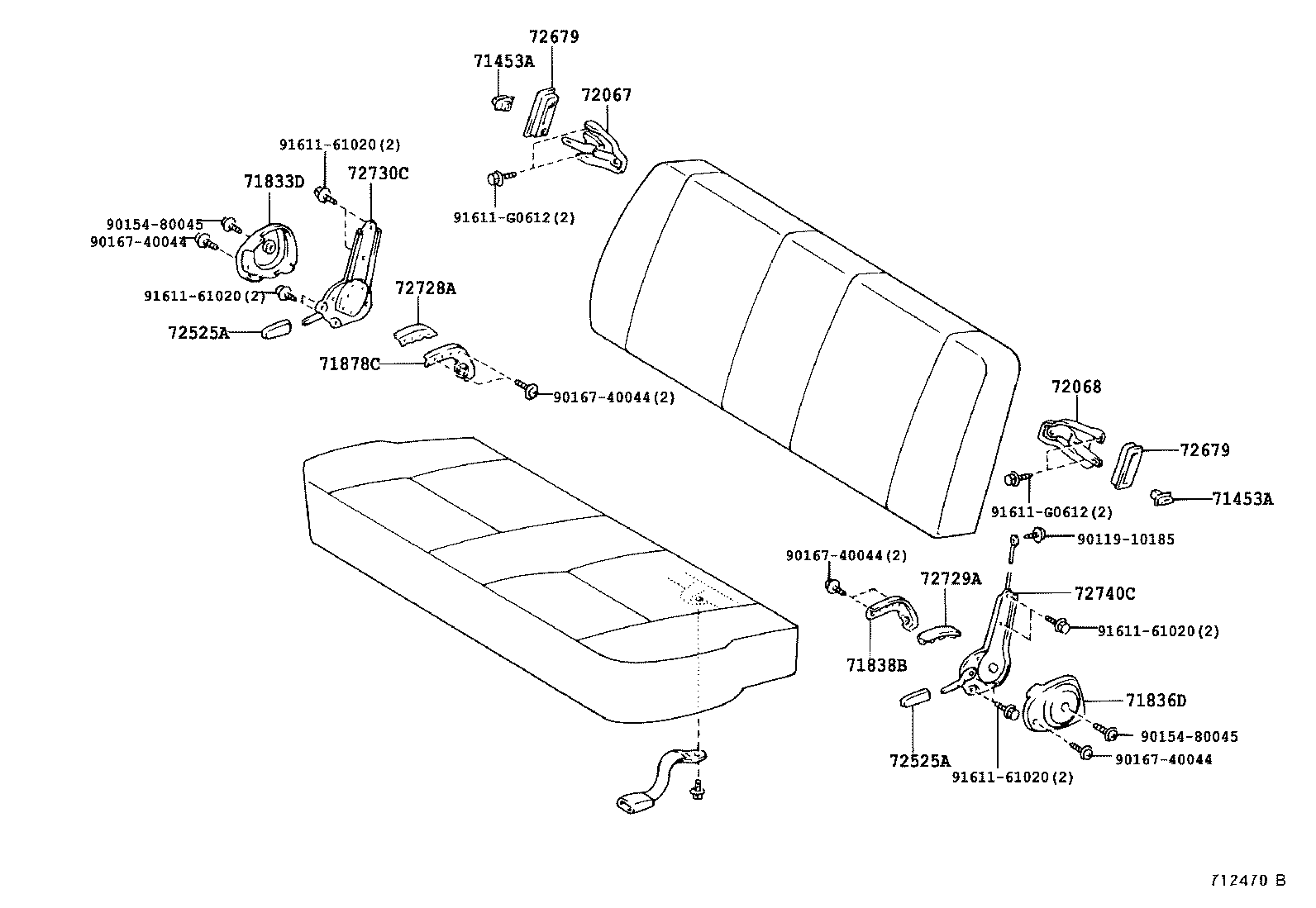

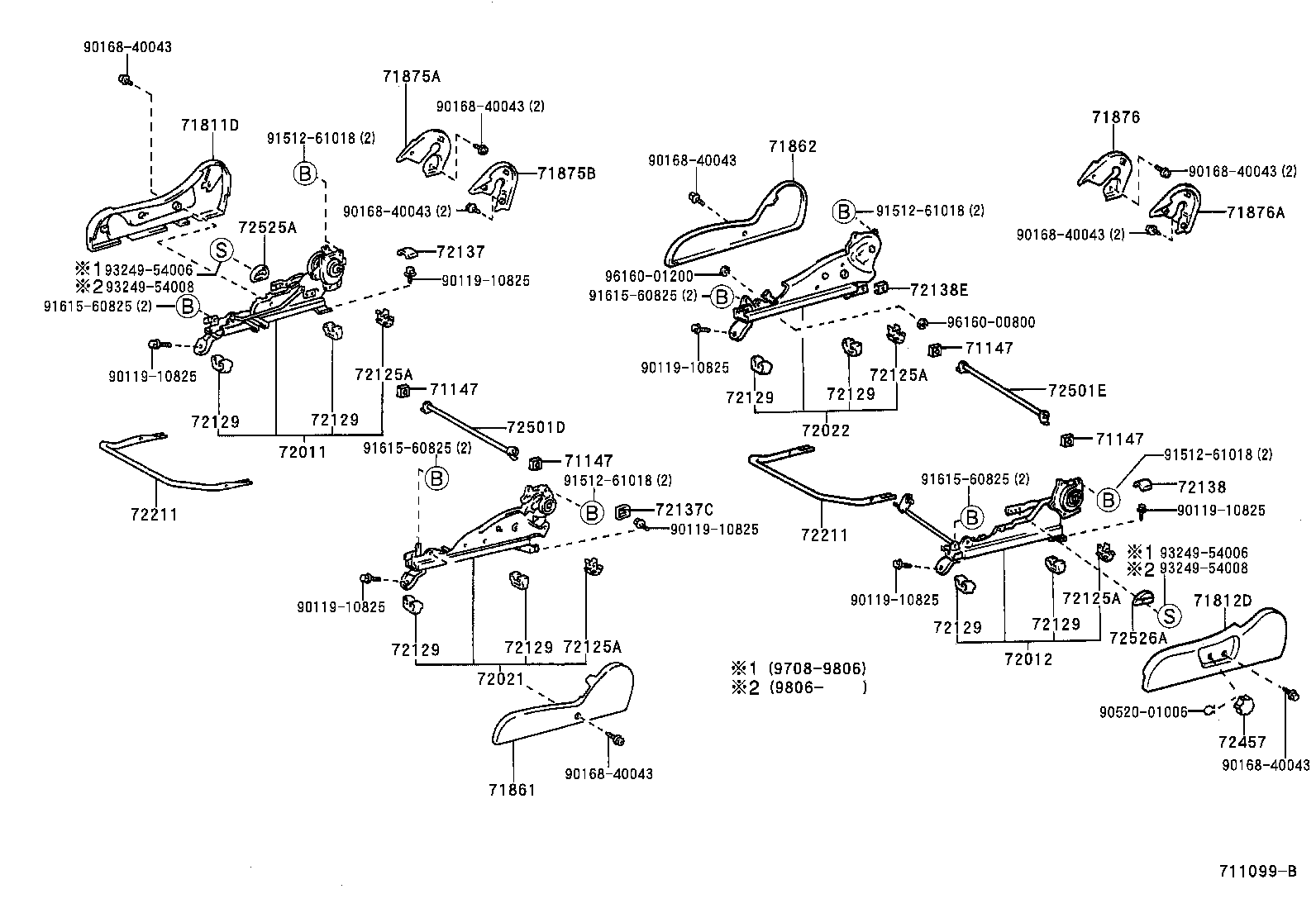

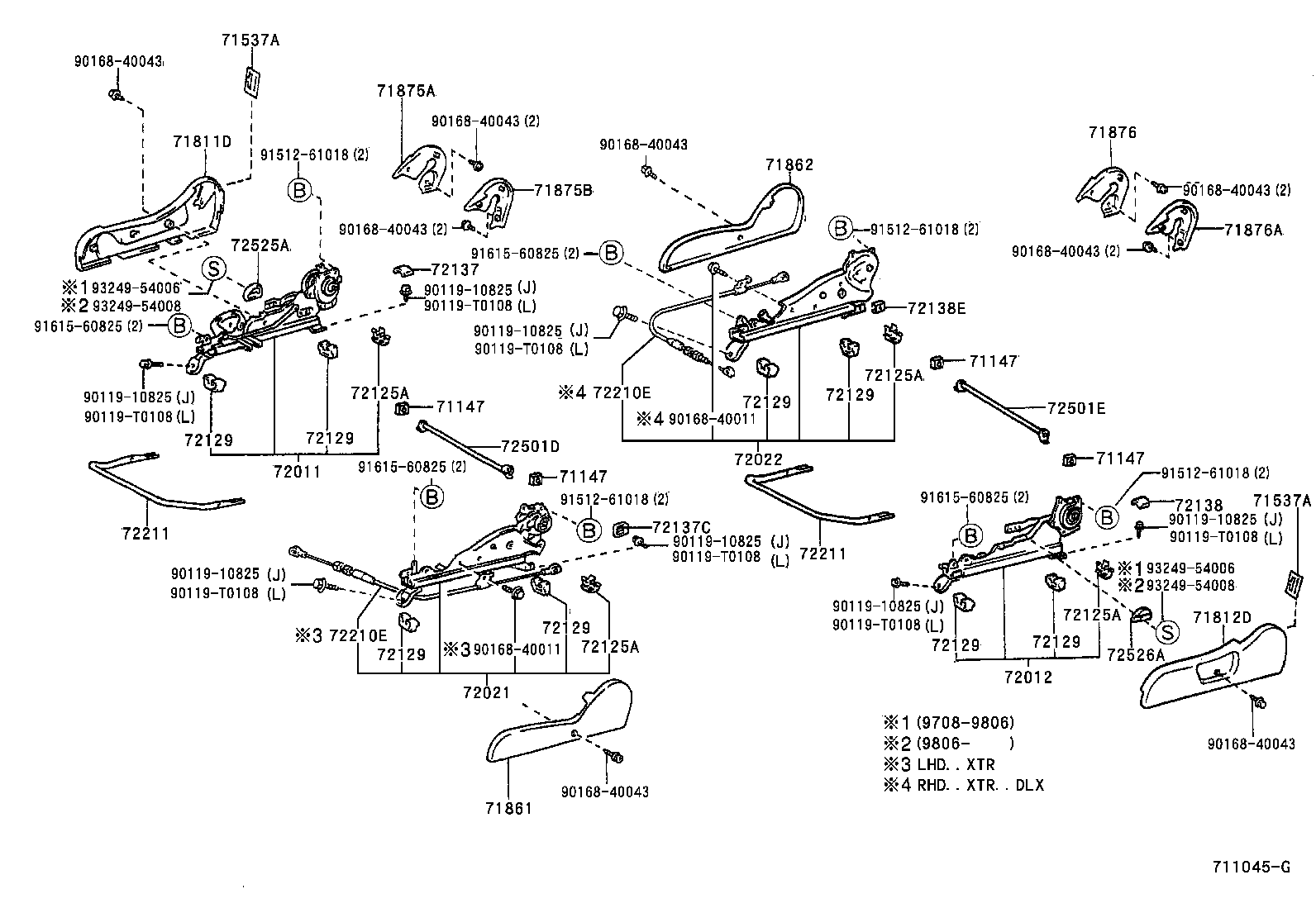

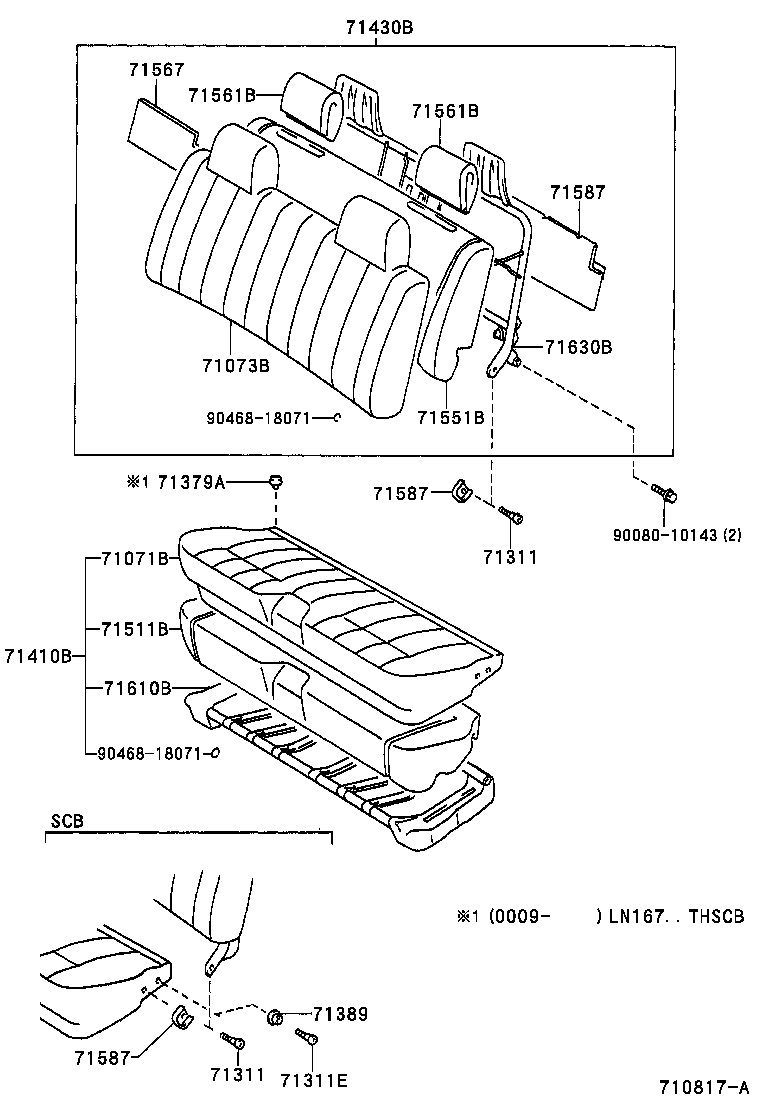

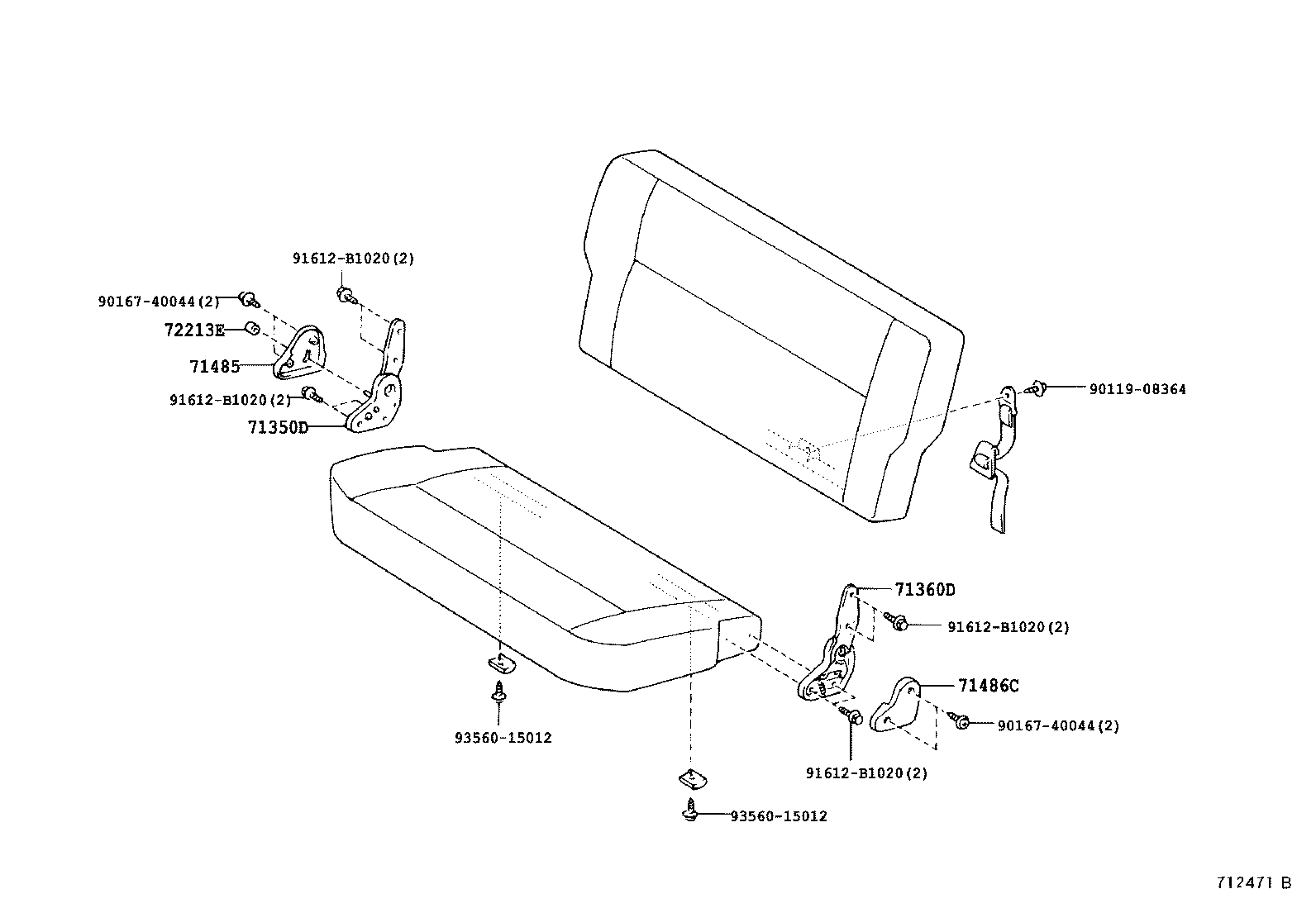

Figure 711100B 711100B 1997-08 → — Figure 710817A 710817A 1997-08 → — Figure 710821C 710821C 1997-08 → — Figure 711099B 711099B 1998-05 → 2001-08 Figure 711099B 711099B 2000-09 → 2001-08 Figure 711099B 711099B 2001-08 → — Figure 711099B 711099B 2002-08 → — Figure 711045G 711045G 1997-08 → — Figure 710819F 710819F 1997-08 → — Figure 710869E 710869E 1997-08 → — Figure 711436A 711436A 1997-08 → — Figure 710907F 710907F 1997-11 → — Figure 712470B 712470B 2002-08 → — Figure 712471B 712471B 2002-08 → —

Part groups

PNCDescription
71015 Frame Sub-assy, Rear Seat Cushion
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017A Frame Sub-assy, Rear Seatback
71071B Cover, Front Seat Cushion(FOR BENCH TYPE)
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073B Cover, Front Seatback(FOR BENCH TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71147 Silencer, Seat Spring
71311 Pin, Front Seat Hinge
71311E Bush(FOR REAR SEAT HINGE PIN)
71318B Reinforcement, Center Seat Cushion
71331A Pin, Rear Seat Hinge
71350D Hinge Assy, Rear Seat, NO.2 RH
71360D Hinge Assy, Rear Seat, NO.2 LH
71379A Stopper, Front Seat Vertical Handle
71379C Stopper, Rear Seat Cushion
71389 Spacer, Center Seat Hinge
71410B Cushion Assy, Front Seat(FOR BENCH TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430B Back Assy, Front Seat(FOR BENCH TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71453A Knob, Rear Seat Hinge
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460S Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71485 Cover, Rear Seat Hinge
71486C Cover, Rear Seat Hinge, LH
71491C Spring, Rear Seat Set
71511B Pad, Front Seat Cushion(FOR BENCH TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71527 Tape, Front Seat Cushion Silencer
71537A Protector, Front Seat Cushion
71551B Pad, Front Seatback(FOR BENCH TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71561B Pad, Front Seatback, Upper
71567 Pad, Front Seatback Safety
71587 Protector, Front Seatback Edge
71587A Protector, Rear Seatback Edge
71587B Protector, Front Seatback Edge
71588 Protector, Front Seatback Edge, NO.2
71610B Spring Assy, Front Seat Cushion(FOR BENCH TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611 Pad, Rear Seat Cushion
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71617A Cloth, Rear Seat Cushion Under
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71629 Cover, Rear Seat Cushion Hinge
71630B Spring Assy, Front Seatback(FOR BENCH TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71651 Pad, Rear NO.1 Seatback
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71739 Cushion, Seat Support
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71833D Cover Rear Seat Reclining, RH
71836D Cover, Rear Seat Reclining, Lower LH
71838B Cover, Rear Seat Reclining, Inner LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71878C Cover, Rear Seat Reclining, Inner RH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72011 Adjuster Sub-assy, Front Seat, Outer RH
72012 Adjuster Sub-assy, Front Seat, Outer LH
72021 Adjuster Sub-assy, Front Seat, Inner RH
72022 Adjuster Sub-assy, Front Seat, Inner LH
72067 Lever Sub-assy, Rear Back Lock Control, RH
72068 Lever Sub-assy, Rear Back Lock Control, LH
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72125A Cover, Seat Track, Upper Rear
72129 Protector, Seat Track Lower Rail, NO.1
72137 Cover, Seat Track, Outer RH
72137C Cover, Seat Track Inner, RH
72138 Cover, Seat Track, Outer LH
72138E Cover, Seat Track, Inner LH
72140A Track Assy, Front Seat,Inner LH
72210E Cable Assy, Seat Track Control(FOR WALK IN)
72211 Handle, Seat Track Adjusting
72213E Knob, Seat Track Adjusting Handle
72301 Wire Sub-assy, Seat Track Equalizing
72457 Knob, Vertical Seat Adjuster
72501D Pipe Sub-assy, Reclining Connecting, RH
72501E Pipe Sub-assy, Reclining Connecting, LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72641 Pin, Rear Seatback Lock
72653A Snap, Rear Seatback Lock Rod
72679 Bezel, Rear Seatback Lock Control
72728A Protector, Front Seat Reclining, Inner RH
72729A Protector, Front Seat Reclining, Inner LH
72730C Adjuster Assy, NO.2 Seat Reclining, RH
72740C Adjuster Assy, NO.2 Seat Reclining, LH
72750D Adjuster Assy, Lumbar Support, RH
72770 Adjuster Assy, Lumbar Support, LH
72791 Lever, Lumbar Support
72797 Spacer, Lumbar Support
