Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

22 part groups · 16 illustrations

Illustrations

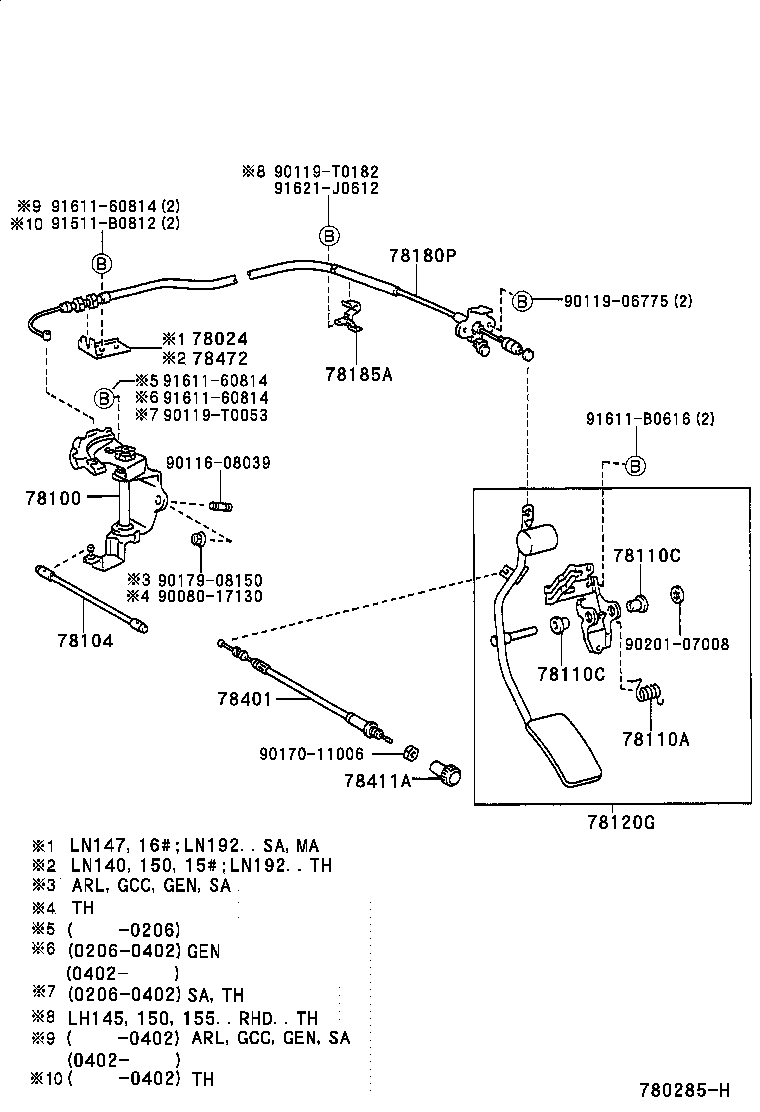

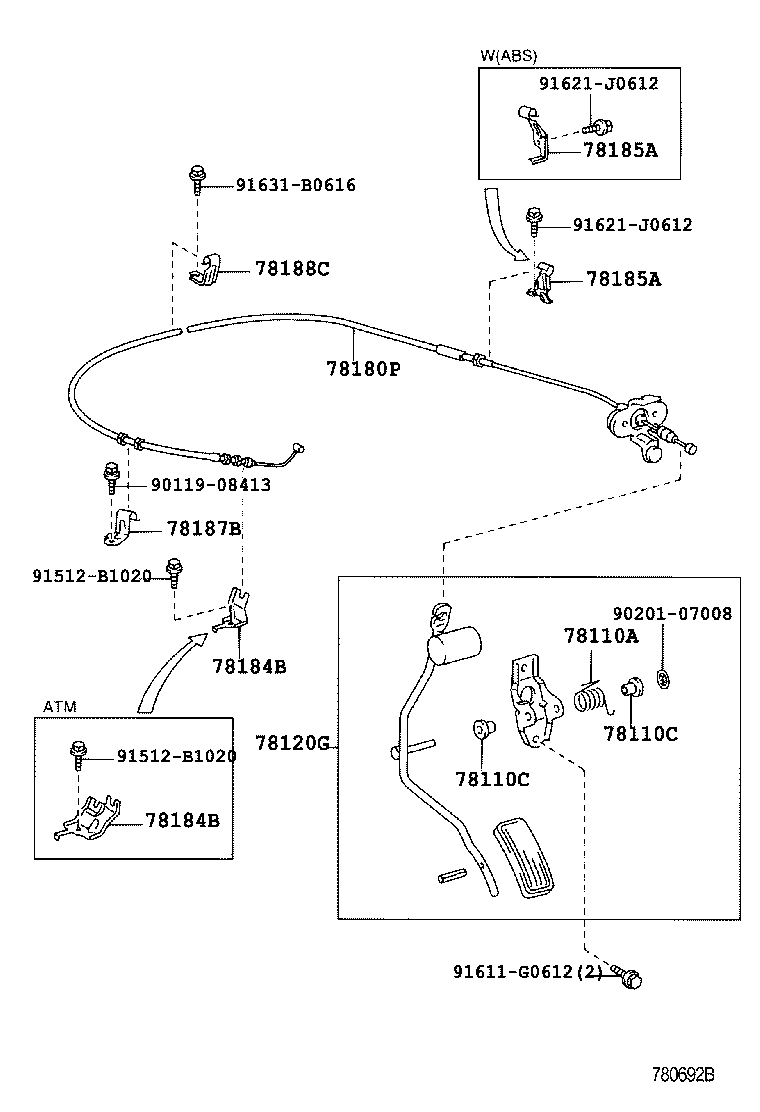

Figure 780284H 780284H 1997-08 → — Figure 780285H 780285H 1997-08 → — Figure 780285H 780285H 1997-08 → — Figure 780654B 780654B 1997-08 → — Figure 780655 780655 1997-08 → — Figure 780275C 780275C 1997-08 → — Figure 780276C 780276C 1997-08 → — Figure 780277D 780277D 1997-08 → — Figure 780278A 780278A 1997-08 → — Figure 780279A 780279A 1997-08 → — Figure 780373A 780373A 1998-08 → — Figure 780508D 780508D 1999-08 → — Figure 780508D 780508D 2000-12 → — Figure 780515C 780515C 2000-09 → — Figure 780691A 780691A 2001-10 → — Figure 780692B 780692B 2002-08 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78110C Bush (FOR ACCELERATOR PEDAL ROD)
78111C Pin (FOR ACCELERATOR PEDAL)
78120G Rod Assy, Accelerator Pedal
78130 Bellcrank Assy, Accelerator
78180P Cable Assy, Accelerator Control
78184B Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78186A Clamp, Accelerator Control Cable, NO.3
78187B Bracket, Accelerator Pull Back Spring
78188C Clamp, Accelerator Control Cable, NO.5
78310 Cable Assy, Choke
78310A Grommet, Choke Cable
78310B Clamp, Choke Cable
78311 Knob, Choke Control Cable
78401 Cable Sub-assy, Throttle Control
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
78472 Support, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
