Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

14 part groups · 8 illustrations

Illustrations

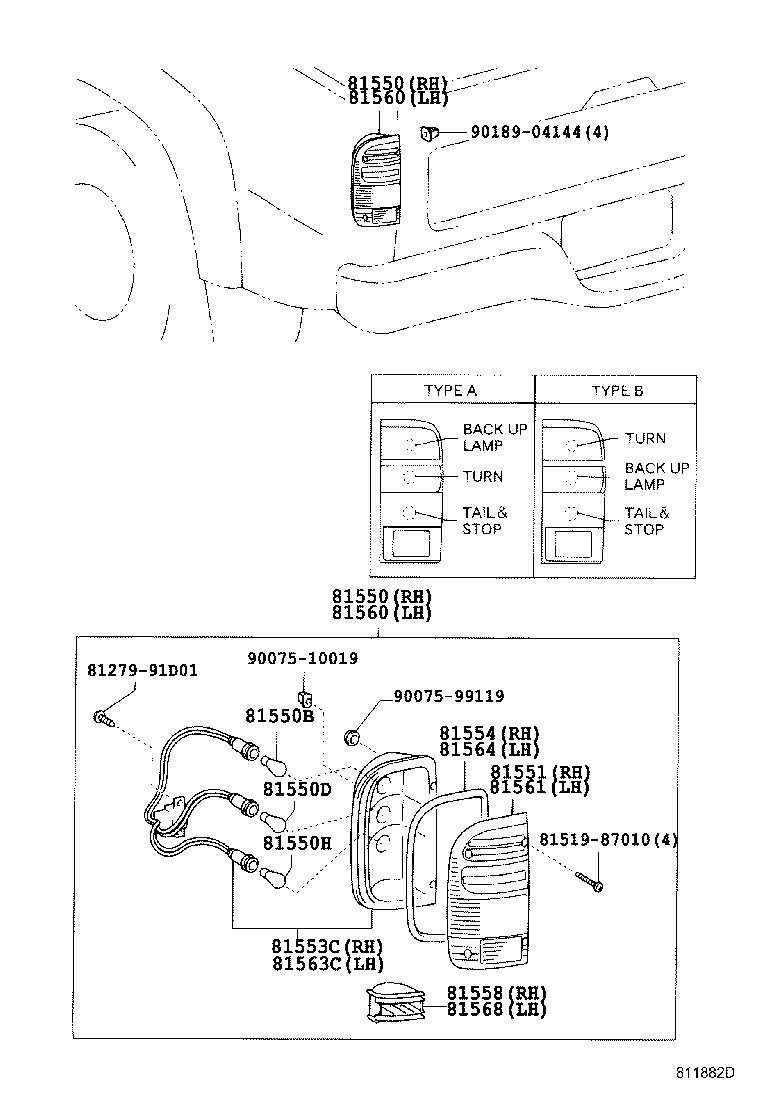

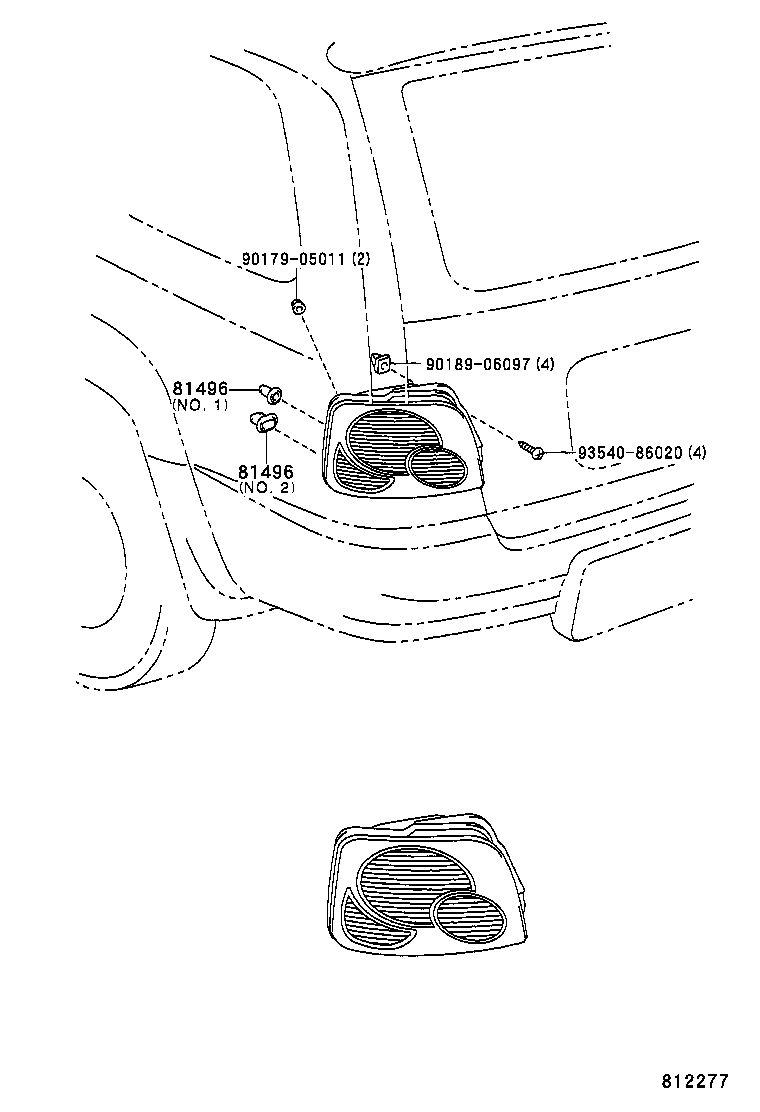

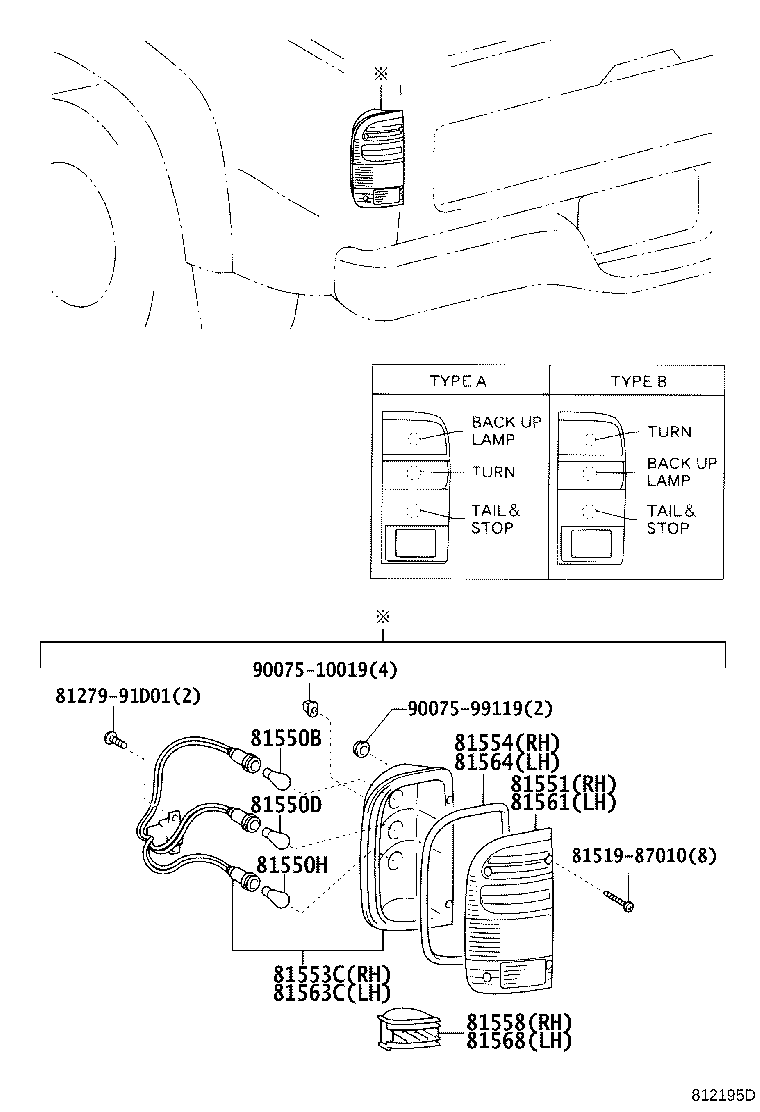

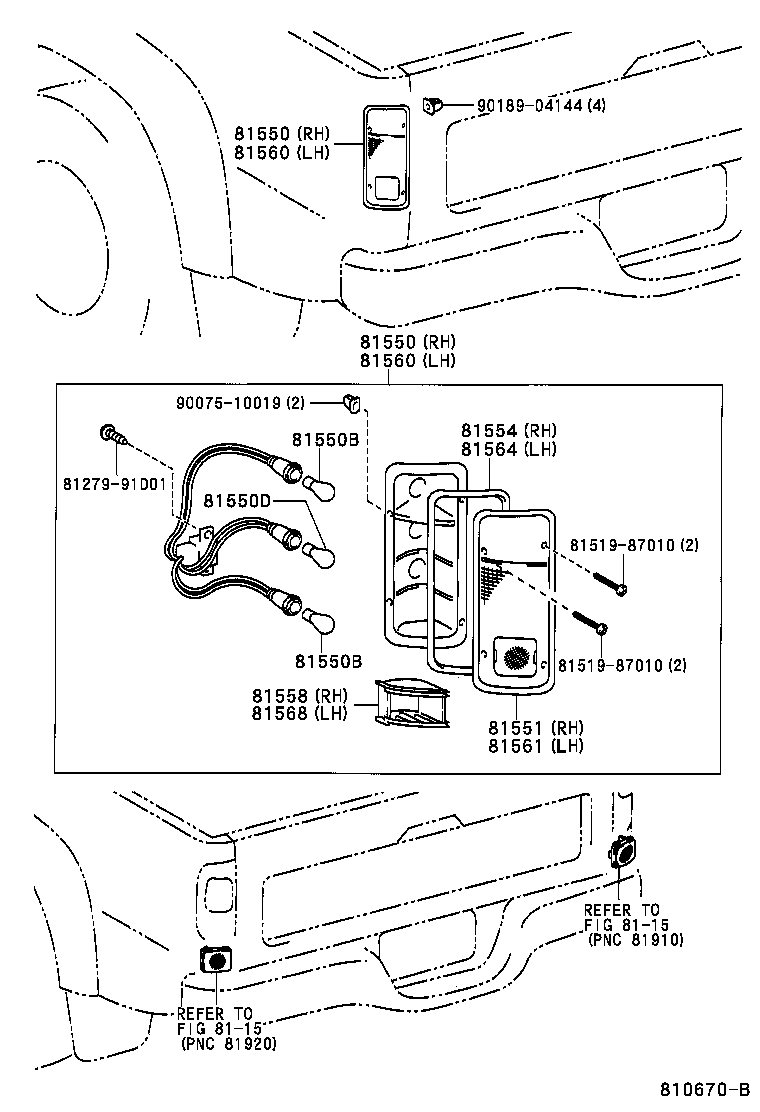

Figure 810669C 810669C 1997-08 → 2001-08 Figure 810669C 810669C 2001-08 → — Figure 812196B 812196B 2001-08 → — Figure 810670B 810670B 1997-08 → 2001-08 Figure 811882D 811882D 2001-08 → — Figure 811882D 811882D 2001-08 → — Figure 812195D 812195D 2001-08 → — Figure 812277 812277 2002-08 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81550D Bulb(FOR REAR COMBINATION LAMP)
81550H Bulb, Tail & Stop Lamp
81551 Lens, Rear Combination Lamp, RH
81553C Body, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81558 Shade, Rear Combination Lamp, NO.1 RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81563C Body, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81568 Shade, Rear Combination Lamp, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
