Toyota Hilux
1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General
Discontinued model
Data version 2007-07
Switch & Relay & Computer
113 part groups · 15 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28521 | Timer, Preheating |
| 28529 | Bracket, Preheating Timer, NO.1 |
| 28610A | Relay Assy, Glow Plug(SUB) |
| 81980 | Flasher Assy, Turn Signal |
| 81981A | Flasher, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82600M | Fuse, Medium Current |
| 82602A | Block Sub-assy, Relay |
| 82616 | Puller, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82661 | Cover, Relay Block, NO.1 |
| 82663 | Cover, Relay Block, Lower |
| 82671A | Block, Junction |
| 82671B | Block, Junction |

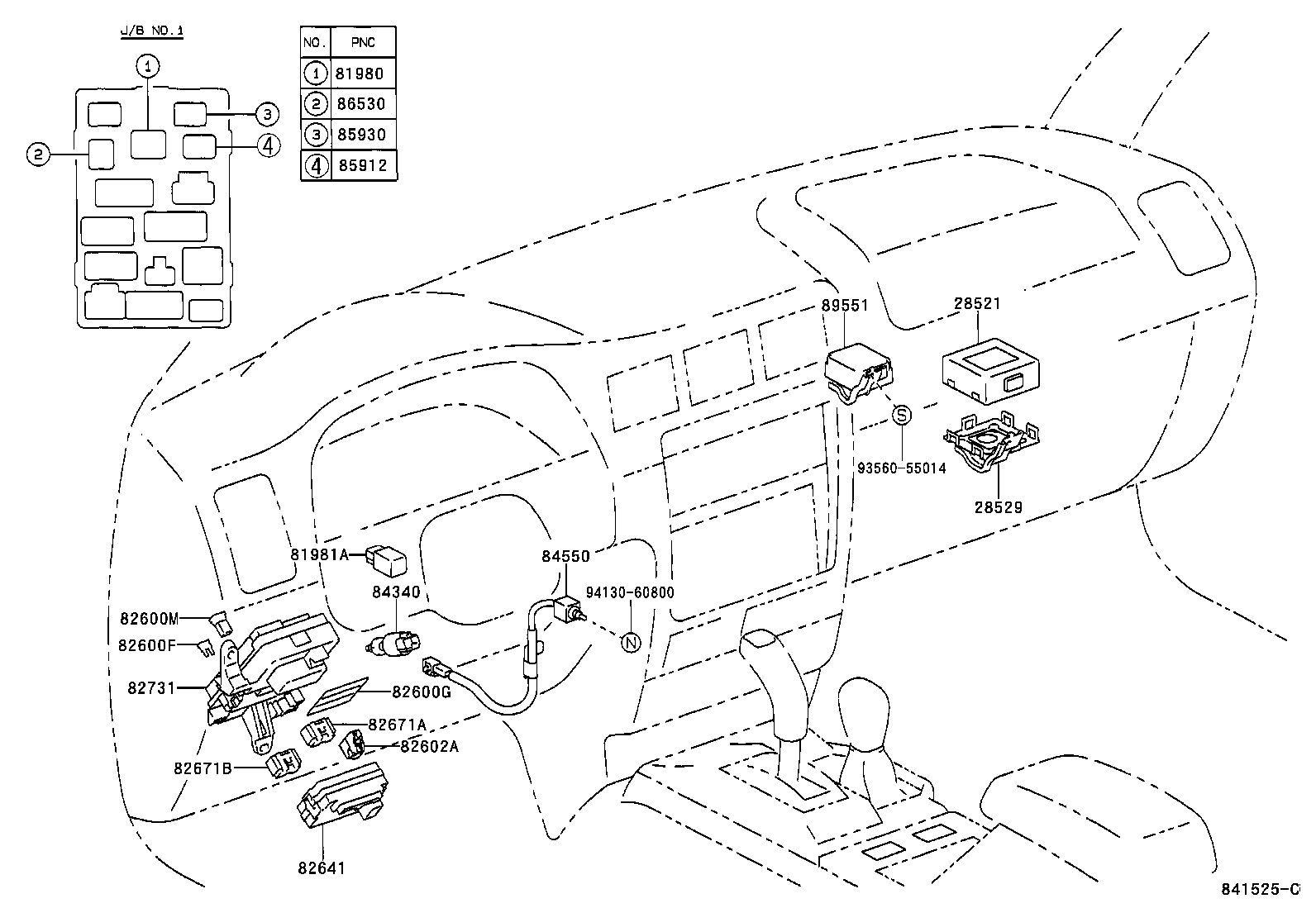

| 82731 | Block, Driver Side Junction |
| 82733 | Block, Passenger Side Junction |
| 82734A | Block, Center Junction |

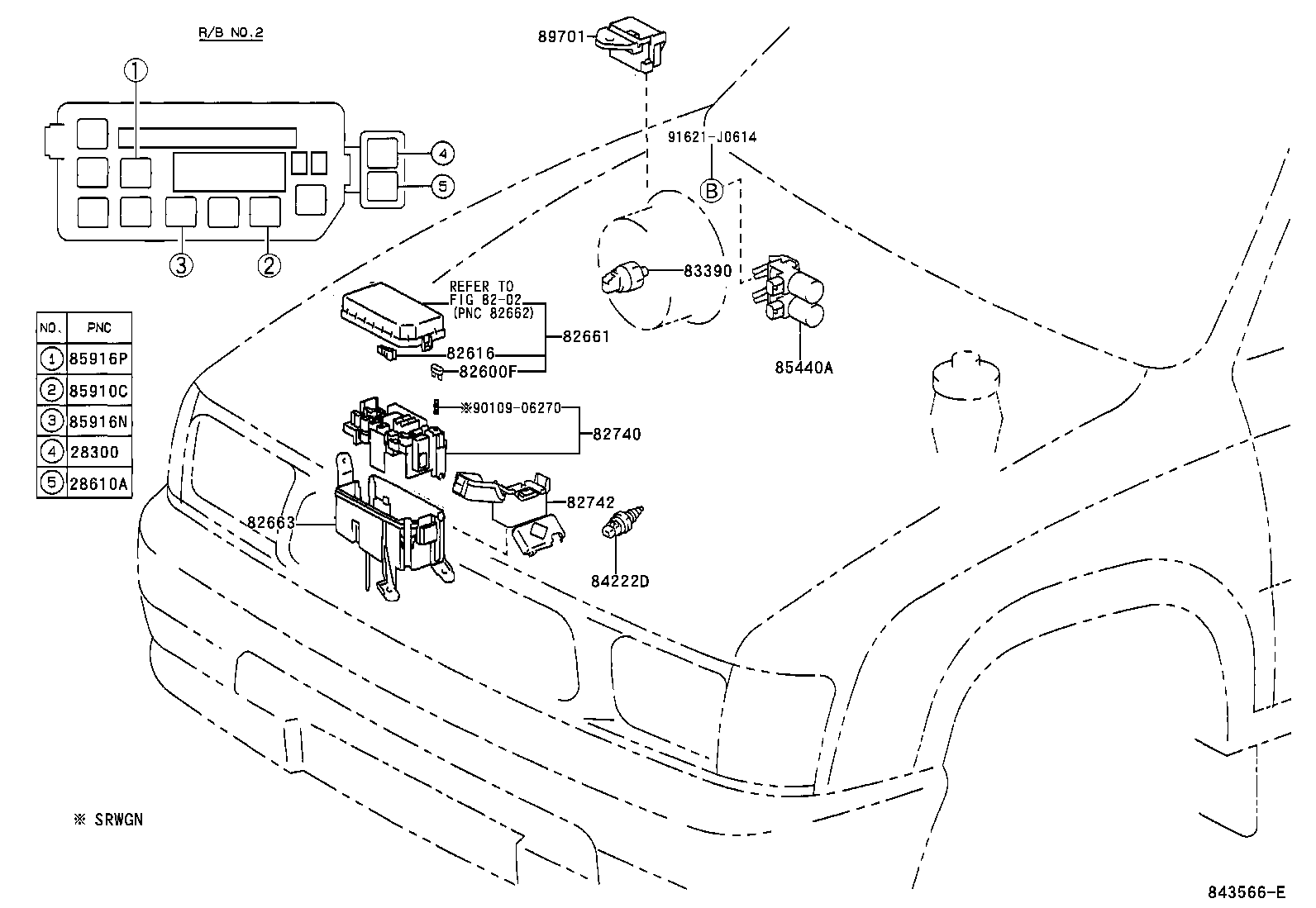

| 82740 | Block Assy, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82815 | Cover, Wiring Harness Protector |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83399 | Bracket, Vacuum Switch |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84052 | Switch Assy, Un-lock Warning |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84119A | Bolt OR Nut, Rheostat Control Set |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84152B | Bulb (FOR HEADLAMP LEVELING SWITCH) |
| 84162 | Switch, Front Fog Lamp |
| 84162A | Switch, Rear Fog Lamp |
| 84162B | Bulb, Fog Lamp Switch |
| 84162C | Bulb (FOR REAR FOG LAMP SWITCH) |
| 84210 | Switch Assy, Back-up Lamp |
| 84222 | Switch, Transfer Indicator, NO.1 |
| 84222B | Switch, Transfer Indicator, NO.2 |
| 84222C | Switch, Transfer Indicator, NO.3 |
| 84222D | Switch, Transfer Indicator, NO.4 |
| 84222E | Switch, Differential Lock Indicator |
| 84225A | Switch, Shift Position |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84306 | Cable Sub-assy, Spiral |

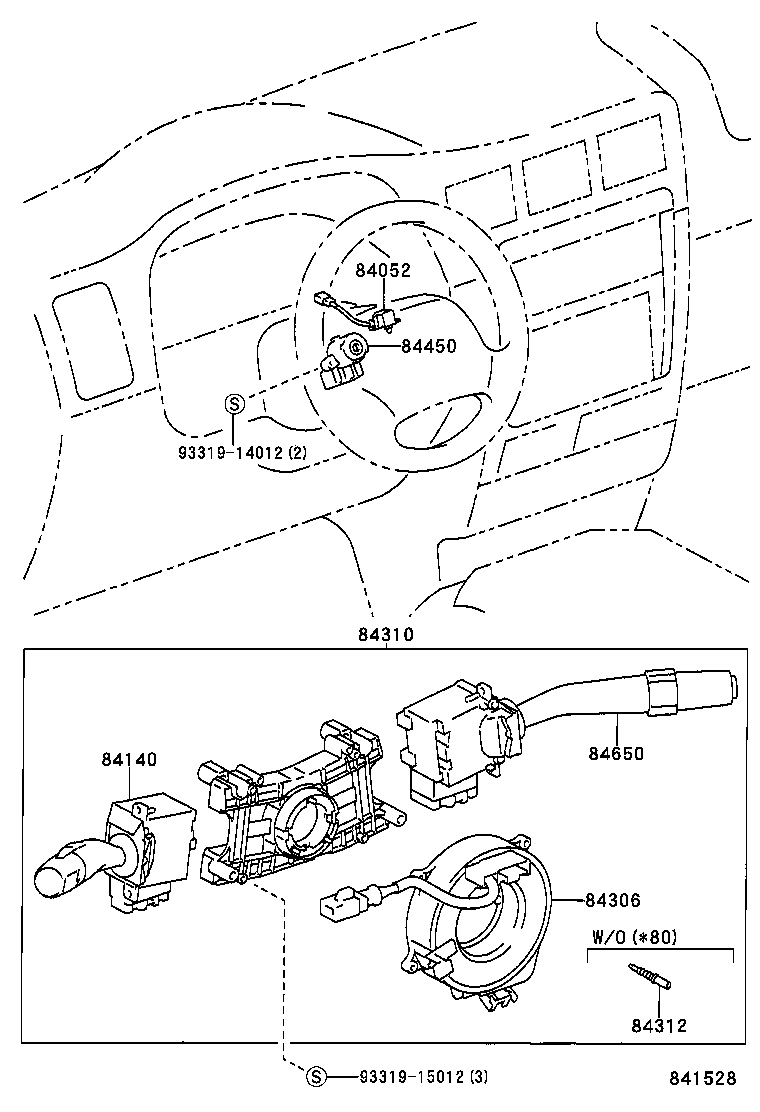

| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84656A | Bezel, Switch |
| 84660C | Switch, Cooler |
| 84660D | Bulb(FOR COOLER SWITCH) |
| 84660F | Cap, Cooler Switch Bulb |
| 84660R | Switch, Cooler(REAR) |
| 84724 | Switch, 4 Wheel Drive Control |
| 84725A | Switch, Differential Lock |
| 84725B | Blub, Differential Lock Switch |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84730D | Cap, Heater Blower Switch Bulb |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84930 | Switch Assy, Door Control |
| 85440A | Solenoid Assy, Four Wheel Drive Control |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85500F | Cap, Cigarette Lighter Bulb |
| 85510 | Socket & Retainer Assy, Cigarlighter |
| 85513 | Cover, Cigarette Lighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85930 | Relay Assy, Power Window |
| 86530 | Relay Assy, Horn |
| 86650H | Buzzer Assy, Back |
| 89421D | Sensor, Turbo Pressure |
| 89426A | Bracket, Vacuum Sensor |
| 89429 | Sensor, Oil Temperature |
| 89437 | Cover, Sensor |
| 89438 | Switch, Power Steering Oil Pressure |

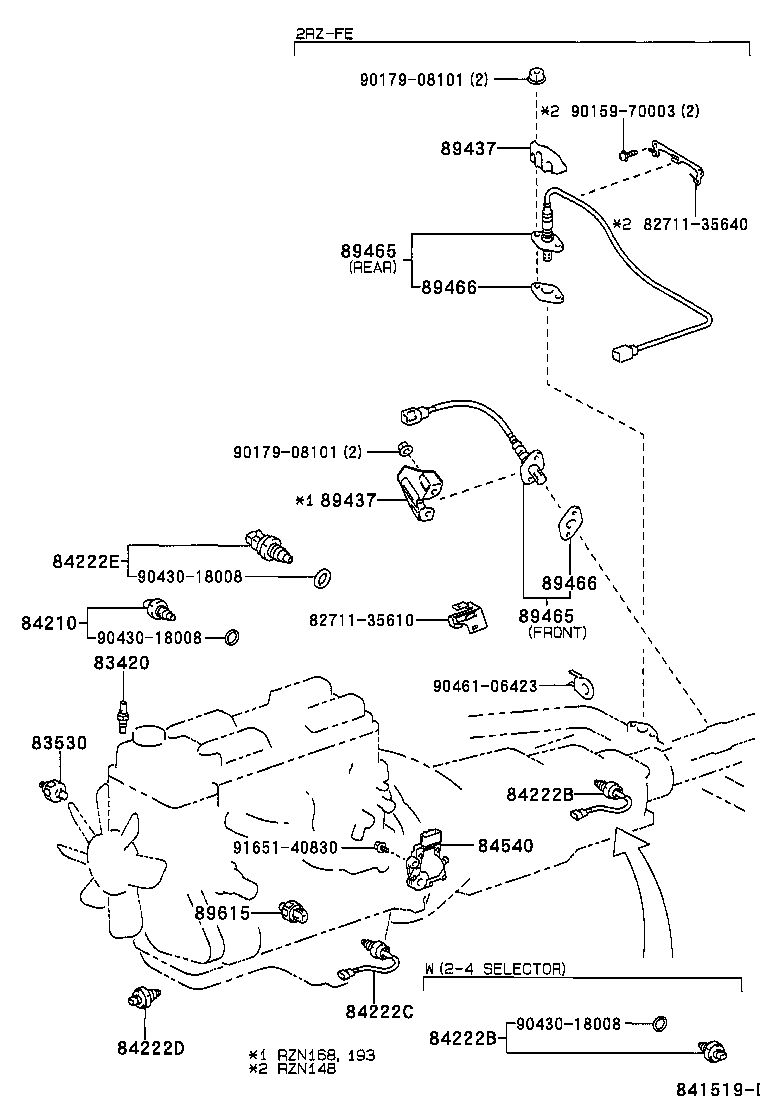

| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89531A | Relay, Transmission Control |
| 89533 | Computer, 4 Wheel Drive Control |
| 89551 | Computer, Emission Control |
| 89559 | Bracket, Emission Control Computer |
| 89615 | Sensor, Knock Control |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
| 89667B | Bracket, Engine Control Computer, NO.1 |
| 89668B | Bracket, Engine Control Computer, NO.2 |
| 89669D | Bracket, Engine Control Computer, NO.3 |
| 89701 | Block Sub-assy, Abs Relay |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
