Toyota Hilux
1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General
Discontinued model
Data version 2007-07
Overdrive & Electronic Controlled Transmission
13 part groups · 7 illustrations
Part groups

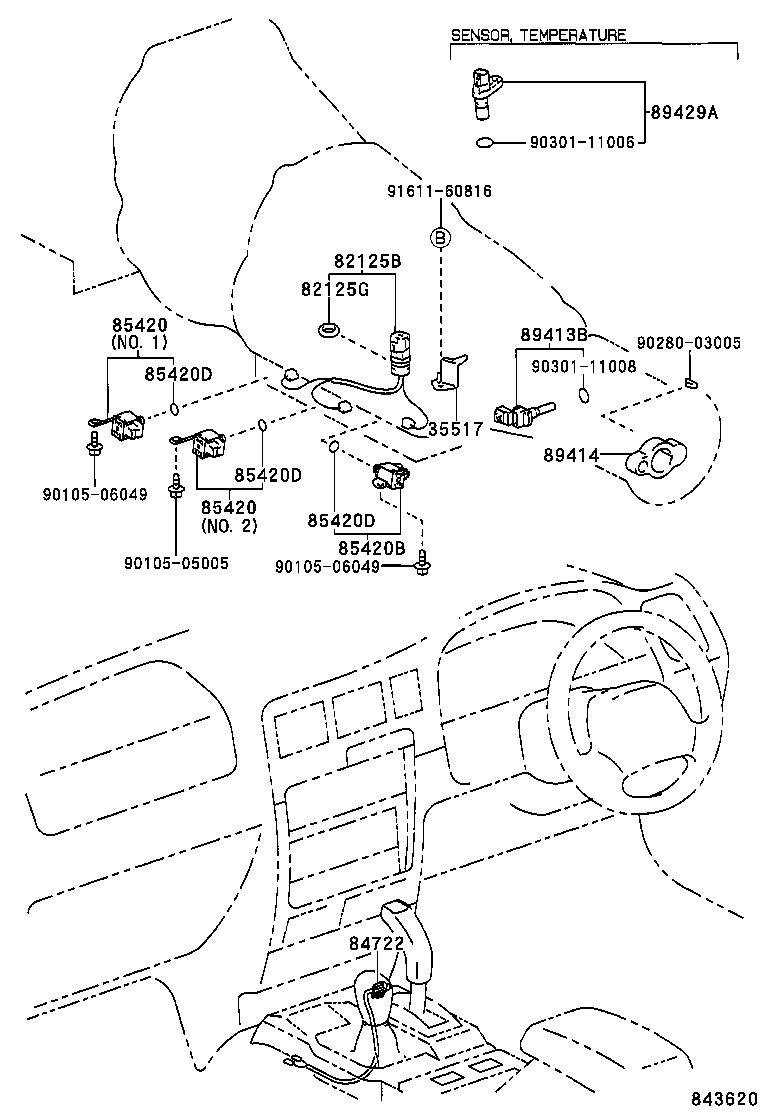

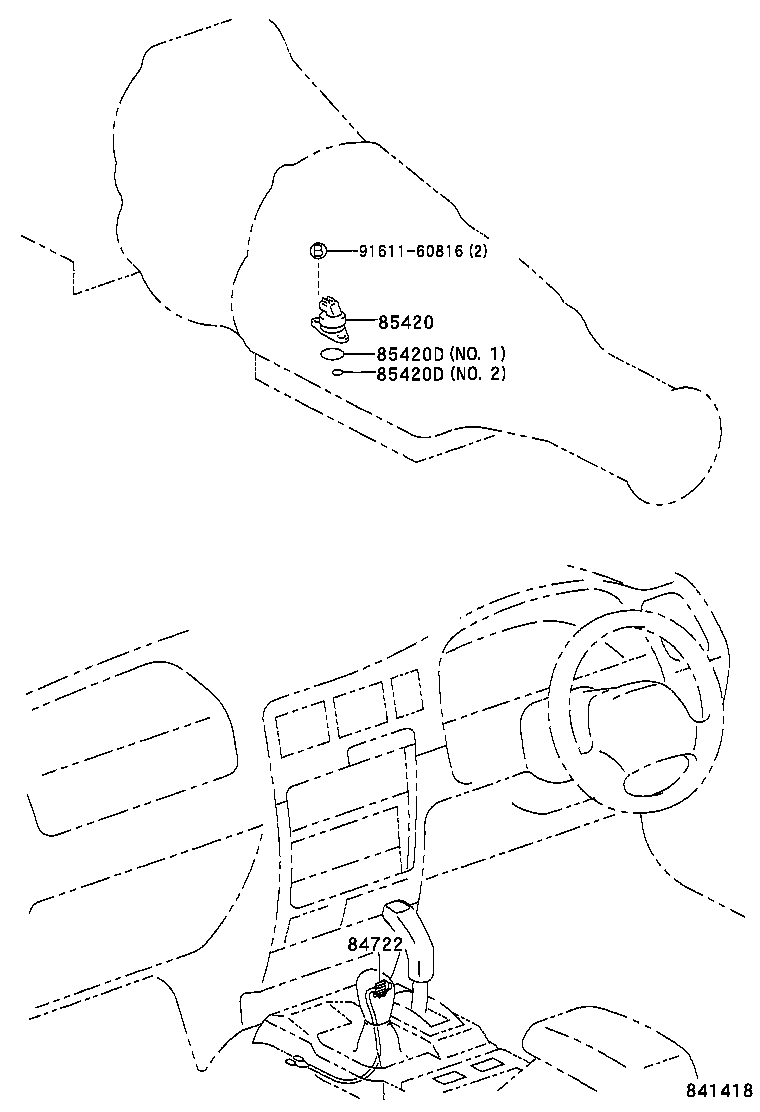

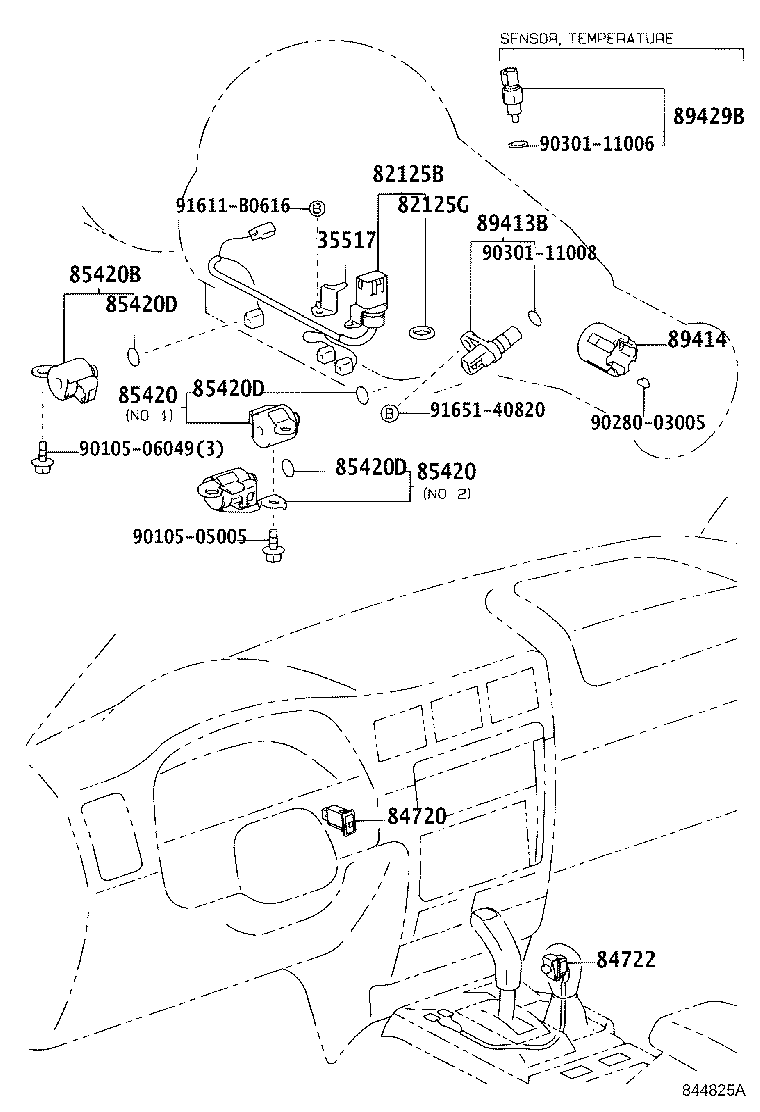

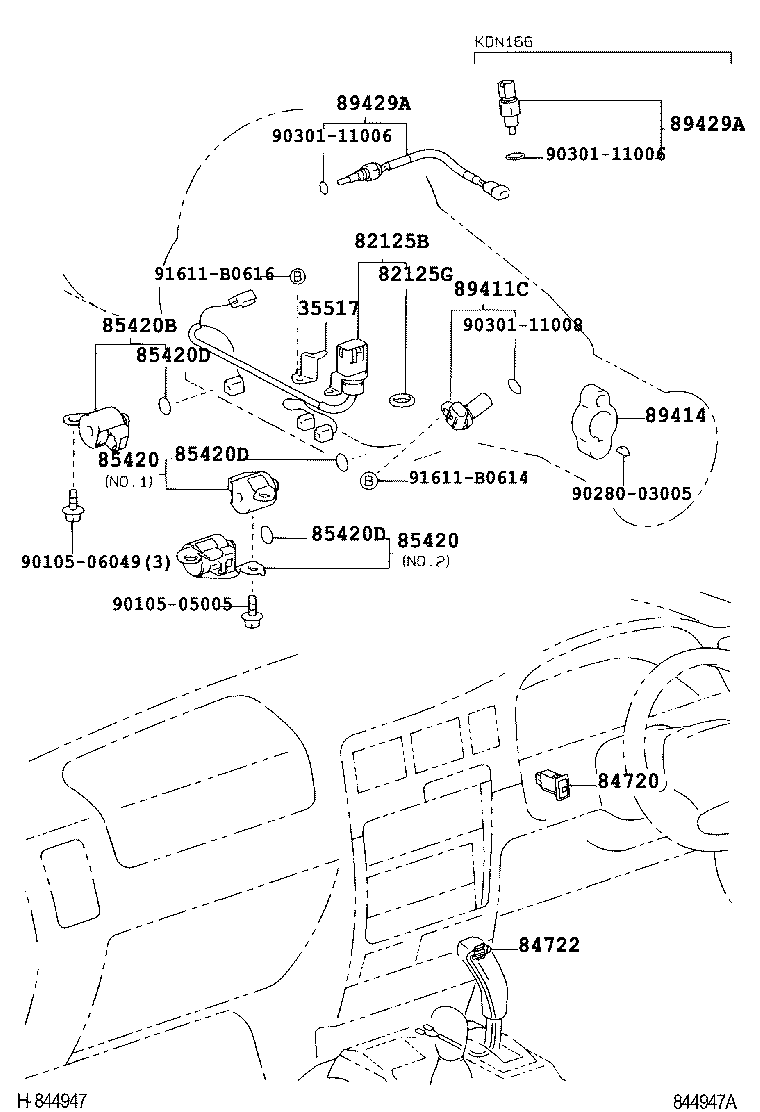

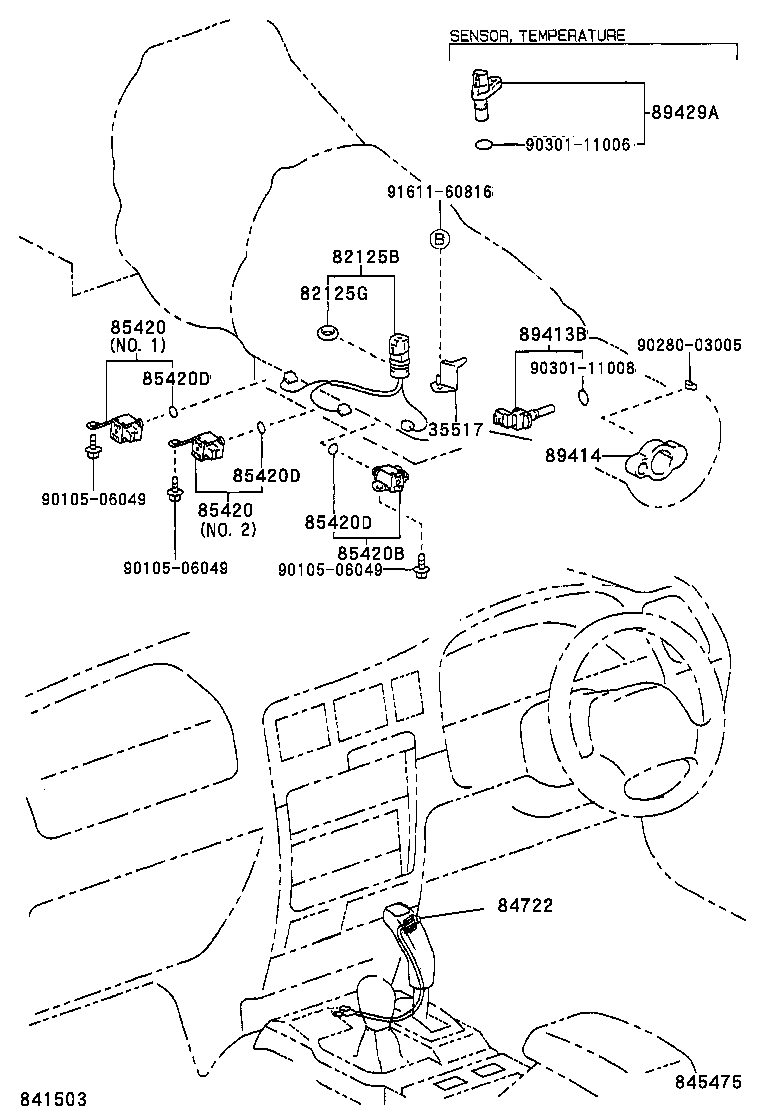

| PNC | Description |
|---|---|
| 35517 | Plate, Transmission Wire Lock |
| 82125B | Wire, Transmission |
| 82125G | Ring, O(FOR TRANSMISSION WIRE) |
| 84720 | Switch Assy, Pattern Select |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420B | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89411C | Sensor, Speed |
| 89413B | Sensor, Transmission Revolution |
| 89414 | Rotor, Sensor |
| 89429A | Sensor, Temperature |
| 89429B | Sensor, Temperature NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
