Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

3 part groups · 3 illustrations

Illustrations

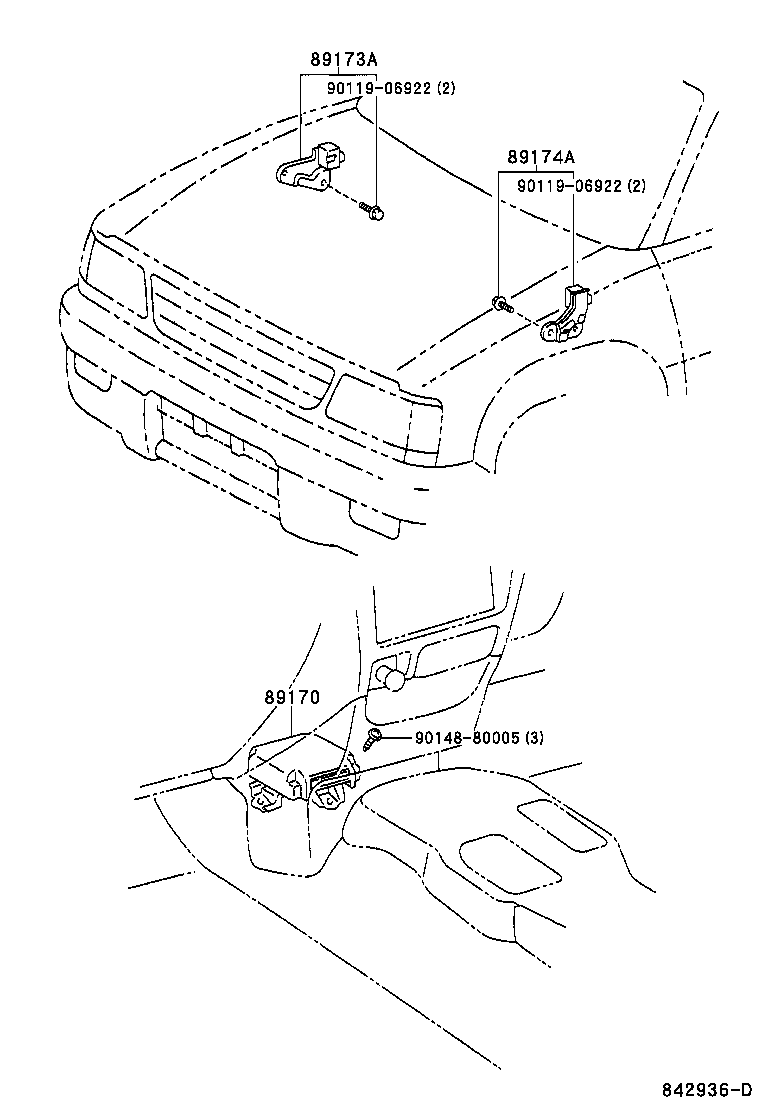

Figure 841422 841422 1997-08 → 1999-08 Figure 842936D 842936D 1999-08 → — Figure 842936D 842936D 1999-08 → —

Part groups

PNCDescription
89170 Sensor Assy, Airbag
89173A Sensor, Airbag, Front RH
89174A Sensor, Airbag, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
