Toyota Hilux
1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General
Discontinued model
Data version 2007-07

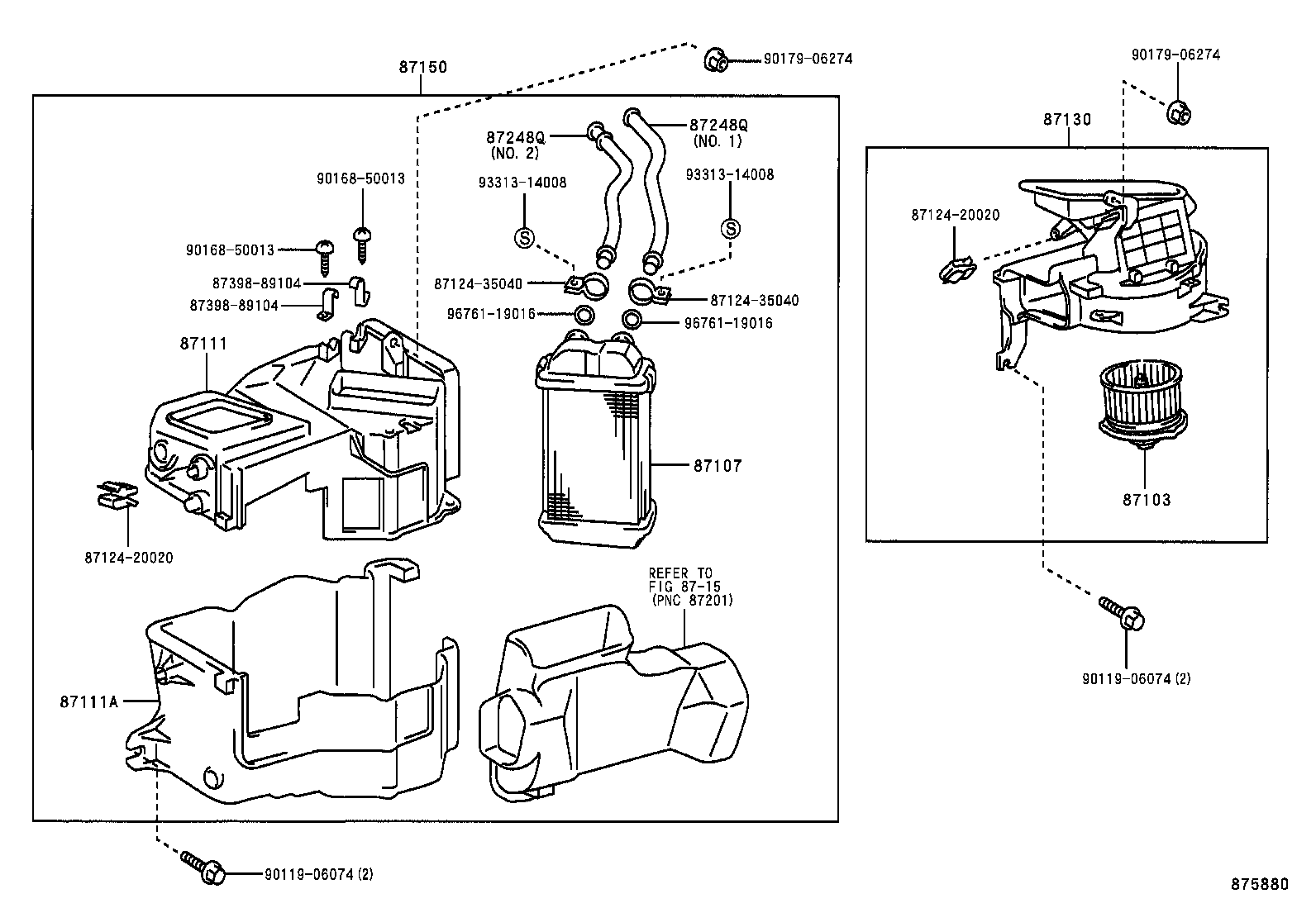

Heating & Air Conditioning - Heater Unit & Blower
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87111 | Case, Heater |
| 87111A | Case, Heater |
| 87130 | Blower Assy, Heater, Front |
| 87150 | Radiator Assy, Heater |
| 87248Q | Pipe, Front Heater Radiator Water |
| 88910 | Ventilator Assy, Boost |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
