Toyota Hilux
1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General
Discontinued model
Data version 2007-07

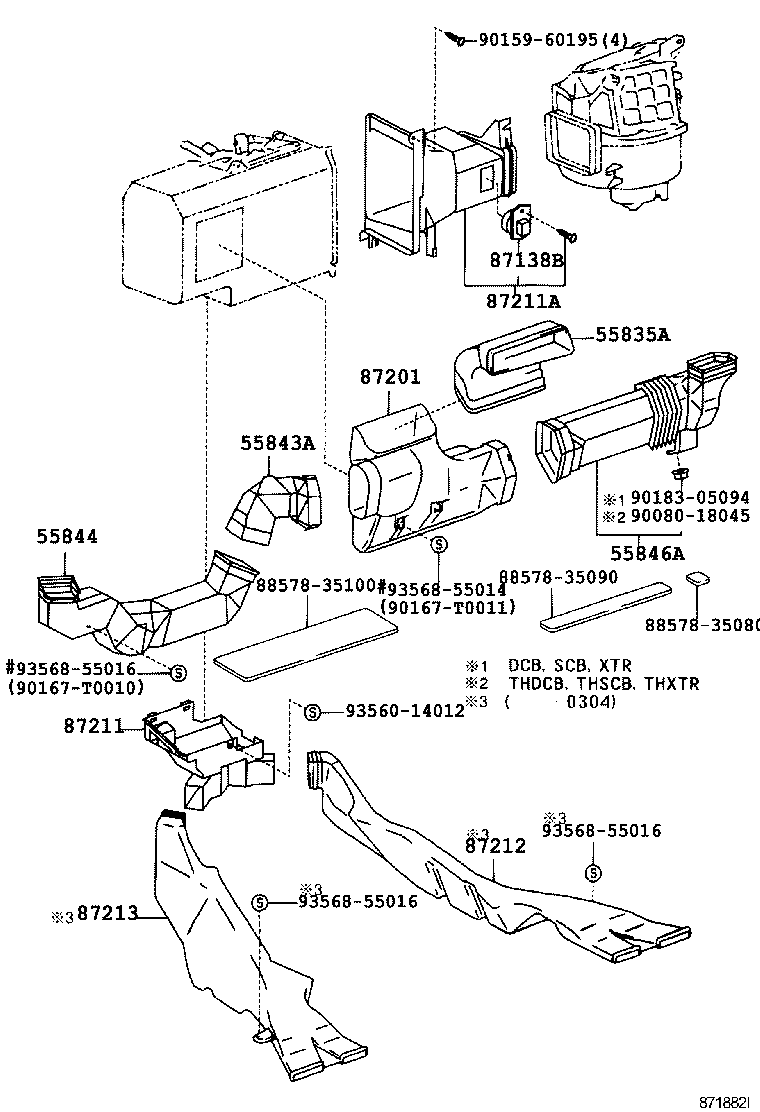

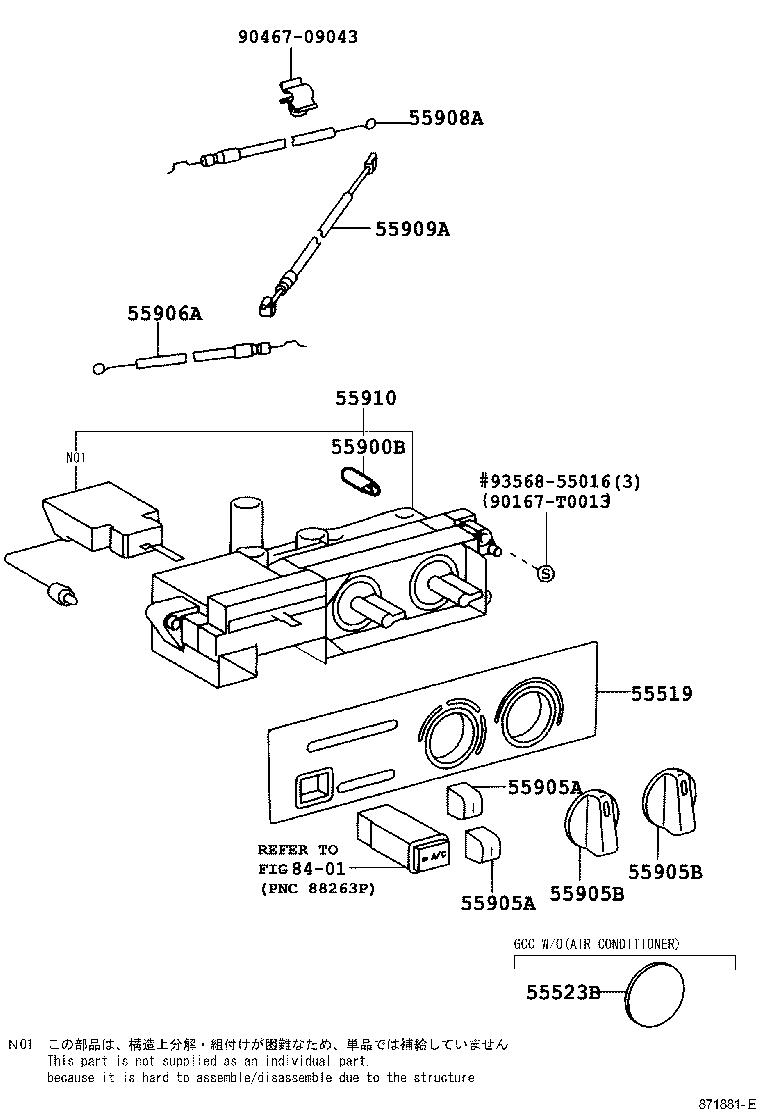

Heating & Air Conditioning - Control & Air Duct
23 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55082E | Duct Sub-assy, Cowl TO Register, NO.2 |
| 55519 | Plate, Heater Control Name |
| 55523B | Cover, Heater Control Opening |
| 55835A | Duct, Heater TO Register, Center |
| 55841B | Duct, Cowl TO Register, NO.1 |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55846A | Duct, Heater TO Register, NO.4 |
| 55900B | Bulb, Air Conditioner Control |
| 55905A | Knob, Heater Control |
| 55905B | Knob, Heater Control, NO.2 |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 87138B | Resistor, Heater Blower |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87284 | Resistor Sub-assy, Variable |
| 88611A | Knob, Cooler Control Switch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
