Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

16 part groups · 12 illustrations

Illustrations

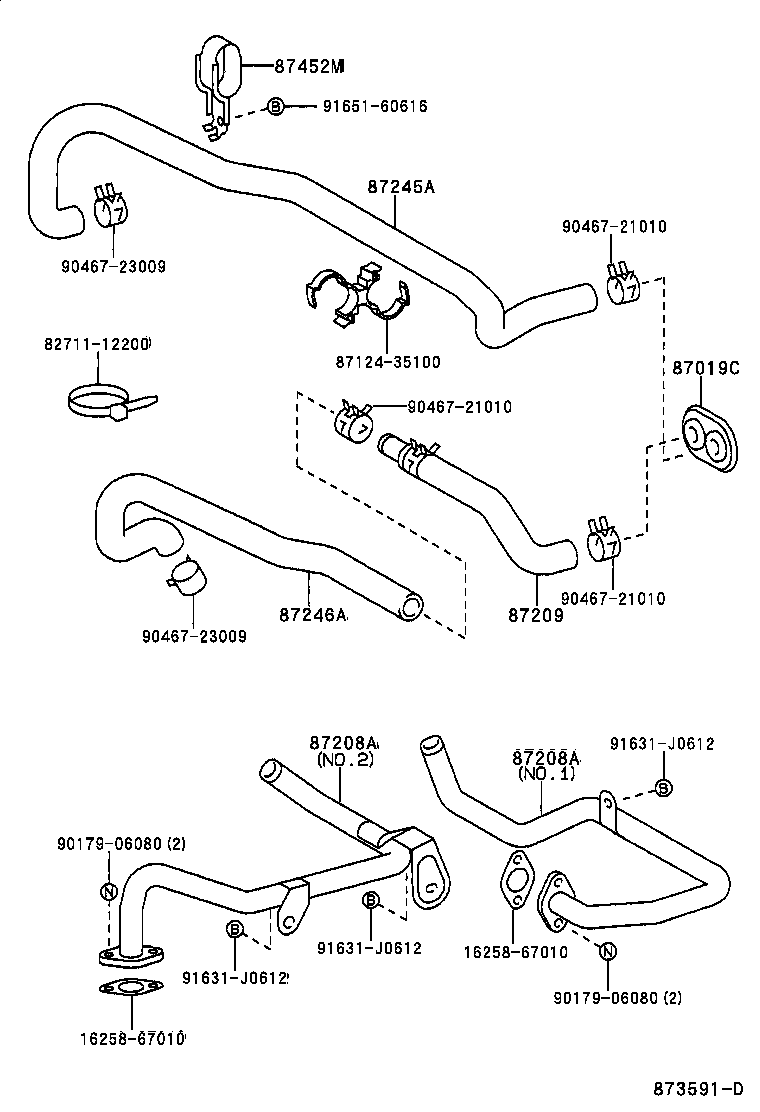

Figure 871799F 871799F 1997-08 → — Figure 875876 875876 1997-08 → — Figure 871894A 871894A 1997-08 → 2000-08 Figure 871894A 871894A 2000-08 → — Figure 871800A 871800A 1997-08 → — Figure 871895C 871895C 1997-08 → 2000-08 Figure 871895C 871895C 2000-08 → — Figure 875877B 875877B 1997-08 → — Figure 872775A 872775A 1998-08 → — Figure 873591D 873591D 1999-08 → — Figure 874369A 874369A 2000-09 → — Figure 875742B 875742B 2002-08 → —

Part groups

PNCDescription
87019C Grommet, Heater Hose
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87209 Hose Sub-assy, Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
87249H Gasket, Water Outlet Pipe
87263 Bracket, Heater Water Pipe, NO.1
87265 Connector, Heater Water Hose
87452M Bracket, Rear Heater Pipe, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
