Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

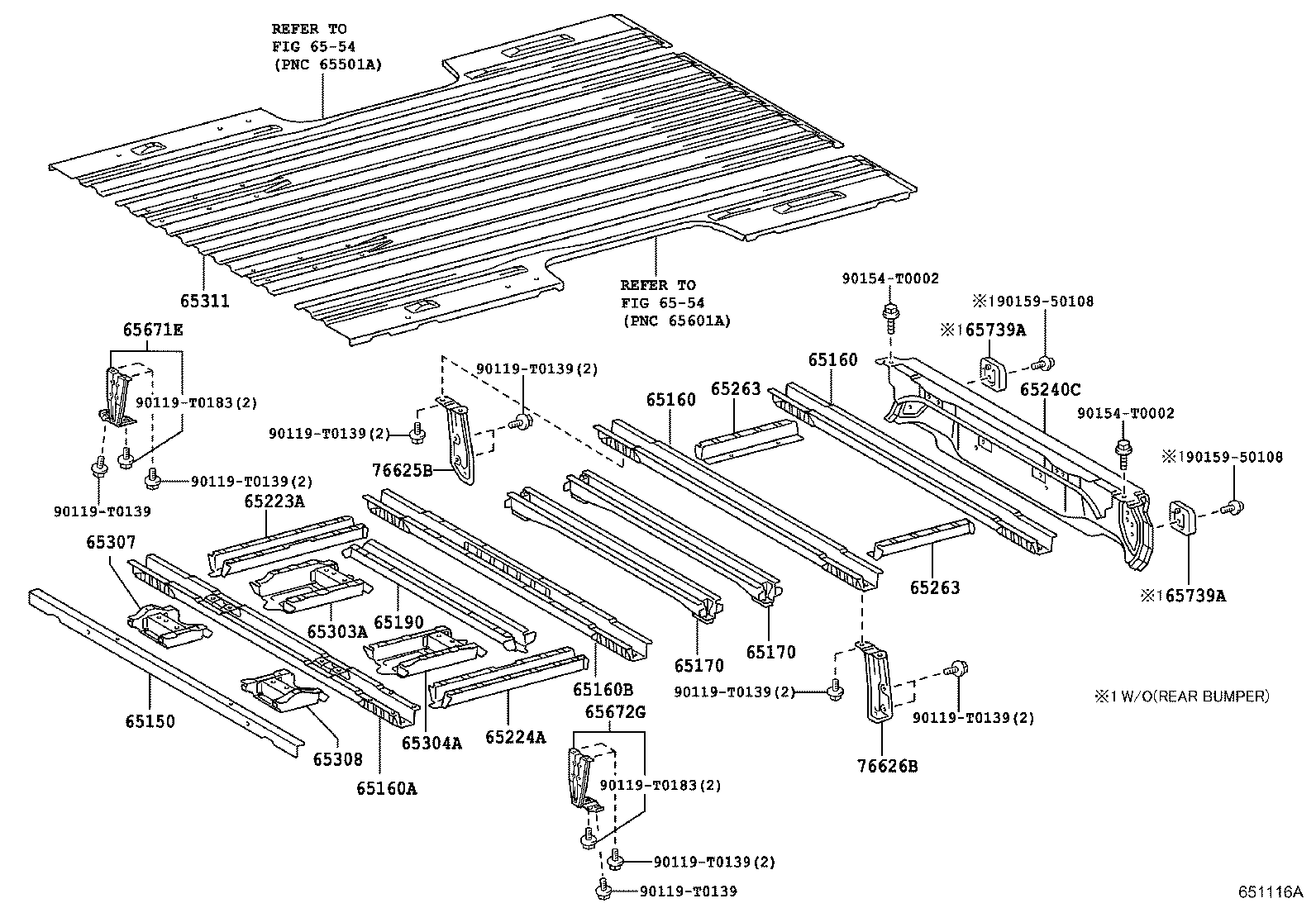

Exploded illustration 651116A 65160 — SILL ASSY, CROSS, NO.2 (6 parts) 65160 — SILL ASSY, CROSS, NO.2 (6 parts) 65170 — SILL ASSY, CROSS, NO.2 (6 parts) 65170 — SILL ASSY, CROSS, NO.2 (6 parts) 65223A — REINFORCEMENT, FLOOR PANEL, FRONT RH (1 parts) 65224A — REINFORCEMENT, FLOOR PANEL, FRONT LH (1 parts) 65240C — SILL ASSY, CROSS, NO.9 (47 parts) 65263 — REINFORCEMENT, FLOOR SIDE FRAME (4 parts) 65263 — REINFORCEMENT, FLOOR SIDE FRAME (4 parts) 90119T0139 — not listed in this catalogue 90119T0139 — not listed in this catalogue 90119T0139 — not listed in this catalogue 90119T0139 — not listed in this catalogue 90154T0002 — not listed in this catalogue 90154T0002 — not listed in this catalogue 76625B — MUDGUARD, REAR BODY, RH (3 parts) 76626B — MUDGUARD, REAR BODY, LH (3 parts) 65739A — BUMPER, TAIL GATE (9 parts) 65739A — BUMPER, TAIL GATE (9 parts) 9015950108 — not listed in this catalogue 9015950108 — not listed in this catalogue 90119T0139 — not listed in this catalogue 90119T0139 — not listed in this catalogue 90119T0139 — not listed in this catalogue 65672G — BRACE, SIDE PANEL SKIRT, FRONT LH (1 parts) 65671E — BRACE, SIDE PANEL SKIRT, FRONT RH (1 parts) 90119T0183 — not listed in this catalogue 90119T0139 — not listed in this catalogue 90119T0183 — not listed in this catalogue 65150 — SILL ASSY, CROSS, NO.1 (7 parts) 65160A — SILL ASSY, CROSS, NO.2 (2 parts) 65160B — SILL ASSY, CROSS, NO.2 (1 parts) 65190 — SILL ASSY, CROSS, NO.5 (4 parts) 65303A — FRAME SUB-ASSY, FLOOR SIDE, RH (2 parts) 65304A — FRAME SUB-ASSY, FLOOR SIDE, LH (2 parts) 65307 — BRACKET SUB-ASSY, GUAD FRAME, RH (2 parts) 65308 — BRACKET SUB-ASSY, GUAD FRAME, LH (2 parts) 65311 — PANEL, FLOOR, CENTER (9 parts) 6554 — not listed in this catalogue 6554 — not listed in this catalogue
651116A · 24 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
113 parts on this figure
Part number Description Fitment Price
65150 — Sill Assy, Cross, NO.1
65150-0K010 Sill Assy, Cross, NO.1
2011-07 → 2015-10 ended
KUN2# DCB MA —
65150-0K010 Sill Assy, Cross, NO.1
2011-07 → 2016-09 ended
KUN25 DCB PKN —
65150-0K010 Sill Assy, Cross, NO.1
2011-07 → —
GGN15 (ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH) DCB;GGN25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36 CBU +1 —
65150-0K020 Sill Assy, Cross, NO.1
2011-07 → 2015-04 ended
KUN10,TGN10,11 CBU —
65151-0K010 Sill Assy, Cross, NO.1
2011-07 → 2015-06 ended
KUN15,2#,35,TGN26,36 SCB (ANCOM,LA,PKN) CBU —
65151-0K010 Sill Assy, Cross, NO.1
2011-07 → 2015-12 ended
GGN15,KUN15,16,2#,3#,LAN15,25,TGN15,16,26,36 ,SA,TH) (SCB,SMT,THSCB,XTR) CBU +1 —
65151-0K011 Sill Assy, Cross, NO.1
2015-07 → 2016-09 ended
KUN15,2#,35,TGN26,36 SCB (ANCOM,LA,PKN) CBU —
65160 — Sill Assy, Cross, NO.2
65160-0K010 Sill Assy, Cross, NO.2
2011-07 → 2015-12 ended
KUN25 SCB MA —
65160-0K010 Sill Assy, Cross, NO.2
2011-07 → —
GGN15 CB,THDCB) DCB;TGN16 (ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH) +3 —
65160-0K010 Sill Assy, Cross, NO.2
2011-07 → 2016-09 ended
KUN36,LAN15,25 WC,HTWCF,IART) SCB;GGN15,KUN15,16,2#,35,TGN15,16,26,36 (ANCOM,ARL,GCC,GEN,LA,PKN,SA,TH) +3 —
65160-0K010 Sill Assy, Cross, NO.2
2011-07 → 2016-09 ended
KUN25 DCB PKN —
65160-0K010 Sill Assy, Cross, NO.2
2011-07 → 2015-12 ended
KUN10,TGN10,11 CBU;GGN15,KUN15,16,2#,3#,TGN16 (SMT,XTR) (DCR,HDCR,HTWC) +1 —
65160-0K010 Sill Assy, Cross, NO.2
2011-07 → 2015-10 ended
KUN2# DCB MA —
65160A — Sill Assy, Cross, NO.2
65160-0K020 Sill Assy, Cross, NO.2
2012-05 → 2015-04 ended
TGN16 CNG —
65261-0K010 Sill Assy, Cross, NO.2
2011-07 → 2015-04 ended
KUN10,TGN10,11 CBU —
65160B — Sill Assy, Cross, NO.2
65160-0K030 Sill Assy, Cross, NO.2
2012-05 → 2015-04 ended
TGN16 SCB CNG —
65170 — Sill Assy, Cross, NO.2
65170-0K010 Sill Assy, Cross, NO.2
2011-07 → 2015-06 ended
TGN36 .CBU;KUN15,LAN25 TD) 15,TGN16 +24 —
65170-0K010 Sill Assy, Cross, NO.2
2011-07 → 2015-12 ended
KUN26 ) #,LAN15,TGN16 10,11,16,26 +21 —
65170-0K010 Sill Assy, Cross, NO.2
2012-05 → 2015-04 ended
TGN16 SMT CNG —
65170-0K011 Sill Assy, Cross, NO.2
2015-07 → 2015-10 ended
KUN2# DCB MA —
65170-0K011 Sill Assy, Cross, NO.2
2015-07 → 2016-09 ended
KUN15,25 PKN CBU —
65170-0K011 Sill Assy, Cross, NO.2
2015-07 → —
TGN36 5,25,TGN16 DCB (DCB,SADCB) +7 —
65190 — Sill Assy, Cross, NO.5
65191-0K010 Sill Assy, Cross, NO.5
2011-07 → 2015-06 ended
KUN15,2#,35,TGN26,36 SCB (ANCOM,LA,PKN) CBU —
65191-0K010 Sill Assy, Cross, NO.5
2011-07 → 2015-12 ended
GGN15,KUN15,16,2#,3#,LAN15,25,TGN15,16,26,36 ARL,GCC,GEN,MA,SA,TH) (SCB,THSCB) CBU +2 —
65191-0K011 Sill Assy, Cross, NO.5
2015-07 → 2016-09 ended
KUN15,2#,35,TGN26,36 SCB (ANCOM,LA,PKN) CBU —
65191-0K020 Sill Assy, Cross, NO.5
2012-05 → 2015-04 ended
TGN16 SCB CNG —
65223A — Reinforcement, Floor Panel, Front RH
65223-0K030 Reinforcement, Floor Panel, Front RH
2012-05 → 2015-04 ended
TGN16 SCB CNG —
65224A — Reinforcement, Floor Panel, Front LH
65224-0K010 Reinforcement, Floor Panel, Front LH
2012-05 → 2015-04 ended
TGN16 SCB CNG —
65240C — Sill Assy, Cross, NO.9
65240-0K010 note Sill Assy, Cross, NO.9
2011-08 → 2014-10 ended
KUN15 DCB DLX SA —
65240-0K010 note Sill Assy, Cross, NO.9
2013-10 → 2015-06 ended
KUN25,35 SCB LA CBU —
65240-0K010 note Sill Assy, Cross, NO.9
2011-08 → 2015-06 ended
KUN15 SR DCR SA;KUN35 +3 —
65240-0K010 note Sill Assy, Cross, NO.9
2012-08 → 2015-04 ended
KUN15 DCB DLX TH —
65240-0K010 note Sill Assy, Cross, NO.9
2011-07 → 2015-04 ended
KUN15,TGN16 SMT DLX (DCR,HDCR,HTWC) —
65240-0K010 note Sill Assy, Cross, NO.9
2011-07 → 2015-04 ended
KUN15 DLX PHL —
65240-0K010 Sill Assy, Cross, NO.9
2011-07 → 2015-04 ended
TGN16 HDCR,HTWC) N) GCC +13 —
65240-0K011 note Sill Assy, Cross, NO.9
2015-07 → 2015-12 ended
KUN15 SR DCR;KUN35 DCB +5 —
65240-0K020 note Sill Assy, Cross, NO.9
2014-08 → 2015-04 ended
TGN26 SCB GCC;TGN15,16 5F +3 —
65240-0K020 note Sill Assy, Cross, NO.9
2011-08 → 2015-06 ended
KUN25,LAN25,35 RHD DCB SA —
65240-0K020 Sill Assy, Cross, NO.9
2013-11 → 2015-06 ended
GGN25 ARL;KUN26 DCB 5F +2 —
65240-0K020 note Sill Assy, Cross, NO.9
2011-07 → 2015-06 ended
KUN15,TGN16 SR TH;KUN25,LAN25,35 RHD +3 —
65240-0K020 Sill Assy, Cross, NO.9
2011-07 → 2015-06 ended
TGN26 XTR ,TH);KUN35 GN15,35,KUN16,TGN36 +45 —
65240-0K020 note Sill Assy, Cross, NO.9
2013-08 → 2015-04 ended
KUN25 4FC GEN —
65240-0K020 note Sill Assy, Cross, NO.9
2013-08 → 2015-04 ended
TGN26 DCB 5F GEN —
65240-0K020 note Sill Assy, Cross, NO.9
2012-08 → 2015-04 ended
KUN25 4FC GEN —
65240-0K020 note Sill Assy, Cross, NO.9
2011-07 → 2013-11 ended
GGN25 5FC SR ARL;KUN26 +3 —
65240-0K020 note Sill Assy, Cross, NO.9
2011-07 → 2015-04 ended
GGN15,25,KUN16,26,35,TGN16 RHD DLX (ARL,GEN) +1 —
65240-0K020 note Sill Assy, Cross, NO.9
2011-07 → 2015-04 ended
KUN15,25 LHD DCB DLX +1 —
65240-0K020 note Sill Assy, Cross, NO.9
2011-07 → 2015-04 ended
KUN15,25 GCC CBU;TGN16,26 DCB +3 —
65240-0K020 note Sill Assy, Cross, NO.9
2011-07 → 2012-08 ended
KUN15 DLX HDCR —
65240-0K021 note Sill Assy, Cross, NO.9
2015-07 → 2015-12 ended
KUN25 RHD DCB SA —
65240-0K021 Sill Assy, Cross, NO.9
2015-07 → —
TGN36 KUN15,26,3#,LAN15,25,TGN16 DCB (DCB,SADCB,XTR) +9 —
65240-0K021 note Sill Assy, Cross, NO.9
2015-07 → 2015-12 ended
KUN25 RHD DCB SA —
65240-0K021 Sill Assy, Cross, NO.9
2015-07 → 2015-10 ended
KUN2# DCB MA —
65240-0K040 Sill Assy, Cross, NO.9
2012-08 → 2015-06 ended
KUN15 DCB DLX TH —
65240-0K040 note Sill Assy, Cross, NO.9
2011-08 → 2015-06 ended
KUN35 DCB DLX SA —
65240-0K040 Sill Assy, Cross, NO.9
2011-07 → 2015-06 ended
KUN25 SMT,XTR) PKN;KUN15 DLX +8 —
65240-0K041 Sill Assy, Cross, NO.9
2015-07 → 2016-09 ended
KUN15,25 PKN CBU —
65240-0K041 note Sill Assy, Cross, NO.9
2015-07 → 2015-12 ended
KUN35 DCB DLX SA —
65240-0K050 note Sill Assy, Cross, NO.9
2011-07 → 2012-08 ended
KUN15 SCB TH —
65240-0K050 Sill Assy, Cross, NO.9
2011-07 → 2012-08 ended
KUN15 DLX HDCR —
65240-0K050 note Sill Assy, Cross, NO.9
2011-08 → 2015-06 ended
KUN35 DCB DLX SA —
65240-0K050 Sill Assy, Cross, NO.9
2011-07 → 2015-06 ended
KUN15 GEN;KUN25,LAN25 BU SR +17 —
65240-0K050 Sill Assy, Cross, NO.9
2011-07 → 2013-11 ended
GGN25 5FC SR ARL;KUN26 +4 —
65240-0K051 Sill Assy, Cross, NO.9
2015-07 → 2015-12 ended
KUN25 SCB MA;KUN25 RHD +2 —
65240-0K051 note Sill Assy, Cross, NO.9
2015-07 → 2015-12 ended
KUN35 DCB DLX SA —
65240-0K070 note Sill Assy, Cross, NO.9
2011-08 → 2015-06 ended
LAN25 SCB;KUN25 RHD SCB +1 —
65240-0K070 note Sill Assy, Cross, NO.9
2011-08 → 2015-06 ended
KUN15,25,LAN15,25,TGN15 SCB SA —
65240-0K070 Sill Assy, Cross, NO.9
2011-08 → 2015-06 ended
KUN35,TGN16 SCB SA —
65240-0K071 Sill Assy, Cross, NO.9
2015-07 → 2015-12 ended
KUN35,TGN16 SCB SA —
65240-0K071 note Sill Assy, Cross, NO.9
2015-07 → 2015-12 ended
KUN15,25,LAN15,25,TGN15 SCB SA —
65240-0K071 note Sill Assy, Cross, NO.9
2015-07 → 2015-12 ended
LAN25 SCB;KUN25 RHD SCB +1 —
65240-0K080 Sill Assy, Cross, NO.9
2011-07 → 2015-06 ended
TGN16 SCB TH;KUN15,16,25,LAN15,25,TGN15 SCB +1 —
65240-0K081 Sill Assy, Cross, NO.9
2015-07 → 2015-12 ended
KUN15,25,LAN15,25,TGN15 SCB SA —
65240-0K130 Sill Assy, Cross, NO.9
2011-08 → 2015-06 ended
KUN26,36,TGN36 SCB SA —
65240-0K131 Sill Assy, Cross, NO.9
2015-07 → 2015-12 ended
KUN26,36,TGN36 SCB SA —
65263 — Reinforcement, Floor Side Frame
65263-0K010 Reinforcement, Floor Side Frame
2011-07 → 2015-10 ended
KUN2# DCB MA —
65263-0K010 Reinforcement, Floor Side Frame
2011-07 → 2015-12 ended
KUN25 SCB MA —
65263-0K010 Reinforcement, Floor Side Frame
2011-07 → 2016-09 ended
KUN15,25 PKN CBU —
65263-0K010 Reinforcement, Floor Side Frame
2011-07 → —
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 SA,TH) (ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL, CBU —
65303A — Frame Sub-assy, Floor Side, RH
65303-0K010 Frame Sub-assy, Floor Side, RH
2012-05 → 2015-04 ended
TGN16 SCB CNG —
65303-0K020 Frame Sub-assy, Floor Side, RH
2012-05 → 2015-04 ended
TGN16 SMT CNG —
65304A — Frame Sub-assy, Floor Side, LH
65304-0K010 Frame Sub-assy, Floor Side, LH
2012-05 → 2015-04 ended
TGN16 SCB CNG —
65304-0K020 Frame Sub-assy, Floor Side, LH
2012-05 → 2015-04 ended
TGN16 SMT CNG —
65307 — Bracket Sub-assy, Guad Frame, RH
65207-0K010 Bracket Sub-assy, Guad Frame, RH
2012-05 → 2015-04 ended
TGN16 SCB CNG —
65207-0K020 Bracket Sub-assy, Guad Frame, RH
2012-05 → 2015-04 ended
TGN16 SMT CNG —
65308 — Bracket Sub-assy, Guad Frame, LH
65208-0K010 Bracket Sub-assy, Guad Frame, LH
2012-05 → 2015-04 ended
TGN16 SCB CNG —
65208-0K020 Bracket Sub-assy, Guad Frame, LH
2012-05 → 2015-04 ended
TGN16 SMT CNG —
65311 — Panel, Floor, Center
65311-0K010 Panel, Floor, Center
2011-07 → 2015-12 ended
KUN25 SCB MA —
65311-0K010 Panel, Floor, Center
2011-07 → 2016-09 ended
KUN36,LAN15,25 WC,HTWCF,IART) SCB;GGN15,KUN15,16,2#,35,TGN15,16,26,36 (ANCOM,ARL,GCC,GEN,LA,PKN,SA,TH) +3 —
65311-0K020 Panel, Floor, Center
2011-07 → 2015-04 ended
KUN10,TGN10,11 CBU —
65311-0K030 Panel, Floor, Center
2011-07 → 2015-12 ended
GGN15,KUN15,16,2#,3#,TGN16 (SMT,XTR) (DCR,HDCR,HTWC) CBU —
65311-0K040 Panel, Floor, Center
2011-07 → 2015-10 ended
KUN2# DCB MA —
65311-0K040 Panel, Floor, Center
2011-07 → 2016-09 ended
KUN25 DCB PKN —
65311-0K040 Panel, Floor, Center
2011-07 → —
GGN15 (ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH) DCB;GGN25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36 CBU +1 —
65311-0K050 Panel, Floor, Center
2012-05 → 2015-04 ended
TGN16 SCB CNG —
65311-0K060 Panel, Floor, Center
2012-05 → 2015-04 ended
TGN16 SMT CNG —
65671E — Brace, Side Panel Skirt, Front RH
65608-0K020 Brace, Side Panel Skirt, Front RH
2011-07 → 2016-09 ended
GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36 (SCB,SMT,THSCB,XTR) CBU —
65672G — Brace, Side Panel Skirt, Front LH
65609-0K020 Brace, Side Panel Skirt, Front LH
2011-07 → 2016-09 ended
GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36 (SCB,SMT,THSCB,XTR) CBU —
65739A — Bumper, Tail Gate
65738-0K020 note Bumper, Tail Gate
2011-07 → 2013-08 ended
GGN25 5FC SR ARL;KUN26 +4 —
65738-0K020 note Bumper, Tail Gate
2011-07 → 2015-04 ended
TGN16 ARL CBU;GGN15 DCB +7 —
65738-0K020 note Bumper, Tail Gate
2013-11 → 2015-04 ended
KUN26 5FC DLX ARL +1 —
65738-0K020 note Bumper, Tail Gate
2011-07 → 2016-09 ended
KUN15 KUN15,LAN25 LX .RHD +27 —
65738-0K020 note Bumper, Tail Gate
2011-08 → 2015-12 ended
KUN35 DCB DLX SA —
65739-0K040 note Bumper, Tail Gate
2011-08 → 2015-12 ended
KUN35 DCB DLX SA —
65739-0K040 note Bumper, Tail Gate
2011-07 → 2016-09 ended
KUN15 KUN15,LAN25 LX .RHD +27 —
65739-0K040 note Bumper, Tail Gate
2013-11 → 2015-04 ended
KUN26 5FC DLX ARL +1 —
65739-0K040 note Bumper, Tail Gate
2011-07 → 2013-08 ended
GGN25 5FC SR ARL;KUN26 +4 —
76625B — Mudguard, Rear Body, RH
76607-0K040 Mudguard, Rear Body, RH
2011-07 → 2015-10 ended
KUN2# DCB MA —
76607-0K040 Mudguard, Rear Body, RH
2011-07 → 2016-09 ended
KUN15,25 PKN CBU —
76607-0K040 Mudguard, Rear Body, RH
2011-07 → —
KUN25 GEN,IDN,LA,PHL,SA,TH) SCB CBU +2 —
76626B — Mudguard, Rear Body, LH
76608-0K040 Mudguard, Rear Body, LH
2011-07 → 2015-10 ended
KUN2# DCB MA —
76608-0K040 Mudguard, Rear Body, LH
2011-07 → 2016-09 ended
KUN15,25 PKN CBU —
76608-0K040 Mudguard, Rear Body, LH
2011-07 → —
KUN25 GEN,IDN,LA,PHL,SA,TH) SCB CBU +2 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
