Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

26 part groups · 21 illustrations

Illustrations

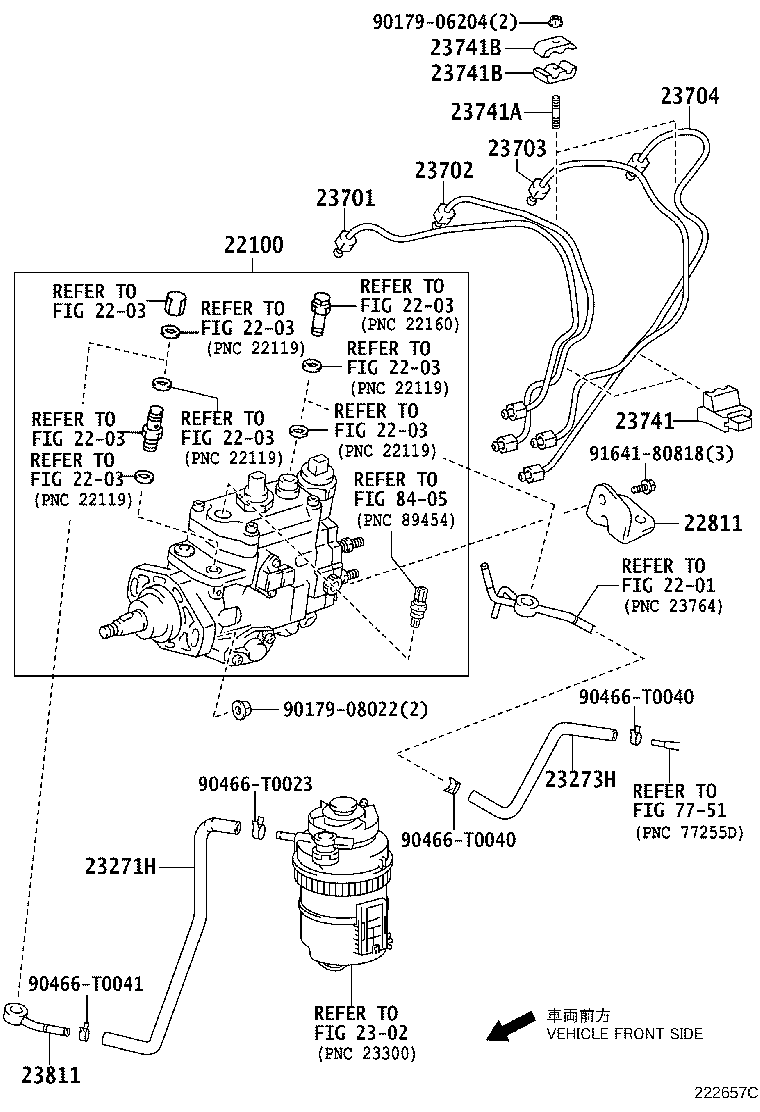

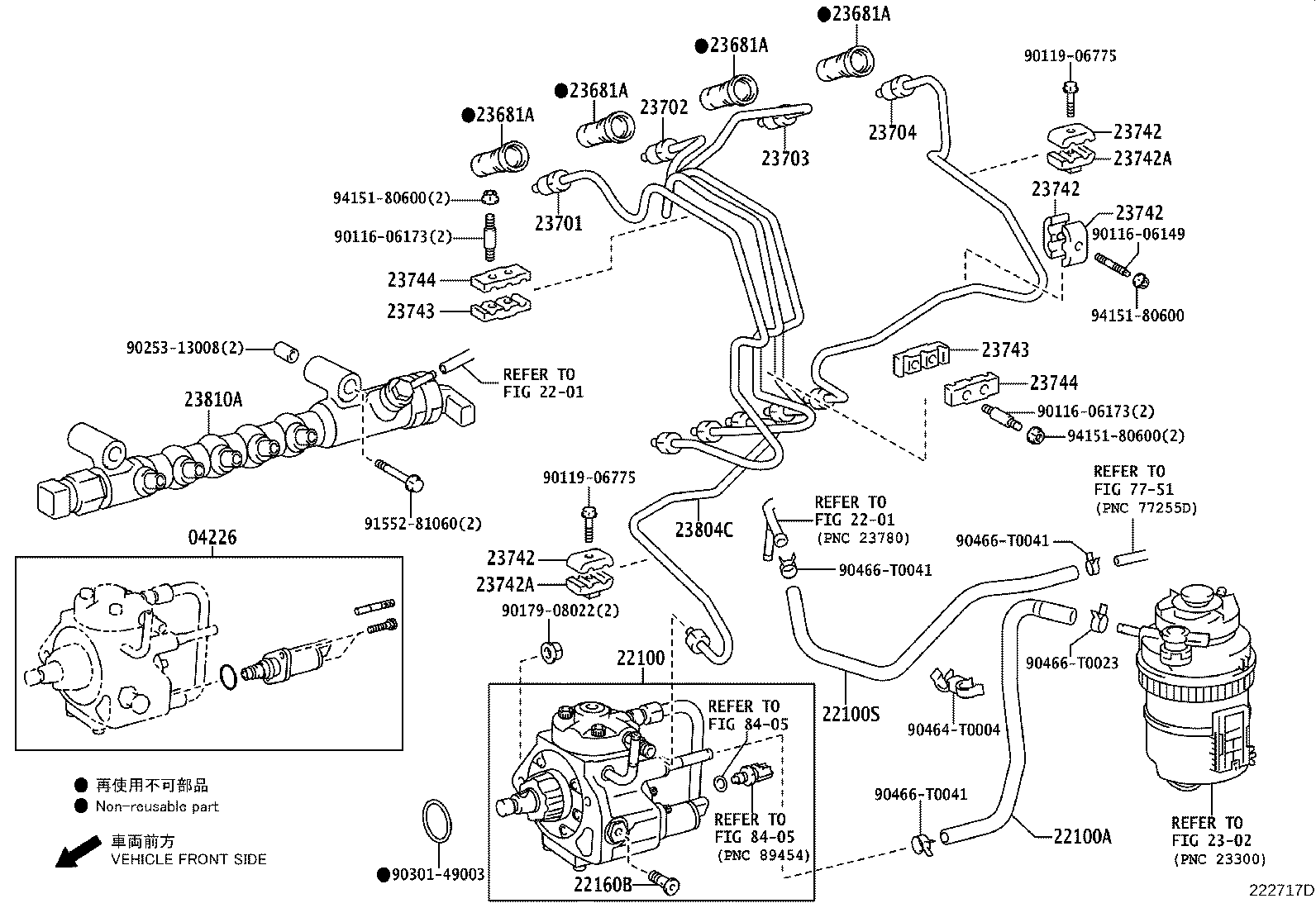

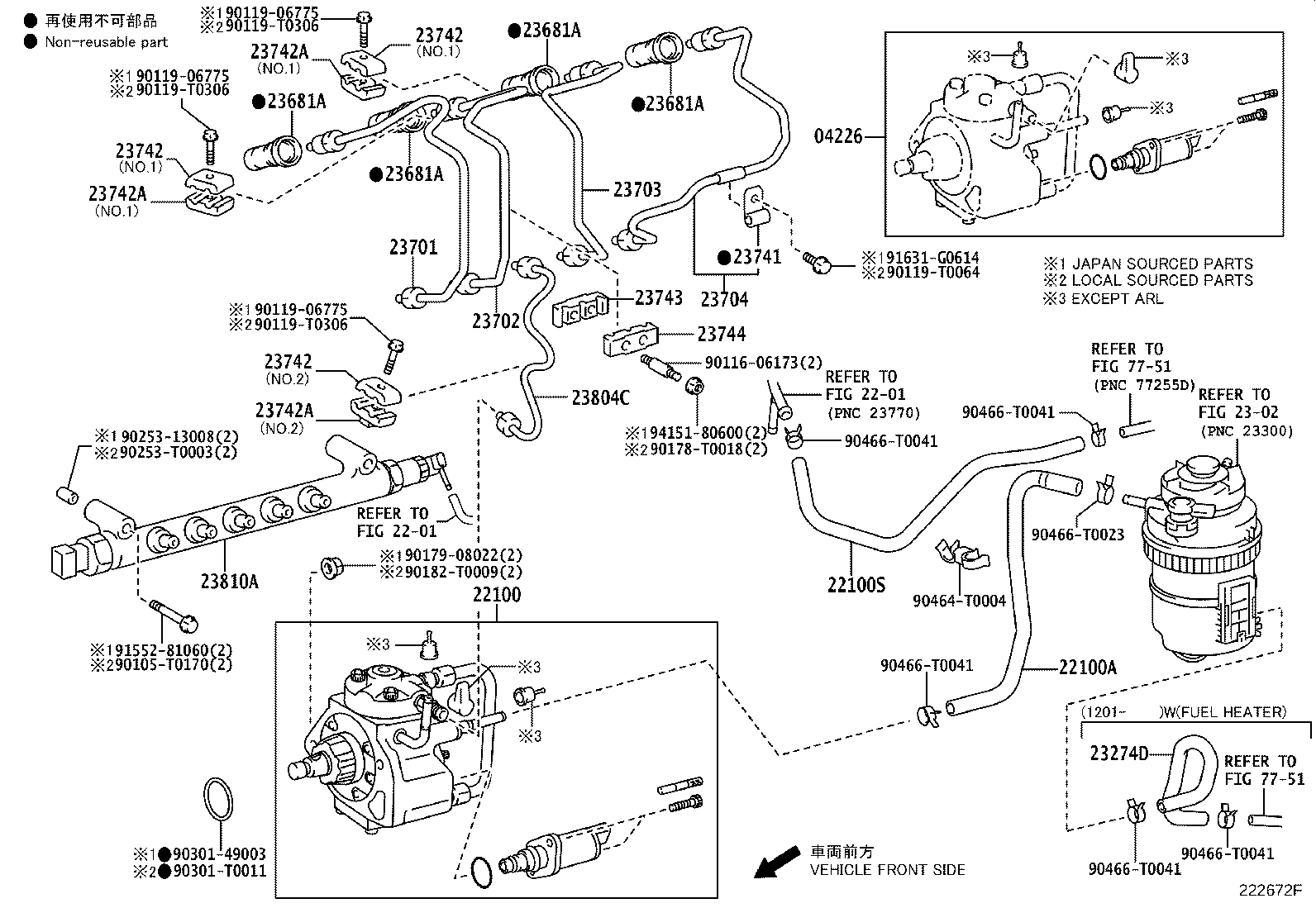

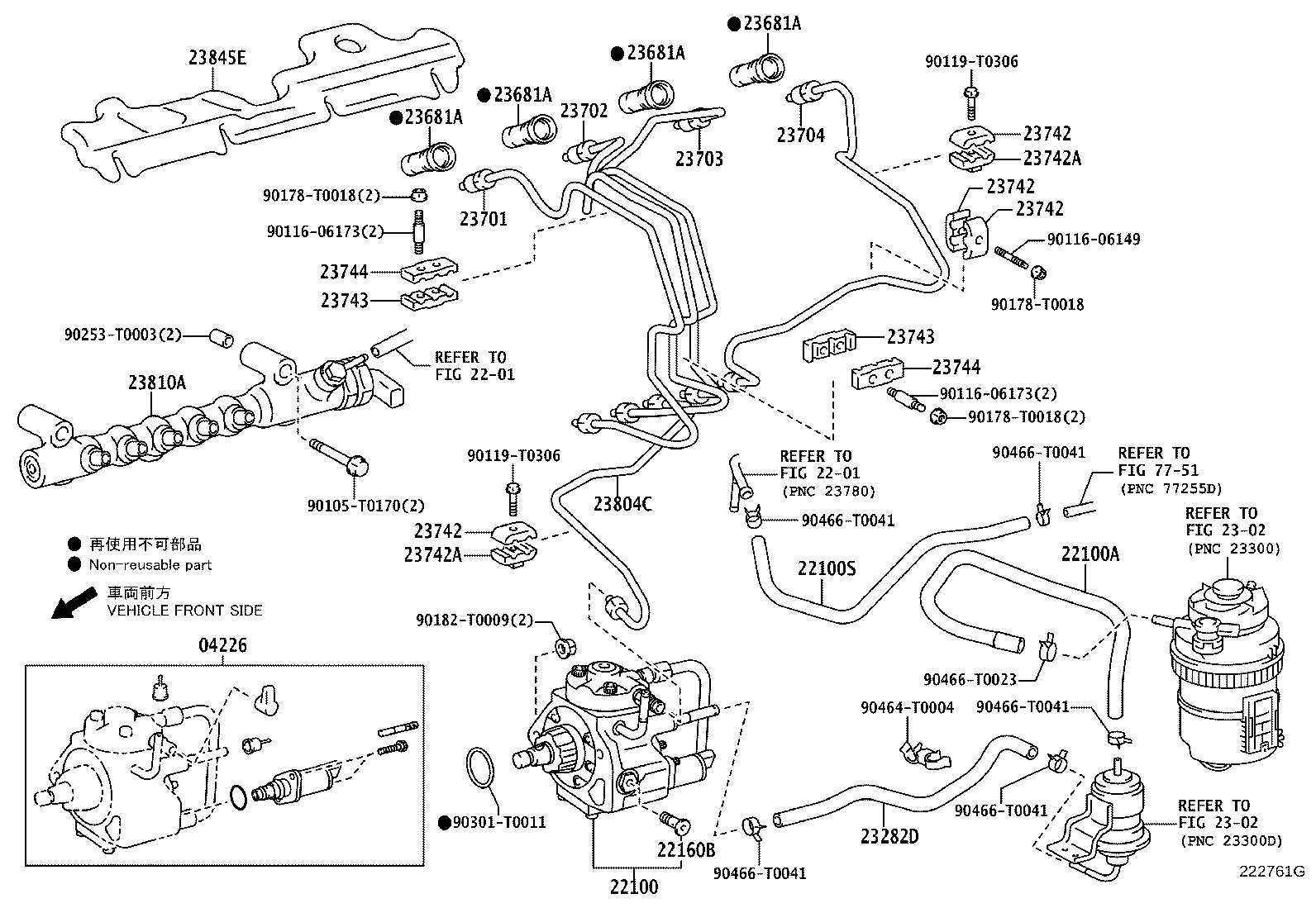

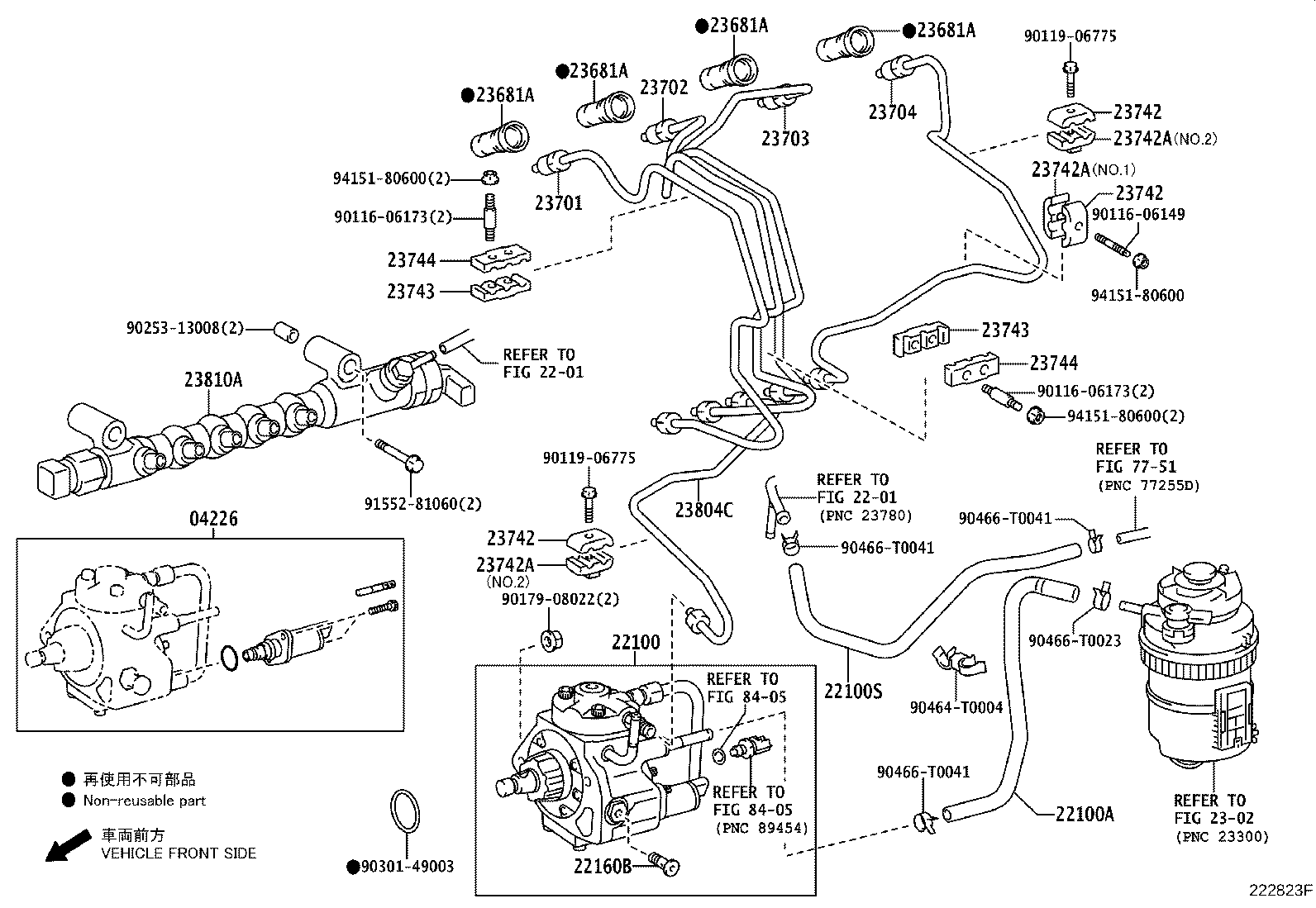

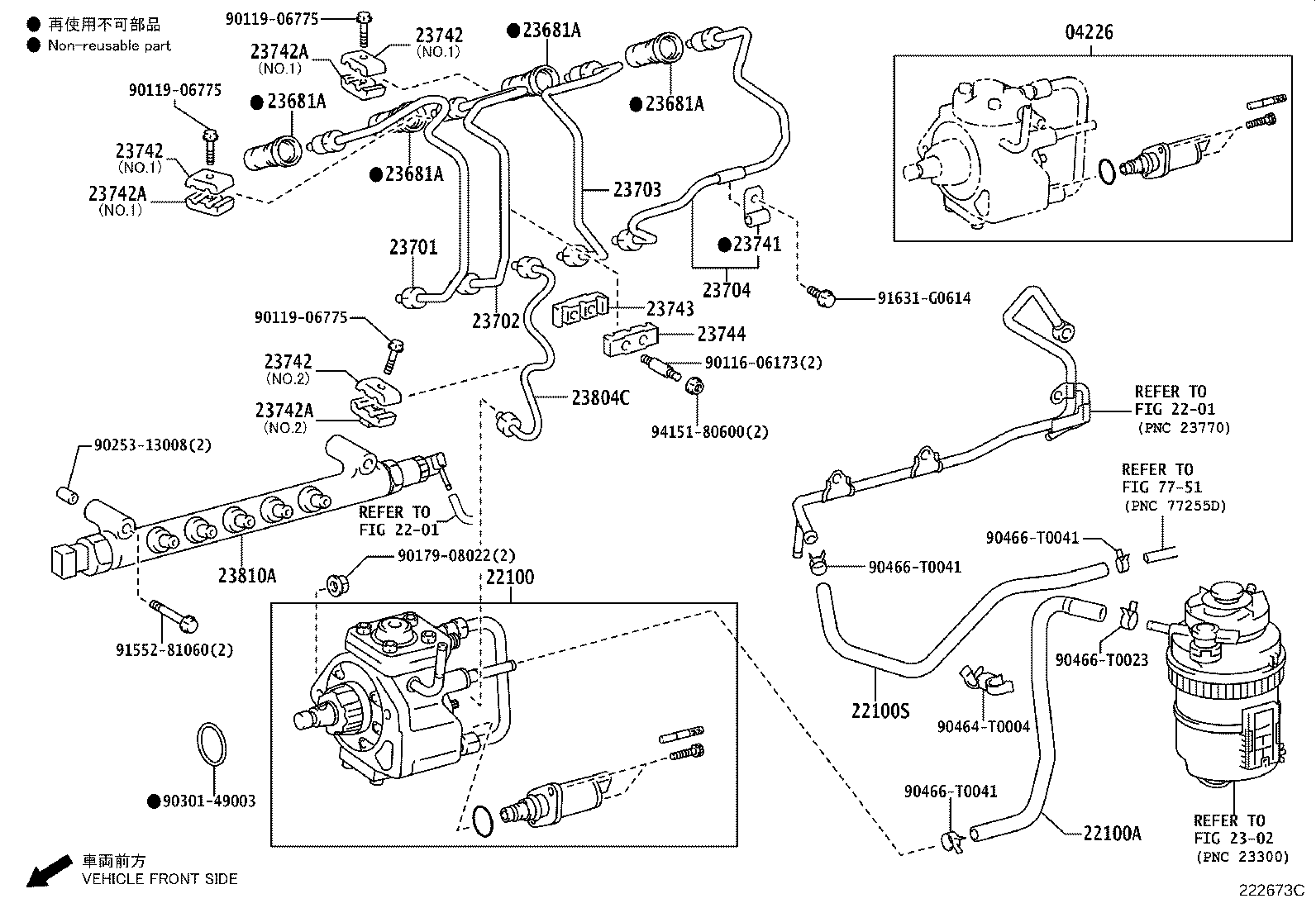

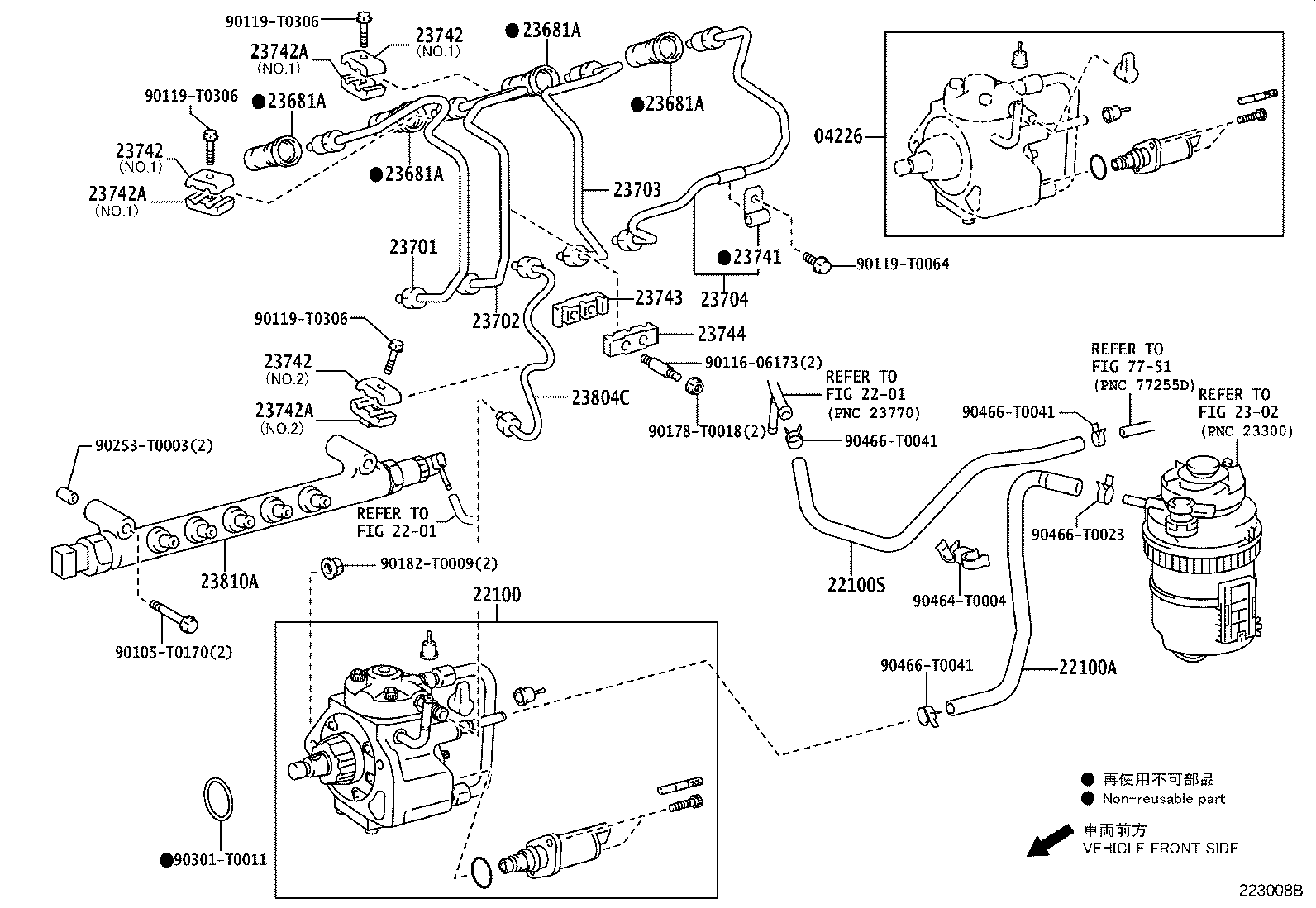

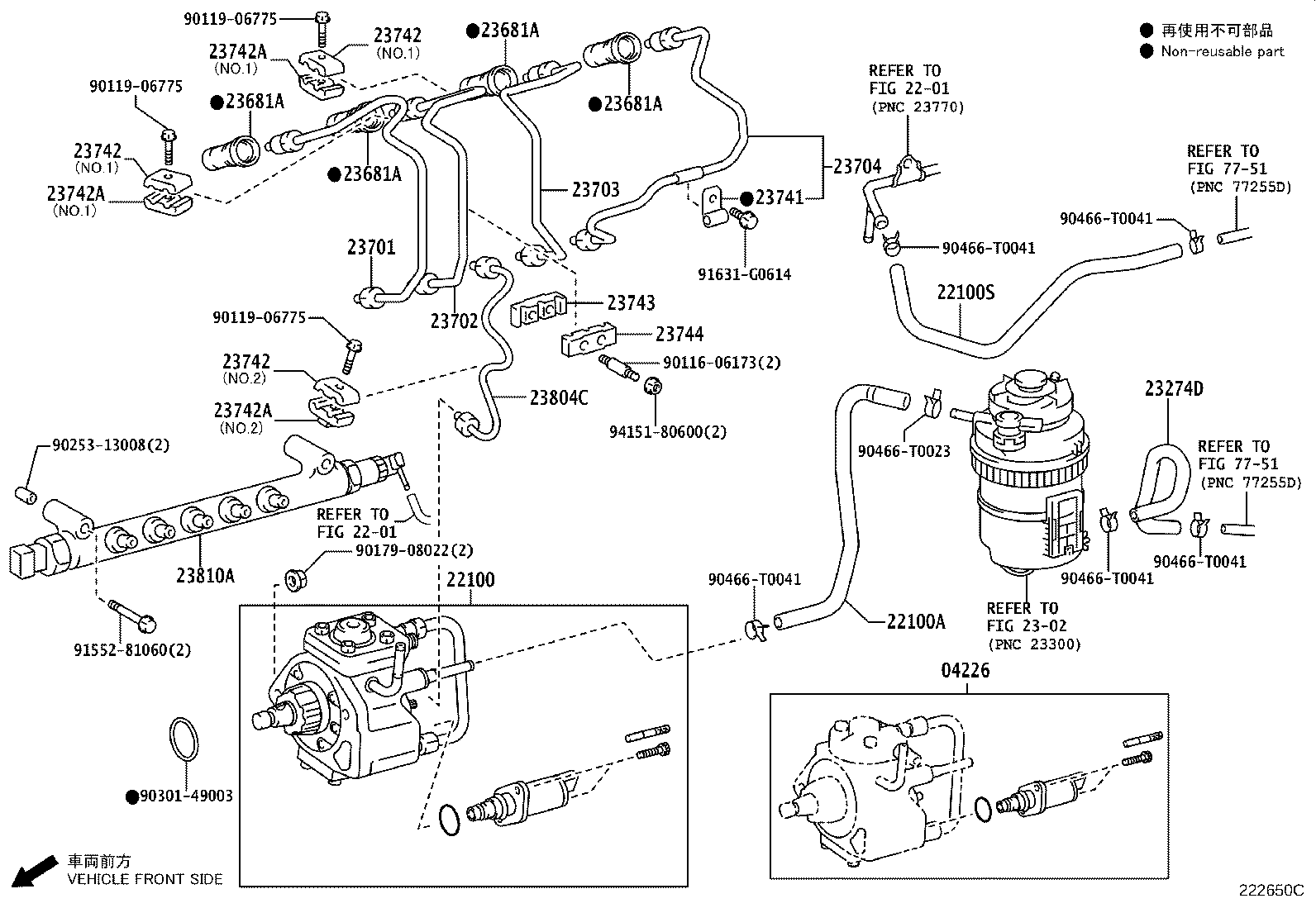

Figure 222802F 222802F 2011-07 → 2012-08 Figure 222802F 222802F 2011-07 → 2012-10 Figure 222802F 222802F 2011-07 → — Figure 222802F 222802F 2011-07 → — Figure 222802F 222802F 2011-07 → — Figure 222672F 222672F 2011-07 → — Figure 222672F 222672F 2011-07 → — Figure 222672F 222672F 2012-08 → 2012-10 Figure 222672F 222672F 2012-08 → — Figure 222672F 222672F 2012-08 → — Figure 222672F 222672F 2012-10 → — Figure 222672F 222672F 2013-11 → — Figure 222672F 222672F 2014-10 → — Figure 222673C 222673C 2011-07 → — Figure 222717D 222717D 2011-07 → — Figure 222717D 222717D 2013-08 → — Figure 222761G 222761G 2012-04 → — Figure 222823F 222823F 2012-08 → — Figure 222650C 222650C 2013-08 → — Figure 223008B 223008B 2014-08 → — Figure 222657C 222657C 2011-08 → —

Part groups

PNCDescription
04226 Valve Kit, Suction Control
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22100S Hose, Fuel(FOR INJECTION PUMP TO FUEL PIPE)
22160B Screw
22811 Stay, Injection Pump, NO.1
23271H Hose, Fuel, NO.1
23273H Hose, Fuel, NO.2
23274D Hose, Fuel, NO.3
23282D Hose, Fuel, NO.4
23681A Seal, Nozzle Holder
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23741A Bolt, Stud(FOR INJECTION PIPE CLAMP)
23741B Clamp, Injection Pipe
23742 Clamp, Injection Pipe, NO.2
23742A Clamp, Injection Pipe, NO.3
23743 Clamp, Injection Pipe, NO.3
23744 Clamp, Injection Pipe, NO.4
23804C Pipe Sub-assy, Fuel Inlet
23810A Rail Assy, Common
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23845E Insulator, Fuel Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
