Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

16 part groups · 8 illustrations

Illustrations

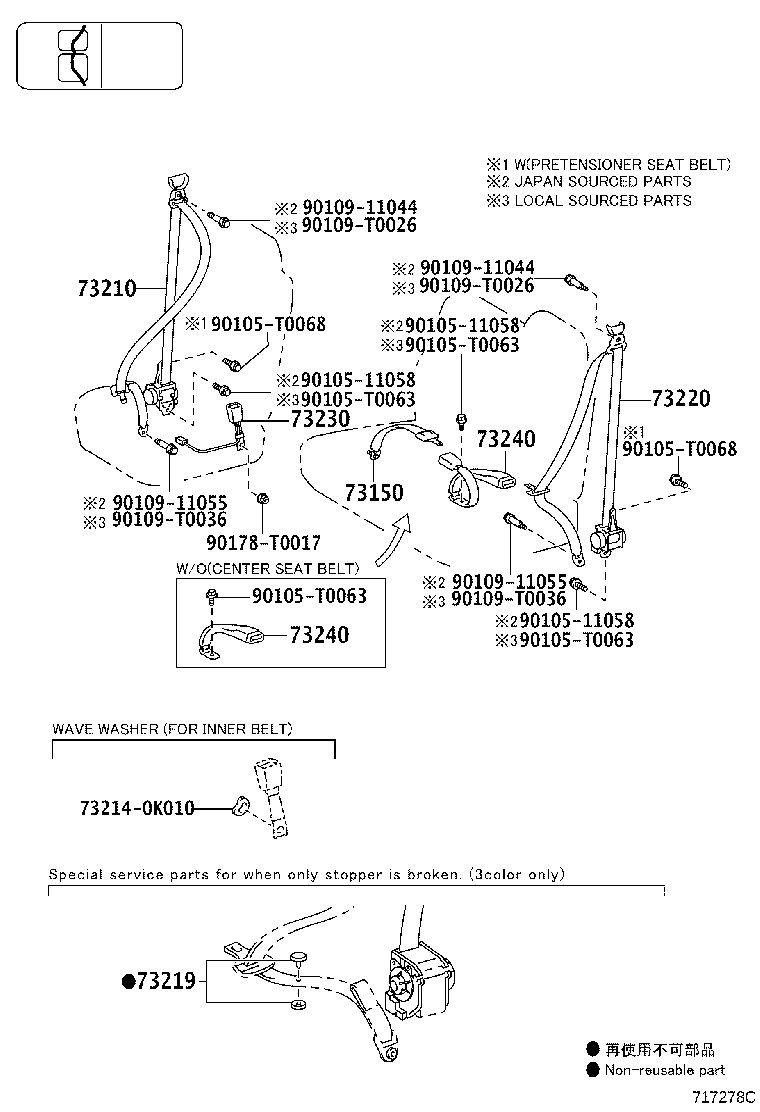

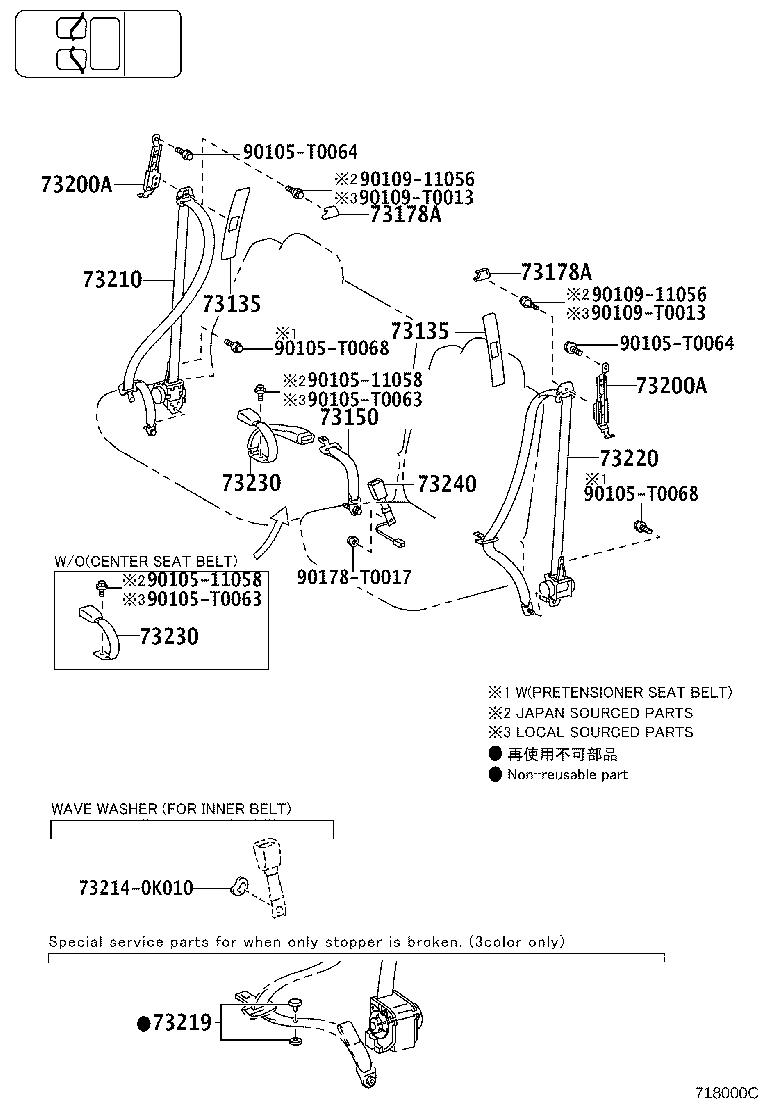

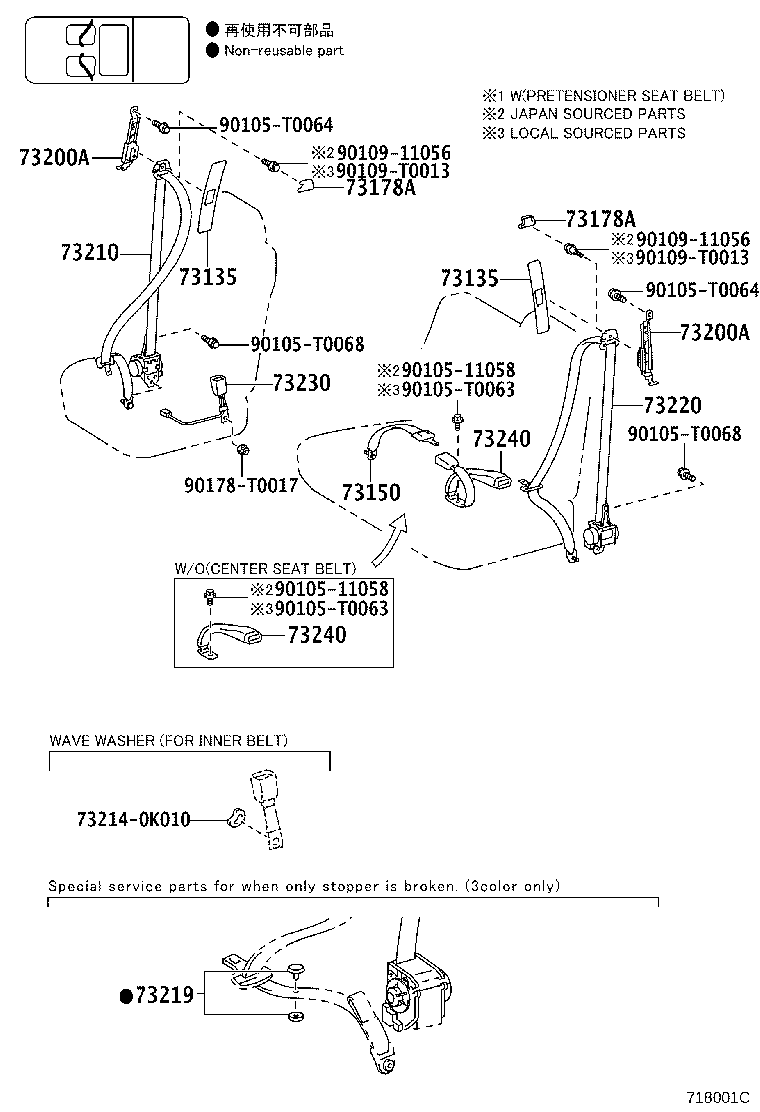

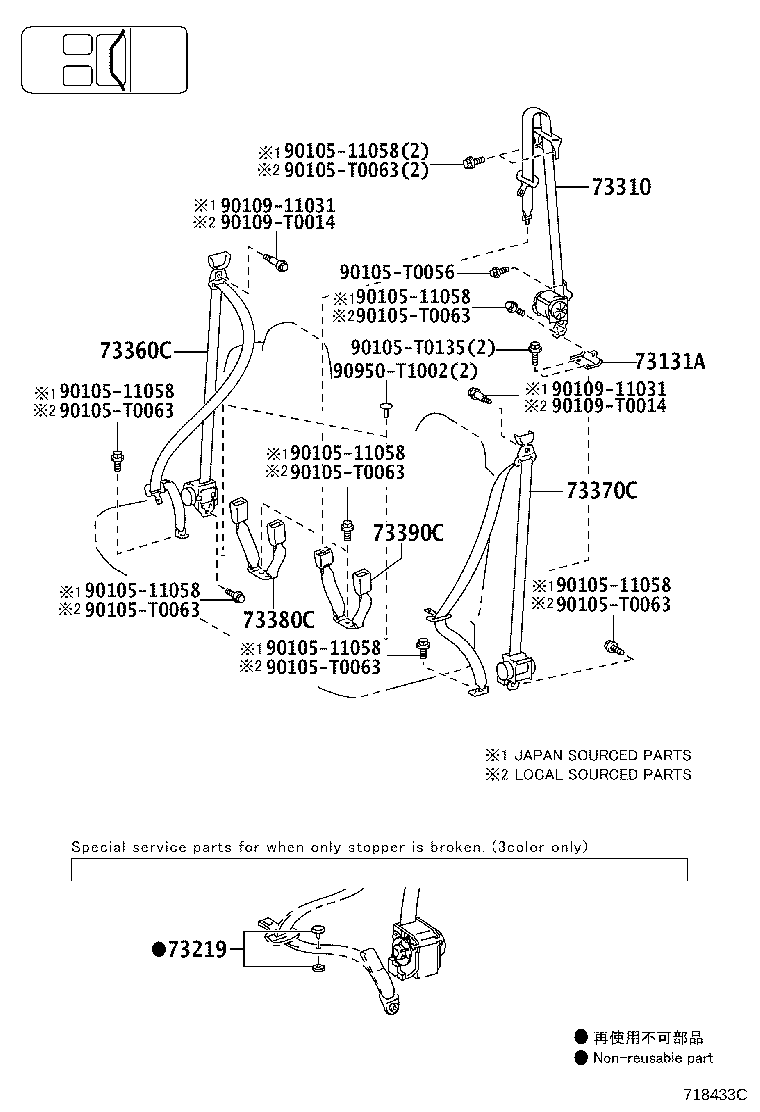

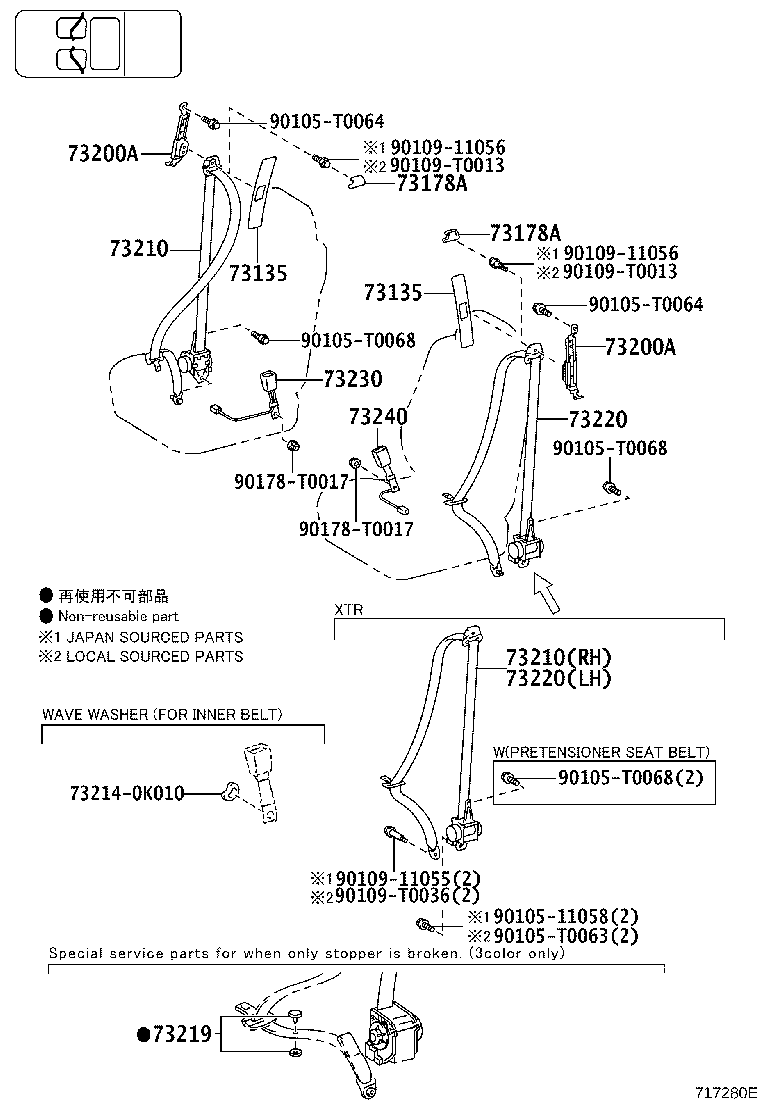

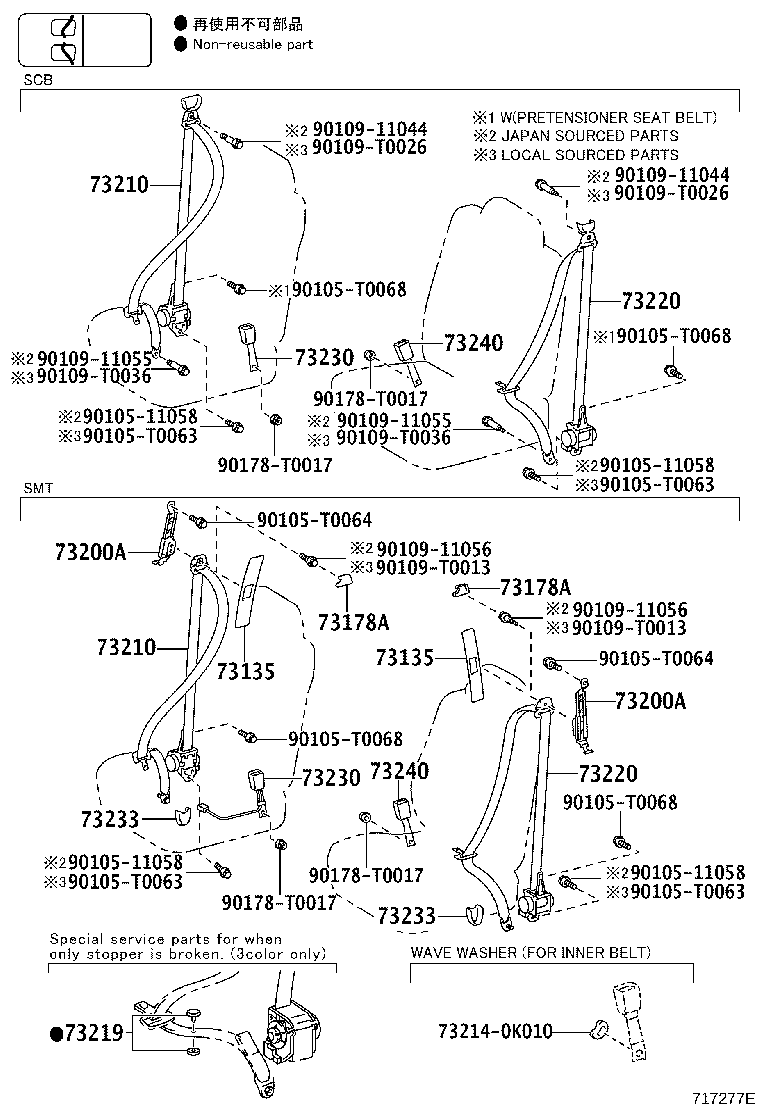

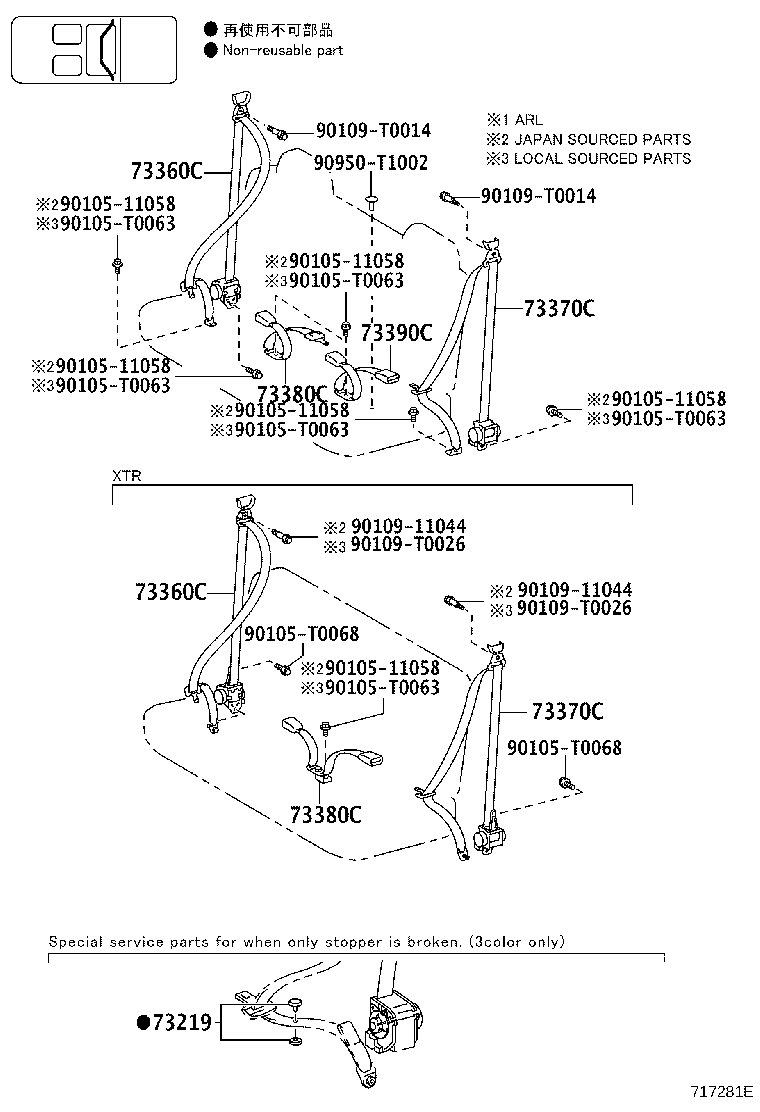

Figure 717279C 717279C 2011-07 → — Figure 717278C 717278C 2011-07 → — Figure 717277E 717277E 2011-07 → — Figure 717280E 717280E 2011-07 → — Figure 718000C 718000C 2011-07 → — Figure 718001C 718001C 2011-07 → — Figure 717281E 717281E 2011-07 → — Figure 718433C 718433C 2013-08 → —

Part groups

PNCDescription
73131A Bracket, Seat Belt
73135 Cover, Shoulder Belt Anchorage Plate
73150 Belt Assy, Front Seat Lap Type, Center
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73310 Belt Assy, Rear Seat 3 Point Type, RH
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73390C Belt Assy, Rear NO.1 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
