Toyota Hilux
2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · General
Supported model
Data version 2022-11
Battery & Battery Cable

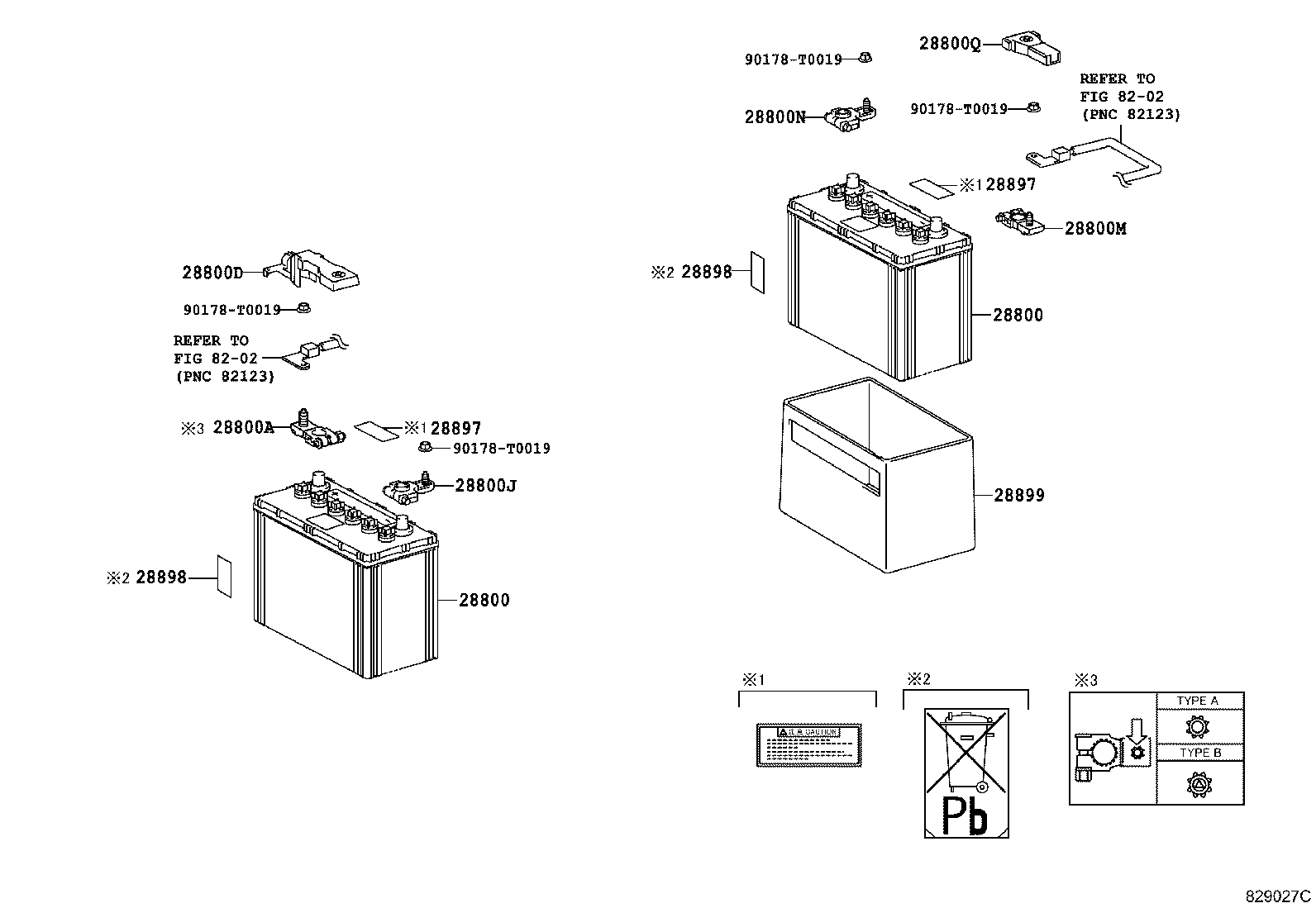

10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28800J | Terminal, Battery Negative |
| 28800M | Terminal, Battery Positive |
| 28800N | Terminal, Battery Negative |
| 28800Q | Cover, Connector(FOR BATTERY) |
| 28897 | Plate, Battery Caution |
| 28898 | Plate, Battery |
| 28899 | Insulator, Battery |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
