Toyota Hilux
2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · General
Supported model
Data version 2022-11

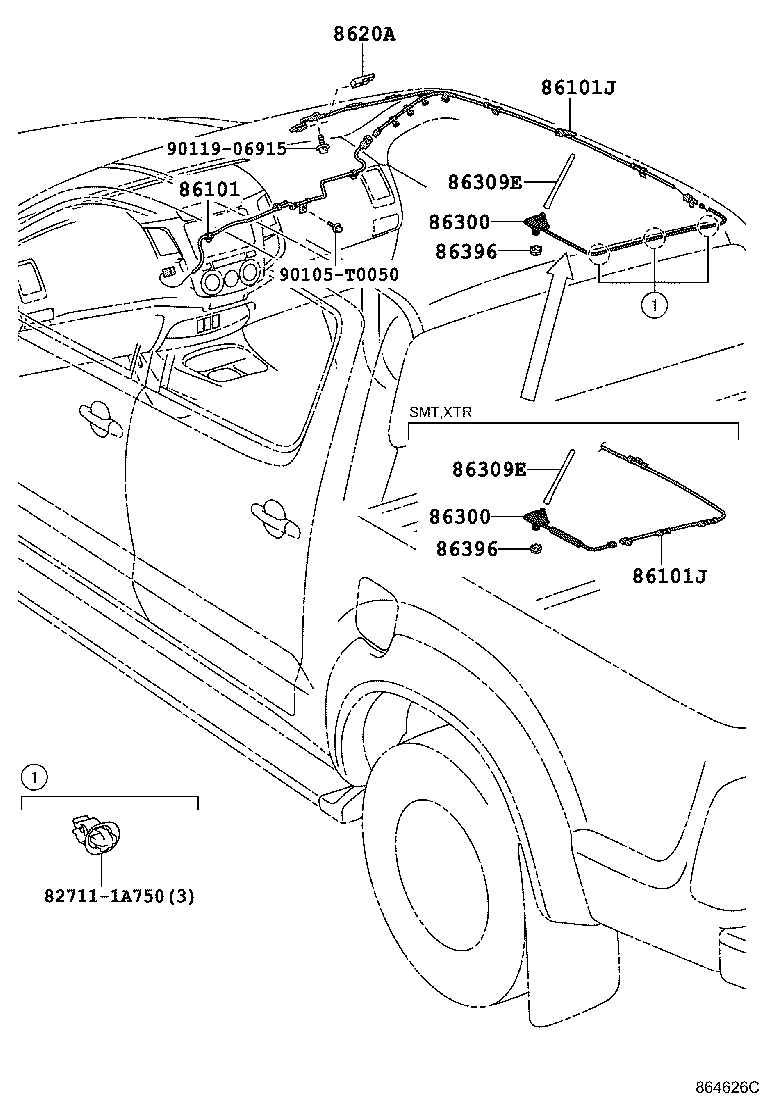

Antenna
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86101 | Cord Sub-assy, Antenna |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 8620A | Antenna Sub-assy, Digital Television, NO.1 |
| 86300 | Antenna Assy, W/Holder |
| 86309E | Pole Sub-assy, Roof Antenna |
| 86396 | Nut, Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
