Toyota Hilux

2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

11 part groups · 5 illustrations

Illustrations

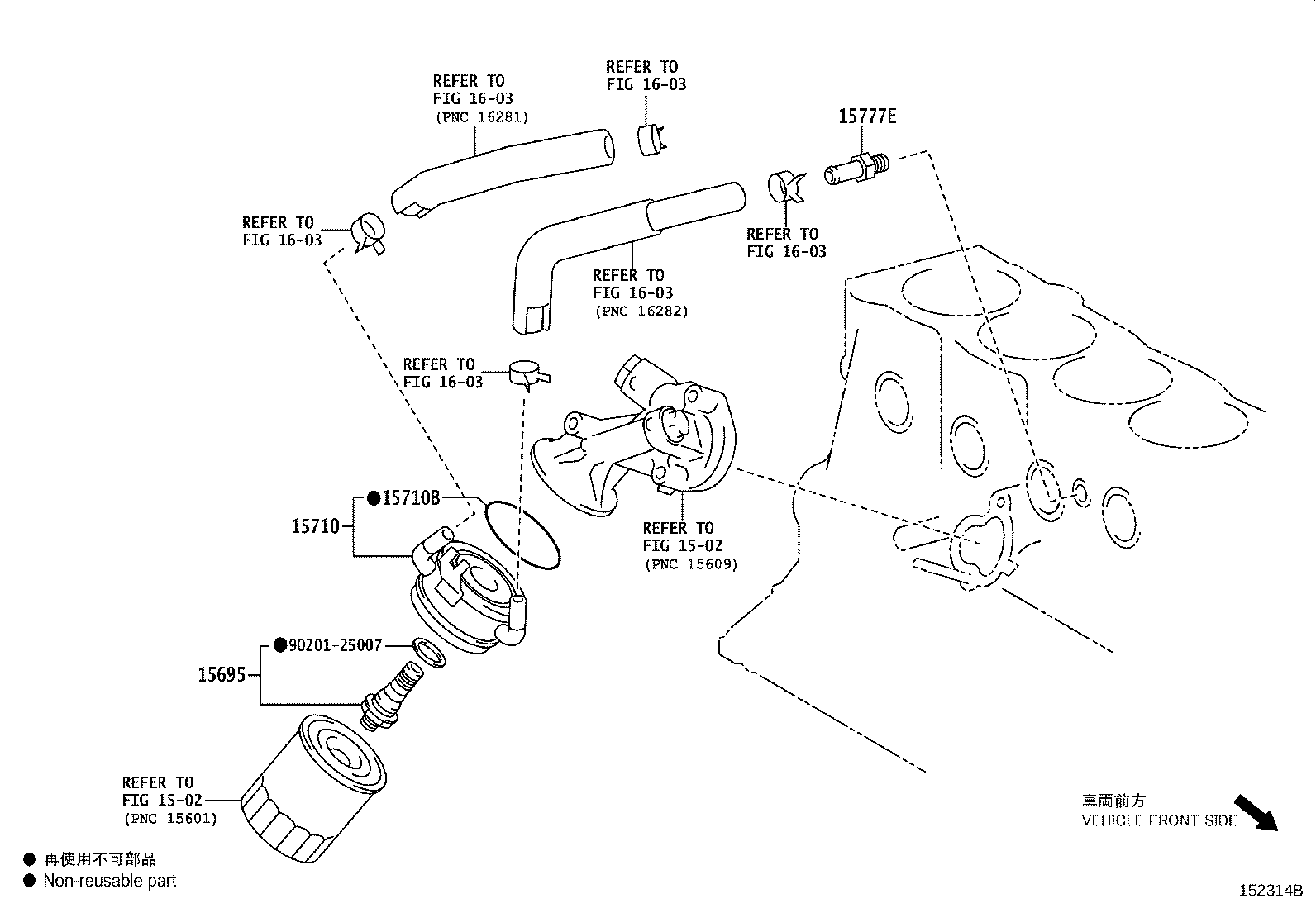

Figure 152308B 152308B 2015-05 → — Figure 152309E 152309E 2015-05 → — Figure 152302B 152302B 2015-05 → — Figure 152481D 152481D 2016-01 → — Figure 152314B 152314B 2015-05 → —

Part groups

PNCDescription
15071 Cooler Set, Engine Oil
15695 Bolt, Oil Cooler Union
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15723 Ring, O
15777 Hose, Oil Cooler
15777E Union
15778 Hose, Oil Cooler, NO.2
15785 Gasket, Oil Cooler
16345A Gasket, Water Outlet Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
