Toyota Hilux

2020-06 → 2023-01 · chassis GGN125,GUN1##,LAN125,TGN1## · catalogue 6723A0 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

15 part groups · 4 illustrations

Illustrations

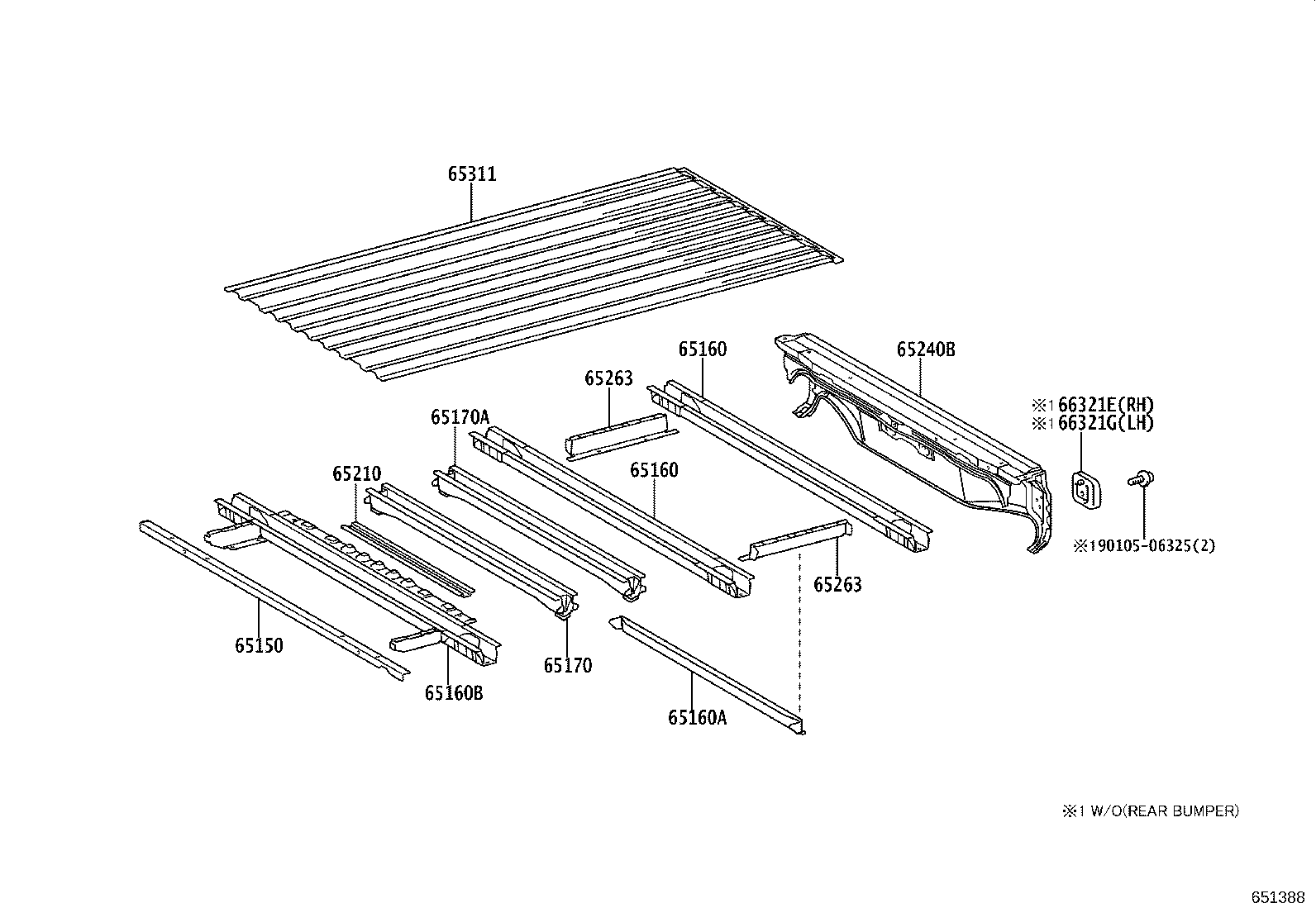

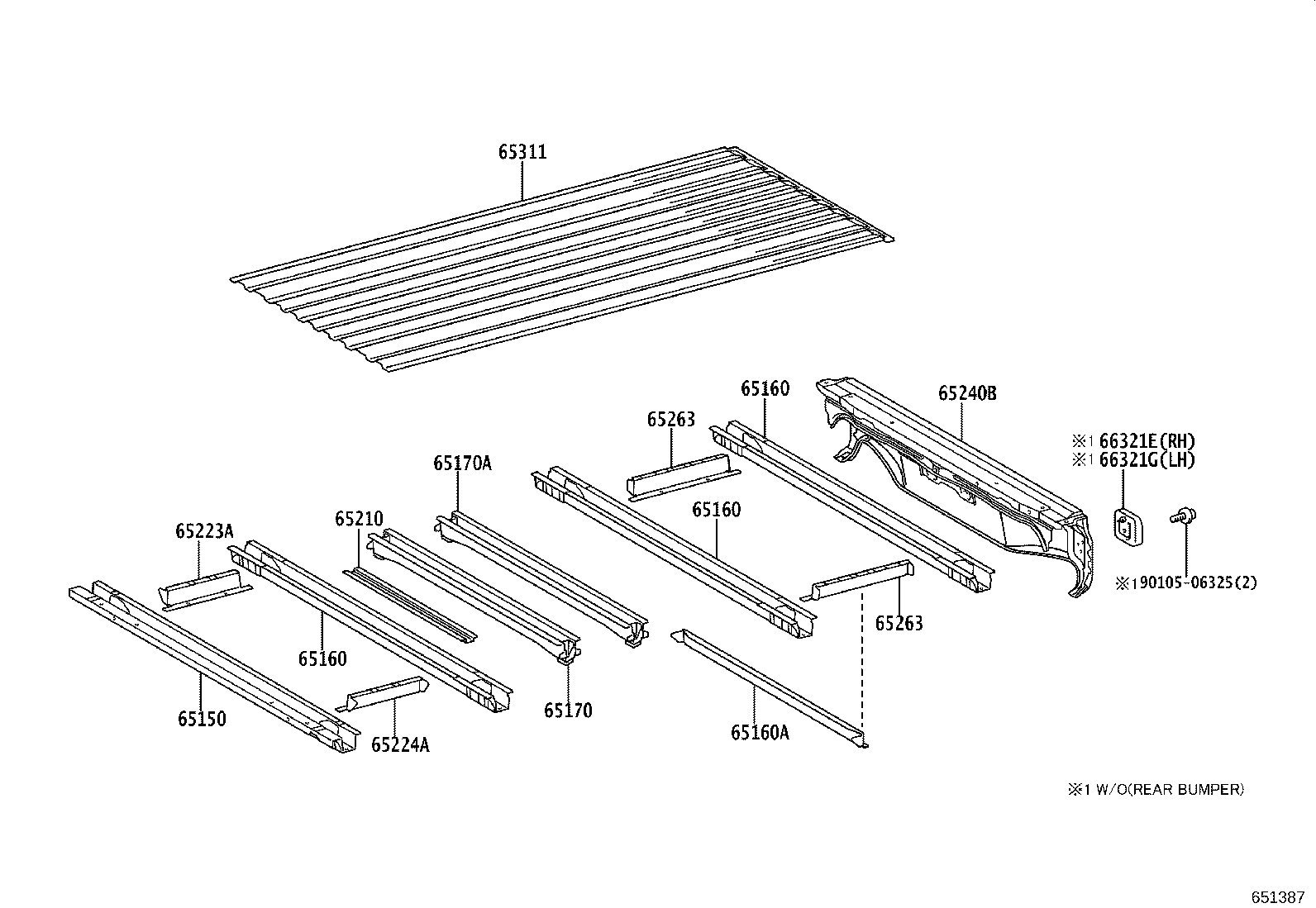

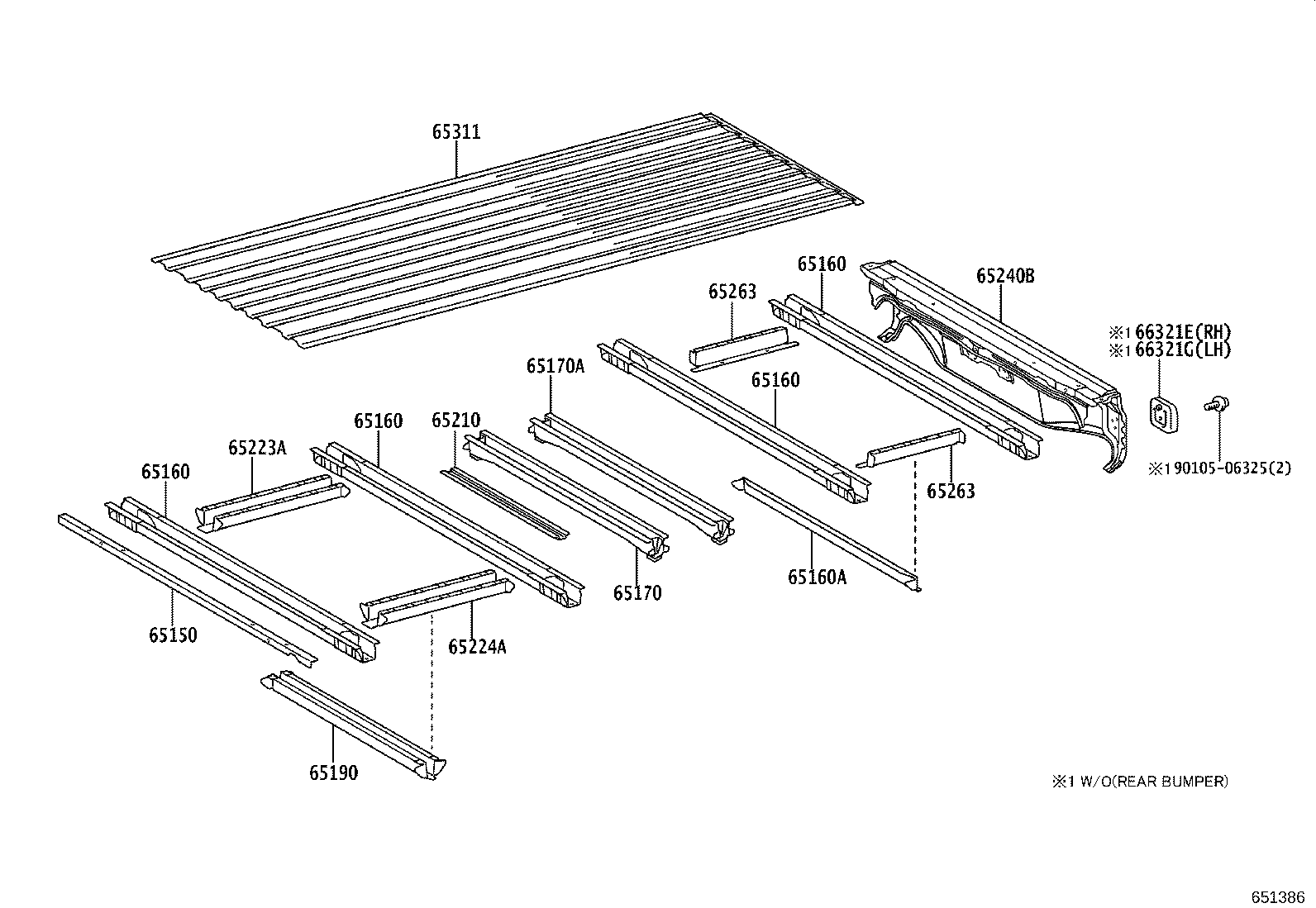

Figure 651385 651385 2020-06 → — Figure 651386 651386 2020-06 → — Figure 651387 651387 2020-06 → — Figure 651388 651388 2020-06 → —

Part groups

PNCDescription
65150 Sill Assy, Cross, NO.1
65160 Sill Assy, Cross, NO.2
65160A Sill Assy, Cross, NO.2
65160B Sill Assy, Cross, NO.2
65170 Sill Assy, Cross, NO.2
65170A Sill Assy, Cross, NO.3
65190 Sill Assy, Cross, NO.5
65210 Sill Assy, Cross, NO.6
65223A Reinforcement, Floor Panel, Front RH
65224A Reinforcement, Floor Panel, Front LH
65240B Sill Assy, Cross, NO.9
65263 Reinforcement, Floor Side Frame
65311 Panel, Floor, Center
66321E Bumper, Gate Rubber
66321G Bumper, Gate Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
