Toyota Hilux (SCB/XTR)

2021-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723B0 · General

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

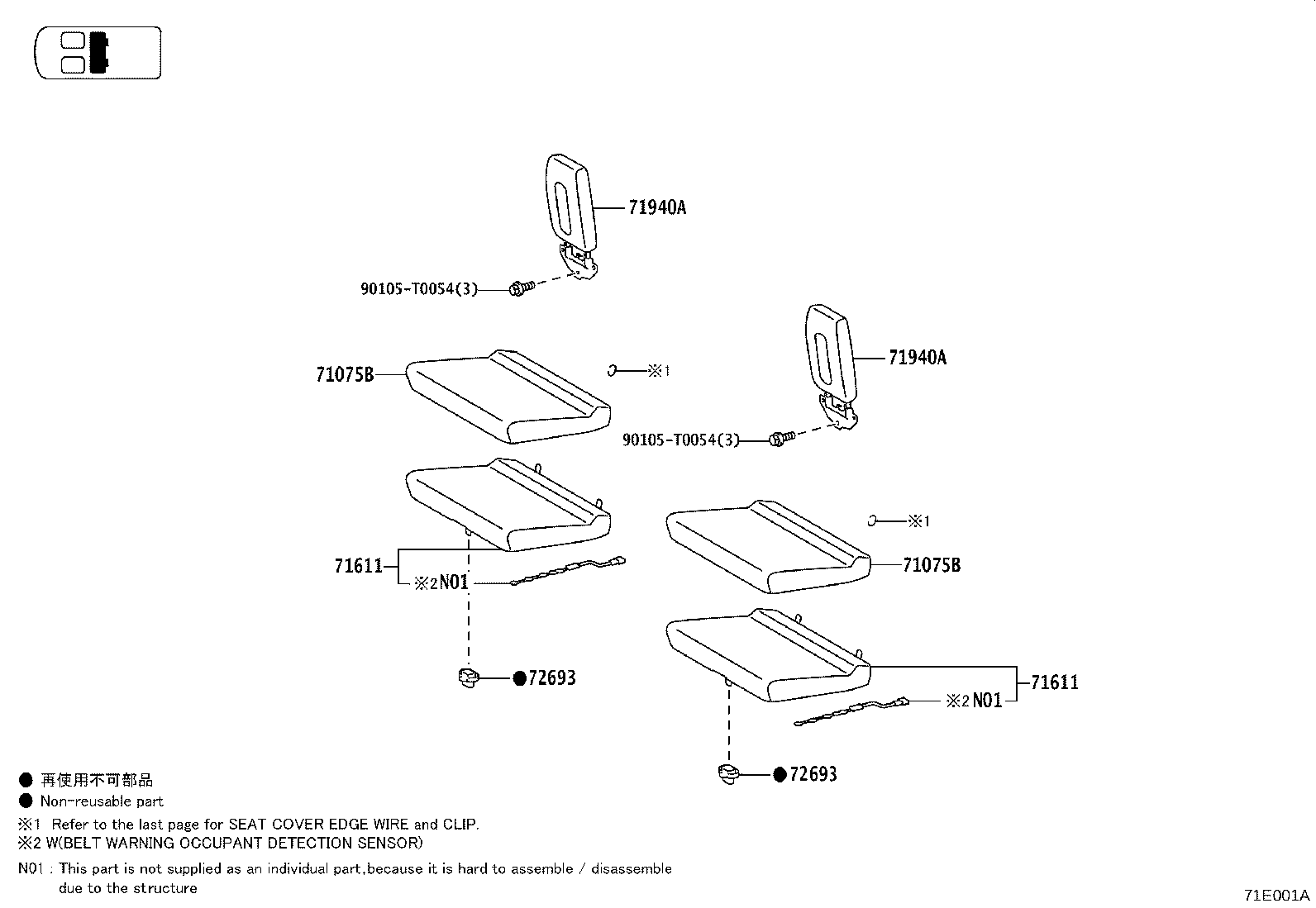

Exploded illustration 71E001A 71940A — HEADREST ASSY, REAR SEAT (3 parts) 71611 — PAD, REAR SEAT CUSHION (4 parts) 72693 — HOOK, REAR SEAT CUSHION LOCK (3 parts) 71075B — COVER, REAR SEAT CUSHION (FOR BENCH TYPE) (4 parts) 90105T0054 — not listed in this catalogue 71940A — HEADREST ASSY, REAR SEAT (3 parts) 71611 — PAD, REAR SEAT CUSHION (4 parts) 72693 — HOOK, REAR SEAT CUSHION LOCK (3 parts) 71075B — COVER, REAR SEAT CUSHION (FOR BENCH TYPE) (4 parts) 90105T0054 — not listed in this catalogue
71E001A · 8 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
14 parts on this figure
Part number Description Fitment Price
71075B — Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075-0K040-C0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2021-08 → 2022-07 ended
GUN125,126,136 XTR ARL —
71075-0K140-C0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2021-08 → 2022-07 ended
GUN125 S GEN —
71075-0K160-C0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2021-09 → 2023-01 ended
GUN125 XTR S SA —
71076-0K010-C0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2021-08 → 2022-07 ended
GUN125,126,136 XTR ARL —
71611 — Pad, Rear Seat Cushion
71503-0K020 note Pad, Rear Seat Cushion
2021-08 → 2022-07 ended
GUN125 S GEN —
71503-0K030 note Pad, Rear Seat Cushion
2021-09 → 2023-01 ended
GUN125 XTR S SA —
71503-0K140 note Pad, Rear Seat Cushion
2021-08 → 2022-07 ended
GUN125,126,136 XTR ARL —
71504-0K100 note Pad, Rear Seat Cushion
2021-08 → 2022-07 ended
GUN125,126,136 XTR ARL —
71940A — Headrest Assy, Rear Seat
71940-0KL90-C1 note Headrest Assy, Rear Seat
2021-08 → 2022-07 ended
GUN125,126,136 XTR ARL —
71940-0KL90-C1 note Headrest Assy, Rear Seat
2021-08 → 2022-07 ended
GUN125 S GEN —
71940-0KL90-C1 note Headrest Assy, Rear Seat
2021-08 → 2023-01 ended
GUN125 XTR S SA —
72693 — Hook, Rear Seat Cushion Lock
72693-0K120 Hook, Rear Seat Cushion Lock
2021-08 → 2022-07 ended
GUN125,126,136 XTR ARL —
72693-0K120 note Hook, Rear Seat Cushion Lock
2021-08 → 2022-07 ended
GUN125 S GEN —
72693-0K120 note Hook, Rear Seat Cushion Lock
2021-08 → 2023-01 ended
GUN125 XTR S SA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
