Toyota Hilux (SCB/XTR)
2021-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723B0 · General
Supported model
Data version 2022-01

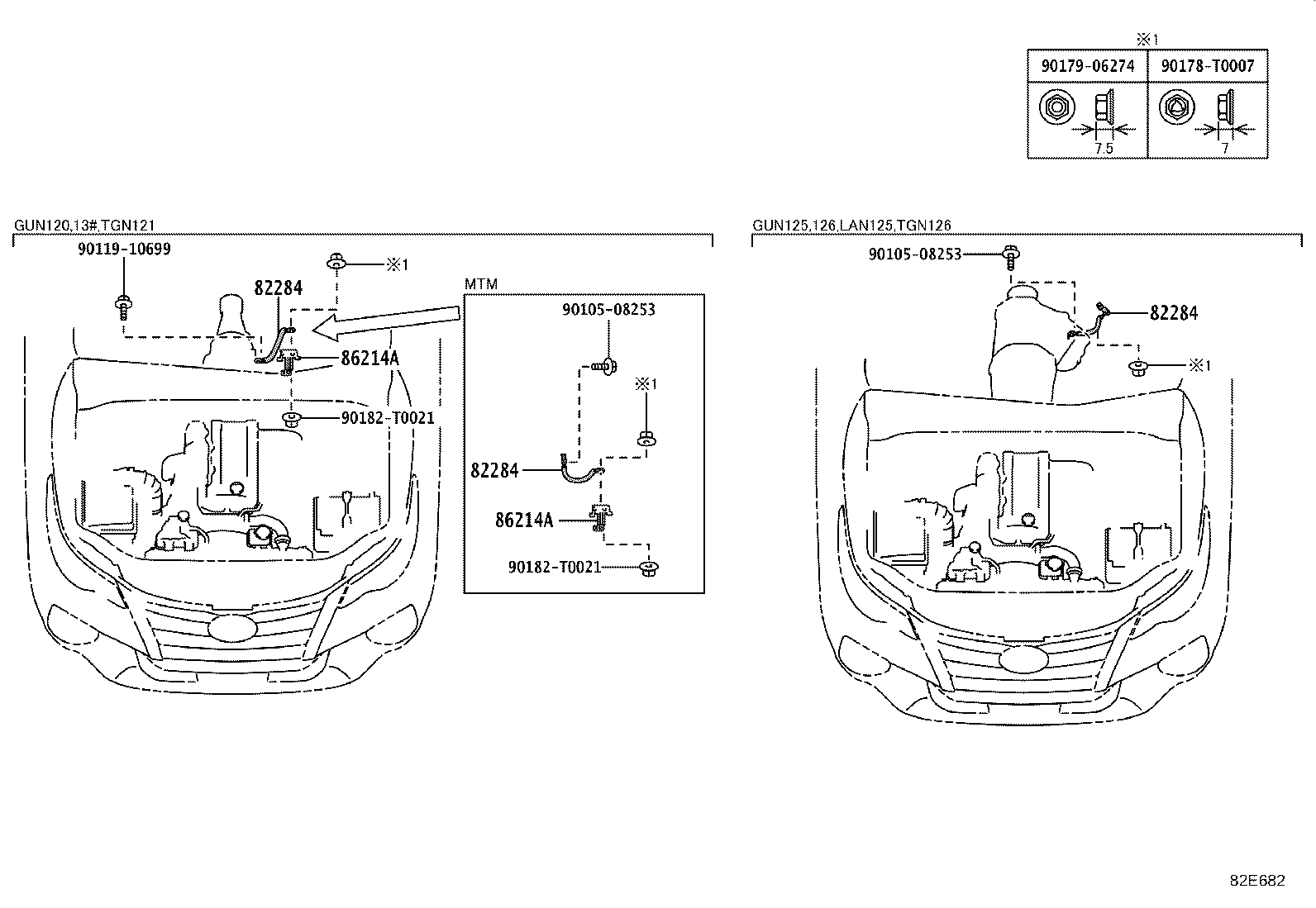

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82284 — Wire, Earth | ||||
| 82284-KK010 |
Wire, Earth
2021-08 → 2022-07
ended
|
GUN120,13#,TGN121 THP 6FC | — | |
| 82284-KK010 |
Wire, Earth
2021-08 → 2023-01
ended
|
GUN13# 6FC SA | — | |
| 82284-KK020 |
Wire, Earth
2021-08 → 2022-07
ended
|
GUN11#,121,122,13#,TGN11#,120,121 THP MTM | — | |
| 82284-KK020 |
Wire, Earth
2021-08 → 2022-10
ended
|
GUN135,TGN136 AGTP | — | |
| 82284-KK020 |
Wire, Earth
2021-08 → 2023-01
ended
|
GUN122,TGN121 PKN | — | |
| 82284-KK020 |
Wire, Earth
2021-08 → 2023-03
ended
|
GUN122,13#,TGN120,121,136 MTM (KEN,SA) | — | |
| 82284-KK030 |
Wire, Earth
2021-08 → 2022-07
ended
|
GUN125,126,TGN126 THP | — | |
| 82284-KK030 |
Wire, Earth
2021-08 → 2022-08
ended
|
GUN125 MA | — | |
| 82284-KK030 |
Wire, Earth
2021-08 → 2022-10
ended
|
GUN125,126,TGN126 AGTP | — | |
| 82284-KK030 |
Wire, Earth
2021-08 → 2023-01
ended
|
GUN126 PKN | — | |
| 82284-KK030 |
Wire, Earth
2021-08 → 2023-03
ended
|
GUN125,126,LAN125 KEN,SA | — | |
| 86214A — Bracket, Radio Earth | ||||
| 86214-KK010 |
Bracket, Radio Earth
2021-08 → 2022-07
ended
|
GUN11#,120,121,122,13#,TGN11#,120,121 THP | — | |
| 86214-KK010 |
Bracket, Radio Earth
2021-08 → 2022-10
ended
|
GUN135,TGN136 AGTP | — | |
| 86214-KK010 |
Bracket, Radio Earth
2021-08 → 2023-01
ended
|
GUN122,TGN121 PKN | — | |
| 86214-KK010 |
Bracket, Radio Earth
2021-08 → 2023-03
ended
|
GUN122,13#,TGN120,121,136 KEN,SA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
