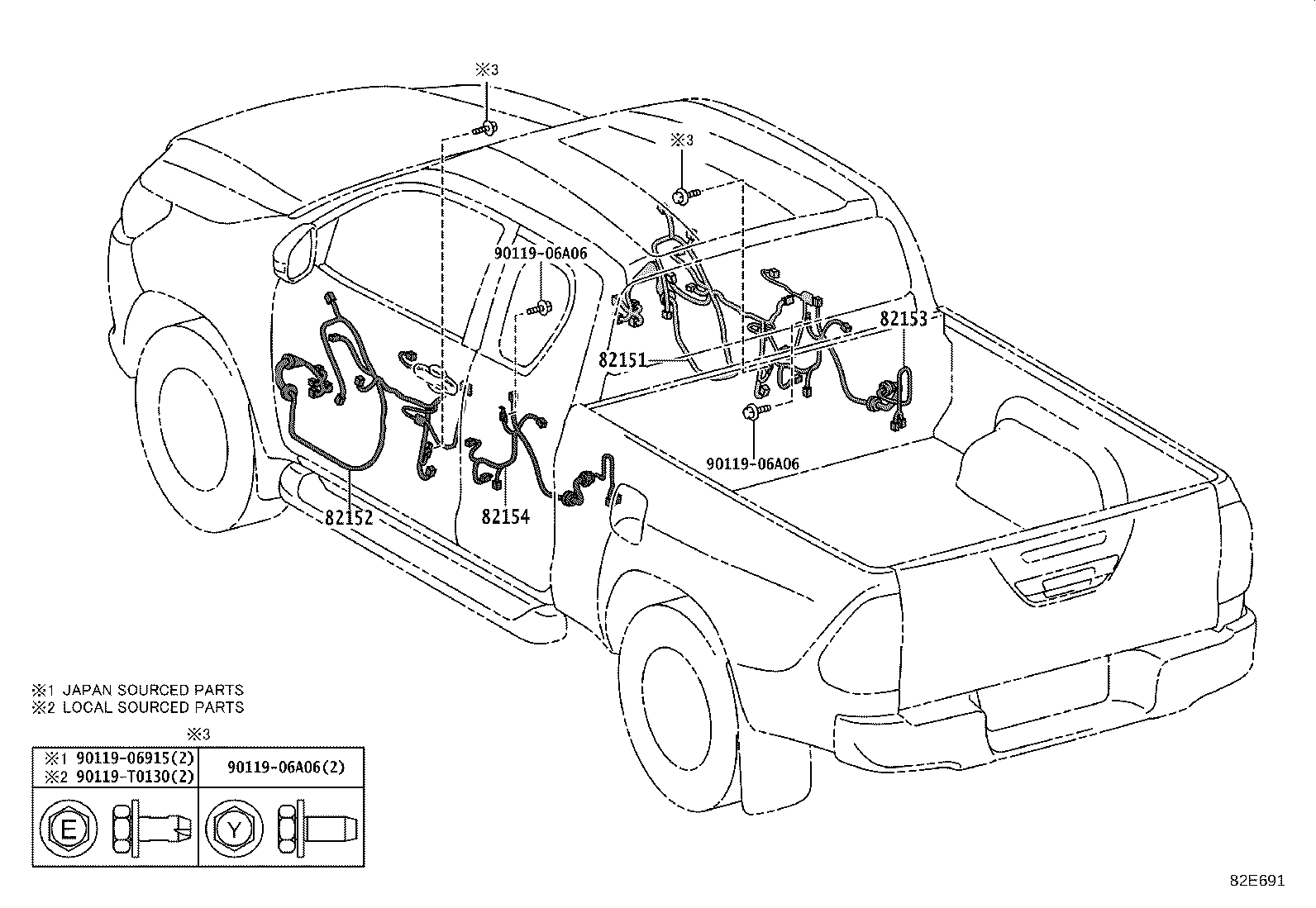

Exploded illustration 82E691 82151 — WIRE, FRONT DOOR, RH (84 parts) 82154 — WIRE, REAR DOOR, NO.2 (4 parts) 82153 — WIRE, REAR DOOR, NO.1 (4 parts) 82152 — WIRE, FRONT DOOR, LH (79 parts) 9011906A06 — not listed in this catalogue 90119T0130 — not listed in this catalogue 9011906915 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9011906A06 — not listed in this catalogue
82E691 · 4 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
171 parts on this figure
Part number Description Fitment Price
82151 — Wire, Front Door, RH
82197-KKD20 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN125,135 S TH —
82197-KKD30 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN125,135 S TH —
82197-KKD60 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN126,135 H TH —
82197-KKD60 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN126,135 6FC H TH —
82197-KKG40 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN125 XTR H —
82197-KKL90 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN125,135 S TH —
82197-KKM00 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN125,135 S TH —
82197-KKM10 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN126 XTR 6F SA —
82197-KKM10 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN126 XTR 6F SA —
82197-KKM20 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN126 XTR 6F SA —
82197-KKM20 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN126 XTR 6F SA —
82197-KKM30 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN126 XTR 6F SA —
82197-KKM30 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN126 XTR 6F SA —
82197-KKM30 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN136 XTR SA;GUN126 XTR +2 —
82197-KKM30 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN136 XTR SA;GUN126 XTR +2 —
82197-KKQ90 Wire, Front Door, RH
2021-08 → 2023-01 ended
GUN122,126,TGN121 PKN —
82197-KKQ90 note Wire, Front Door, RH
2021-09 → 2023-01 ended
TGN120 SA —
82197-KKQ90 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN122 RHD SA;GUN125 RHD +3 —
82197-KKQ90 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN125 RHD 6F S +1 —
82197-KKQ90 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN125 XTR L CBU —
82197-KKQ90 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN126 S SA —
82197-KKQ90 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN126 S SA —
82197-KKQ90 Wire, Front Door, RH
2021-08 → 2023-03 ended
GUN125,135 RHD SCB L +1 —
82197-KKQ90 Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN112,122,125,TGN110 RHD MTM L +1 —
82197-KKR00 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN125,135 RHD SCB L +1 —
82197-KKR00 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN122,125 RHD MTM L +1 —
82197-KKR00 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN122,125 RHD MTM L +1 —
82197-KKR00 Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN125 6FC GEN —
82197-KKR00 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN122,TGN120 RHD SA —
82197-KKR00 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN125,135 RHD SCB L +1 —
82197-KKR10 Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN122,TGN120 RHD SA —
82197-KKR10 Wire, Front Door, RH
2021-09 → 2022-08 ended
GUN125 MA —
82197-KKR20 Wire, Front Door, RH
2021-08 → 2023-03 ended
GUN126 S SA;GUN125 S +4 —
82197-KKR20 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN122,125 RHD MTM L +1 —
82197-KKR20 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN122,125 RHD MTM L +1 —
82197-KKR20 Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN125 RHD THP (H,S);GUN112,120,121,122,126,135,TGN121 +2 —
82197-KKR20 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN125 RHD 6F S +1 —
82197-KKR30 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN125 RHD 6F S +1 —
82197-KKR30 Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN125,126,13#,TGN121 (L,S) ARL —
82197-KKR30 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN122 RHD GEN —
82197-KKR30 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN122 RHD GEN —
82197-KKR30 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN125,135 S TH —
82197-KKR40 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN126 6F H SA —
82197-KKR50 Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN125,135,TGN136 RHD MTM S +1 —
82197-KKR60 Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN125,135 6FC SA —
82197-KKR60 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN125,135,TGN136 RHD MTM S +1 —
82197-KKR70 Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN136 SCB CBU;GUN126 6F +5 —
82197-KKR80 Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN126 ARL CBU —
82197-KKR90 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN126,135 H TH —
82197-KKR90 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN126,135 6FC H TH —
82197-KKS00 Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN126,135 H TH —
82197-KKS10 Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN136 XTR SA;GUN126 XTR +2 —
82197-KKS10 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN126 XTR 6F SA —
82197-KKS20 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN125 RHD 6F S +1 —
82197-KKS20 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN122 RHD GEN;GUN112,125,TGN110 IDN —
82197-KKS20 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN125 RHD 6F S +1 —
82197-KKS20 note Wire, Front Door, RH
2021-09 → 2023-01 ended
TGN120 SA —
82197-KKS30 note Wire, Front Door, RH
2021-09 → 2023-01 ended
TGN120 SA —
82197-KKS30 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN122 RHD GEN —
82197-KKS30 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN122 RHD GEN —
82197-KKS30 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN125 6FC GEN —
82197-KKS40 note Wire, Front Door, RH
2021-09 → 2023-01 ended
TGN120 SA —
82197-KKV80 Wire, Front Door, RH
2021-08 → 2023-01 ended
GUN122,125,LAN125,TGN121 LHD L SA —
82197-KKV80 Wire, Front Door, RH
2021-08 → 2022-10 ended
GUN126,TGN126 AGTP;GUN125,135 AGTP LA —
82197-KKV80 Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN112,122,125,135,TGN110,12# LHD THP L —
82197-KKV90 Wire, Front Door, RH
2021-11 → 2022-10 ended
GUN125,135,TGN136 BZAG —
82197-KKV90 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN122 LHD L GEN —
82197-KKW10 Wire, Front Door, RH
2021-11 → 2022-10 ended
TGN136 LA —
82197-KKW10 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN122 LHD L GEN —
82197-KKW10 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN122,125 S GEN —
82197-KKW20 note Wire, Front Door, RH
2021-08 → 2022-07 ended
TGN126 L L (GCC,GEN,LA) +6 —
82197-KKW20 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN122 LHD SA —
82197-KKW20 note Wire, Front Door, RH
2021-09 → 2023-01 ended
GUN122 LHD SA —
82197-KKW20 note Wire, Front Door, RH
2021-09 → 2023-01 ended
LAN125,TGN121 SA —
82197-KKW20 Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN11#,122,125,126,TGN111,121,126 LHD THP S —
82197-KKW20 Wire, Front Door, RH
2021-08 → 2023-01 ended
GUN125 LHD S SA —
82197-KKW20 note Wire, Front Door, RH
2021-08 → 2022-07 ended
TGN126 THP LA —
82197-KKW20 note Wire, Front Door, RH
2021-08 → 2022-07 ended
TGN126 THP LA —
82197-KKW20 note Wire, Front Door, RH
2021-08 → 2022-10 ended
GUN125,135 AGTP LA —
82197-KKW20 note Wire, Front Door, RH
2021-08 → 2022-10 ended
TGN126 AGTP —
82197-KKW20 note Wire, Front Door, RH
2021-08 → 2022-10 ended
TGN126 AGTP —
82197-KKW20 note Wire, Front Door, RH
2021-11 → 2022-10 ended
GUN126 LA —
82197-KKW30 note Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN125 XTR H —
82197-KKW50 Wire, Front Door, RH
2021-08 → 2022-07 ended
GUN125 XTR H —
82152 — Wire, Front Door, LH
82198-KK830 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN125,135 S TH —
82198-KK840 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN125,135 S TH —
82198-KK870 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN126,135 H TH —
82198-KK870 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN126,135 6FC H TH —
82198-KKC30 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN125 XTR H —
82198-KKG80 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN125,135 S TH —
82198-KKG90 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN125,135 S TH —
82198-KKJ00 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN126 XTR 6F SA —
82198-KKJ00 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN126 XTR 6F SA —
82198-KKJ10 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN126 XTR 6F SA —
82198-KKJ10 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN126 XTR 6F SA —
82198-KKJ20 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN126 XTR 6F SA —
82198-KKJ20 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN126 XTR 6F SA —
82198-KKJ20 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN136 XTR SA;GUN126 XTR +2 —
82198-KKJ20 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN136 XTR SA;GUN126 XTR +2 —
82198-KKM90 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN125 XTR L CBU —
82198-KKM90 note Wire, Front Door, LH
2021-09 → 2023-01 ended
TGN120 SA —
82198-KKM90 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN122 RHD SA;GUN125 RHD +3 —
82198-KKM90 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN126 S SA —
82198-KKM90 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN125 RHD 6F S +1 —
82198-KKM90 Wire, Front Door, LH
2021-08 → 2023-01 ended
GUN122,126,TGN121 PKN —
82198-KKM90 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN126 S SA —
82198-KKM90 Wire, Front Door, LH
2021-08 → 2023-03 ended
GUN125,135 RHD SCB L +1 —
82198-KKM90 Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN112,122,125,TGN110 RHD MTM L +1 —
82198-KKN00 Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN125 .TH 6FC GEN;GUN125 +4 —
82198-KKN00 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN122,125 RHD MTM L +1 —
82198-KKN00 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN122,125 RHD MTM L +1 —
82198-KKN00 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN122,125 RHD MTM L +1 —
82198-KKN00 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN122,125 RHD MTM L +1 —
82198-KKN00 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN122,TGN120 RHD SA;GUN125 RHD +3 —
82198-KKN00 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN125,135 RHD SCB L +1 —
82198-KKN00 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN125,135 RHD SCB L +1 —
82198-KKN00 Wire, Front Door, LH
2021-08 → 2023-03 ended
GUN126 S SA;GUN125 S +4 —
82198-KKN10 Wire, Front Door, LH
2021-09 → 2022-08 ended
GUN125 MA —
82198-KKN10 Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN122,TGN120,136 RHD SA;GUN125,135 RHD +3 —
82198-KKN20 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN125 XTR H —
82198-KKN30 note Wire, Front Door, LH
2021-09 → 2023-01 ended
TGN120 SA;GUN125 RHD 6F +2 —
82198-KKN30 Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN125,126,13#,TGN121 (L,S) ARL —
82198-KKN30 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN122 RHD GEN —
82198-KKN30 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN122 RHD GEN —
82198-KKN30 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN122 RHD GEN —
82198-KKN30 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN122 RHD GEN —
82198-KKN30 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN125 6FC GEN;GUN125,135 S +1 —
82198-KKN40 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN126 6F H SA —
82198-KKN50 note Wire, Front Door, LH
2021-09 → 2023-01 ended
TGN120,136 SA;GUN125,135 RHD 6F +2 —
82198-KKN50 Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN125,135 6FC SA —
82198-KKN60 Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN136 SCB CBU;GUN126 6F +5 —
82198-KKN70 Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN126 ARL CBU —
82198-KKN80 Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN126,135 H TH —
82198-KKP00 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN126 XTR 6F SA —
82198-KKP00 Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN136 XTR SA;GUN126 XTR +2 —
82198-KKP10 note Wire, Front Door, LH
2021-09 → 2023-01 ended
TGN120 SA —
82198-KKP10 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN125 RHD 6F S +1 —
82198-KKP10 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN125 RHD 6F S +1 —
82198-KKP10 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN122 RHD GEN;GUN112,125,TGN110 IDN —
82198-KKP80 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN126,135 H TH —
82198-KKP80 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN126,135 6FC H TH —
82198-KKT10 Wire, Front Door, LH
2021-08 → 2023-01 ended
GUN122,125,LAN125,TGN121 LHD L SA —
82198-KKT10 Wire, Front Door, LH
2021-08 → 2022-10 ended
GUN126,TGN126 AGTP;GUN125,135 AGTP LA —
82198-KKT10 Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN112,122,125,135,TGN110,12# LHD THP L —
82198-KKT20 Wire, Front Door, LH
2021-11 → 2022-10 ended
GUN125,135,TGN136 BZAG —
82198-KKT20 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN122 LHD L GEN —
82198-KKT30 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN122 LHD SA —
82198-KKT30 note Wire, Front Door, LH
2021-09 → 2023-01 ended
GUN122 LHD SA —
82198-KKT30 note Wire, Front Door, LH
2021-09 → 2023-01 ended
LAN125,TGN121 SA —
82198-KKT30 Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN11#,122,126,TGN111,121,126 S GCC —
82198-KKT30 note Wire, Front Door, LH
2021-08 → 2022-07 ended
TGN126 L L (GCC,GEN,LA) +6 —
82198-KKT30 note Wire, Front Door, LH
2021-08 → 2022-07 ended
TGN126 THP LA —
82198-KKT30 note Wire, Front Door, LH
2021-08 → 2022-07 ended
TGN126 THP LA —
82198-KKT30 note Wire, Front Door, LH
2021-08 → 2022-10 ended
GUN125,135 AGTP LA —
82198-KKT30 note Wire, Front Door, LH
2021-08 → 2022-10 ended
TGN126 AGTP —
82198-KKT30 note Wire, Front Door, LH
2021-08 → 2022-10 ended
TGN126 AGTP —
82198-KKT30 note Wire, Front Door, LH
2021-11 → 2022-10 ended
GUN126 LA —
82198-KKT30 Wire, Front Door, LH
2021-08 → 2023-01 ended
GUN125 LHD S SA —
82198-KKT40 Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN122,125 S GEN —
82198-KKT50 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN122,125 S GEN —
82198-KKT70 Wire, Front Door, LH
2021-11 → 2022-10 ended
TGN136 LA —
82198-KKT70 note Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN122 LHD L GEN —
82198-KKV40 Wire, Front Door, LH
2021-08 → 2022-07 ended
GUN125 XTR H —
82153 — Wire, Rear Door, NO.1
82153-KK240 Wire, Rear Door, NO.1
2021-08 → 2022-07 ended
GUN120,122,125 XTR THP L —
82153-KK240 Wire, Rear Door, NO.1
2021-08 → 2023-01 ended
GUN125,135 XTR SA —
82153-KK260 Wire, Rear Door, NO.1
2021-08 → 2022-07 ended
GUN135 TH;GUN120,122,125,126,136 XTR THP +1 —
82153-KK260 Wire, Rear Door, NO.1
2021-08 → 2023-01 ended
GUN126,136 XTR SA —
82154 — Wire, Rear Door, NO.2
82154-KK380 Wire, Rear Door, NO.2
2021-08 → 2022-07 ended
GUN120,122,125 XTR THP L —
82154-KK380 Wire, Rear Door, NO.2
2021-08 → 2023-01 ended
GUN125,135 XTR SA —
82154-KK390 Wire, Rear Door, NO.2
2021-08 → 2022-07 ended
GUN135 TH;GUN120,122,125,126,136 XTR THP +1 —
82154-KK390 Wire, Rear Door, NO.2
2021-08 → 2023-01 ended
GUN126,136 XTR SA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
