Toyota Hilux (SCB/XTR)

2022-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723C0 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

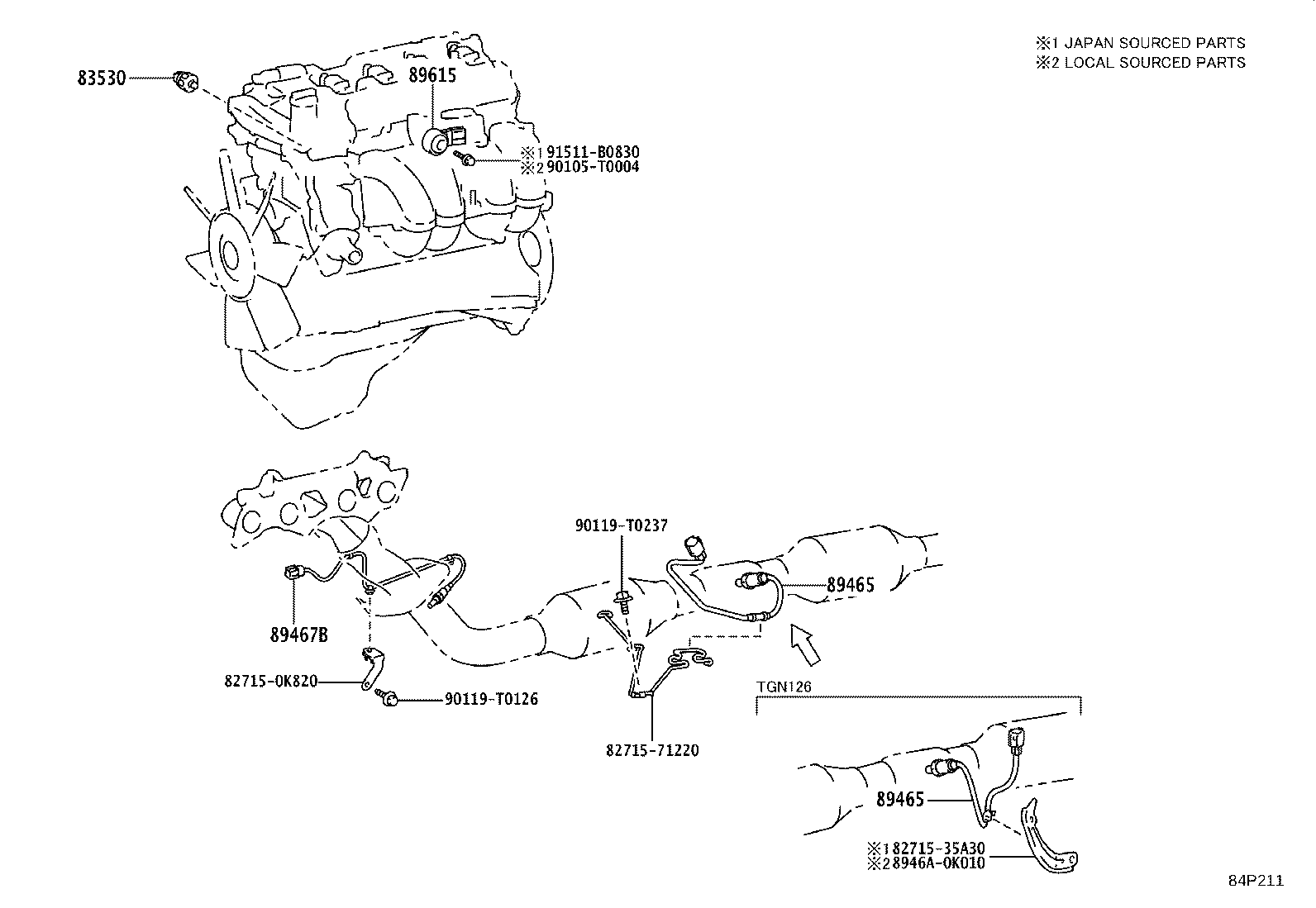

Exploded illustration 84P211 827150K820 — not listed in this catalogue 90119T0126 — not listed in this catalogue 89467B — SENSOR, AIR FUEL RATIO (24 parts) 83530 — SWITCH ASSY, OIL PRESSURE (FOR ENGINE) (38 parts) 8271571220 — not listed in this catalogue 90119T0237 — not listed in this catalogue 89615 — SENSOR, KNOCK CONTROL (4 parts) 90105T0004 — not listed in this catalogue 91511B0830 — not listed in this catalogue 89465 — SENSOR, OXYGEN (6 parts) 89465 — SENSOR, OXYGEN (6 parts) 8946A0K010 — not listed in this catalogue 8271535A30 — not listed in this catalogue
84P211 · 5 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
72 parts on this figure
Part number Description Fitment Price
83530 — Switch Assy, Oil Pressure (FOR ENGINE)
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GUN122 LHD GEN —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-01 ended
GUN122,125,126,13# SA —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-11 ended
GUN135 L SA;GUN125 RHD +4 —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-08 ended
GUN125 MA —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → —
GUN122,126 PKN —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-10 ended
GUN135 AGTP LA —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-10 ended
GUN125,126 AGTP LA —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GUN112 L GCC —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GUN112 L GCC;GUN122 GCC +1 —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GUN122 L GCC —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GUN125 THP LA;GUN122 LHD +1 —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GUN125 6F GEN;GUN135 THP +3 —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-05 ended
GUN135 AGTP LA;GUN125 RHD +2 —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-05 ended
GUN125 S GEN;GUN135 AGTP +4 —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-05 ended
GUN125 S GEN;GUN135 AGTP +1 —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2022-11 ended
GUN112,125 IDN —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-02 ended
GUN112,125 IDN —
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-10 ended
TGN126,136 AGTP —
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-01 ended
TGN120,121,136 SA —
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → —
TGN121 PKN —
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
TGN11#,12# THP —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-10 ended
GUN125,126 AGTP LA —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-01 ended
GUN122,125,126,13# SA —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-10 ended
GUN135 AGTP LA —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → —
GUN122,126 PKN —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-08 ended
GUN125 MA —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GUN112 L GCC —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GUN112 L GCC;GUN122 GCC +1 —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GUN122 LHD GEN —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GUN122 L GCC —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-02 ended
GUN112,125 IDN —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GUN125 6F GEN;GUN135 THP +3 —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GUN125 THP LA;GUN122 LHD +1 —
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
TGN11#,12# THP —
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → —
TGN121 PKN —
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-01 ended
TGN120,121,136 SA —
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-10 ended
TGN126,136 AGTP —
83530-60030 Switch Assy, Oil Pressure (FOR ENGINE)
2023-01 → 2024-01 ended
LAN125 —
89465 — Sensor, Oxygen
89465-0K190 Sensor, Oxygen
2022-08 → 2023-07 ended
TGN11#,120,121 THP —
89465-0K190 Sensor, Oxygen
2022-08 → 2023-10 ended
TGN136 L —
89465-0K190 Sensor, Oxygen
2023-05 → —
TGN121 PKN —
89465-0K190 Sensor, Oxygen
2022-08 → 2024-01 ended
TGN120,121,136 SA —
89465-0K200 Sensor, Oxygen
2022-08 → 2023-07 ended
TGN126 THP —
89465-0K200 Sensor, Oxygen
2022-08 → 2023-10 ended
TGN126 AGTP —
89467B — Sensor, Air Fuel Ratio
89467-71120 note Sensor, Air Fuel Ratio
2022-11 → 2023-10 ended
GUN135 AGTP LA —
89467-71120 note Sensor, Air Fuel Ratio
2022-11 → 2023-10 ended
GUN126 LA —
89467-71120 note Sensor, Air Fuel Ratio
2022-11 → 2023-10 ended
GUN126 LA —
89467-71120 note Sensor, Air Fuel Ratio
2022-11 → 2023-10 ended
GUN135 AGTP LA —
89467-71120 note Sensor, Air Fuel Ratio
2022-11 → 2023-05 ended
GUN125 AGTP LA —
89467-71120 note Sensor, Air Fuel Ratio
2022-08 → 2023-10 ended
GUN126,135 AGTP LA —
89467-71120 note Sensor, Air Fuel Ratio
2022-08 → 2023-10 ended
GUN126,135 AGTP LA —
89467-71120 Sensor, Air Fuel Ratio
2022-08 → 2023-10 ended
GUN125 AGTP;GUN126,135 BZAG —
89467-71120 note Sensor, Air Fuel Ratio
2022-08 → 2023-07 ended
GUN122 GCC CBU;GUN125 RHD +2 —
89467-71120 note Sensor, Air Fuel Ratio
2022-08 → 2023-07 ended
GUN125 S GEN —
89467-71120 note Sensor, Air Fuel Ratio
2022-08 → 2023-07 ended
GUN125 RHD 6F GEN —
89467-71120 note Sensor, Air Fuel Ratio
2022-08 → 2023-05 ended
GUN126 GCC —
89467-71120 note Sensor, Air Fuel Ratio
2022-08 → 2023-05 ended
GUN112 L GCC;GUN125 AGTP +1 —
89467-71120 note Sensor, Air Fuel Ratio
2022-08 → 2023-05 ended
GUN112 L GCC —
89467-71120 note Sensor, Air Fuel Ratio
2022-08 → 2023-05 ended
GUN112 L GCC;GUN125 AGTP +1 —
89467-71120 note Sensor, Air Fuel Ratio
2022-11 → 2023-05 ended
GUN125 AGTP LA —
89467-71120 note Sensor, Air Fuel Ratio
2022-11 → 2023-05 ended
GUN125 AGTP LA —
89467-71120 note Sensor, Air Fuel Ratio
2022-11 → 2023-05 ended
GUN125 AGTP LA —
89467-71120 Sensor, Air Fuel Ratio
2022-08 → 2023-07 ended
GUN125 ARL;GUN126,13# ARL,GCC;GUN112,125 (5F,6FC) +2 —
89467-71120 note Sensor, Air Fuel Ratio
2022-08 → 2023-07 ended
GUN112 S;GUN125 GCC;GUN122 GCC +1 —
89467-71130 Sensor, Air Fuel Ratio
2022-08 → 2023-10 ended
TGN126,136 AGTP —
89467-71130 Sensor, Air Fuel Ratio
2022-08 → 2023-07 ended
TGN11#,12# THP —
89467-71130 Sensor, Air Fuel Ratio
2022-08 → 2024-01 ended
TGN120,121,136 SA —
89467-71130 Sensor, Air Fuel Ratio
2023-05 → —
TGN121 PKN —
89615 — Sensor, Knock Control
89615-20090 Sensor, Knock Control
2022-08 → 2023-07 ended
TGN11#,12# THP —
89615-20090 Sensor, Knock Control
2022-08 → 2023-10 ended
TGN126,136 AGTP —
89615-20090 Sensor, Knock Control
2022-08 → 2024-01 ended
TGN120,121,136 SA —
89615-20090 Sensor, Knock Control
2023-05 → —
TGN121 PKN —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
