Toyota Hilux (SCB/XTR)
2022-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723C0 · General
Supported model
Data version 2023-03
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

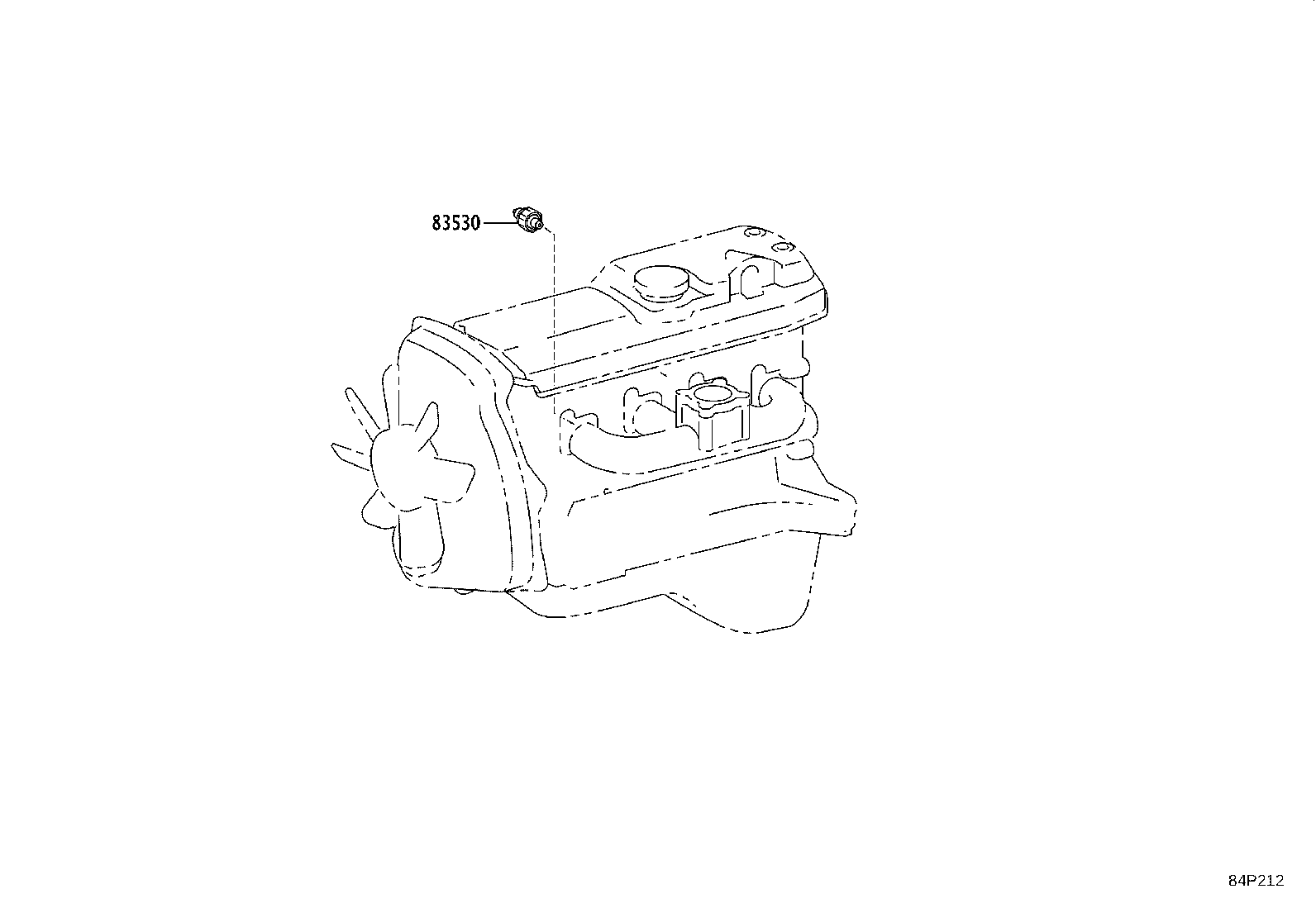

| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-02
ended
|
GUN112,125 IDN | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → —
|
GUN122,126 PKN | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-01
ended
|
GUN122,125,126,13# SA | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-11
ended
|
GUN135 L SA;GUN125 RHD +4 | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-10
ended
|
GUN125,126 AGTP LA | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-10
ended
|
GUN135 AGTP LA | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2022-11
ended
|
GUN112,125 IDN | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07
ended
|
GUN112 L GCC | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07
ended
|
GUN112 L GCC;GUN122 GCC +1 | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07
ended
|
GUN122 L GCC | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-05
ended
|
GUN125 S GEN;GUN135 AGTP +1 | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-05
ended
|
GUN125 S GEN;GUN135 AGTP +4 | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-05
ended
|
GUN135 AGTP LA;GUN125 RHD +2 | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07
ended
|
GUN125 6F GEN;GUN135 THP +3 | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07
ended
|
GUN125 THP LA;GUN122 LHD +1 | — | |
| 83530-28010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07
ended
|
GUN122 LHD GEN | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → —
|
TGN121 PKN | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-01
ended
|
TGN120,121,136 SA | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07
ended
|
TGN11#,12# THP | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-10
ended
|
TGN126,136 AGTP | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07
ended
|
GUN112 L GCC;GUN122 GCC +1 | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-01
ended
|
GUN122,125,126,13# SA | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-02
ended
|
GUN112,125 IDN | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → —
|
GUN122,126 PKN | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-10
ended
|
GUN125,126 AGTP LA | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-10
ended
|
GUN135 AGTP LA | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07
ended
|
GUN125 6F GEN;GUN135 THP +3 | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07
ended
|
GUN125 THP LA;GUN122 LHD +1 | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07
ended
|
GUN122 L GCC | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07
ended
|
GUN112 L GCC | — | |
| 83530-60010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07
ended
|
GUN122 LHD GEN | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → —
|
TGN121 PKN | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-01
ended
|
TGN120,121,136 SA | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-10
ended
|
TGN126,136 AGTP | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07
ended
|
TGN11#,12# THP | — | |
| 83530-60030 |
Switch Assy, Oil Pressure (FOR ENGINE)
2023-01 → 2024-01
ended
|
LAN125 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
