Toyota Hilux (SCB/XTR)
2022-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723C0 · General
Supported model
Data version 2023-03

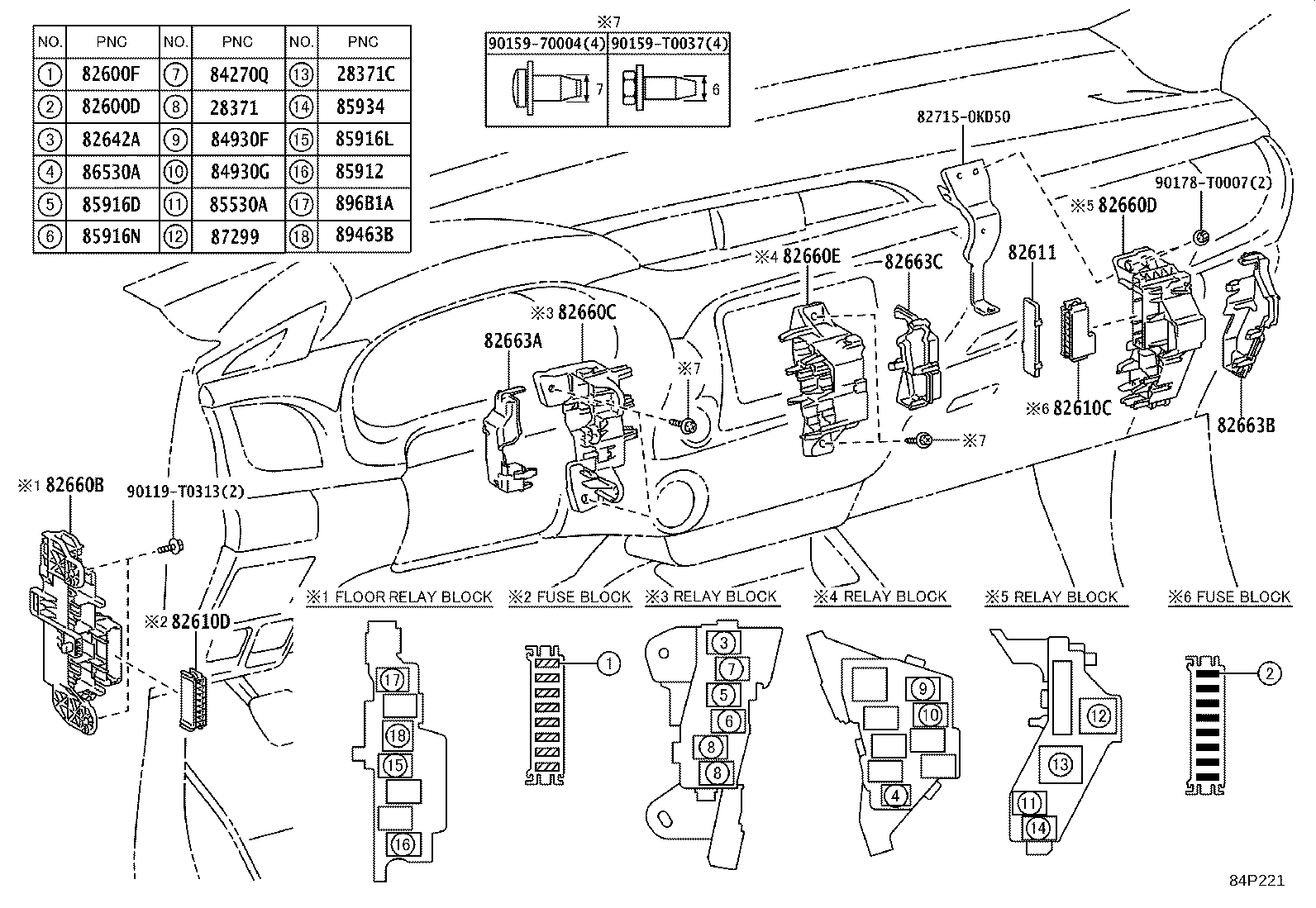

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28371 — Relay, Ignition, NO.1 | ||||
| 90987-02027 note |
Relay, Ignition, NO.1
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN125,126,135 THP H | — | |
| 90987-02027 note |
Relay, Ignition, NO.1
2022-08 → 2024-01
ended
|
1GDFTV GUN136 XTR SA;1GDFTV +4 | — | |
| 90987-02027 note |
Relay, Ignition, NO.1
2023-01 → 2024-01
ended
|
1GDFTV GUN126 6F H +1 | — | |
| 90987-T2001 note |
Relay, Ignition, NO.1
2022-08 → 2023-07
ended
|
1GDFTV,2GDFTV GUN125,126,135 THP H | — | |
| 90987-T2001 note |
Relay, Ignition, NO.1
2023-01 → 2024-01
ended
|
1GDFTV GUN126 6F H +1 | — | |
| 90987-T2001 note |
Relay, Ignition, NO.1
2022-08 → 2024-01
ended
|
1GDFTV GUN136 XTR SA;1GDFTV +4 | — | |
| 28371C — Relay, Ignition, NO.2 | ||||
| 90987-02025 note |
Relay, Ignition, NO.2
2022-11 → 2023-05
ended
|
2GDFTV GUN135 AGTP LA | — | |
| 90987-02025 note |
Relay, Ignition, NO.2
2022-08 → 2023-07
ended
|
2GDFTV ,2TRFE GUN135 GUN125,126,136,TGN126 +6 | — | |
| 90987-02025 note |
Relay, Ignition, NO.2
2022-08 → 2023-07
ended
|
2GDFTV GUN135 L TH | — | |
| 90987-02025 note |
Relay, Ignition, NO.2
2022-08 → 2023-08
ended
|
2GDFTV GUN125 MA | — | |
| 90987-02025 note |
Relay, Ignition, NO.2
2022-08 → —
|
1GDFTV GUN126 PKN | — | |
| 90987-02025 note |
Relay, Ignition, NO.2
2022-08 → 2023-10
ended
|
2TRFE TGN136 LA;1GDFTV,2GDFTV,2TRFE GUN125,126,135,TGN126 +1 | — | |
| 90987-02025 note |
Relay, Ignition, NO.2
2022-08 → 2024-03
ended
|
2GDFTV GUN125,135 KEN | — | |
| 90987-02025 note |
Relay, Ignition, NO.2
2022-11 → 2023-11
ended
|
2GDFTV GUN135 L SA | — | |
| 90987-02025 note |
Relay, Ignition, NO.2
2023-01 → 2023-11
ended
|
2TRFE TGN136 SA | — | |
| 90987-02025 note |
Relay, Ignition, NO.2
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV,5LE,2TRFE GUN125,126,13#,LAN125,TGN136 SA | — | |
| 90987-T2002 note |
Relay, Ignition, NO.2
2022-08 → 2024-03
ended
|
2GDFTV GUN125,135 KEN | — | |
| 90987-T2002 note |
Relay, Ignition, NO.2
2022-08 → —
|
1GDFTV GUN126 PKN | — | |
| 90987-T2002 note |
Relay, Ignition, NO.2
2022-08 → 2023-10
ended
|
2TRFE TGN136 LA;1GDFTV,2GDFTV,2TRFE GUN125,126,135,TGN126 +1 | — | |
| 90987-T2002 note |
Relay, Ignition, NO.2
2022-08 → 2023-07
ended
|
2GDFTV ,2TRFE GUN135 GUN125,126,136,TGN126 +6 | — | |
| 90987-T2002 note |
Relay, Ignition, NO.2
2022-08 → 2023-08
ended
|
2GDFTV GUN125 MA | — | |
| 90987-T2002 note |
Relay, Ignition, NO.2
2022-08 → 2023-07
ended
|
2GDFTV GUN135 L TH | — | |
| 90987-T2002 note |
Relay, Ignition, NO.2
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV,5LE,2TRFE GUN125,126,13#,LAN125,TGN136 SA | — | |
| 82600D — Instrument Panel Fuse | ||||
| 90982-09019 note |
Instrument Panel Fuse
2022-08 → —
|
GUN11#,12#,13#,LAN125,TGN11#,12#,136 | — | |
| 90982-09020 note |
Instrument Panel Fuse
2022-08 → —
|
GUN11#,12#,13#,LAN125,TGN11#,12#,136 | — | |
| 90982-09021 note |
Instrument Panel Fuse
2022-08 → —
|
GUN11#,12#,13#,LAN125,TGN11#,12#,136 | — | |
| 90982-09022 note |
Instrument Panel Fuse
2022-08 → —
|
GUN11#,12#,13#,LAN125,TGN11#,12#,136 | — | |
| 90982-09023 note |
Instrument Panel Fuse
2022-08 → —
|
GUN11#,12#,13#,LAN125,TGN11#,12#,136 | — | |
| 90982-09024 note |
Instrument Panel Fuse
2022-08 → —
|
GUN11#,12#,13#,LAN125,TGN11#,12#,136 | — | |
| 90982-09025 note |
Instrument Panel Fuse
2022-08 → —
|
GUN11#,12#,13#,LAN125,TGN11#,12#,136 | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-09019 note |
Fuse, Fuse Block
2022-08 → —
|
GUN11#,12#,13#,LAN125,TGN11#,12#,136 | — | |
| 90982-09020 note |
Fuse, Fuse Block
2022-08 → —
|
GUN11#,12#,13#,LAN125,TGN11#,12#,136 | — | |
| 90982-09021 note |
Fuse, Fuse Block
2022-08 → —
|
GUN11#,12#,13#,LAN125,TGN11#,12#,136 | — | |
| 90982-09022 note |
Fuse, Fuse Block
2022-08 → —
|
GUN11#,12#,13#,LAN125,TGN11#,12#,136 | — | |
| 90982-09023 note |
Fuse, Fuse Block
2022-08 → —
|
GUN11#,12#,13#,LAN125,TGN11#,12#,136 | — | |
| 90982-09024 note |
Fuse, Fuse Block
2022-08 → —
|
GUN11#,12#,13#,LAN125,TGN11#,12#,136 | — | |
| 90982-09025 note |
Fuse, Fuse Block
2022-08 → —
|
GUN11#,12#,13#,LAN125,TGN11#,12#,136 | — | |
| 82610C — Block Assy, Fuse | ||||
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2023-07
ended
|
GUN11#,12#,13#,TGN11#,12# THP | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2024-01
ended
|
GUN122,125,126,13#,LAN125,TGN120,121,136 SA | — | |
| 82610D — Block Assy, Fuse | ||||
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2023-07
ended
|
GUN11#,12#,13#,TGN11#,12# THP | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2024-01
ended
|
GUN122,125,126,13#,LAN125,TGN120,121,136 SA | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 82611 — Cover, Fuse Block | ||||
| 82611-0K070 |
Cover, Fuse Block
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 82611-0K070 |
Cover, Fuse Block
2022-08 → 2024-01
ended
|
GUN122,125,LAN125,TGN121 LHD SA | — | |
| 82611-0K070 |
Cover, Fuse Block
2022-08 → 2023-07
ended
|
GUN11#,122,125,126,135,TGN11#,12# LHD THP | — | |
| 82611-0K080 |
Cover, Fuse Block
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 82611-0K080 |
Cover, Fuse Block
2022-08 → 2023-07
ended
|
GUN112,12#,13#,TGN110,121 RHD THP | — | |
| 82611-0K080 |
Cover, Fuse Block
2022-08 → 2024-01
ended
|
GUN122,125,126,13#,TGN120,136 RHD SA | — | |
| 82611-0K080 |
Cover, Fuse Block
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 82611-0K080 |
Cover, Fuse Block
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 82642A — Relay, Running Light | ||||
| 90987-02027 note |
Relay, Running Light
2023-01 → 2023-11
ended
|
TGN121 SA | — | |
| 90987-02027 note |
Relay, Running Light
2022-08 → 2023-11
ended
|
GUN126 6F H SA | — | |
| 90987-02027 note |
Relay, Running Light
2022-08 → 2024-01
ended
|
GUN126,136,TGN121 (H,L) SA | — | |
| 90987-02027 note |
Relay, Running Light
2022-08 → 2024-01
ended
|
GUN125 RHD S SA | — | |
| 90987-02027 note |
Relay, Running Light
2022-08 → 2023-10
ended
|
GUN126 LA | — | |
| 90987-02027 note |
Relay, Running Light
2022-08 → 2023-10
ended
|
TGN126 AGTP;GUN125,126,135,TGN136 BZAG | — | |
| 90987-02027 note |
Relay, Running Light
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 90987-02027 note |
Relay, Running Light
2023-01 → 2024-01
ended
|
GUN122 LHD SA | — | |
| 90987-02027 note |
Relay, Running Light
2023-01 → 2023-07
ended
|
TGN121 TH | — | |
| 90987-02027 note |
Relay, Running Light
2023-01 → 2023-07
ended
|
GUN112,120,121,122,126 L TH | — | |
| 90987-02027 note |
Relay, Running Light
2022-08 → 2023-07
ended
|
GUN122 GEN) GCC;GUN112,TGN111 CBU +7 | — | |
| 90987-02027 note |
Relay, Running Light
2022-08 → 2023-07
ended
|
GUN125 ,126,136 H;GUN122 RHD +7 | — | |
| 90987-02027 note |
Relay, Running Light
2022-08 → 2023-05
ended
|
GUN122 LHD GEN | — | |
| 90987-T2001 note |
Relay, Running Light
2022-08 → 2024-01
ended
|
GUN125 RHD S SA | — | |
| 90987-T2001 note |
Relay, Running Light
2022-08 → 2024-01
ended
|
GUN126,136,TGN121 (H,L) SA | — | |
| 90987-T2001 note |
Relay, Running Light
2023-01 → 2024-01
ended
|
GUN122 LHD SA | — | |
| 90987-T2001 note |
Relay, Running Light
2022-08 → 2023-07
ended
|
GUN125 ,126,136 H;GUN122 RHD +7 | — | |
| 90987-T2001 note |
Relay, Running Light
2022-08 → 2023-10
ended
|
TGN126 AGTP;GUN125,126,135,TGN136 BZAG | — | |
| 90987-T2001 note |
Relay, Running Light
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 90987-T2001 note |
Relay, Running Light
2023-01 → 2023-07
ended
|
TGN121 TH | — | |
| 90987-T2001 note |
Relay, Running Light
2023-01 → 2023-07
ended
|
GUN112,120,121,122,126 L TH | — | |
| 90987-T2001 note |
Relay, Running Light
2022-08 → 2023-07
ended
|
GUN122 GEN) GCC;GUN112,TGN111 CBU +7 | — | |
| 90987-T2001 note |
Relay, Running Light
2022-08 → 2023-10
ended
|
GUN126 LA | — | |
| 82660B — Block Assy, Relay | ||||
| 82660-0K161 |
Block Assy, Relay
2022-08 → 2024-01
ended
|
GUN122,125,126,13#,LAN125,TGN120,121,136 SA | — | |
| 82660-0K161 |
Block Assy, Relay
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 82660-0K161 |
Block Assy, Relay
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 82660-0K161 |
Block Assy, Relay
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 82660-0K161 |
Block Assy, Relay
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 82660-0K161 |
Block Assy, Relay
2022-08 → 2023-07
ended
|
GUN11#,12#,13#,TGN11#,12# THP | — | |
| 82660C — Block Assy, Relay | ||||
| 82660-0K050 |
Block Assy, Relay
2022-08 → 2023-07
ended
|
GUN112,12#,13#,TGN110,121 RHD THP | — | |
| 82660-0K050 |
Block Assy, Relay
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 82660-0K050 |
Block Assy, Relay
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 82660-0K050 |
Block Assy, Relay
2022-08 → 2024-01
ended
|
GUN122,125,126,13#,TGN120,136 RHD SA | — | |
| 82660-0K050 |
Block Assy, Relay
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 82660-0K060 |
Block Assy, Relay
2022-08 → 2023-07
ended
|
GUN11#,122,125,126,135,TGN11#,12# LHD THP | — | |
| 82660-0K060 |
Block Assy, Relay
2022-08 → 2024-01
ended
|
GUN122,125,LAN125,TGN121 LHD SA | — | |
| 82660-0K060 |
Block Assy, Relay
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 82660D — Block Assy, Relay | ||||
| 82660-0K070 |
Block Assy, Relay
2022-08 → 2023-07
ended
|
GUN112,12#,13#,TGN110,121 RHD THP | — | |
| 82660-0K070 |
Block Assy, Relay
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 82660-0K070 |
Block Assy, Relay
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 82660-0K070 |
Block Assy, Relay
2022-08 → 2024-01
ended
|
GUN122,125,126,13#,TGN120,136 RHD SA | — | |
| 82660-0K070 |
Block Assy, Relay
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 82660-0K080 |
Block Assy, Relay
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 82660-0K080 |
Block Assy, Relay
2022-08 → 2023-07
ended
|
GUN11#,122,125,126,135,TGN11#,12# LHD THP | — | |
| 82660-0K080 |
Block Assy, Relay
2022-08 → 2024-01
ended
|
GUN122,125,LAN125,TGN121 LHD SA | — | |
| 82660E — Block Assy, Relay | ||||
| 82660-0K090 |
Block Assy, Relay
2022-08 → 2023-07
ended
|
GUN112,12#,13#,TGN110,121 RHD THP | — | |
| 82660-0K090 |
Block Assy, Relay
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 82660-0K090 |
Block Assy, Relay
2022-08 → 2024-01
ended
|
GUN122,125,126,13#,TGN120,136 RHD SA | — | |
| 82660-0K090 |
Block Assy, Relay
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 82660-0K090 |
Block Assy, Relay
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 82660-0K100 |
Block Assy, Relay
2022-08 → 2023-07
ended
|
GUN11#,122,125,126,135,TGN11#,12# LHD THP | — | |
| 82660-0K100 |
Block Assy, Relay
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 82660-0K100 |
Block Assy, Relay
2022-08 → 2024-01
ended
|
GUN122,125,LAN125,TGN121 LHD SA | — | |
| 82663A — Cover, Relay Block, Lower, NO.2 | ||||
| 82663-0K050 |
Cover, Relay Block, Lower, NO.2
2022-08 → 2023-07
ended
|
GUN112,12#,13#,TGN110,121 RHD THP | — | |
| 82663-0K050 |
Cover, Relay Block, Lower, NO.2
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 82663-0K050 |
Cover, Relay Block, Lower, NO.2
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 82663-0K050 |
Cover, Relay Block, Lower, NO.2
2022-08 → 2024-01
ended
|
GUN122,125,126,13#,TGN120,136 RHD SA | — | |
| 82663-0K050 |
Cover, Relay Block, Lower, NO.2
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 82663-0K060 |
Cover, Relay Block, Lower, NO.2
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 82663-0K060 |
Cover, Relay Block, Lower, NO.2
2022-08 → 2024-01
ended
|
GUN122,125,LAN125,TGN121 LHD SA | — | |
| 82663-0K060 |
Cover, Relay Block, Lower, NO.2
2022-08 → 2023-07
ended
|
GUN11#,122,125,126,135,TGN11#,12# LHD THP | — | |
| 82663B — Cover, Relay Block, Lower, NO.3 | ||||
| 82663-0K070 |
Cover, Relay Block, Lower, NO.3
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 82663-0K070 |
Cover, Relay Block, Lower, NO.3
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 82663-0K070 |
Cover, Relay Block, Lower, NO.3
2022-08 → 2024-01
ended
|
GUN122,125,126,13#,TGN120,136 RHD SA | — | |
| 82663-0K070 |
Cover, Relay Block, Lower, NO.3
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 82663-0K070 |
Cover, Relay Block, Lower, NO.3
2022-08 → 2023-07
ended
|
GUN112,12#,13#,TGN110,121 RHD THP | — | |
| 82663-0K080 |
Cover, Relay Block, Lower, NO.3
2022-08 → 2024-01
ended
|
GUN122,125,LAN125,TGN121 LHD SA | — | |
| 82663-0K080 |
Cover, Relay Block, Lower, NO.3
2022-08 → 2023-07
ended
|
GUN11#,122,125,126,135,TGN11#,12# LHD THP | — | |
| 82663-0K080 |
Cover, Relay Block, Lower, NO.3
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 82663C — Cover, Relay Block Lower, NO.4 | ||||
| 82663-0K090 |
Cover, Relay Block Lower, NO.4
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 82663-0K090 |
Cover, Relay Block Lower, NO.4
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 82663-0K090 |
Cover, Relay Block Lower, NO.4
2022-08 → 2024-01
ended
|
GUN122,125,126,13#,TGN120,136 RHD SA | — | |
| 82663-0K090 |
Cover, Relay Block Lower, NO.4
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 82663-0K090 |
Cover, Relay Block Lower, NO.4
2022-08 → 2023-07
ended
|
GUN112,12#,13#,TGN110,121 RHD THP | — | |
| 82663-0K100 |
Cover, Relay Block Lower, NO.4
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 82663-0K100 |
Cover, Relay Block Lower, NO.4
2022-08 → 2024-01
ended
|
GUN122,125,LAN125,TGN121 LHD SA | — | |
| 82663-0K100 |
Cover, Relay Block Lower, NO.4
2022-08 → 2023-07
ended
|
GUN11#,122,125,126,135,TGN11#,12# LHD THP | — | |
| 84270Q — Relay, Lamp Cut | ||||
| 90987-02027 note |
Relay, Lamp Cut
2022-08 → 2023-07
ended
|
GUN11#,12#,13#,TGN11#,12# THP | — | |
| 90987-02027 note |
Relay, Lamp Cut
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 90987-02027 note |
Relay, Lamp Cut
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 90987-02027 note |
Relay, Lamp Cut
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 90987-02027 note |
Relay, Lamp Cut
2022-08 → 2024-01
ended
|
GUN122,125,126,13#,LAN125,TGN120,121,136 SA | — | |
| 90987-02027 note |
Relay, Lamp Cut
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 90987-T2001 note |
Relay, Lamp Cut
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 90987-T2001 note |
Relay, Lamp Cut
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 90987-T2001 note |
Relay, Lamp Cut
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 90987-T2001 note |
Relay, Lamp Cut
2022-08 → 2024-01
ended
|
GUN122,125,126,13#,LAN125,TGN120,121,136 SA | — | |
| 90987-T2001 note |
Relay, Lamp Cut
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 90987-T2001 note |
Relay, Lamp Cut
2022-08 → 2023-07
ended
|
GUN11#,12#,13#,TGN11#,12# THP | — | |
| 84930F — Relay, Door Lock Contorol | ||||
| 90080-87009 note |
Relay, Door Lock Contorol
2022-08 → 2023-07
ended
|
GUN125 S GEN | — | |
| 90080-87009 note |
Relay, Door Lock Contorol
2022-11 → 2023-10
ended
|
GUN126 LA | — | |
| 90987-04004 note |
Relay, Door Lock Contorol
2022-08 → 2023-07
ended
|
GUN125 S GEN | — | |
| 90987-04004 note |
Relay, Door Lock Contorol
2022-11 → 2023-10
ended
|
GUN126 LA | — | |
| 84930G — Relay, Door Lock Control, NO.2 | ||||
| 90080-87009 note |
Relay, Door Lock Control, NO.2
2022-08 → 2023-07
ended
|
GUN125 S GEN | — | |
| 90080-87009 note |
Relay, Door Lock Control, NO.2
2022-11 → 2023-10
ended
|
GUN126 LA | — | |
| 90987-04004 note |
Relay, Door Lock Control, NO.2
2022-11 → 2023-10
ended
|
GUN126 LA | — | |
| 90987-04004 note |
Relay, Door Lock Control, NO.2
2022-08 → 2023-07
ended
|
GUN125 S GEN | — | |
| 85530A — Relay, Power Outlet Socket | ||||
| 90987-T2001 |
Relay, Power Outlet Socket
2022-08 → 2023-07
ended
|
GUN11#,12#,13#,TGN11#,12# THP | — | |
| 90987-T2001 |
Relay, Power Outlet Socket
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 90987-T2001 |
Relay, Power Outlet Socket
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 90987-T2001 |
Relay, Power Outlet Socket
2022-08 → 2024-01
ended
|
GUN122,125,126,13#,LAN125,TGN120,121,136 SA | — | |
| 90987-T2001 |
Relay, Power Outlet Socket
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 90987-T2001 |
Relay, Power Outlet Socket
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 85912 — Relay, Defogger | ||||
| 90080-87009 note |
Relay, Defogger
2022-08 → 2023-07
ended
|
GUN125,135 RHD L (GEN,TH) | — | |
| 90080-87009 note |
Relay, Defogger
2023-01 → —
|
TGN121 SA;GUN125 LHD SCB +1 | — | |
| 90080-87009 note |
Relay, Defogger
2022-08 → —
|
GUN122 LHD SA | — | |
| 90080-87009 |
Relay, Defogger
2022-08 → —
|
TGN121 SA;GUN125 LHD SCB +1 | — | |
| 90080-87009 |
Relay, Defogger
2022-08 → 2023-07
ended
|
GUN125 ,135 ARL,TH;GUN125 RHD +7 | — | |
| 85916D — Relay, Fog Lamp | ||||
| 90987-02027 note |
Relay, Fog Lamp
2022-08 → 2023-07
ended
|
GUN135 (H,S) TH;GUN125,126 THP +1 | — | |
| 90987-02027 note |
Relay, Fog Lamp
2022-08 → 2024-01
ended
|
GUN125,126,135,TGN136 S SA | — | |
| 90987-02027 note |
Relay, Fog Lamp
2022-08 → 2024-01
ended
|
GUN135 SCB 6F S;GUN125,126 +3 | — | |
| 90987-02027 note |
Relay, Fog Lamp
2022-08 → 2024-01
ended
|
GUN126,136 H SA | — | |
| 90987-02027 note |
Relay, Fog Lamp
2022-08 → 2023-10
ended
|
TGN136 LA | — | |
| 90987-02027 note |
Relay, Fog Lamp
2022-08 → —
|
GUN126 PKN | — | |
| 90987-02027 note |
Relay, Fog Lamp
2022-08 → 2023-07
ended
|
GUN135 L TH;GUN120,122,125 XTR +2 | — | |
| 90987-02027 note |
Relay, Fog Lamp
2022-08 → 2023-07
ended
|
GUN112,TGN111,121,126 S | — | |
| 90987-T2001 note |
Relay, Fog Lamp
2022-08 → —
|
GUN126 PKN | — | |
| 90987-T2001 note |
Relay, Fog Lamp
2022-08 → 2024-01
ended
|
GUN125,126,135,TGN136 S SA | — | |
| 90987-T2001 note |
Relay, Fog Lamp
2022-08 → 2023-07
ended
|
GUN112,TGN111,121,126 S | — | |
| 90987-T2001 note |
Relay, Fog Lamp
2022-08 → 2024-01
ended
|
GUN135 SCB 6F S;GUN125,126 +3 | — | |
| 90987-T2001 note |
Relay, Fog Lamp
2022-08 → 2024-01
ended
|
GUN126,136 H SA | — | |
| 90987-T2001 note |
Relay, Fog Lamp
2022-08 → 2023-10
ended
|
TGN136 LA | — | |
| 90987-T2001 note |
Relay, Fog Lamp
2022-08 → 2023-07
ended
|
GUN135 L TH;GUN120,122,125 XTR +2 | — | |
| 90987-T2001 note |
Relay, Fog Lamp
2022-08 → 2023-07
ended
|
GUN135 (H,S) TH;GUN125,126 THP +1 | — | |
| 85916L — Relay, Rear Fog Lamp | ||||
| 90987-02027 note |
Relay, Rear Fog Lamp
2022-08 → 2023-07
ended
|
GUN122 LHD (GCC,GEN);GUN11#,125,126,TGN11#,12# GCC | — | |
| 90987-02027 note |
Relay, Rear Fog Lamp
2023-01 → 2024-01
ended
|
GUN122 LHD SA | — | |
| 90987-02027 note |
Relay, Rear Fog Lamp
2022-08 → 2024-01
ended
|
TGN121 SA | — | |
| 90987-02027 note |
Relay, Rear Fog Lamp
2023-01 → 2023-11
ended
|
TGN121 SA | — | |
| 90987-02027 note |
Relay, Rear Fog Lamp
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN136 BZAG CBU | — | |
| 90987-02027 note |
Relay, Rear Fog Lamp
2022-08 → 2023-05
ended
|
GUN122 LHD GEN | — | |
| 90987-02027 note |
Relay, Rear Fog Lamp
2022-08 → 2023-05
ended
|
GUN122 LHD GEN | — | |
| 90987-02027 note |
Relay, Rear Fog Lamp
2022-08 → 2023-05
ended
|
GUN122 LHD GEN | — | |
| 90987-02027 note |
Relay, Rear Fog Lamp
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 90987-T2001 note |
Relay, Rear Fog Lamp
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 90987-T2001 note |
Relay, Rear Fog Lamp
2022-08 → 2023-07
ended
|
GUN122 LHD (GCC,GEN);GUN11#,125,126,TGN11#,12# GCC | — | |
| 90987-T2001 note |
Relay, Rear Fog Lamp
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN136 BZAG CBU | — | |
| 90987-T2001 note |
Relay, Rear Fog Lamp
2022-08 → 2024-01
ended
|
TGN121 SA | — | |
| 90987-T2001 note |
Relay, Rear Fog Lamp
2023-01 → 2024-01
ended
|
GUN122 LHD SA | — | |
| 85916N — Relay, Taillamp | ||||
| 90987-02027 note |
Relay, Taillamp
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 90987-02027 note |
Relay, Taillamp
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 90987-02027 note |
Relay, Taillamp
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 90987-02027 note |
Relay, Taillamp
2022-08 → 2024-01
ended
|
GUN122,125,126,13#,LAN125,TGN120,121,136 SA | — | |
| 90987-02027 note |
Relay, Taillamp
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 90987-02027 note |
Relay, Taillamp
2022-08 → 2023-07
ended
|
GUN11#,12#,13#,TGN11#,12# THP | — | |
| 90987-T2001 note |
Relay, Taillamp
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 90987-T2001 note |
Relay, Taillamp
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 90987-T2001 note |
Relay, Taillamp
2022-08 → 2024-01
ended
|
GUN122,125,126,13#,LAN125,TGN120,121,136 SA | — | |
| 90987-T2001 note |
Relay, Taillamp
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 90987-T2001 note |
Relay, Taillamp
2022-08 → 2023-07
ended
|
GUN11#,12#,13#,TGN11#,12# THP | — | |
| 90987-T2001 note |
Relay, Taillamp
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 85934 — Relay, Magnet-clutch | ||||
| 90987-02028 |
Relay, Magnet-clutch
2022-08 → —
|
GUN126 PKN | — | |
| 90987-02028 |
Relay, Magnet-clutch
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 90987-02028 note |
Relay, Magnet-clutch
2022-08 → 2024-01
ended
|
GUN122,125,135,TGN120 RHD L SA | — | |
| 90987-02028 |
Relay, Magnet-clutch
2022-08 → 2024-01
ended
|
GUN125,135 S SA;GUN122,125 LHD +3 | — | |
| 90987-02028 note |
Relay, Magnet-clutch
2023-01 → 2023-11
ended
|
GUN122,125 LHD L SA | — | |
| 90987-02028 |
Relay, Magnet-clutch
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 90987-02028 note |
Relay, Magnet-clutch
2022-08 → 2023-07
ended
|
GUN122 LHD GEN | — | |
| 90987-02028 note |
Relay, Magnet-clutch
2022-08 → 2023-07
ended
|
GUN122 LHD GEN | — | |
| 90987-02028 |
Relay, Magnet-clutch
2022-08 → 2023-07
ended
|
GUN125 (ARL,GCC,GEN,LA,TH) THP;GUN122 GCC,PH;GUN122 +3 | — | |
| 90987-02028 note |
Relay, Magnet-clutch
2022-08 → 2023-05
ended
|
TGN126 TGN111 S;TGN126 (GCC,LA) +6 | — | |
| 90987-02028 |
Relay, Magnet-clutch
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 86530A — Relay, Horn | ||||
| 90987-T2001 |
Relay, Horn
2022-08 → 2023-08
ended
|
TGN136 LA | — | |
| 90987-T2001 |
Relay, Horn
2022-08 → 2024-01
ended
|
GUN126 6FC) 6F SA +8 | — | |
| 90987-T2001 note |
Relay, Horn
2023-01 → 2023-11
ended
|
GUN122 RHD SA CBU;GUN125 +4 | — | |
| 90987-T2001 note |
Relay, Horn
2023-01 → 2023-11
ended
|
GUN122 RHD SA CBU;GUN125 +4 | — | |
| 90987-T2001 note |
Relay, Horn
2022-11 → 2023-08
ended
|
GUN126 LA | — | |
| 90987-T2001 note |
Relay, Horn
2022-08 → 2023-07
ended
|
GUN125 XTR GEN | — | |
| 90987-T2001 |
Relay, Horn
2022-08 → 2023-07
ended
|
GUN125,136 ARL,TH;GUN135,TGN121 ARL;GUN126,135 RHD +2 | — | |
| 87299 — Relay, Heater | ||||
| 90987-T2003 |
Relay, Heater
2022-08 → 2024-01
ended
|
GUN122,125,126,13#,LAN125,TGN120,121,136 SA | — | |
| 90987-T2003 |
Relay, Heater
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 90987-T2003 |
Relay, Heater
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 90987-T2003 |
Relay, Heater
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 90987-T2003 |
Relay, Heater
2022-08 → 2023-07
ended
|
GUN11#,12#,13#,TGN11#,12# THP (L,S) | — | |
| 90987-T2003 note |
Relay, Heater
2022-08 → 2023-05
ended
|
TGN121 GEN CBU | — | |
| 90987-T2003 note |
Relay, Heater
2022-08 → 2023-05
ended
|
TGN126 11 S;TGN126 (GCC,LA) +6 | — | |
| 90987-T2003 |
Relay, Heater
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 89463B — Relay, Nitrogen Oxides | ||||
| 90987-02027 note |
Relay, Nitrogen Oxides
2022-08 → 2023-07
ended
|
GUN125 S GEN | — | |
| 90987-02027 note |
Relay, Nitrogen Oxides
2022-08 → 2023-08
ended
|
GUN126,135 AGTP LA | — | |
| 90987-02027 note |
Relay, Nitrogen Oxides
2022-11 → 2023-10
ended
|
GUN125 AGTP LA | — | |
| 90987-T2001 note |
Relay, Nitrogen Oxides
2022-11 → 2023-10
ended
|
GUN125 AGTP LA | — | |
| 90987-T2001 note |
Relay, Nitrogen Oxides
2022-08 → 2023-08
ended
|
GUN126,135 AGTP LA | — | |
| 90987-T2001 note |
Relay, Nitrogen Oxides
2022-08 → 2023-07
ended
|
GUN125 S GEN | — | |
| 896B1A — Relay, Dcu Main | ||||
| 90987-02027 note |
Relay, Dcu Main
2022-11 → 2023-05
ended
|
GUN125 AGTP LA | — | |
| 90987-02027 note |
Relay, Dcu Main
2022-11 → 2023-05
ended
|
GUN125 AGTP LA | — | |
| 90987-02027 note |
Relay, Dcu Main
2022-11 → 2023-05
ended
|
GUN125 AGTP LA | — | |
| 90987-02027 note |
Relay, Dcu Main
2022-08 → 2023-07
ended
|
GUN125 S GEN | — | |
| 90987-02027 note |
Relay, Dcu Main
2022-08 → 2023-10
ended
|
GUN126,135 AGTP LA | — | |
| 90987-02027 note |
Relay, Dcu Main
2022-11 → 2023-10
ended
|
GUN125 AGTP LA | — | |
| 90987-T2001 note |
Relay, Dcu Main
2022-08 → 2023-07
ended
|
GUN125 S GEN | — | |
| 90987-T2001 note |
Relay, Dcu Main
2022-08 → 2023-10
ended
|
GUN126,135 AGTP LA | — | |
| 90987-T2001 note |
Relay, Dcu Main
2022-11 → 2023-10
ended
|
GUN125 AGTP LA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
