Toyota Hilux (SCB/XTR)
2022-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723C0 · General
Supported model
Data version 2023-03

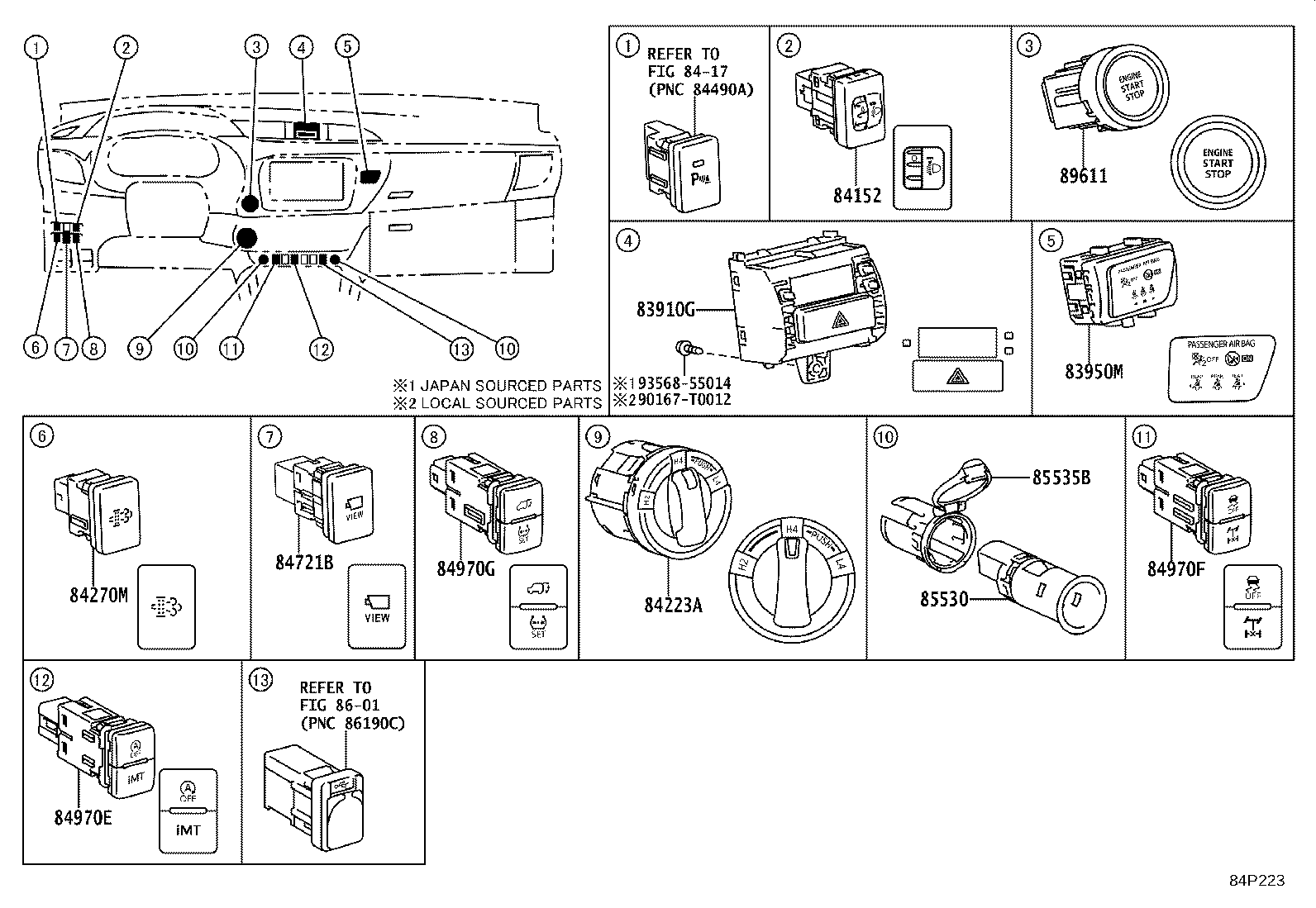

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83910G — Clock Assy | ||||
| 83910-0K040 |
Clock Assy
2022-08 → 2023-07
ended
|
GUN11#,12#,13#,TGN11#,12# THP | — | |
| 83910-0K180 |
Clock Assy
2022-09 → 2023-08
ended
|
GUN125 MA | — | |
| 83910-0K180 |
Clock Assy
2022-09 → —
|
GUN122,126,TGN121 PKN | — | |
| 83910-0K180 |
Clock Assy
2022-09 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 83910-0K180 |
Clock Assy
2022-09 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 83910-0K180 |
Clock Assy
2022-09 → 2024-01
ended
|
GUN122,125,126,13#,LAN125,TGN120,121,136 SA | — | |
| 83950M — Lamp Assy, Telltale | ||||
| 83950-0K040 note |
Lamp Assy, Telltale
2023-01 → 2023-07
ended
|
GUN125 S GEN | — | |
| 83950-0K040 note |
Lamp Assy, Telltale
2023-01 → 2023-07
ended
|
GUN125 S GEN | — | |
| 83950-0K040 note |
Lamp Assy, Telltale
2023-01 → 2023-07
ended
|
GUN125 S GEN | — | |
| 83950-0K040 |
Lamp Assy, Telltale
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 83950-0K040 note |
Lamp Assy, Telltale
2022-08 → 2023-07
ended
|
GUN122 LHD GEN | — | |
| 83950-0K040 note |
Lamp Assy, Telltale
2022-08 → 2023-07
ended
|
GUN125 H;GUN122 LHD GEN | — | |
| 83950-0K040 note |
Lamp Assy, Telltale
2022-08 → 2023-07
ended
|
GUN122,125 LHD L GEN | — | |
| 83950-0K040 |
Lamp Assy, Telltale
2022-08 → 2023-07
ended
|
TGN121 GEN;GUN122,125,135,TGN126 THP (LA,PH) | — | |
| 83950-0K070 |
Lamp Assy, Telltale
2022-08 → 2023-07
ended
|
GUN125 6FC GEN;GUN126,135 H +3 | — | |
| 83950-0K070 note |
Lamp Assy, Telltale
2022-08 → 2023-07
ended
|
GUN125 RHD 6F GEN | — | |
| 83950-0K070 note |
Lamp Assy, Telltale
2022-08 → 2023-07
ended
|
GUN125,135 S TH | — | |
| 83950-0K070 |
Lamp Assy, Telltale
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 83950-0K070 note |
Lamp Assy, Telltale
2023-01 → 2023-07
ended
|
GUN135 L TH;GUN112,120,121,122,126,TGN121 (L,S) +1 | — | |
| 83950-0K070 note |
Lamp Assy, Telltale
2023-01 → 2023-07
ended
|
GUN135 L TH;GUN112,120,121,122,126,TGN121 (L,S) +1 | — | |
| 83950-0K340 |
Lamp Assy, Telltale
2022-08 → 2023-07
ended
|
GUN125,126,136 XTR ARL | — | |
| 83950-0K370 note |
Lamp Assy, Telltale
2022-11 → 2023-10
ended
|
GUN126 LA;GUN125,135,TGN136 AGTP | — | |
| 83950-0K370 note |
Lamp Assy, Telltale
2022-11 → 2023-10
ended
|
GUN125,135 BZAG | — | |
| 83950-0K370 note |
Lamp Assy, Telltale
2022-08 → 2023-07
ended
|
TGN121 GEN | — | |
| 83950-0K370 note |
Lamp Assy, Telltale
2022-08 → 2023-07
ended
|
GUN125 S GEN | — | |
| 83950-0K370 note |
Lamp Assy, Telltale
2022-08 → 2023-07
ended
|
GUN125 S GEN | — | |
| 83950-0K370 note |
Lamp Assy, Telltale
2022-08 → 2023-07
ended
|
GUN125 S GEN | — | |
| 83950-0K390 note |
Lamp Assy, Telltale
2022-08 → 2023-07
ended
|
GUN125 RHD 6F GEN | — | |
| 83950-0K390 |
Lamp Assy, Telltale
2022-08 → 2023-07
ended
|
GUN112,12#,135,TGN121 (L,S) TH | — | |
| 83950-0K390 note |
Lamp Assy, Telltale
2022-08 → 2023-07
ended
|
GUN125 6FC GEN | — | |
| 84152 — Switch, Headlamp Leveling | ||||
| 84152-0K060 |
Switch, Headlamp Leveling
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 84152-0K060 note |
Switch, Headlamp Leveling
2023-01 → 2024-01
ended
|
GUN122 LHD SA | — | |
| 84152-0K060 |
Switch, Headlamp Leveling
2022-08 → 2024-01
ended
|
GUN122,125 RHD SA;GUN126,135,TGN120,121,136 (L,S) +1 | — | |
| 84152-0K060 |
Switch, Headlamp Leveling
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 84152-0K060 note |
Switch, Headlamp Leveling
2022-08 → 2023-07
ended
|
GUN122,TGN111 GCC;TGN121,126 LHD THP +1 | — | |
| 84152-0K060 |
Switch, Headlamp Leveling
2022-08 → 2023-07
ended
|
GUN122 ARL LHD GEN;GUN125 +6 | — | |
| 84152-0K060 note |
Switch, Headlamp Leveling
2022-08 → 2023-01
ended
|
GUN120,122 S TH | — | |
| 84152-0K060 note |
Switch, Headlamp Leveling
2023-01 → 2023-07
ended
|
GUN120,122 S TH;GUN112,120,121,122,126,TGN121 SCB +1 | — | |
| 84152-0K090 |
Switch, Headlamp Leveling
2022-11 → 2023-10
ended
|
GUN126 AGTP;GUN125,135,TGN136 BZAG | — | |
| 84152-0K090 note |
Switch, Headlamp Leveling
2022-11 → 2023-10
ended
|
TGN126 AGTP | — | |
| 84223A — Switch, Transfer Position | ||||
| 84223-0K010 |
Switch, Transfer Position
2022-08 → 2024-03
ended
|
GUN125 KEN | — | |
| 84223-0K010 |
Switch, Transfer Position
2022-08 → —
|
GUN126 PKN | — | |
| 84223-0K010 |
Switch, Transfer Position
2022-08 → 2024-01
ended
|
GUN125,126,LAN125 SA | — | |
| 84223-0K010 |
Switch, Transfer Position
2022-08 → 2023-10
ended
|
GUN125,126,TGN126 AGTP | — | |
| 84223-0K010 |
Switch, Transfer Position
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 84223-0K010 |
Switch, Transfer Position
2022-08 → 2023-07
ended
|
GUN125,126,TGN126 THP | — | |
| 84270M — Switch Assy, Diesel Particulate Reduction | ||||
| 84270-0K050 |
Switch Assy, Diesel Particulate Reduction
2022-08 → 2023-07
ended
|
GUN125 ARL;GUN126,13# ARL,GCC;GUN112,125 (5F,6FC) +2 | — | |
| 84270-0K050 note |
Switch Assy, Diesel Particulate Reduction
2022-08 → 2023-07
ended
|
GUN125 S GEN | — | |
| 84270-0K050 note |
Switch Assy, Diesel Particulate Reduction
2022-08 → 2023-07
ended
|
GUN112 S;GUN122,125 GCC;GUN125 RHD +2 | — | |
| 84270-0K050 |
Switch Assy, Diesel Particulate Reduction
2022-08 → 2023-10
ended
|
GUN125 AGTP;GUN126,135 BZAG | — | |
| 84270-0K050 note |
Switch Assy, Diesel Particulate Reduction
2022-08 → 2023-10
ended
|
GUN126,135 AGTP LA | — | |
| 84270-0K050 note |
Switch Assy, Diesel Particulate Reduction
2022-08 → 2023-10
ended
|
GUN126,135 AGTP LA | — | |
| 84721B — Switch, Panoramic View Monitor | ||||
| 84721-0K080 note |
Switch, Panoramic View Monitor
2022-08 → 2023-07
ended
|
GUN125 H;GUN125,126,135 (H,S) TH | — | |
| 84970E — Switch Assy, Combination NO.2 | ||||
| 84970-0K260 note |
Switch Assy, Combination NO.2
2022-08 → 2023-07
ended
|
GUN135 S) 6F (GCC,TH) +9 | — | |
| 84970-0K270 note |
Switch Assy, Combination NO.2
2022-08 → 2024-01
ended
|
GUN126,136 6F H SA | — | |
| 84970-0K270 note |
Switch Assy, Combination NO.2
2022-08 → 2023-07
ended
|
GUN126 6F H TH | — | |
| 84970-0K280 note |
Switch Assy, Combination NO.2
2022-08 → 2023-07
ended
|
GUN126 6F H TH | — | |
| 84970F — Switch Assy, Combination, NO.3 | ||||
| 84970-0K200 note |
Switch Assy, Combination, NO.3
2022-08 → 2023-10
ended
|
GUN135 AGTP;TGN136 BZAG;GUN125,126,TGN126 AGTP +1 | — | |
| 84970-0K200 note |
Switch Assy, Combination, NO.3
2022-08 → 2024-01
ended
|
TGN120,121 SA | — | |
| 84970-0K200 note |
Switch Assy, Combination, NO.3
2022-08 → 2024-01
ended
|
GUN125,135 RHD SCB 6F +3 | — | |
| 84970-0K200 note |
Switch Assy, Combination, NO.3
2022-08 → 2024-01
ended
|
GUN125 SA IV3;GUN122,135 L +8 | — | |
| 84970-0K200 note |
Switch Assy, Combination, NO.3
2023-01 → 2024-01
ended
|
TGN136 SA | — | |
| 84970-0K200 note |
Switch Assy, Combination, NO.3
2022-08 → 2023-07
ended
|
GUN135 5,TGN110,121 (H,S) (5F,6FC) +9 | — | |
| 84970-0K200 note |
Switch Assy, Combination, NO.3
2022-08 → 2023-07
ended
|
GUN125,136,TGN126 S (ARL,GCC,GEN) | — | |
| 84970-0K200 note |
Switch Assy, Combination, NO.3
2022-08 → 2023-07
ended
|
GUN112,120,121,122 TH;GUN135,TGN121 L (GEN,TH) | — | |
| 84970-0K210 note |
Switch Assy, Combination, NO.3
2022-08 → —
|
GUN126 PKN | — | |
| 84970-0K210 note |
Switch Assy, Combination, NO.3
2022-08 → 2024-01
ended
|
GUN125 XTR L CBU | — | |
| 84970-0K210 note |
Switch Assy, Combination, NO.3
2022-08 → 2024-01
ended
|
GUN125,135 RHD SCB L +1 | — | |
| 84970-0K210 note |
Switch Assy, Combination, NO.3
2022-08 → 2024-01
ended
|
TGN136 SA;GUN125 LHD L +1 | — | |
| 84970-0K210 note |
Switch Assy, Combination, NO.3
2022-08 → 2023-07
ended
|
GUN125,126 6F L (IDN,TH) | — | |
| 84970-0K210 note |
Switch Assy, Combination, NO.3
2022-08 → 2023-10
ended
|
GUN125,135 AGTP LA | — | |
| 84970-0K210 note |
Switch Assy, Combination, NO.3
2022-08 → 2023-10
ended
|
TGN136 LA | — | |
| 84970-0K210 note |
Switch Assy, Combination, NO.3
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 84970-0K210 note |
Switch Assy, Combination, NO.3
2022-08 → 2024-03
ended
|
GUN125,135 L KEN | — | |
| 84970-0K210 note |
Switch Assy, Combination, NO.3
2022-08 → 2023-07
ended
|
GUN125 THP LA;GUN125 RHD +2 | — | |
| 84970-0K210 note |
Switch Assy, Combination, NO.3
2022-08 → 2023-07
ended
|
GUN135 THP LA | — | |
| 84970-0K220 note |
Switch Assy, Combination, NO.3
2022-08 → 2024-01
ended
|
TGN136 SA | — | |
| 84970-0K220 note |
Switch Assy, Combination, NO.3
2022-08 → 2024-03
ended
|
GUN125 S KEN | — | |
| 84970-0K220 note |
Switch Assy, Combination, NO.3
2022-08 → 2024-01
ended
|
GUN125 SA IV3;GUN125 LHD +6 | — | |
| 84970-0K220 note |
Switch Assy, Combination, NO.3
2022-08 → 2023-10
ended
|
GUN125,126,135 AGTP LA | — | |
| 84970-0K220 note |
Switch Assy, Combination, NO.3
2022-08 → 2023-10
ended
|
GUN125,126 BZAG | — | |
| 84970-0K220 note |
Switch Assy, Combination, NO.3
2022-08 → 2023-07
ended
|
GUN126 6F L TH | — | |
| 84970-0K220 note |
Switch Assy, Combination, NO.3
2022-08 → 2023-07
ended
|
GUN125 THP LA;GUN125 RHD +2 | — | |
| 84970-0K220 note |
Switch Assy, Combination, NO.3
2022-08 → 2023-07
ended
|
GUN135 6,TGN126 THP THP +9 | — | |
| 84970-0K220 note |
Switch Assy, Combination, NO.3
2022-08 → 2024-01
ended
|
GUN125 XTR SA;GUN125,126,13# RHD +3 | — | |
| 84970G — Switch Assy, Combination, NO.4 | ||||
| 84970-0K330 note |
Switch Assy, Combination, NO.4
2022-08 → 2023-07
ended
|
GUN11#,122,125,126,TGN111,12# GCC | — | |
| 85530 — Socket Assy, Power Outlet, NO.1 | ||||
| 85530-0K040 |
Socket Assy, Power Outlet, NO.1
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 85530-0K040 |
Socket Assy, Power Outlet, NO.1
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 85530-0K040 |
Socket Assy, Power Outlet, NO.1
2022-08 → 2024-01
ended
|
GUN126,136 H SA | — | |
| 85530-0K040 |
Socket Assy, Power Outlet, NO.1
2022-08 → 2024-01
ended
|
GUN122,125,126,135,LAN125,TGN120,121,136 (L,S) SA | — | |
| 85530-0K040 |
Socket Assy, Power Outlet, NO.1
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 85530-0K040 note |
Socket Assy, Power Outlet, NO.1
2022-08 → 2023-07
ended
|
GUN120,122 TH IV3 | — | |
| 85530-0K040 note |
Socket Assy, Power Outlet, NO.1
2022-08 → 2023-07
ended
|
GUN120,122 TH IV3 | — | |
| 85530-0K040 |
Socket Assy, Power Outlet, NO.1
2022-08 → 2023-07
ended
|
GUN125 H;GUN120,122,125,126,135 RHD XTR +2 | — | |
| 85530-0K040 |
Socket Assy, Power Outlet, NO.1
2022-08 → 2023-07
ended
|
GUN126 ,S) THP (ARL,GCC,GEN,IDN,LA) +5 | — | |
| 85530-0K040 |
Socket Assy, Power Outlet, NO.1
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 85535B — Cover, Power Outlet Socket, NO.1 | ||||
| 85535-0K090-C0 note |
Cover, Power Outlet Socket, NO.1
2022-08 → 2023-08
ended
|
GUN125 MA | — | |
| 85535-0K090-C0 note |
Cover, Power Outlet Socket, NO.1
2022-08 → —
|
GUN122,126,TGN121 PKN | — | |
| 85535-0K090-C0 note |
Cover, Power Outlet Socket, NO.1
2022-08 → 2024-03
ended
|
GUN125,135 KEN | — | |
| 85535-0K090-C0 note |
Cover, Power Outlet Socket, NO.1
2022-08 → 2024-01
ended
|
GUN126,136 H SA | — | |
| 85535-0K090-C0 note |
Cover, Power Outlet Socket, NO.1
2022-08 → 2024-01
ended
|
GUN122,125,126,135,LAN125,TGN120,121,136 (L,S) SA | — | |
| 85535-0K090-C0 note |
Cover, Power Outlet Socket, NO.1
2022-08 → 2023-10
ended
|
GUN125,126,135,TGN126,136 AGTP | — | |
| 85535-0K090-C0 note |
Cover, Power Outlet Socket, NO.1
2022-08 → 2023-07
ended
|
GUN120,122 TH IV3 | — | |
| 85535-0K090-C0 note |
Cover, Power Outlet Socket, NO.1
2022-08 → 2023-07
ended
|
GUN120,122 TH IV3 | — | |
| 85535-0K090-C0 note |
Cover, Power Outlet Socket, NO.1
2022-08 → 2023-07
ended
|
GUN125 H;GUN120,122,125,126,135 RHD XTR +2 | — | |
| 85535-0K090-C0 note |
Cover, Power Outlet Socket, NO.1
2022-08 → 2023-07
ended
|
GUN126 2,135,TGN110,121,126 RHD SCB +7 | — | |
| 85535-0K090-C0 note |
Cover, Power Outlet Socket, NO.1
2022-08 → 2023-07
ended
|
GUN11#,122,125,126,TGN11#,12# GCC | — | |
| 89611 — Switch, Push Start | ||||
| 89611-0K013 |
Switch, Push Start
2022-08 → 2023-01
ended
|
GUN126,135 H | — | |
| 89611-0K013 |
Switch, Push Start
2022-08 → 2023-07
ended
|
GUN125 H | — | |
| 89611-0K013 |
Switch, Push Start
2022-08 → 2023-12
ended
|
GUN136 XTR SA;GUN126 XTR +2 | — | |
| 89611-0K013 note |
Switch, Push Start
2023-01 → 2023-12
ended
|
GUN126 6F H SA | — | |
| 89611-0K050 |
Switch, Push Start
2023-02 → 2023-08
ended
|
GUN126,135 THP H | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
