Toyota Hilux (SCB/XTR)

2022-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723C0 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

8 part groups · 2 illustrations

Illustrations

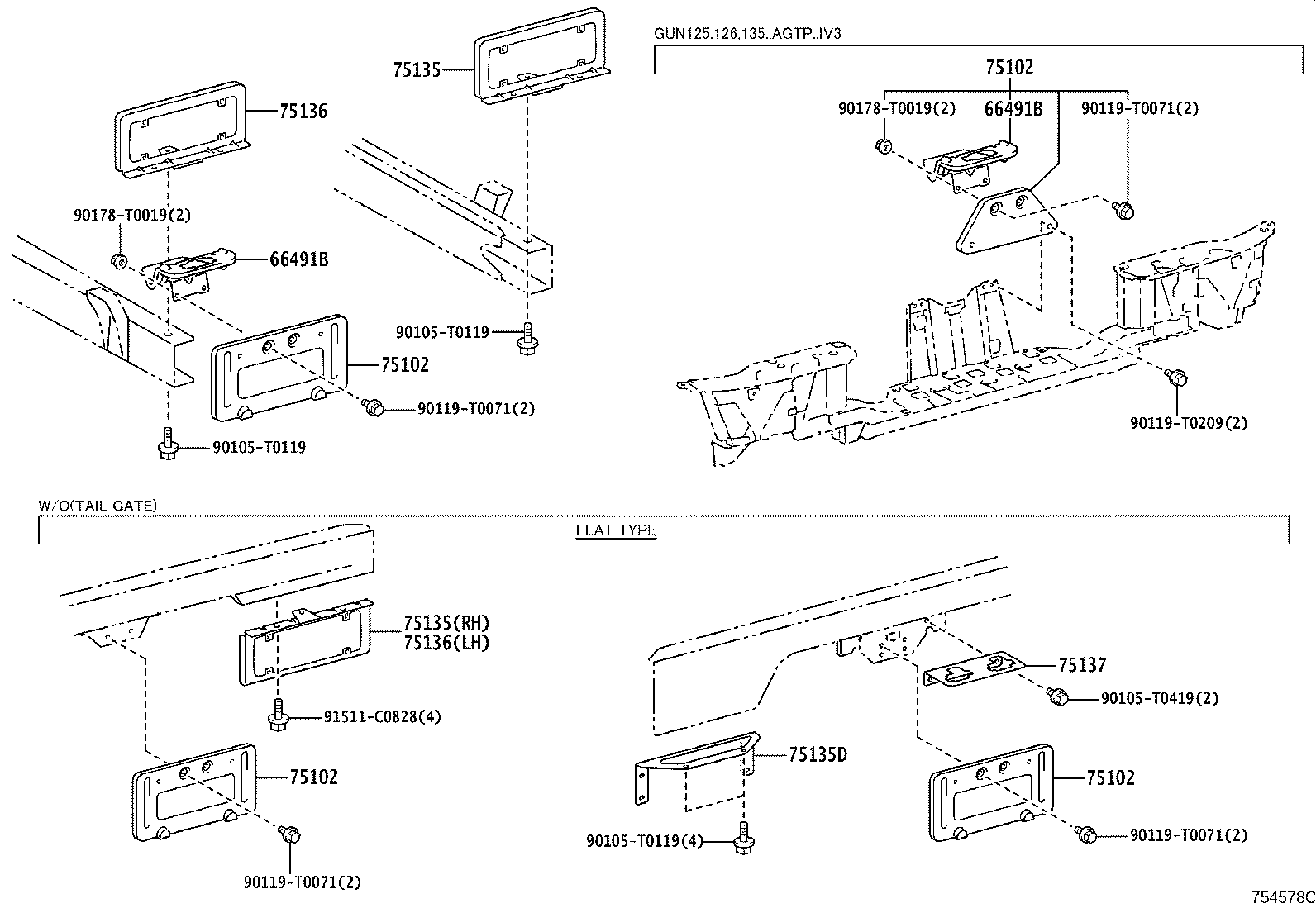

Figure 754577 754577 2022-08 → — Figure 754578C 754578C 2022-08 → —

Part groups

PNCDescription
58780 Band Assy, Tool Box
64779M Tray, Spare Wheel Cover
66491B Hanger, License Plate Bracket
75102 Bracket Sub-assy, Rear License Plate
75135 Bracket, Combination Rear Lamp, RH
75135D Bracket, Combination Rear Lamp
75136 Bracket, Combination Rear Lamp, LH
75137 Bracket, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
