Toyota Hilux (SCB/XTR)
2023-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136,XPN135 · catalogue 6723D0 · General
Supported model
Data version 2024-11

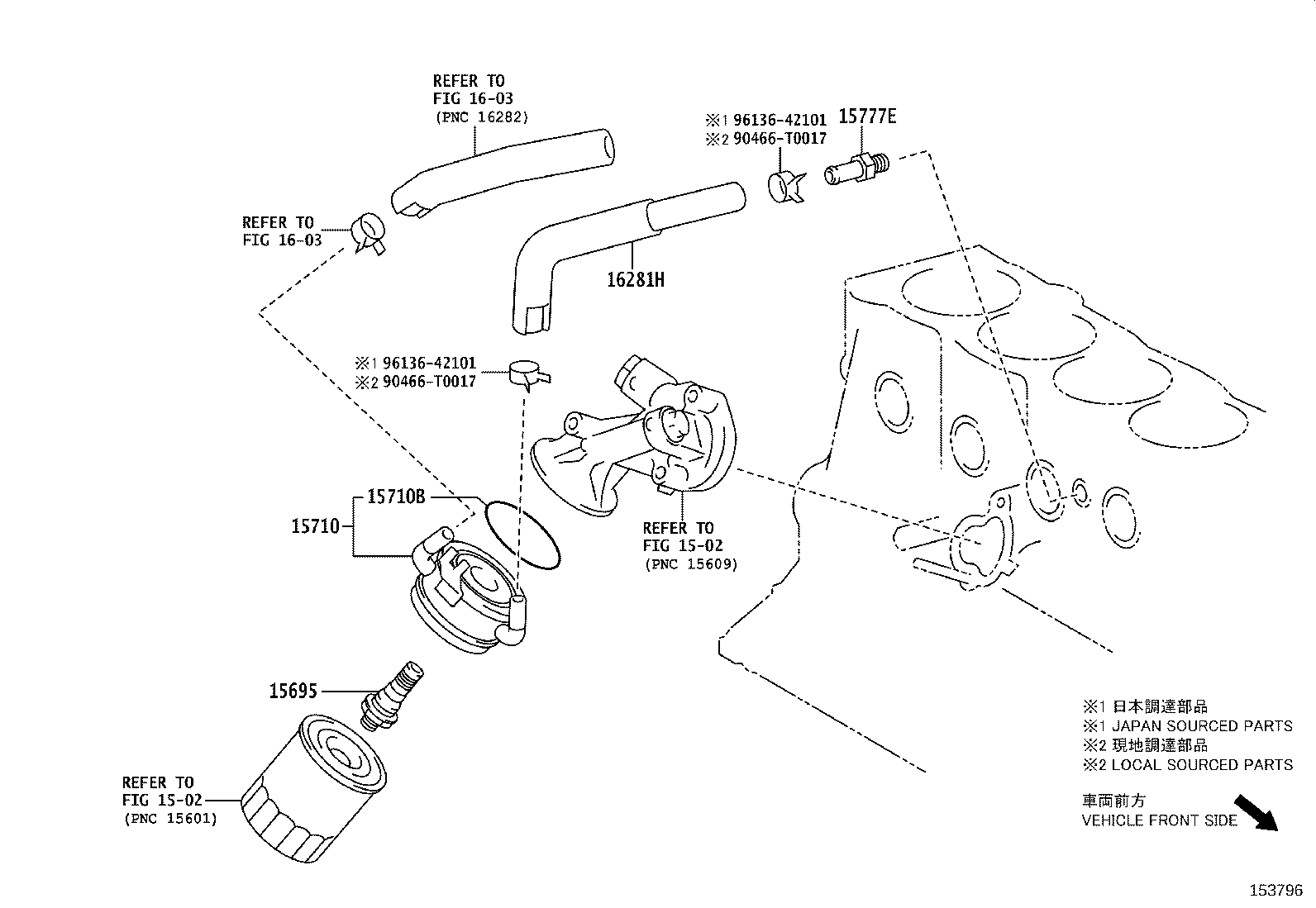

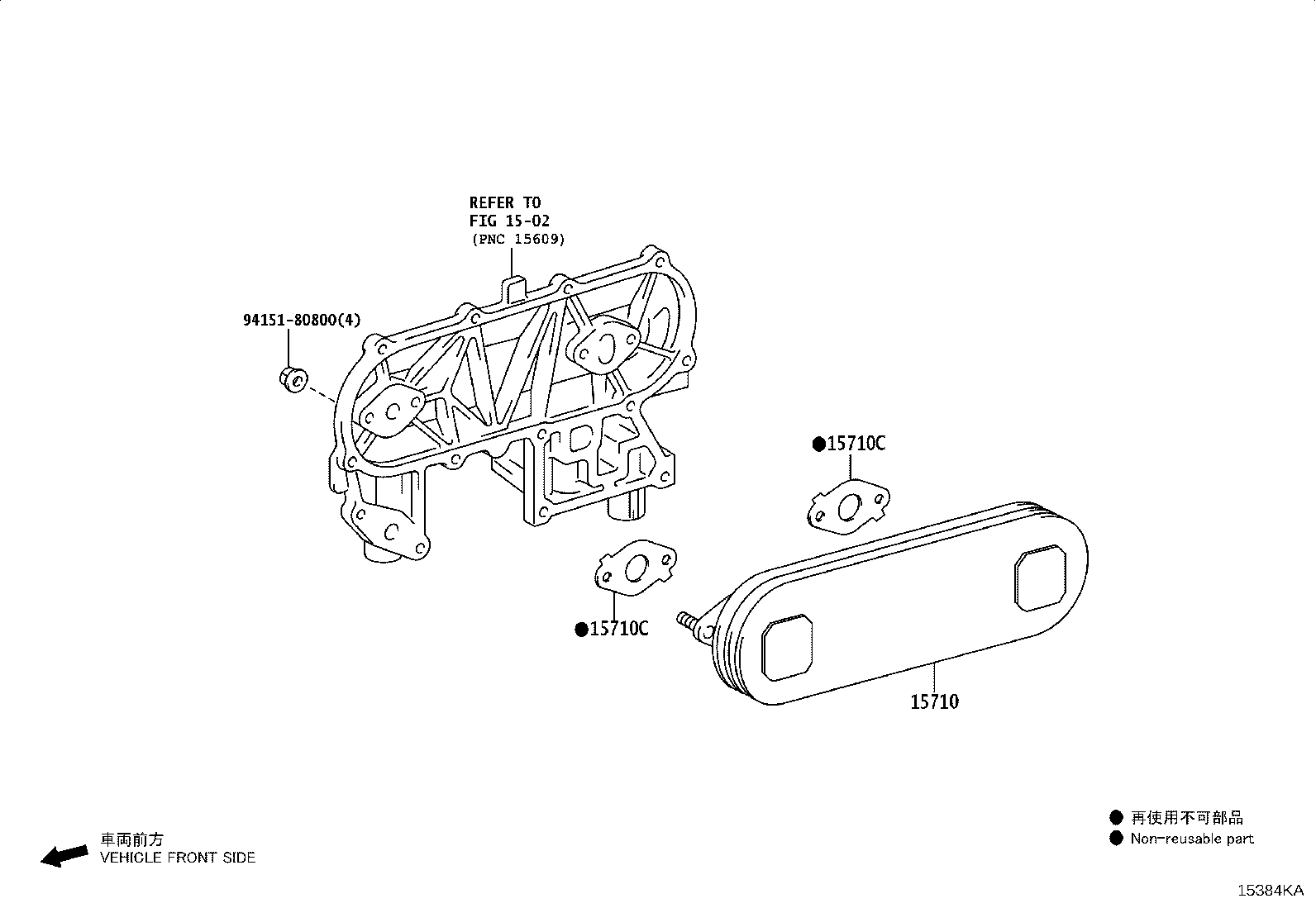

Engine Oil Cooler
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 15071 | Cooler Set, Engine Oil |
| 15695 | Bolt, Oil Cooler Union |
| 15710 | Cooler Assy, Oil |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15710C | Gasket(FOR OIL COOLER) |
| 15723 | Ring, O |
| 15777E | Union |
| 16281H | Hose, Water By-pass, NO.4 |
| 16345A | Gasket, Water Outlet Pipe |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
