Toyota Hilux (DOUBLE CAB)

2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

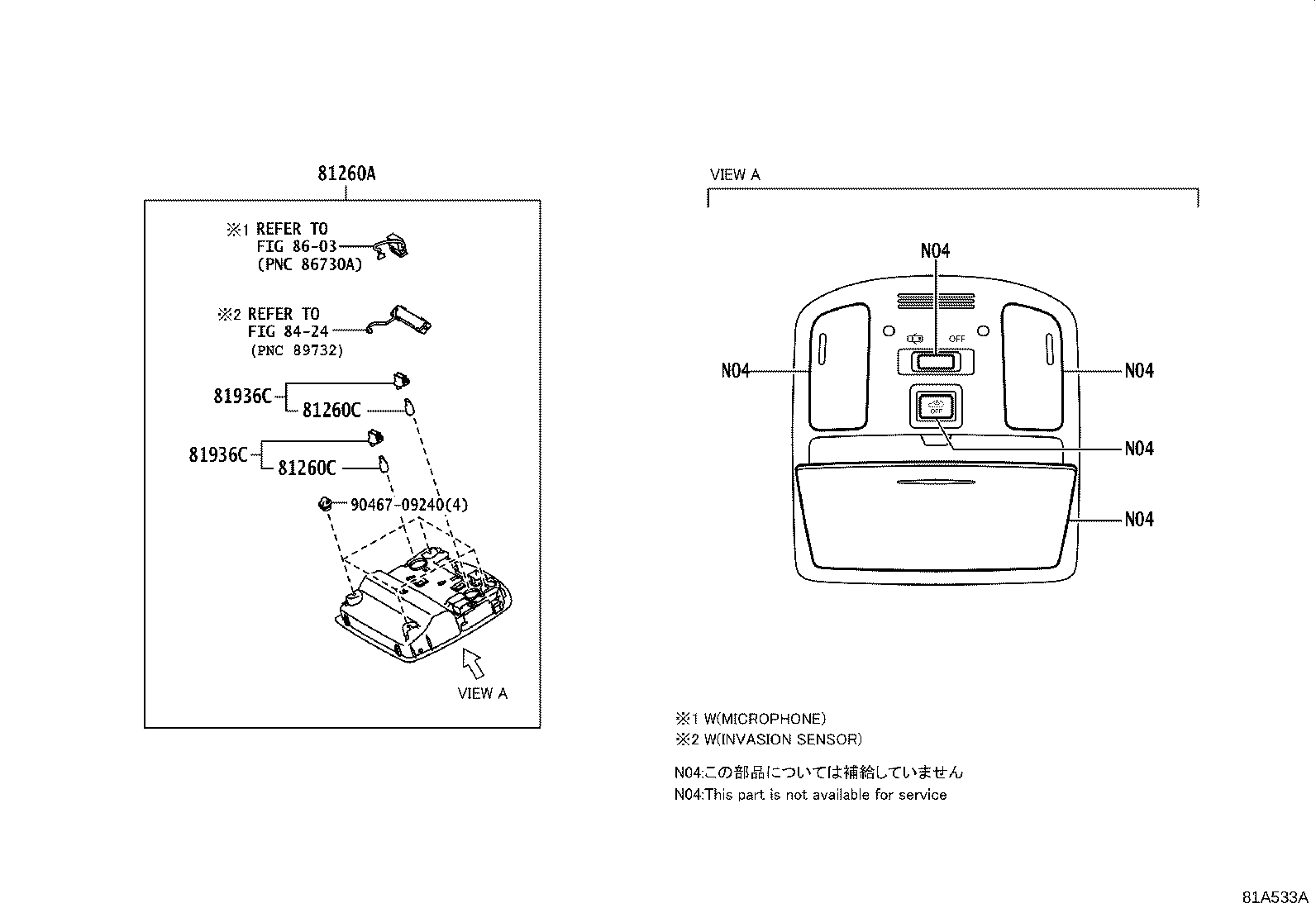

Exploded illustration 81A533A 9046709240 — not listed in this catalogue 81260A — LAMP ASSY, MAP (110 parts) 81936C — BULB ASSY (9 parts) 81260C — BULB(FOR MAP LAMP) (31 parts) 81936C — BULB ASSY (9 parts) 81260C — BULB(FOR MAP LAMP) (31 parts) 8424 — not listed in this catalogue 8603 — not listed in this catalogue
81A533A · 5 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
150 parts on this figure
Part number Description Fitment Price
81260A — Lamp Assy, Map
63650-0K820-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
TGN126 (H,S) GEN —
63650-0K830-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 H ARL CBU;GUN136 +3 —
63650-0K830-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 RL H IV3;GUN136 +7 —
63650-0K830-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 H ARL CBU;GUN136 +3 —
63650-0K880-B0 note Lamp Assy, Map
2021-10 → 2022-08 ended
GUN126 MA —
63650-0K880-B0 note Lamp Assy, Map
2021-10 → 2022-08 ended
GUN125 (H,S) MA —
63650-0K880-B0 note Lamp Assy, Map
2021-09 → 2023-01 ended
GGN125 SA —
63650-0K880-B0 note Lamp Assy, Map
2021-09 → 2023-01 ended
GUN125,126,13#,TGN136 RHD S SA —
63650-0K880-C0 note Lamp Assy, Map
2021-09 → 2023-01 ended
GGN125 SA —
63650-0K880-C0 note Lamp Assy, Map
2021-10 → 2022-08 ended
GUN126 MA —
63650-0K890-B0 note Lamp Assy, Map
2021-09 → 2023-01 ended
GGN125,GUN126,136 RHD H SA —
63650-0K890-B0 note Lamp Assy, Map
2021-09 → 2023-03 ended
GUN126 KEN;GUN125,126,13#,TGN136 RHD S +1 —
63650-0K890-C0 note Lamp Assy, Map
2021-09 → 2023-01 ended
GUN126 RHD 6FC H +1 —
63650-0K890-C0 note Lamp Assy, Map
2021-09 → 2023-01 ended
GUN126 6F H SA;GGN125,GUN136 +2 —
63650-0KA60-B0 note Lamp Assy, Map
2021-12 → 2023-03 ended
GUN125 L GHA —
63650-0KA60-B0 note Lamp Assy, Map
2021-09 → 2023-01 ended
GUN126,13# S SA;GUN125 RHD +3 —
63650-0KA60-B0 note Lamp Assy, Map
2021-08 → 2023-01 ended
GUN126 (L,S) PKN;GUN122,125,TGN121 LHD +2 —
63650-0KA60-B0 note Lamp Assy, Map
2021-08 → 2023-01 ended
GUN126 H PKN —
63650-0KA60-B0 note Lamp Assy, Map
2021-11 → 2022-10 ended
GUN126 AGTP 6FC H +1 —
63650-0KA60-B0 note Lamp Assy, Map
2021-09 → 2023-01 ended
GUN126,13# S SA;GUN125 RHD +3 —
63650-0KA60-B0 note Lamp Assy, Map
2021-08 → 2022-10 ended
TGN136 S LA —
63650-0KA60-B0 note Lamp Assy, Map
2021-08 → 2022-10 ended
GUN125,135 N126,135 AGTP AGTP +12 —
63650-0KA60-B0 note Lamp Assy, Map
2023-03 → 2023-04 ended
GUN125 L GHA —
63650-0KA60-B0 note Lamp Assy, Map
2021-08 → 2023-04 ended
GUN125,135 RHD L SA —
63650-0KA60-B0 note Lamp Assy, Map
2021-08 → 2022-08 ended
GUN125 L MA —
63650-0KA60-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GGN125,GUN126 GCC;GUN125 6F H +1 —
63650-0KA60-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN122,125 MTM (L,S) GCC;GUN125,TGN120,121,126 +2 —
63650-0KA60-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 TWN;GUN126 RHD 6FC +2 —
63650-0KA60-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 .LA;GUN135 N,IDN);GUN125,TGN126,136 6FC) +28 —
63650-0KA60-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN125 LHD S GEN —
63650-0KA60-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 RHD 6F H +1 —
63650-0KA60-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 RHD 6F H +1 —
63650-0KA60-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 RHD 6F H +1 —
63650-0KA60-C0 note Lamp Assy, Map
2021-11 → 2022-10 ended
GUN126 AGTP 6FC H +1 —
63650-0KA60-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 RHD 6F H +1 —
63650-0KA60-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 GCC,TWN;GUN125 6F H +5 —
63650-0KA60-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GGN125 GCC —
63650-0KA60-C0 note Lamp Assy, Map
2021-11 → 2023-01 ended
GUN126 H PKN —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GGN125,GUN126 GCC;GUN125 6F H +1 —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 GEN;GUN125,TGN126 THP THP +16 —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 THP H LA —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN122 .H S GCC +8 —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GGN125,GUN126 GCC;GUN125 6F H +1 —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN122 S IV3;GUN125 6FC +5 —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GGN125,GUN126 GCC;GUN125 6F H +1 —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-10 ended
GUN126 MMR —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-10 ended
GUN135 136,TGN126 6F AGTP +13 —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-10 ended
GUN125 AGTP 6FC;GUN126 AGTP +3 —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-10 ended
GUN125,135 AGTP L;GUN125,TGN126 AGTP +6 —
63650-0KA70-B0 note Lamp Assy, Map
2023-03 → —
GUN125 GHA —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
TGN126 H GEN —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN125 A,PH);GUN126,135,TGN136 LHD LHD +13 —
63650-0KA70-B0 note Lamp Assy, Map
2021-11 → 2022-10 ended
GUN126 AGTP 6FC H +1 —
63650-0KA70-B0 note Lamp Assy, Map
2021-11 → 2022-10 ended
GUN126 AGTP 6FC H +1 —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → —
GUN125 LHD S SA;GUN135,LAN125,TGN126,136 +2 —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN125,126,135 LHD H (GEN,PH,VN) —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN122 H —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2023-01 ended
GUN122,125,TGN121 LHD L SA —
63650-0KA70-B0 note Lamp Assy, Map
2021-12 → 2023-03 ended
GUN125 GHA —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN122,125 MTM (L,S) GCC;GUN125,TGN120,121,126 +2 —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
TGN126 5F H GCC;GUN125 +3 —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN125 LHD L GEN —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GGN125,GUN126 GCC;GUN125 6F H +1 —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN122,125 MTM (L,S) GCC;GUN125,TGN120,121,126 +2 —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GGN125,GUN126 GCC;GUN125 6F H +1 —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GGN125,GUN126 GCC;GUN125 6F H +1 —
63650-0KA70-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
TGN121 5F H;GUN125,TGN126 (5F,6FC) +2 —
63650-0KA70-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GGN125,GUN126 6FC GCC —
63650-0KA70-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN125,126 6F H GCC —
63650-0KA70-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GGN125,GUN126 6FC GCC —
63650-0KA70-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN125,126 6F H GCC —
63650-0KA70-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GGN125,GUN126 6FC GCC —
63650-0KA70-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN125,126 6F H GCC —
63650-0KA70-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GGN125,GUN126 6FC GCC —
63650-0KA70-C0 note Lamp Assy, Map
2021-11 → 2022-10 ended
GUN126 AGTP 6FC H +1 —
63650-0KA70-C0 note Lamp Assy, Map
2021-11 → 2022-10 ended
GUN126 AGTP 6FC H +1 —
63650-0KA70-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN125,126 6F H GCC —
63650-0KA70-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GGN125,GUN126 6FC GCC —
63650-0KA70-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN125,126 6F H GCC —
63650-0KA70-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GGN125,GUN126 6FC GCC —
63650-0KA70-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN125,126 6F H GCC —
63650-0KA70-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN135 LHD H;GUN126 LHD +7 —
63650-0KA70-C0 note Lamp Assy, Map
2021-08 → 2022-10 ended
GUN126 MMR —
63650-0KA70-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 6FC (PH,VN) —
63650-0KA80-B0 note Lamp Assy, Map
2021-08 → 2023-03 ended
GUN125,135 RHD L (KEN,SA) —
63650-0KA80-B0 note Lamp Assy, Map
2021-09 → 2023-01 ended
GUN126,136 S SA —
63650-0KA80-B0 note Lamp Assy, Map
2021-09 → 2023-01 ended
GUN135 S SA;GUN125 RHD +3 —
63650-0KA80-B0 note Lamp Assy, Map
2021-09 → 2023-01 ended
GUN126,13# S SA;GUN125 RHD +3 —
63650-0KA80-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN122,125,126,135 RHD (L,S) GEN —
63650-0KA80-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN121;GUN125,126 RHD 6F H +5 —
63650-0KA80-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 N120,122,125,126,TGN121 6F (L,S) +10 —
63650-0KA80-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 RHD 6FC H +1 —
63650-0KA80-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN125 6FC S GEN —
63650-0KA80-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 RHD 6FC H +1 —
63650-0KA80-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN125 6FC S GEN —
63650-0KA80-B0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 RHD 6FC H +1 —
63650-0KA80-B0 note Lamp Assy, Map
2021-08 → 2022-09 ended
GUN126 IND —
63650-0KA80-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 RHD 6FC H +1 —
63650-0KA80-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 6FC TH —
63650-0KA80-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN121 —
63650-0KA80-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN135 6FC H TH;GUN126,136 +8 —
63650-0KA80-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 RHD 6FC H +1 —
63650-0KA80-C0 note Lamp Assy, Map
2021-08 → 2022-07 ended
GUN126 RHD 6FC H +1 —
63650-0KB00-B0 note Lamp Assy, Map
2021-09 → 2022-10 ended
GUN136 H BZAG;GUN136 6FC +6 —
63650-0KB00-B0 note Lamp Assy, Map
2021-09 → 2023-01 ended
GUN125,LAN125,TGN126,136 LHD S SA —
63650-0KB00-B0 note Lamp Assy, Map
2021-09 → 2023-01 ended
GUN126 LHD SA —
63650-0KB00-B0 note Lamp Assy, Map
2021-09 → 2022-10 ended
GUN126 6FC H BZAG —
63650-0KB00-B0 note Lamp Assy, Map
2021-09 → 2023-03 ended
GUN126 GHA;GUN125 H SA —
63650-0KB00-C0 note Lamp Assy, Map
2021-09 → 2023-01 ended
GUN126 LHD SA —
63650-0KB00-C0 note Lamp Assy, Map
2021-11 → 2022-10 ended
GUN126 6FC H BZAG —
81260C — Bulb(FOR MAP LAMP)
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-10 ended
GUN125 AGTP 6FC;GUN126 AGTP +2 —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-10 ended
GUN125,135 P AGTP 6F +10 —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-10 ended
GUN125,135 S AGTP LA;GUN126,TGN136 +11 —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-10 ended
TGN136 S LA —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2023-01 ended
GUN122,125,TGN121 LHD L SA —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2023-01 ended
GUN126 PKN —
99132-12050 note Bulb(FOR MAP LAMP)
2021-09 → 2023-01 ended
GUN126,13# S SA;GUN125 RHD +3 —
99132-12050 note Bulb(FOR MAP LAMP)
2021-09 → 2023-01 ended
GUN126,13# S SA;GUN125 RHD +3 —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2023-03 ended
GUN125 KEN;GUN126 GHA,KEN —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2023-03 ended
GUN125 GHA;GUN122,125,TGN121 LHD L +1 —
99132-12050 note Bulb(FOR MAP LAMP)
2021-12 → 2023-03 ended
GUN125 L GHA —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2023-04 ended
GUN125,135 RHD L SA —
99132-12050 note Bulb(FOR MAP LAMP)
2023-03 → 2023-04 ended
GUN125 L GHA —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → —
GUN125 RHD SA;GUN125 LHD +3 —
99132-12050 note Bulb(FOR MAP LAMP)
2023-03 → —
GUN125 GHA —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-09 ended
GUN126 IND —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-07 ended
GUN125 THP .6F 6 +35 —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-07 ended
GUN122 S IV3;TGN126 5F +4 —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-07 ended
GUN122 26 S RHD +15 —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-07 ended
GUN126 THP H LA;GUN125 +7 —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-07 ended
TGN126 CC,LA);GUN126 .GEN;GUN122,135 F +35 —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-07 ended
TGN121 5F H;GGN125,GUN125,126,TGN126 H +1 —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-07 ended
TGN126 5F H GCC;GGN125,GUN125,126 +2 —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-07 ended
GUN122 (L,S) GCC;GGN125,GUN125,126,TGN120,121,126 GCC —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-07 ended
TGN126 26 .LHD .RHD +39 —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-07 ended
GUN125 LHD S GEN;GUN126 +4 —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-07 ended
GUN126 RHD 6F H +1 —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-08 ended
GUN125,126 (H,S) MA —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-08 ended
GUN125 L MA —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-10 ended
TGN126 6F AGTP S +9 —
99132-12050 note Bulb(FOR MAP LAMP)
2021-08 → 2022-07 ended
GUN125 LHD L GEN —
81936C — Bulb Assy
81936-28010 Bulb Assy
2023-03 → —
GUN125 GHA —
81936-28010 Bulb Assy
2021-08 → —
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136 MMR,SA —
81936-28010 Bulb Assy
2021-12 → 2023-03 ended
GUN125 GHA —
81936-28010 Bulb Assy
2021-08 → 2023-03 ended
GUN125 KEN;GUN126 GHA,KEN —
81936-28010 Bulb Assy
2021-08 → 2023-01 ended
GUN126 PKN —
81936-28010 Bulb Assy
2021-08 → 2022-10 ended
GGN125,GUN125,126,13#,TGN126,128,13# AGTP —
81936-28010 Bulb Assy
2021-08 → 2022-09 ended
GUN126 IND —
81936-28010 Bulb Assy
2021-08 → 2022-08 ended
GUN125,126 MA —
81936-28010 Bulb Assy
2021-08 → 2022-07 ended
GGN125,GUN12#,13#,TGN120,121,126,136 THP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
