Toyota Hilux (DOUBLE CAB)

2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

15 part groups · 9 illustrations

Illustrations

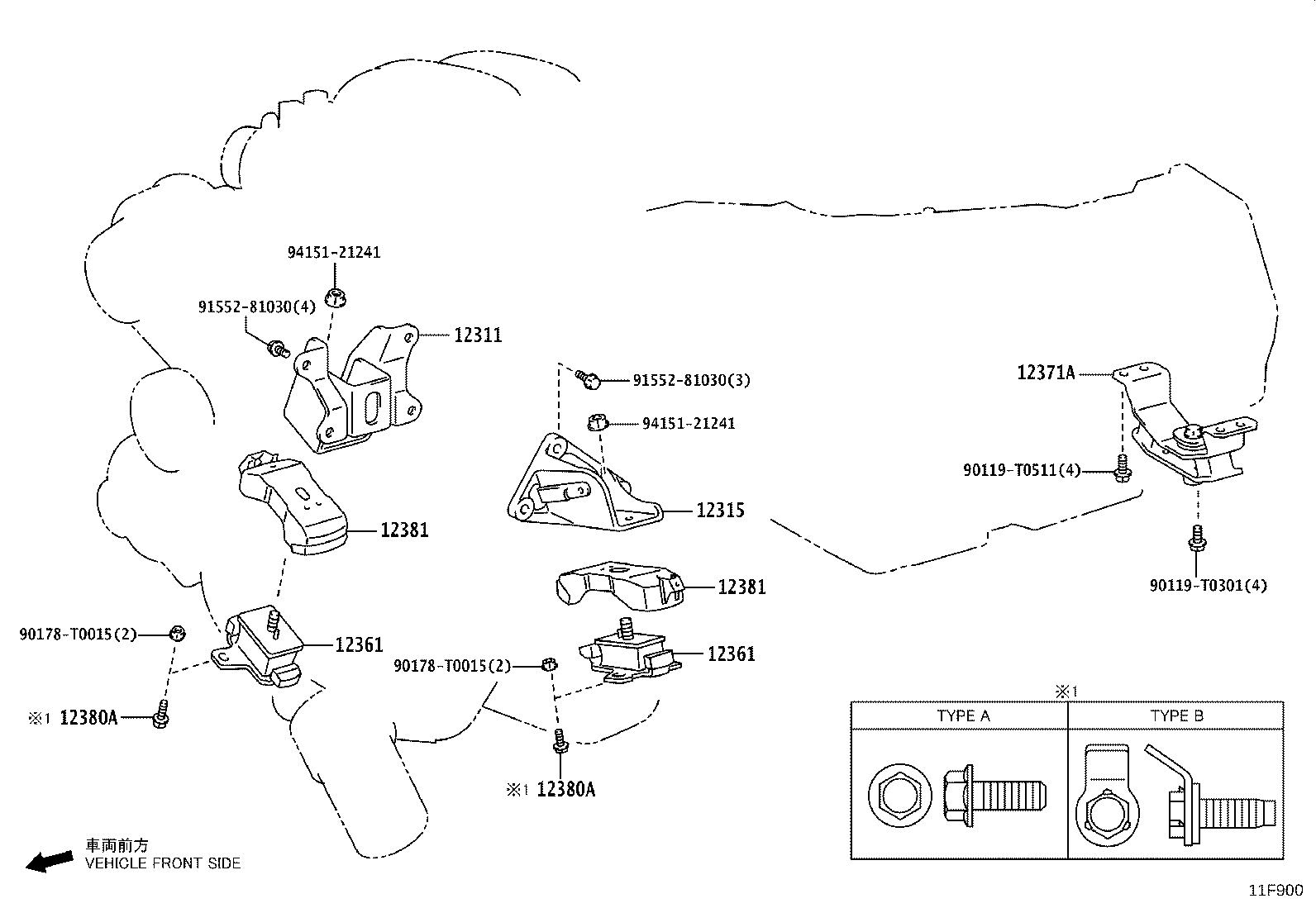

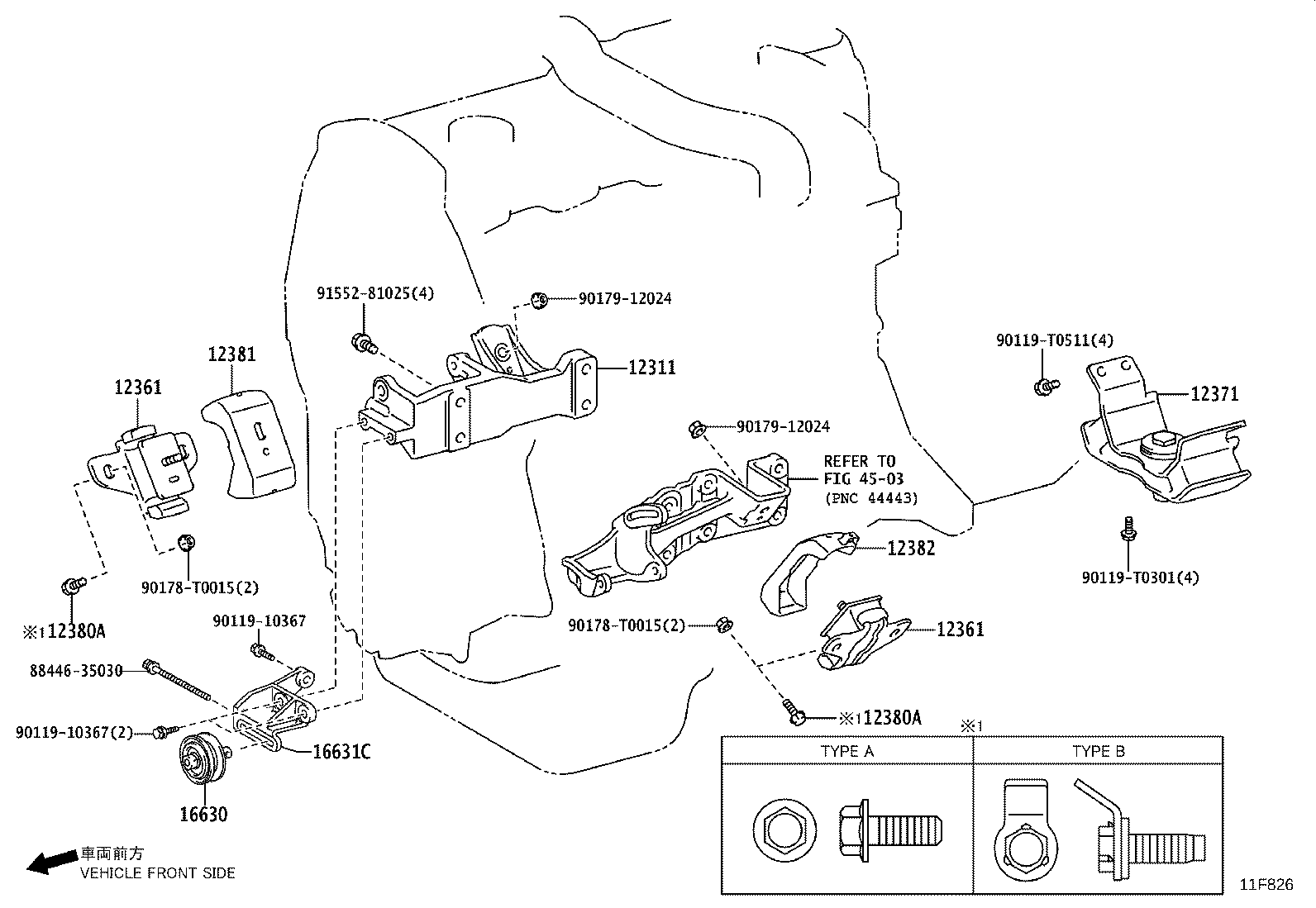

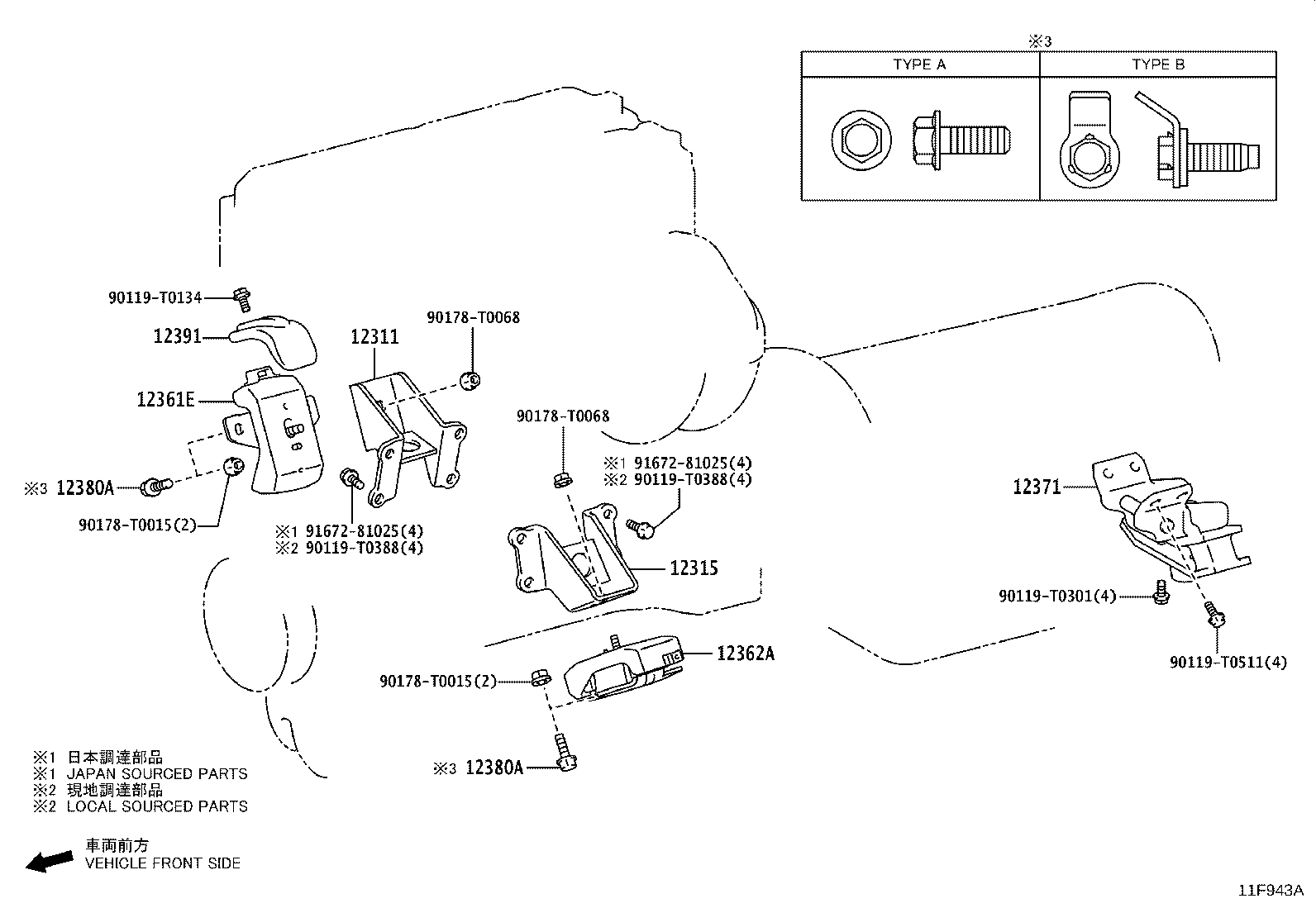

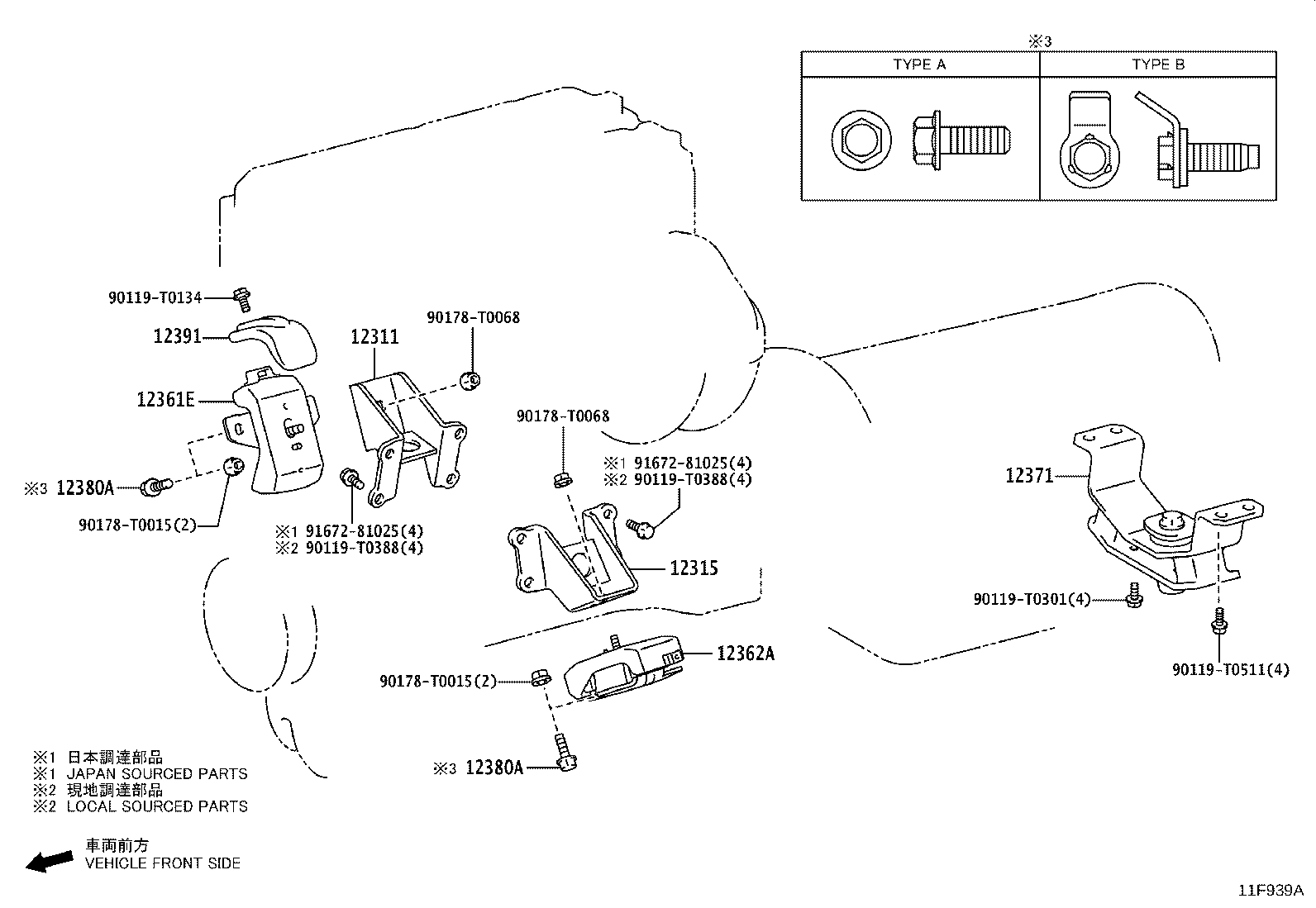

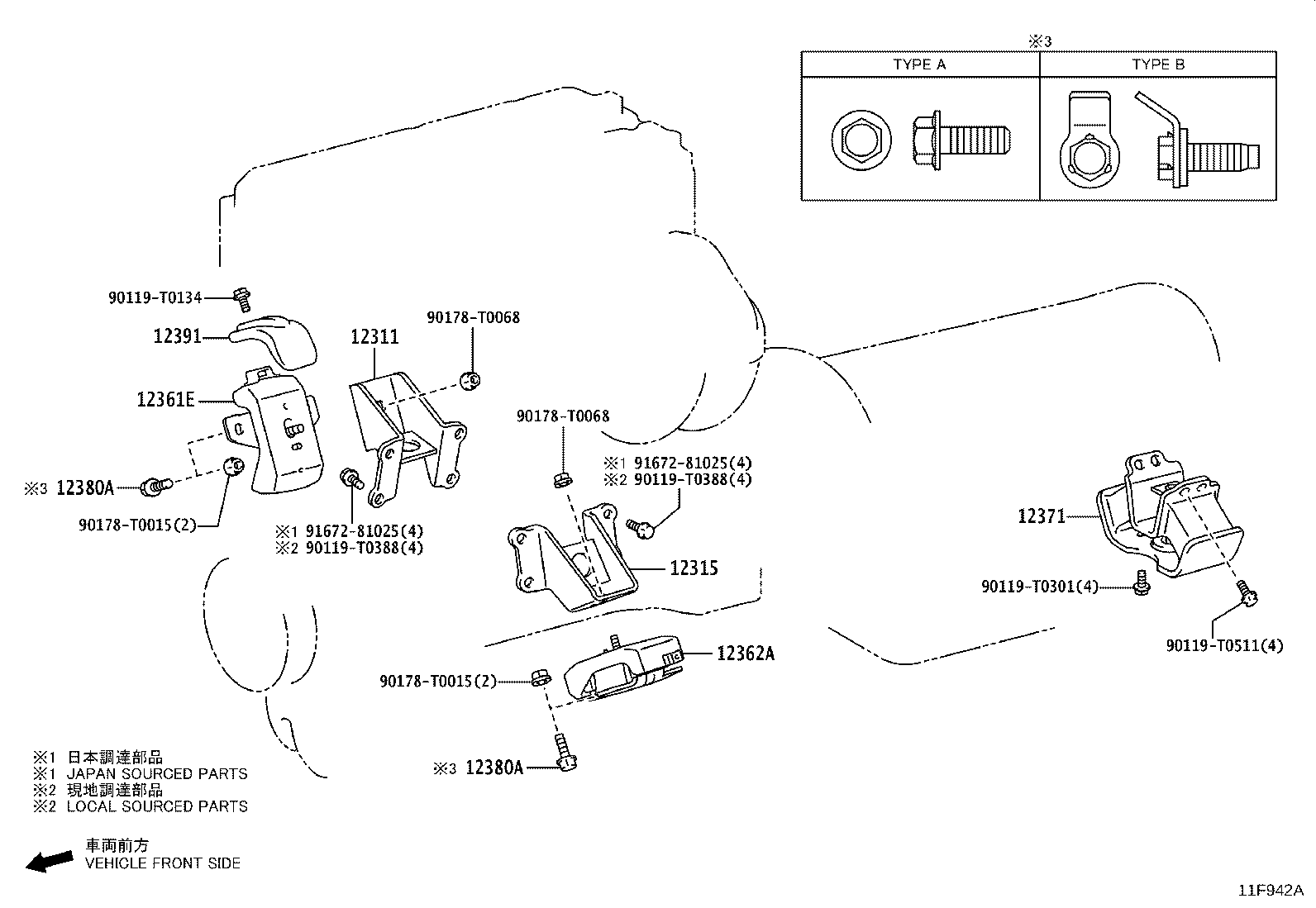

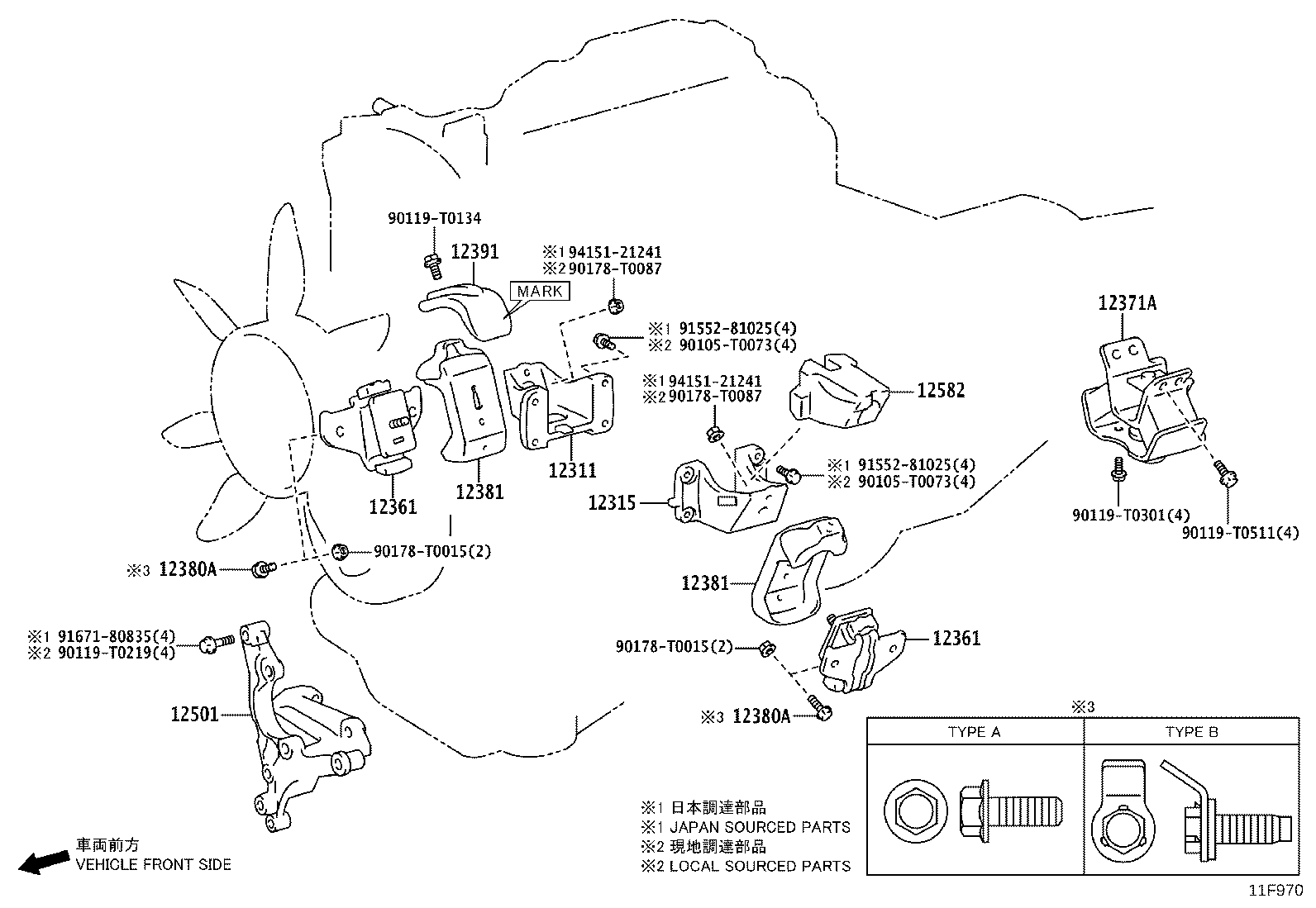

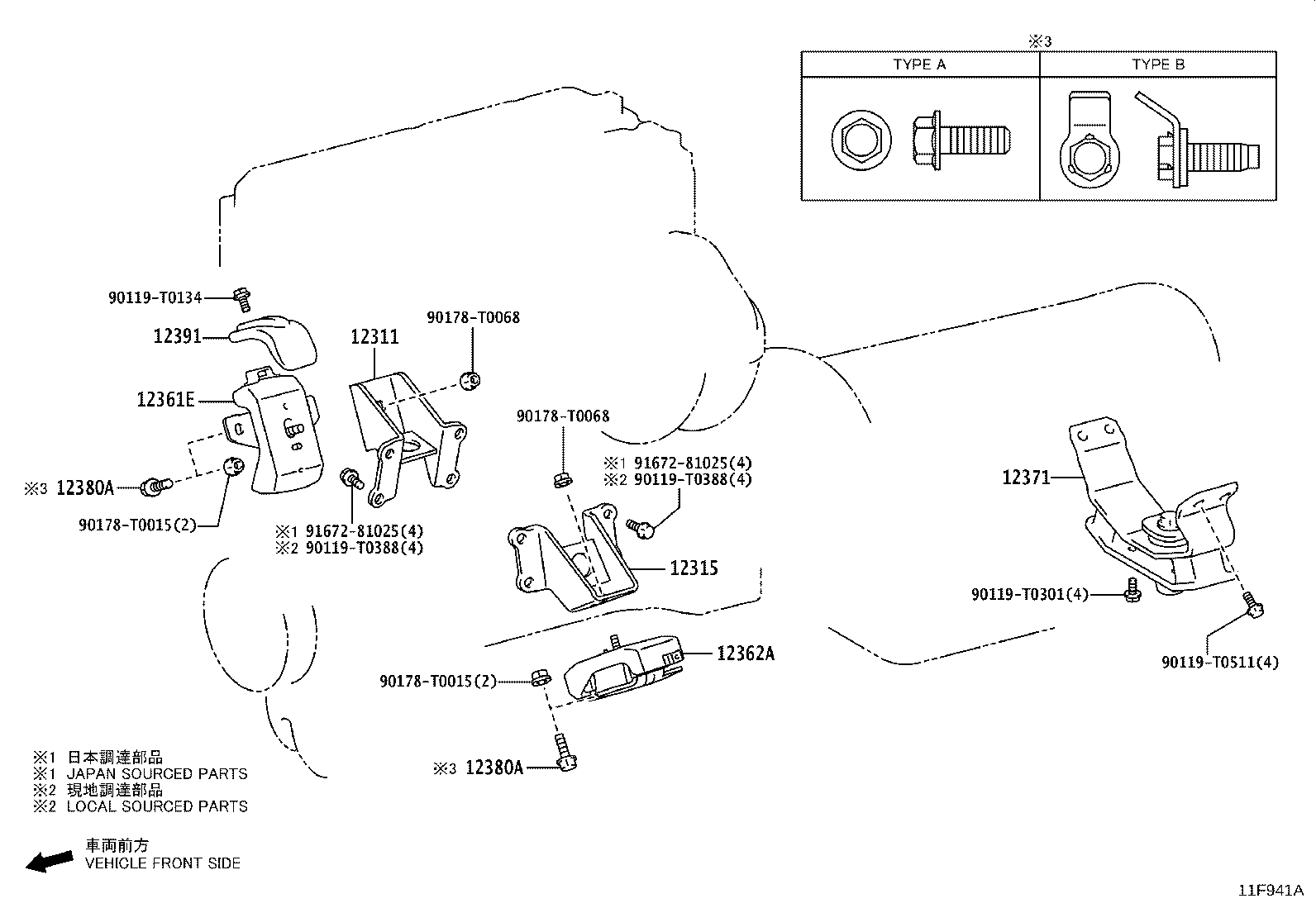

Figure 11F898 11F898 2021-08 → — Figure 11F899 11F899 2021-08 → — Figure 11F970 11F970 2021-08 → — Figure 11F900 11F900 2021-08 → — Figure 11F826 11F826 2021-09 → — Figure 11F941A 11F941A 2021-08 → — Figure 11F939A 11F939A 2021-08 → — Figure 11F942A 11F942A 2021-08 → — Figure 11F943A 11F943A 2021-08 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12361E Insulator, Engine Mounting, Front RH
12362A Insulator, Engine Mounting, Front LH
12371 Insulator, Engine Mounting, Rear NO.1
12371A Insulator, Engine Mounting, Rear
12380A Bolt(FOR ENGINE MOUNTING INSURATOR)
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12391 Insulator, Engine Mounting Front, Heat, RH
12501 Bracket Sub-assy, Alternator
12582 Insulator, Cylinder Block, NO.2
16630 Pulley Assy, Idler
16631C Bracket, Idler Pulley
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
