Toyota Hilux (DOUBLE CAB)

2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

12 part groups · 6 illustrations

Illustrations

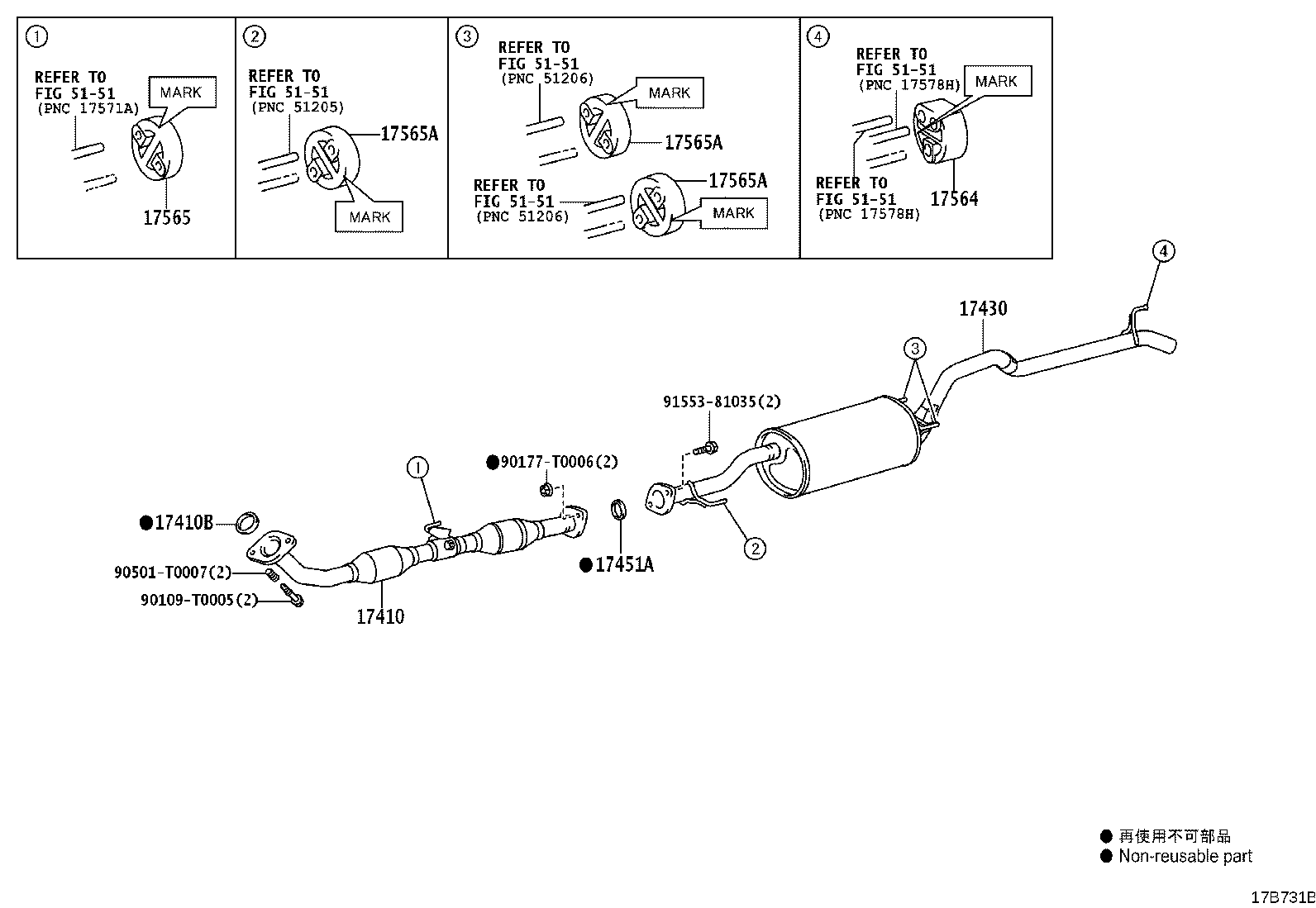

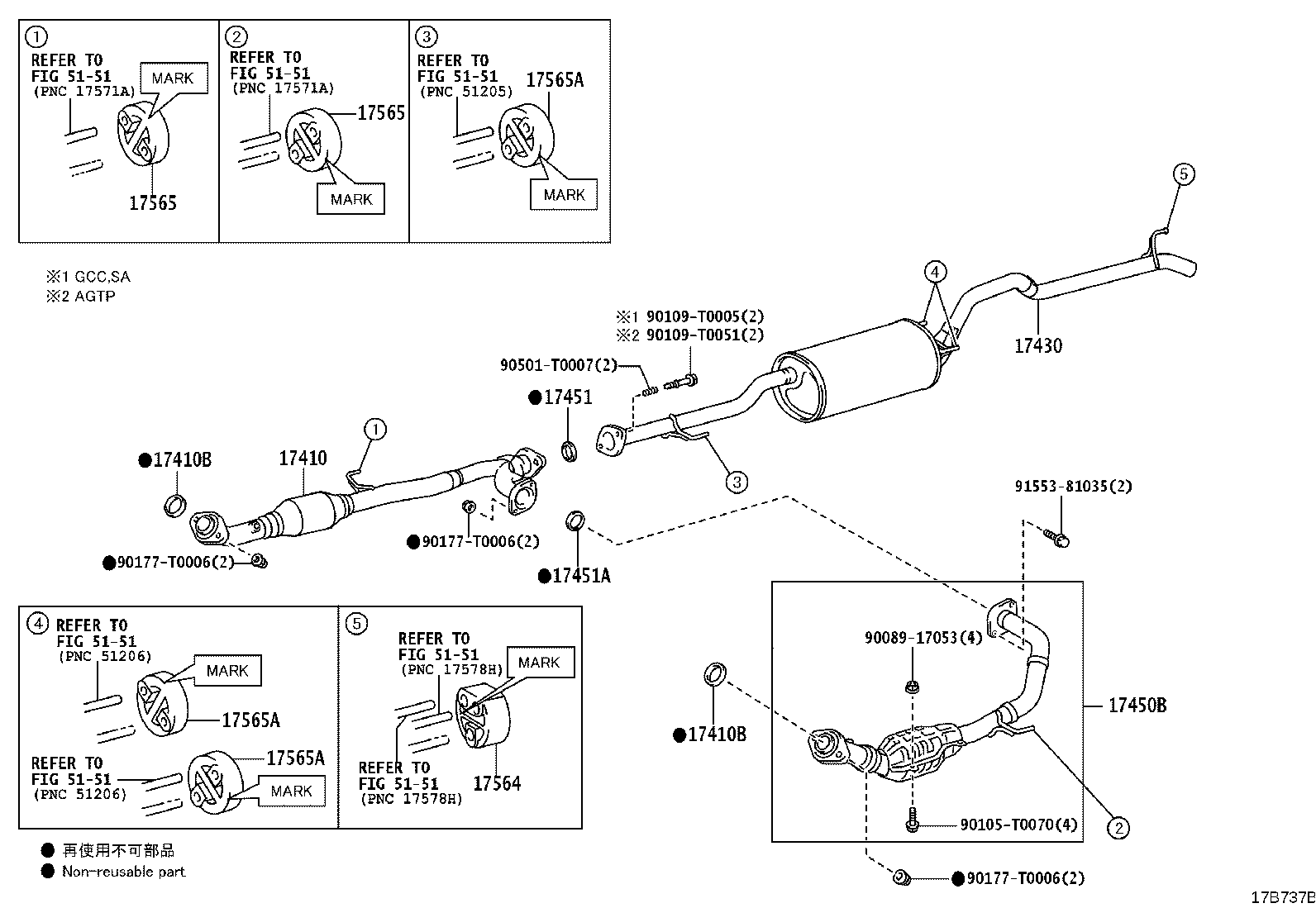

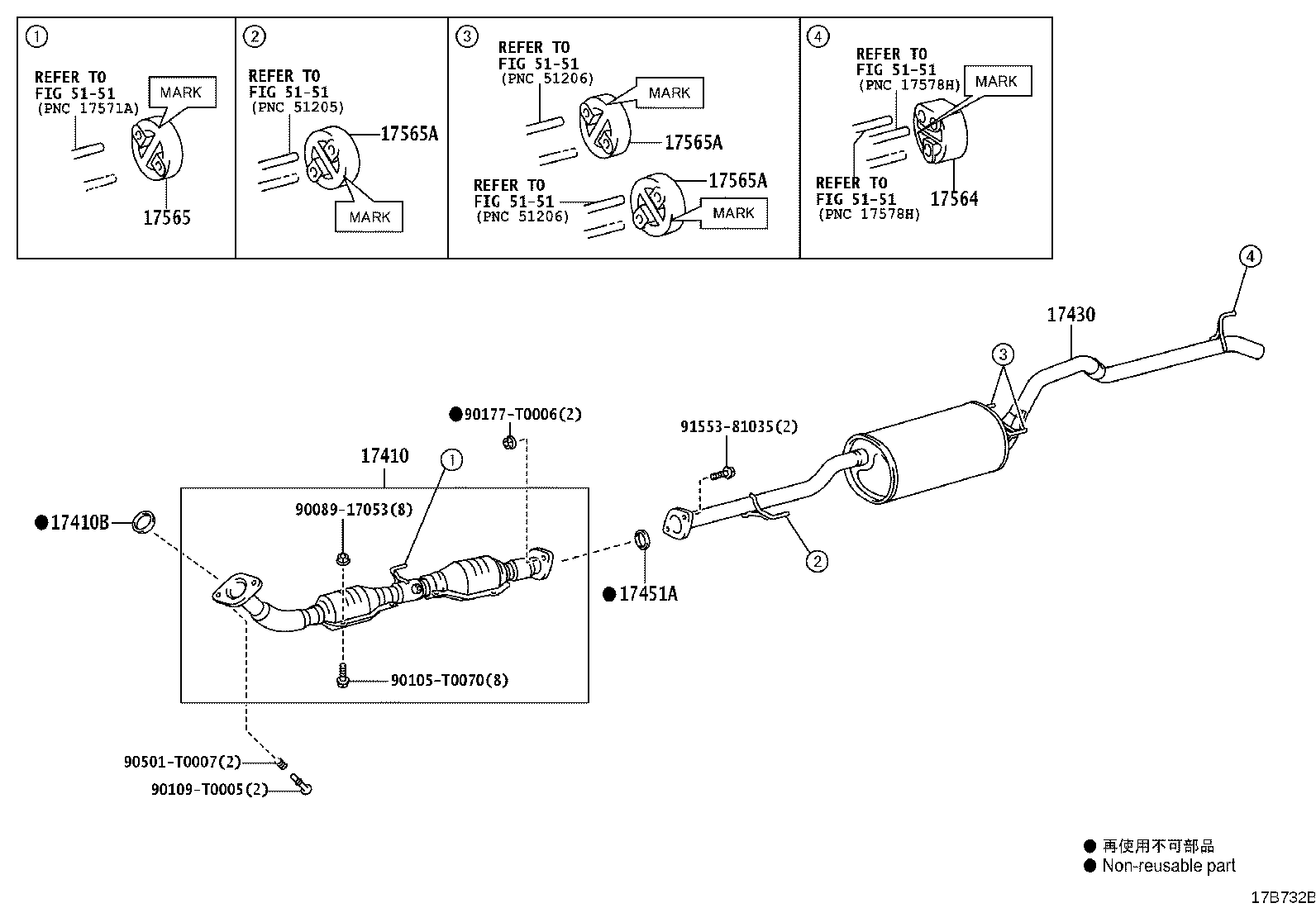

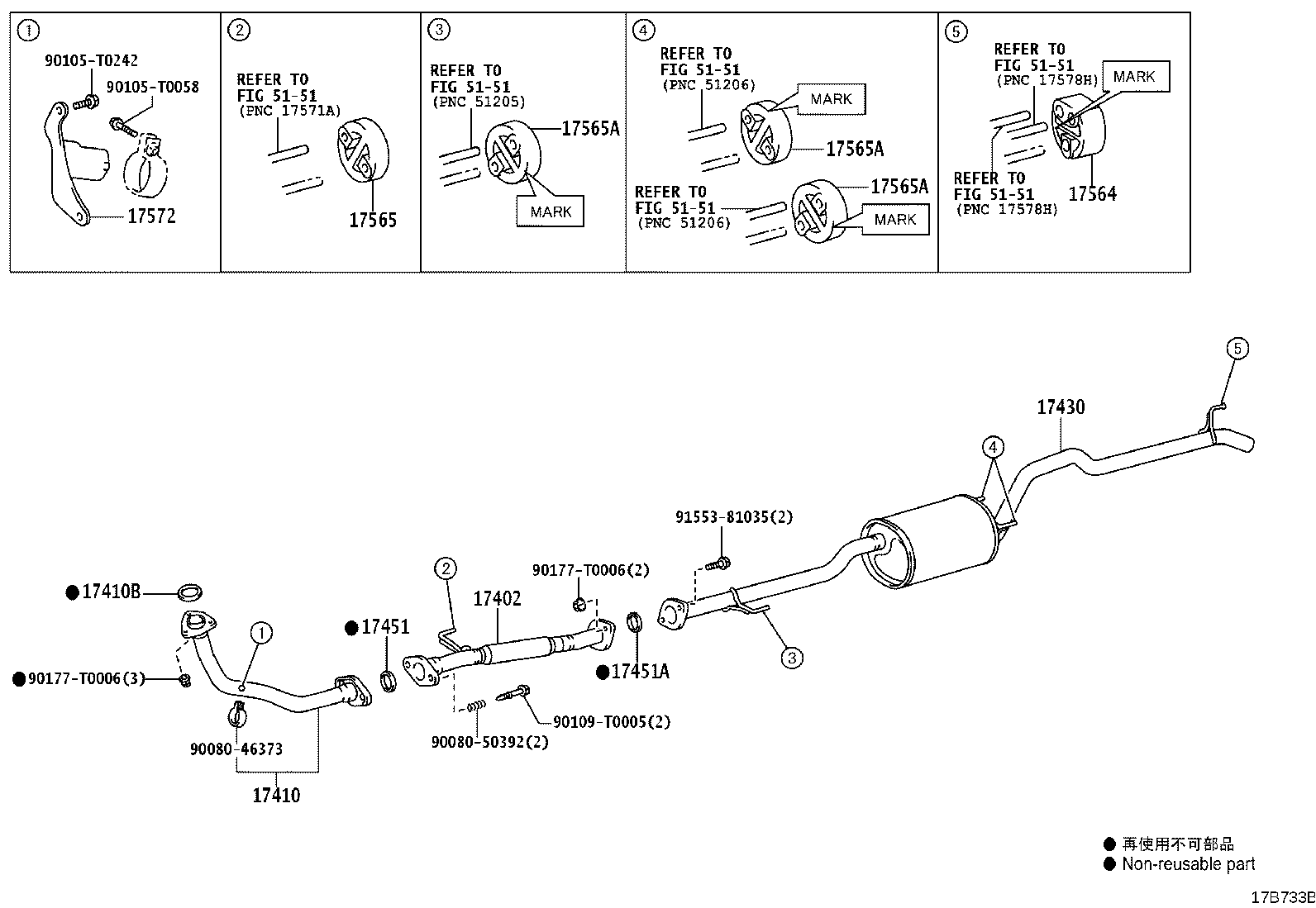

Figure 17B736C 17B736C 2021-08 → — Figure 17B730B 17B730B 2021-08 → — Figure 17B737B 17B737B 2021-08 → — Figure 17B731B 17B731B 2021-08 → — Figure 17B732B 17B732B 2021-08 → — Figure 17B733B 17B733B 2021-09 → —

Part groups

PNCDescription
17402 Pipe Sub-assy, Exhaust, Front NO.2
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17564 Support,Exhaust Pipe, NO.4
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
