Toyota Hilux (DOUBLE CAB)

2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 7 illustrations

Illustrations

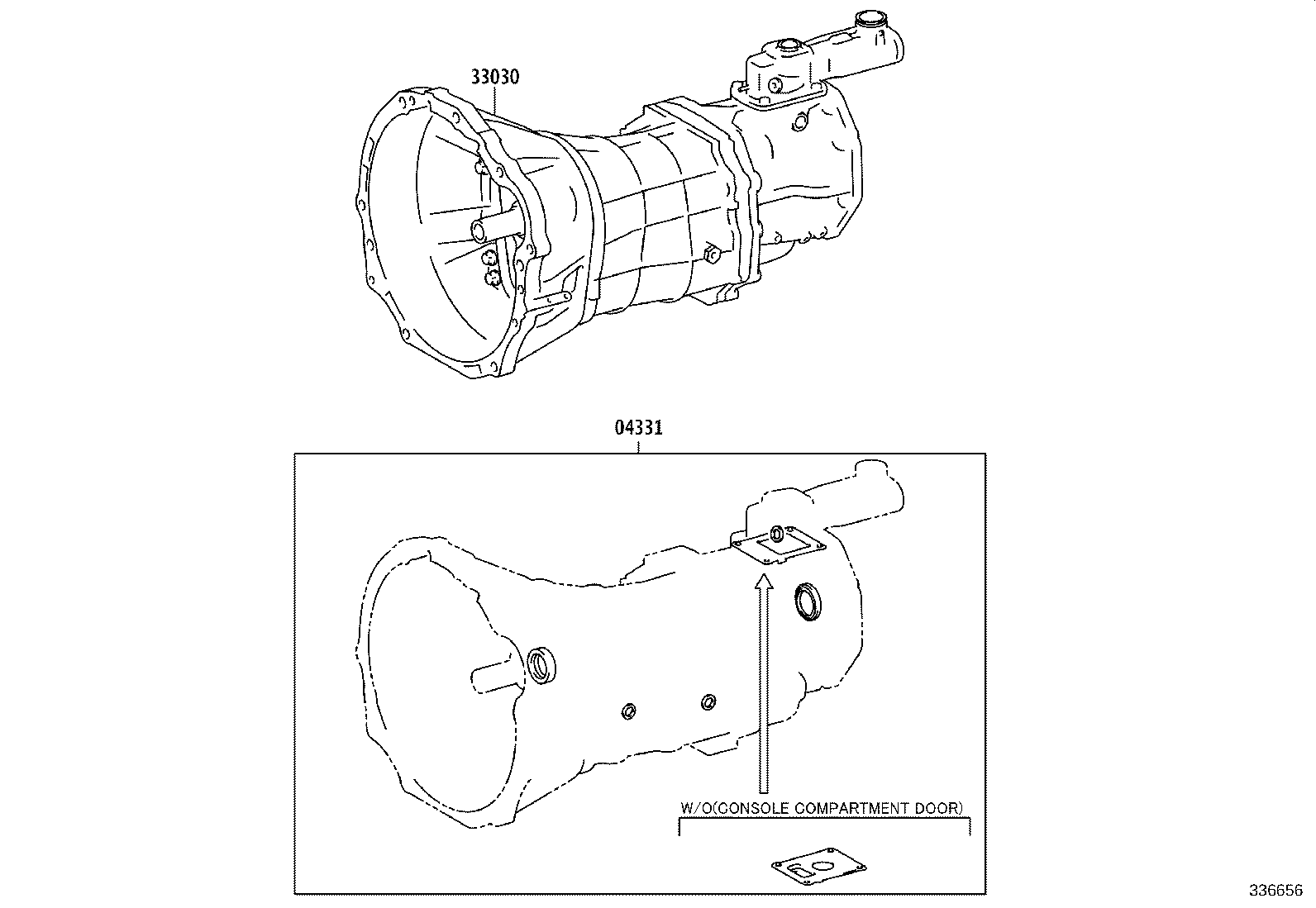

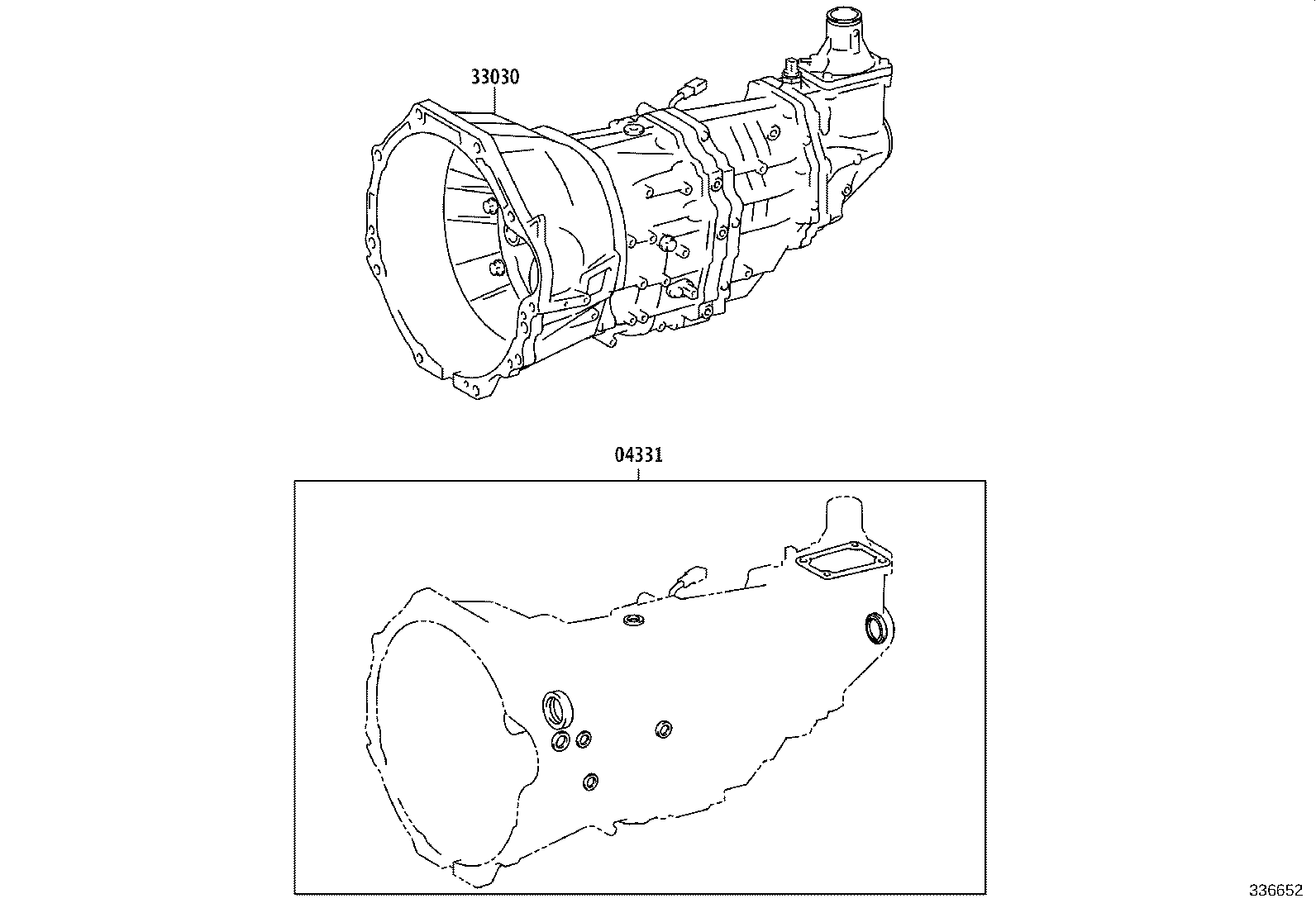

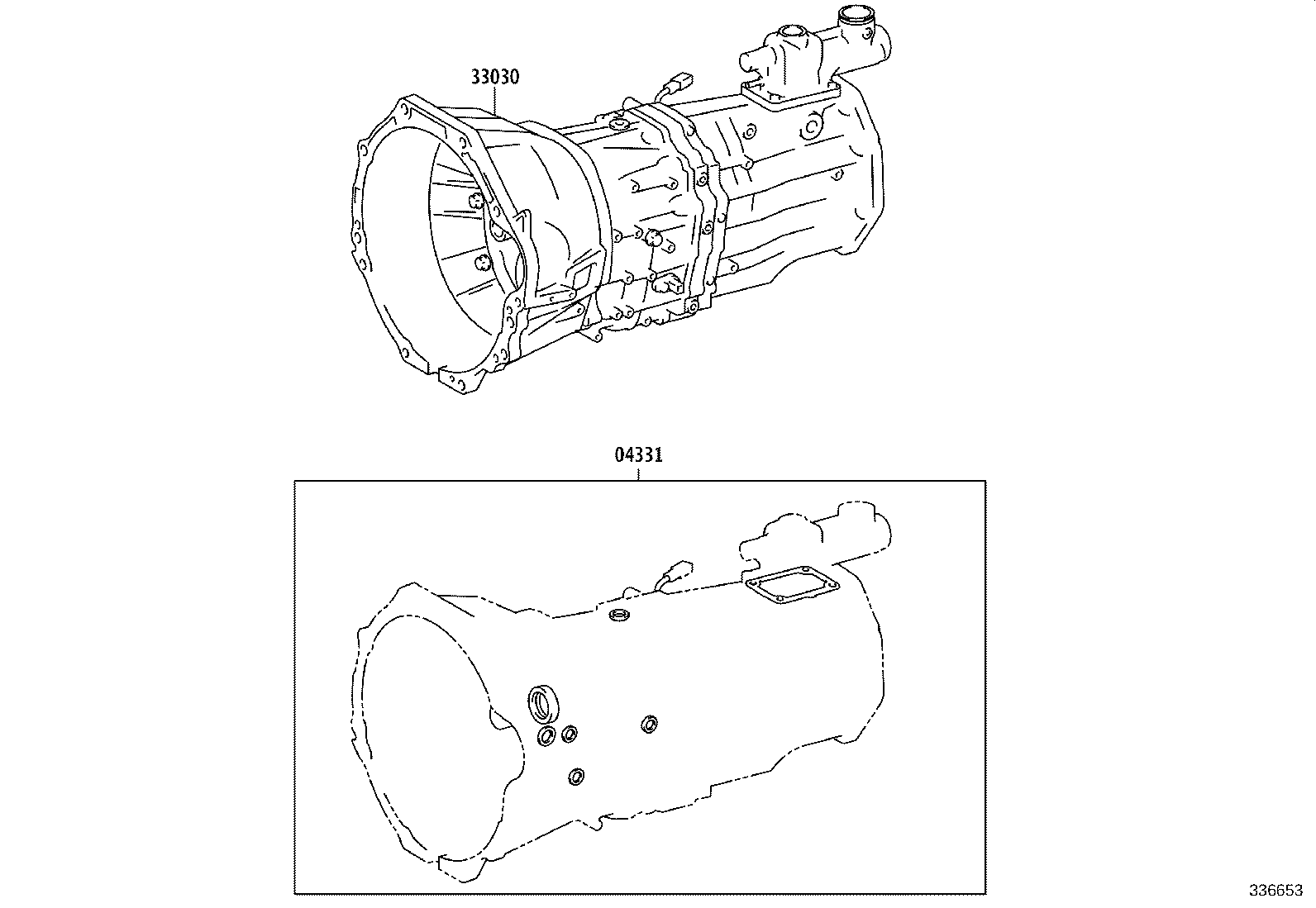

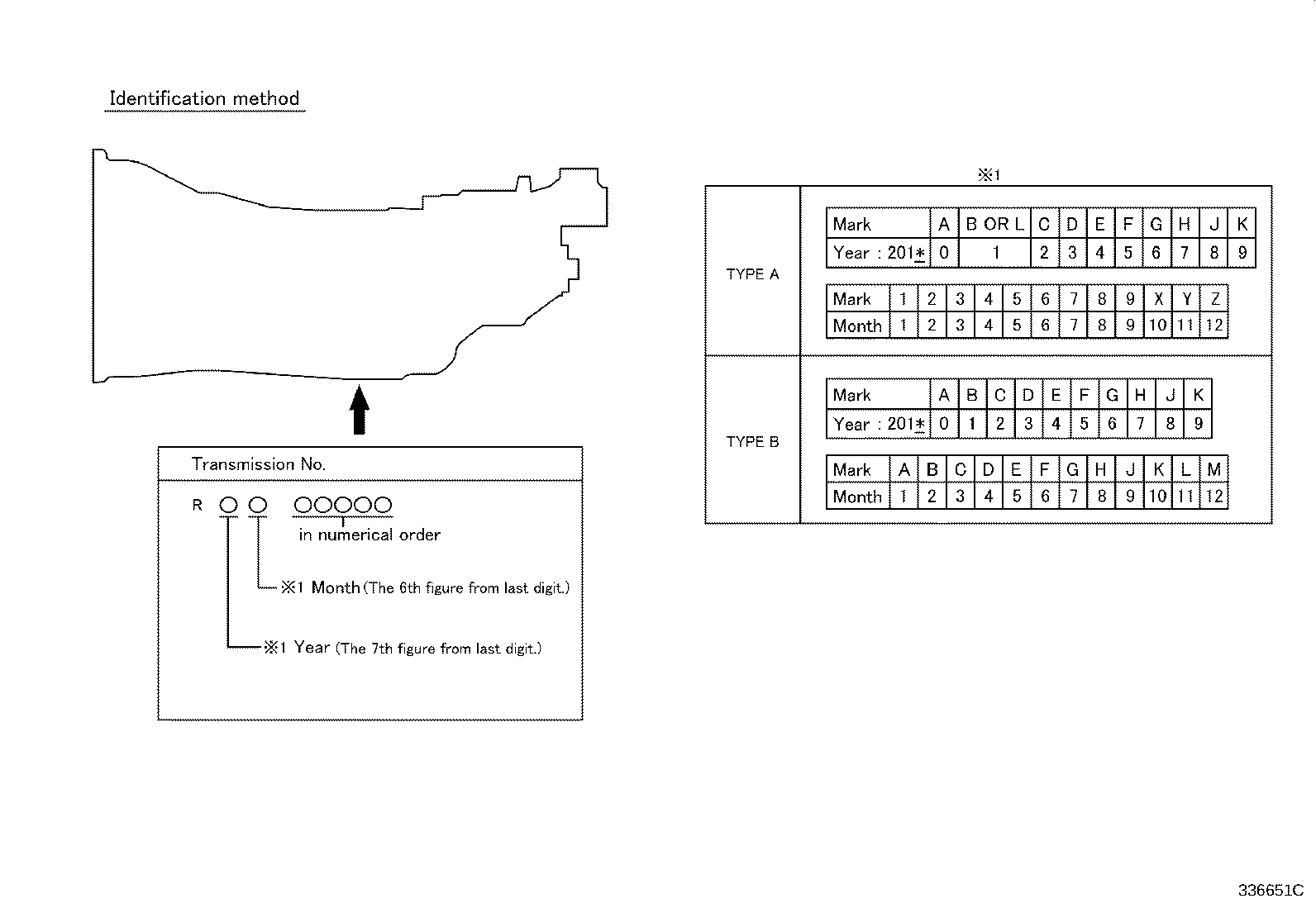

Figure 336655 336655 2021-08 → — Figure 336649 336649 2021-08 → — Figure 336656 336656 2021-08 → — Figure 336651C 336651C 2021-08 → — Figure 336652 336652 2021-08 → — Figure 336653 336653 2021-08 → — Figure 336654 336654 2021-08 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33030 Transmission Unit Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
