Toyota Hilux (DOUBLE CAB)

2021-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,13# · catalogue 6733B0 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

7 part groups · 4 illustrations

Illustrations

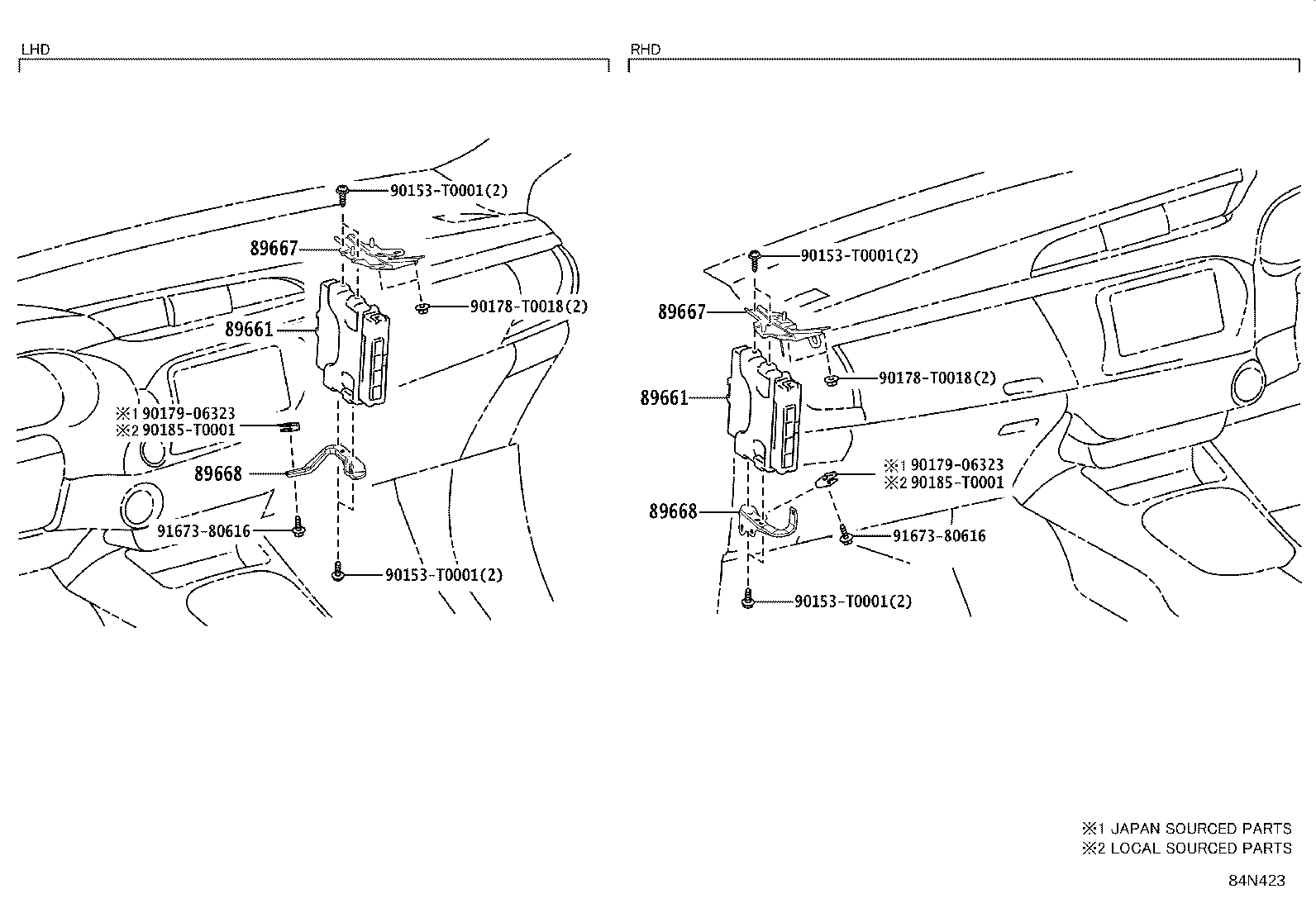

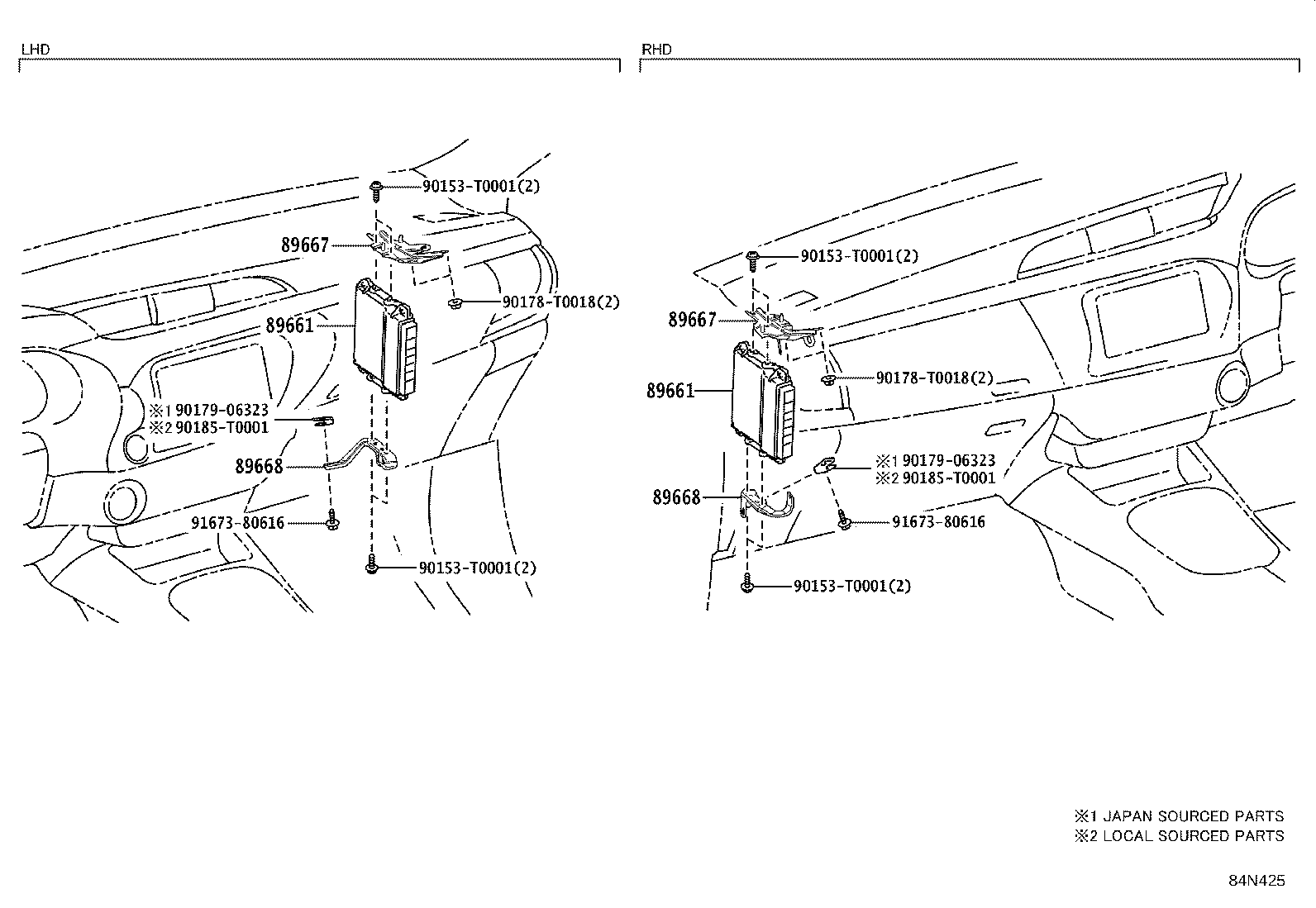

Figure 84N424A 84N424A 2021-08 → — Figure 84N422A 84N422A 2021-08 → — Figure 84N425 84N425 2021-08 → — Figure 84N423 84N423 2021-08 → —

Part groups

PNCDescription
89421N Sensor, Air Pressure
89422 Sensor, Water Temperature (FOR E.F.I.)
89581B Driver, Air Injection Control
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89879A Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
