Toyota Hilux (DOUBLE CAB)
2022-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,136 · catalogue 6733C0 · General
Supported model
Data version 2023-03

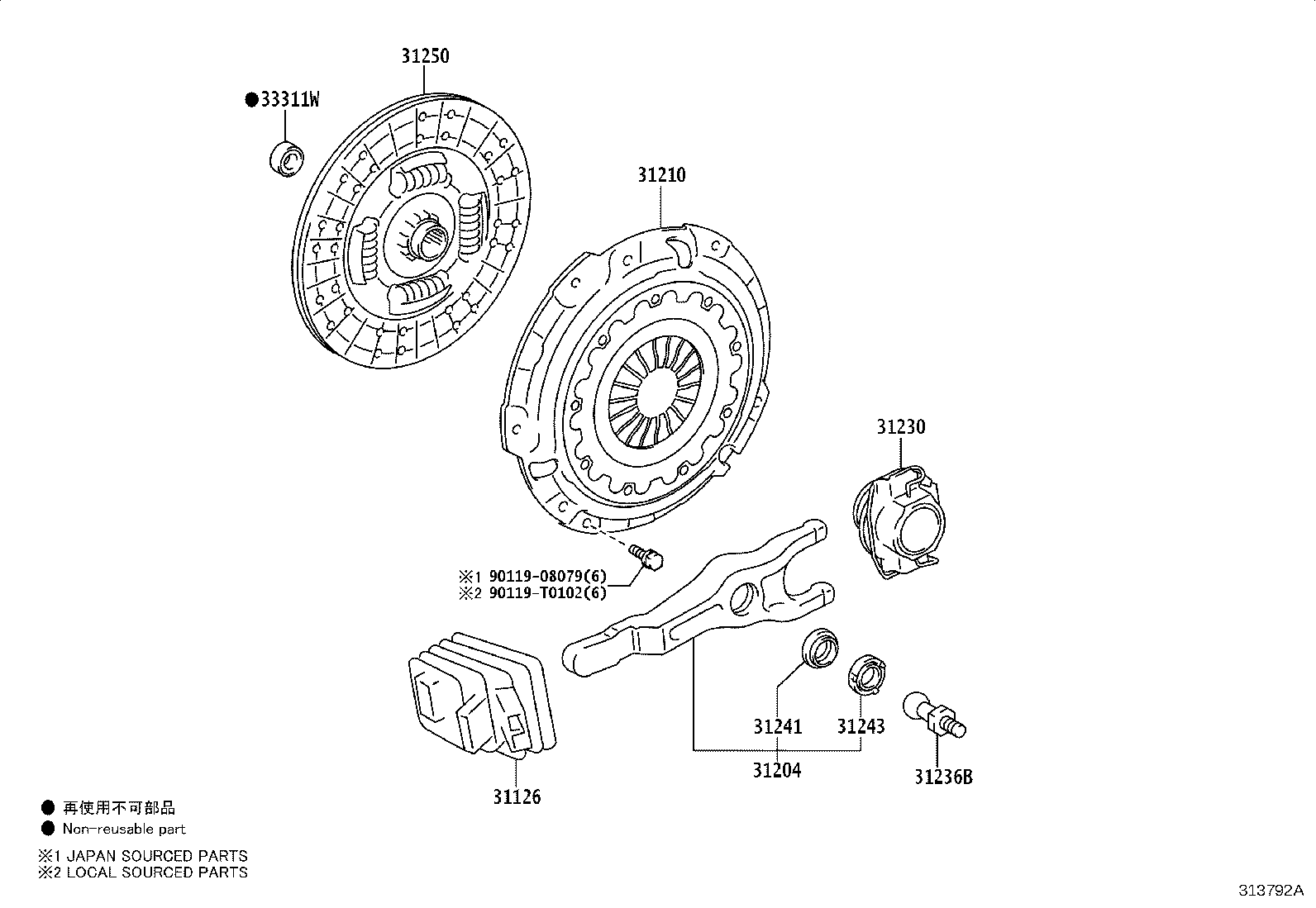

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31126 — Boot, Clutch Release Fork | ||||
| 31126-0K080 |
Boot, Clutch Release Fork
2022-08 → —
|
GUN126 6F PKN | — | |
| 31126-0K080 |
Boot, Clutch Release Fork
2022-08 → 2024-03
ended
|
GUN125,126 6F (GHA,KEN) | — | |
| 31126-0K080 |
Boot, Clutch Release Fork
2022-08 → 2024-01
ended
|
GUN125,126,13# 6F SA | — | |
| 31126-0K080 |
Boot, Clutch Release Fork
2022-08 → 2023-07
ended
|
GUN122,125,126,13# THP 6F | — | |
| 31126-0K080 |
Boot, Clutch Release Fork
2022-08 → 2023-10
ended
|
GUN125,126,13# AGTP 6F | — | |
| 31126-0K080 |
Boot, Clutch Release Fork
2022-08 → 2023-08
ended
|
GUN125 6F MA | — | |
| 31126-0K080 |
Boot, Clutch Release Fork
2022-08 → 2023-09
ended
|
GUN126 6F IND | — | |
| 31126-0K090 note |
Boot, Clutch Release Fork
2023-02 → 2023-04
ended
|
TGN126 5F (H,S) | — | |
| 31126-0K090 note |
Boot, Clutch Release Fork
2022-08 → 2023-02
ended
|
TGN126 5F (H,S) | — | |
| 31126-0K090 note |
Boot, Clutch Release Fork
2022-08 → 2024-01
ended
|
TGN121,126,136 5F SA | — | |
| 31126-0K090 note |
Boot, Clutch Release Fork
2022-08 → 2023-10
ended
|
TGN126,136 AGTP | — | |
| 31126-0K090 note |
Boot, Clutch Release Fork
2022-08 → 2023-07
ended
|
TGN12#,136 THP 5F | — | |
| 31126-0K090 note |
Boot, Clutch Release Fork
2023-04 → 2023-05
ended
|
TGN126 5F (H,S) | — | |
| 31126-0K090 note |
Boot, Clutch Release Fork
2022-08 → 2023-05
ended
|
TGN126 5F L;TGN120,121,136 5F | — | |
| 31126-0K090 note |
Boot, Clutch Release Fork
2023-02 → 2023-04
ended
|
TGN126 L GEN | — | |
| 31126-0K100 note |
Boot, Clutch Release Fork
2022-08 → 2023-05
ended
|
GUN122 5F | — | |
| 31126-0K100 note |
Boot, Clutch Release Fork
2022-08 → 2024-01
ended
|
GUN122 SA | — | |
| 31126-0K100 note |
Boot, Clutch Release Fork
2022-08 → 2023-07
ended
|
GUN122 THP 5F | — | |
| 31126-0K110 note |
Boot, Clutch Release Fork
2023-01 → 2024-01
ended
|
LAN125 | — | |
| 31204 — Fork Sub-assy, Clutch Release | ||||
| 31204-0K110 note |
Fork Sub-assy, Clutch Release
2022-08 → 2024-01
ended
|
GUN125,126,13# 6F SA | — | |
| 31204-0K110 note |
Fork Sub-assy, Clutch Release
2022-08 → 2024-01
ended
|
GUN122,125,126,135 MTM SA | — | |
| 31204-0K110 note |
Fork Sub-assy, Clutch Release
2022-08 → 2023-10
ended
|
GUN136 AGTP LA | — | |
| 31204-0K110 note |
Fork Sub-assy, Clutch Release
2022-08 → 2023-10
ended
|
GUN125,126,135 AGTP 6F | — | |
| 31204-0K110 note |
Fork Sub-assy, Clutch Release
2022-08 → 2023-10
ended
|
GUN125,126,13# AGTP 6F | — | |
| 31204-0K110 note |
Fork Sub-assy, Clutch Release
2022-08 → 2023-09
ended
|
GUN126 6F IND | — | |
| 31204-0K110 note |
Fork Sub-assy, Clutch Release
2022-08 → 2023-08
ended
|
GUN125 6F MA | — | |
| 31204-0K110 note |
Fork Sub-assy, Clutch Release
2022-08 → 2023-07
ended
|
GUN13# THP LA | — | |
| 31204-0K110 note |
Fork Sub-assy, Clutch Release
2022-08 → 2023-07
ended
|
GUN122,125,126 THP MTM;GUN135 6F +1 | — | |
| 31204-0K110 note |
Fork Sub-assy, Clutch Release
2022-08 → 2023-07
ended
|
GUN122,125,126,13# THP 6F | — | |
| 31204-0K110 note |
Fork Sub-assy, Clutch Release
2022-08 → 2024-03
ended
|
GUN125,126 6F (GHA,KEN) | — | |
| 31204-0K110 note |
Fork Sub-assy, Clutch Release
2022-08 → —
|
GUN126 6F PKN | — | |
| 31204-0K110 note |
Fork Sub-assy, Clutch Release
2022-08 → 2023-05
ended
|
GUN122 5F | — | |
| 31204-0K120 note |
Fork Sub-assy, Clutch Release
2023-02 → 2023-04
ended
|
TGN126 L GEN | — | |
| 31204-0K120 note |
Fork Sub-assy, Clutch Release
2022-08 → 2023-03
ended
|
TGN120,121,136 LHD 5F (L,S) +1 | — | |
| 31204-0K120 note |
Fork Sub-assy, Clutch Release
2022-08 → 2023-02
ended
|
TGN126 5F L | — | |
| 31204-0K190 note |
Fork Sub-assy, Clutch Release
2022-08 → 2024-01
ended
|
LAN125,TGN121,126,136 5F SA | — | |
| 31204-0K190 note |
Fork Sub-assy, Clutch Release
2022-08 → 2023-07
ended
|
TGN12#,136 THP 5F | — | |
| 31204-0K190 note |
Fork Sub-assy, Clutch Release
2022-08 → 2023-10
ended
|
TGN126,136 AGTP | — | |
| 31204-0K190 note |
Fork Sub-assy, Clutch Release
2022-08 → 2023-05
ended
|
TGN136 S;TGN121 5F H;TGN121 +2 | — | |
| 31204-0K190 note |
Fork Sub-assy, Clutch Release
2023-02 → 2023-05
ended
|
TGN126 5F | — | |
| 31204-0K190 note |
Fork Sub-assy, Clutch Release
2023-03 → 2023-05
ended
|
TGN120,121,136 LHD 5F (L,S) +1 | — | |
| 31210 — Cover Assy, Clutch | ||||
| 31210-0K260 |
Cover Assy, Clutch
2022-08 → 2023-07
ended
|
TGN121,126,136 THP 5F | — | |
| 31210-0K260 |
Cover Assy, Clutch
2022-08 → 2023-10
ended
|
TGN126,136 AGTP | — | |
| 31210-0K260 |
Cover Assy, Clutch
2022-08 → 2024-01
ended
|
TGN121,126,136 5F SA | — | |
| 31210-0K281 |
Cover Assy, Clutch
2022-08 → 2023-07
ended
|
GUN125,126,13# THP 6F | — | |
| 31210-0K281 |
Cover Assy, Clutch
2022-08 → 2023-08
ended
|
GUN125 6F MA | — | |
| 31210-0K281 |
Cover Assy, Clutch
2022-08 → 2023-09
ended
|
GUN126 6F IND | — | |
| 31210-0K281 note |
Cover Assy, Clutch
2022-11 → 2023-10
ended
|
GUN125,126,13# AGTP 6F | — | |
| 31210-0K281 |
Cover Assy, Clutch
2022-08 → —
|
GUN126 6F PKN | — | |
| 31210-0K300 |
Cover Assy, Clutch
2022-08 → 2023-07
ended
|
TGN120 | — | |
| 31210-0K310 |
Cover Assy, Clutch
2022-08 → 2023-07
ended
|
GUN122 THP | — | |
| 31210-0K310 |
Cover Assy, Clutch
2022-08 → 2024-01
ended
|
GUN122 SA | — | |
| 31210-0K420 |
Cover Assy, Clutch
2023-01 → 2024-01
ended
|
LAN125 | — | |
| 31230 — Bearing Assy, Clutch Release | ||||
| 31230-0K040 note |
Bearing Assy, Clutch Release
2023-10 → 2024-01
ended
|
TGN121,126,136 5F SA | — | |
| 31230-0K050 note |
Bearing Assy, Clutch Release
2023-10 → —
|
GUN126 6F PKN | — | |
| 31230-0K050 note |
Bearing Assy, Clutch Release
2023-10 → 2024-01
ended
|
GUN122,125,126,135 MTM SA | — | |
| 31230-0K050 note |
Bearing Assy, Clutch Release
2023-10 → 2024-01
ended
|
GUN125,126,13# 6F SA | — | |
| 31230-0K050 note |
Bearing Assy, Clutch Release
2023-10 → 2024-03
ended
|
GUN125,126 6F (GHA,KEN) | — | |
| 31230-71052 note |
Bearing Assy, Clutch Release
2022-08 → 2023-07
ended
|
GUN122,125,126,13# THP 6F | — | |
| 31230-71052 note |
Bearing Assy, Clutch Release
2022-08 → 2023-07
ended
|
GUN122,125,126 THP MTM;GUN135 6F +1 | — | |
| 31230-71052 note |
Bearing Assy, Clutch Release
2022-08 → 2023-07
ended
|
GUN13# THP LA | — | |
| 31230-71052 note |
Bearing Assy, Clutch Release
2022-08 → 2023-08
ended
|
GUN125 6F MA | — | |
| 31230-71052 note |
Bearing Assy, Clutch Release
2022-08 → 2023-09
ended
|
GUN126 6F IND | — | |
| 31230-71052 note |
Bearing Assy, Clutch Release
2022-08 → 2023-10
ended
|
GUN125,126,13# (AGTP,GHAP,KENP,PKNP,SAP) 6F | — | |
| 31230-71052 note |
Bearing Assy, Clutch Release
2022-08 → 2023-10
ended
|
GUN122,125,126,135 (AGTP,GHAP,KENP,PKNP,SAP) MTM | — | |
| 31230-71052 note |
Bearing Assy, Clutch Release
2022-08 → 2023-10
ended
|
GUN136 AGTP LA | — | |
| 31230-71052 note |
Bearing Assy, Clutch Release
2022-08 → 2023-05
ended
|
GUN122 5F | — | |
| 31230-71061 note |
Bearing Assy, Clutch Release
2022-08 → 2023-02
ended
|
TGN126 5F | — | |
| 31230-71061 note |
Bearing Assy, Clutch Release
2022-08 → 2023-03
ended
|
TGN120,121,136 LHD 5F (L,S) +1 | — | |
| 31230-71061 note |
Bearing Assy, Clutch Release
2023-01 → 2024-01
ended
|
LAN125 | — | |
| 31230-71080 note |
Bearing Assy, Clutch Release
2023-04 → 2023-05
ended
|
TGN126 5F (H,S) | — | |
| 31230-71080 note |
Bearing Assy, Clutch Release
2023-03 → 2023-05
ended
|
TGN120,121,136 LHD 5F (L,S) +1 | — | |
| 31230-71080 note |
Bearing Assy, Clutch Release
2022-08 → 2023-05
ended
|
TGN136 S;TGN121 5F H;TGN121 +2 | — | |
| 31230-71080 note |
Bearing Assy, Clutch Release
2023-02 → 2023-05
ended
|
TGN126 5F L | — | |
| 31230-71080 note |
Bearing Assy, Clutch Release
2022-08 → 2023-10
ended
|
TGN121,126,136 (AGTP,SAP) 5F | — | |
| 31230-71080 note |
Bearing Assy, Clutch Release
2022-08 → 2023-07
ended
|
TGN12#,136 THP 5F | — | |
| 31236B — Support, Release Fork | ||||
| 31236-0K010 note |
Support, Release Fork
2022-08 → 2024-01
ended
|
GUN125,126,135 6F SA | — | |
| 31236-0K010 note |
Support, Release Fork
2022-08 → 2023-10
ended
|
GUN136 AGTP LA | — | |
| 31236-0K010 note |
Support, Release Fork
2022-08 → 2023-10
ended
|
GUN125,126,135 AGTP 6F | — | |
| 31236-0K010 note |
Support, Release Fork
2022-08 → 2024-01
ended
|
GUN125,126,13# 6F SA | — | |
| 31236-0K010 note |
Support, Release Fork
2022-08 → 2023-10
ended
|
GUN125,126,13# AGTP 6F | — | |
| 31236-0K010 note |
Support, Release Fork
2022-08 → 2023-09
ended
|
GUN126 6F IND | — | |
| 31236-0K010 note |
Support, Release Fork
2022-08 → 2023-08
ended
|
GUN125 6F MA | — | |
| 31236-0K010 note |
Support, Release Fork
2022-08 → 2023-07
ended
|
GUN13# THP LA | — | |
| 31236-0K010 note |
Support, Release Fork
2022-08 → 2023-07
ended
|
GUN122,125,126,13# THP 6F | — | |
| 31236-0K010 note |
Support, Release Fork
2022-08 → 2023-07
ended
|
GUN122,125,126 THP 6F;GUN135 6F +1 | — | |
| 31236-0K010 note |
Support, Release Fork
2022-08 → 2024-03
ended
|
GUN125,126 6F (GHA,KEN) | — | |
| 31236-0K010 note |
Support, Release Fork
2022-08 → —
|
GUN126 6F PKN | — | |
| 31236-0K020 note |
Support, Release Fork
2022-08 → 2023-03
ended
|
TGN120,121,136 LHD 5F (L,S) +1 | — | |
| 31236-0K020 note |
Support, Release Fork
2022-08 → 2023-02
ended
|
TGN126 5F | — | |
| 31236-0K030 note |
Support, Release Fork
2022-08 → 2023-07
ended
|
GUN122 THP 5F | — | |
| 31236-0K030 note |
Support, Release Fork
2022-08 → 2024-01
ended
|
GUN122 SA | — | |
| 31236-0K030 note |
Support, Release Fork
2022-08 → 2023-05
ended
|
GUN122 5F | — | |
| 31236-0K060 note |
Support, Release Fork
2022-08 → 2024-01
ended
|
LAN125,TGN121,126,136 5F SA | — | |
| 31236-0K060 note |
Support, Release Fork
2023-04 → 2023-05
ended
|
TGN126 5F (H,S) | — | |
| 31236-0K060 note |
Support, Release Fork
2022-08 → 2023-10
ended
|
TGN126,136 AGTP | — | |
| 31236-0K060 note |
Support, Release Fork
2022-08 → 2023-07
ended
|
TGN12#,136 THP 5F | — | |
| 31236-0K060 note |
Support, Release Fork
2023-03 → 2023-05
ended
|
TGN120,121,136 LHD 5F (L,S) +1 | — | |
| 31236-0K060 note |
Support, Release Fork
2023-02 → 2023-05
ended
|
TGN126 5F L | — | |
| 31236-0K060 note |
Support, Release Fork
2022-08 → 2023-05
ended
|
TGN136 S;TGN121 5F H;TGN121 +2 | — | |
| 31241 — Seal, Clutch Release Fork Dust | ||||
| 31241-71010 note |
Seal, Clutch Release Fork Dust
2022-08 → 2023-07
ended
|
GUN13# THP LA | — | |
| 31241-71010 note |
Seal, Clutch Release Fork Dust
2022-08 → —
|
GUN126 6F PKN | — | |
| 31241-71010 note |
Seal, Clutch Release Fork Dust
2022-08 → 2024-03
ended
|
GUN125,126 6F (GHA,KEN) | — | |
| 31241-71010 note |
Seal, Clutch Release Fork Dust
2022-08 → 2024-01
ended
|
GUN122,125,126,135 MTM SA | — | |
| 31241-71010 note |
Seal, Clutch Release Fork Dust
2022-08 → 2024-01
ended
|
GUN125,126,13# 6F SA | — | |
| 31241-71010 note |
Seal, Clutch Release Fork Dust
2022-08 → 2023-10
ended
|
GUN136 AGTP LA | — | |
| 31241-71010 note |
Seal, Clutch Release Fork Dust
2022-08 → 2023-10
ended
|
GUN125,126,135 AGTP 6F | — | |
| 31241-71010 note |
Seal, Clutch Release Fork Dust
2022-08 → 2023-09
ended
|
GUN126 6F IND | — | |
| 31241-71010 note |
Seal, Clutch Release Fork Dust
2022-08 → 2023-08
ended
|
GUN125 6F MA | — | |
| 31241-71010 note |
Seal, Clutch Release Fork Dust
2022-08 → 2023-07
ended
|
GUN122,125,126 THP MTM;GUN135 6F +1 | — | |
| 31241-71010 note |
Seal, Clutch Release Fork Dust
2022-08 → 2023-07
ended
|
GUN122,125,126,13# THP 6F | — | |
| 31241-71010 note |
Seal, Clutch Release Fork Dust
2022-08 → 2023-05
ended
|
GUN122 5F | — | |
| 31241-71010 note |
Seal, Clutch Release Fork Dust
2022-08 → 2023-10
ended
|
GUN125,126,13# AGTP 6F | — | |
| 31243 — Collar, Clutch Release Fork | ||||
| 31243-0K010 note |
Collar, Clutch Release Fork
2022-08 → 2023-10
ended
|
GUN136 AGTP LA | — | |
| 31243-0K010 note |
Collar, Clutch Release Fork
2022-08 → —
|
GUN126 6F PKN | — | |
| 31243-0K010 note |
Collar, Clutch Release Fork
2022-08 → 2024-03
ended
|
GUN125,126 6F (GHA,KEN) | — | |
| 31243-0K010 note |
Collar, Clutch Release Fork
2022-08 → 2024-01
ended
|
GUN122,125,126,135 MTM SA | — | |
| 31243-0K010 note |
Collar, Clutch Release Fork
2022-08 → 2024-01
ended
|
GUN125,126,13# 6F SA | — | |
| 31243-0K010 note |
Collar, Clutch Release Fork
2022-08 → 2023-10
ended
|
GUN125,126,135 AGTP 6F | — | |
| 31243-0K010 note |
Collar, Clutch Release Fork
2022-08 → 2023-10
ended
|
GUN125,126,13# AGTP 6F | — | |
| 31243-0K010 note |
Collar, Clutch Release Fork
2022-08 → 2023-09
ended
|
GUN126 6F IND | — | |
| 31243-0K010 note |
Collar, Clutch Release Fork
2022-08 → 2023-08
ended
|
GUN125 6F MA | — | |
| 31243-0K010 note |
Collar, Clutch Release Fork
2022-08 → 2023-07
ended
|
GUN13# THP LA | — | |
| 31243-0K010 note |
Collar, Clutch Release Fork
2022-08 → 2023-07
ended
|
GUN122,125,126 THP MTM;GUN135 6F +1 | — | |
| 31243-0K010 note |
Collar, Clutch Release Fork
2022-08 → 2023-07
ended
|
GUN122,125,126,13# THP 6F | — | |
| 31243-0K010 note |
Collar, Clutch Release Fork
2022-08 → 2023-05
ended
|
GUN122 5F | — | |
| 31250 — Disc Assy, Clutch | ||||
| 31250-0K261 |
Disc Assy, Clutch
2022-08 → 2023-07
ended
|
TGN121,126,136 THP 5F | — | |
| 31250-0K261 |
Disc Assy, Clutch
2022-08 → 2023-10
ended
|
TGN126,136 AGTP | — | |
| 31250-0K261 |
Disc Assy, Clutch
2022-08 → 2024-01
ended
|
TGN121,126,136 5F SA | — | |
| 31250-0K281 |
Disc Assy, Clutch
2022-08 → 2023-07
ended
|
GUN122,125,126,13# THP 6F | — | |
| 31250-0K281 |
Disc Assy, Clutch
2022-08 → —
|
GUN126 6F PKN | — | |
| 31250-0K281 |
Disc Assy, Clutch
2022-08 → 2023-08
ended
|
GUN125 6F MA | — | |
| 31250-0K281 |
Disc Assy, Clutch
2022-08 → 2023-09
ended
|
GUN126 6F IND | — | |
| 31250-0K281 note |
Disc Assy, Clutch
2022-11 → 2023-10
ended
|
GUN125,126,13# AGTP 6F | — | |
| 31250-0K301 |
Disc Assy, Clutch
2022-08 → 2023-07
ended
|
TGN120 | — | |
| 31250-0K311 |
Disc Assy, Clutch
2022-08 → 2024-01
ended
|
GUN122 SA | — | |
| 31250-0K311 |
Disc Assy, Clutch
2022-08 → 2023-07
ended
|
GUN122 THP 5F | — | |
| 31250-0K440 |
Disc Assy, Clutch
2023-01 → 2024-01
ended
|
LAN125 | — | |
| 33311W — Bearing (FOR INPUT SHAFT) | ||||
| 90363-12024 |
Bearing (FOR INPUT SHAFT)
2023-01 → 2024-01
ended
|
LAN125 | — | |
| 90363-T0006 |
Bearing (FOR INPUT SHAFT)
2022-08 → 2023-07
ended
|
GUN122,125,126,13# THP MTM | — | |
| 90363-T0006 |
Bearing (FOR INPUT SHAFT)
2022-08 → 2023-08
ended
|
GUN125 6F MA | — | |
| 90363-T0006 |
Bearing (FOR INPUT SHAFT)
2022-08 → 2023-09
ended
|
GUN126 6F IND | — | |
| 90363-T0006 |
Bearing (FOR INPUT SHAFT)
2022-08 → 2023-10
ended
|
GUN125,126,13# AGTP 6F | — | |
| 90363-T0006 |
Bearing (FOR INPUT SHAFT)
2022-08 → 2024-01
ended
|
GUN122,125,126,13# MTM SA | — | |
| 90363-T0006 |
Bearing (FOR INPUT SHAFT)
2022-08 → 2024-03
ended
|
GUN125,126 6F (GHA,KEN) | — | |
| 90363-T0006 |
Bearing (FOR INPUT SHAFT)
2022-08 → —
|
GUN126 6F PKN | — | |
| 90363-T0019 |
Bearing (FOR INPUT SHAFT)
2022-08 → 2023-07
ended
|
TGN12#,136 THP 5F | — | |
| 90363-T0019 |
Bearing (FOR INPUT SHAFT)
2022-08 → 2023-10
ended
|
TGN126,136 AGTP | — | |
| 90363-T0019 |
Bearing (FOR INPUT SHAFT)
2022-08 → 2024-01
ended
|
TGN121,126,136 5F SA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
