Toyota Hilux (DOUBLE CAB)

2022-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,136 · catalogue 6733C0 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

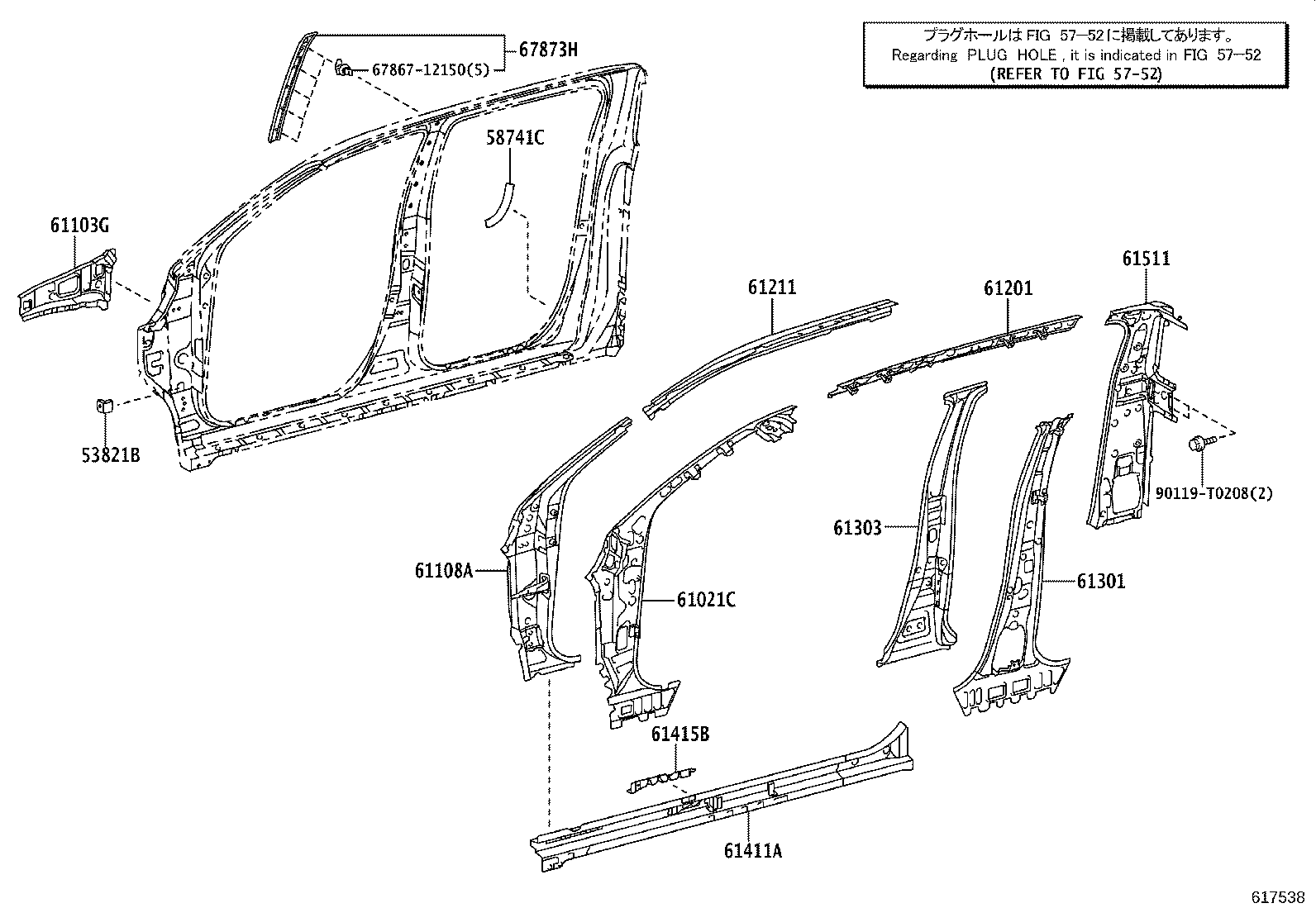

Exploded illustration 617538 53821B — BRACKET, FRONT FENDER, REAR RH (7 parts) 58741C — PROTECTOR, QUARTER PANEL, RH (10 parts) 61021C — PILLAR SUB-ASSY, FRONT BODY, RH (11 parts) 61103G — GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH (7 parts) 61108A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH (7 parts) 61201 — RAIL SUB-ASSY, ROOF SIDE, RH (7 parts) 61211 — RAIL, ROOF SIDE, OUTER RH (7 parts) 61301 — PILLAR SUB-ASSY, CENTER BODY, RH (11 parts) 61303 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH (7 parts) 61411A — REINFORCEMENT, ROCKER PANEL, NO.1 RH (7 parts) 61415B — EXTENSION, ROCKER, OUTER RH (2 parts) 61511 — PILLAR, QUARTER LOCK, RH (8 parts) 67873H — WEATHERSTRIP, CENTER DOOR, UPPER NO.1 (8 parts) 6786712150 — not listed in this catalogue 90119T0208 — not listed in this catalogue 5752 — not listed in this catalogue
617538 · 13 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
99 parts on this figure
Part number Description Fitment Price
53821B — Bracket, Front Fender, Rear RH
53257-35030 Bracket, Front Fender, Rear RH
2022-08 → 2023-08 ended
GUN125,126 MA —
53257-35030 Bracket, Front Fender, Rear RH
2022-08 → 2023-09 ended
GUN126 IND,MMR —
53257-35030 Bracket, Front Fender, Rear RH
2022-08 → 2023-10 ended
GGN125,GUN125,126,13#,TGN126,136 AGTP —
53257-35030 Bracket, Front Fender, Rear RH
2022-08 → 2024-01 ended
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136 SA —
53257-35030 Bracket, Front Fender, Rear RH
2022-08 → 2024-03 ended
GUN125,126 GHA,KEN —
53257-35030 Bracket, Front Fender, Rear RH
2022-08 → —
GUN126 PKN —
53257-35030 Bracket, Front Fender, Rear RH
2022-08 → 2023-07 ended
GGN125,GUN12#,13#,TGN12#,136 THP —
58741C — Protector, Quarter Panel, RH
58741-0K070 note Protector, Quarter Panel, RH
2022-08 → 2023-07 ended
TGN126 L GEN;GUN125 LHD +1 —
58741-0K070 note Protector, Quarter Panel, RH
2022-08 → 2023-07 ended
TGN126 H GEN;GUN126 6F +7 —
58741-0K070 note Protector, Quarter Panel, RH
2022-08 → 2023-07 ended
GUN125,TGN126 H GCC —
58741-0K070 note Protector, Quarter Panel, RH
2022-08 → 2023-07 ended
TGN121 5F S;TGN121 6FC +3 —
58741-0K070 Protector, Quarter Panel, RH
2022-08 → 2023-07 ended
TGN121 ARL;GUN125 IV3;TGN126 S +3 —
58741-0K070 note Protector, Quarter Panel, RH
2022-08 → 2023-05 ended
TGN126 S GEN —
58741-0K130 note Protector, Quarter Panel, RH
2023-01 → 2023-11 ended
TGN136 SA S SA;GUN125 +5 —
58741-0K130 Protector, Quarter Panel, RH
2023-01 → 2024-01 ended
TGN136 LAN125,TGN121,126 S (L,S) +9 —
58741-0K130 note Protector, Quarter Panel, RH
2023-01 → 2024-01 ended
GUN126 RHD H SA;GUN125,136 +3 —
58741-0K130 Protector, Quarter Panel, RH
2023-01 → 2024-03 ended
GUN125 L (GHA,KEN) —
61021C — Pillar Sub-assy, Front Body, RH
61021-KK020 Pillar Sub-assy, Front Body, RH
2022-11 → 2023-10 ended
GGN125,GUN125,126,13#,TGN126,136 AGTP —
61021-KK030 Pillar Sub-assy, Front Body, RH
2022-08 → 2024-03 ended
GUN125,126 GHA,KEN —
61021-KK030 Pillar Sub-assy, Front Body, RH
2022-08 → —
GUN126 PKN —
61021-KK030 Pillar Sub-assy, Front Body, RH
2022-08 → 2024-01 ended
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136 SA —
61021-KK030 Pillar Sub-assy, Front Body, RH
2022-08 → 2023-09 ended
GUN126 IND,MMR —
61021-KK030 note Pillar Sub-assy, Front Body, RH
2022-08 → 2023-07 ended
GUN122 S GEN;GUN122 RHD +1 —
61021-KK030 Pillar Sub-assy, Front Body, RH
2022-08 → 2023-07 ended
TGN121 TGN126,136 ARL,GEN;GUN125 THP +6 —
61021-KK030 note Pillar Sub-assy, Front Body, RH
2022-08 → 2023-07 ended
GUN122 S GEN —
61021-KK030 Pillar Sub-assy, Front Body, RH
2022-08 → 2023-08 ended
GUN125,126 MA —
61021-KK040 Pillar Sub-assy, Front Body, RH
2022-08 → 2023-07 ended
GUN122 C,TH H,S;GUN122 RHD +6 —
61021-KK040 note Pillar Sub-assy, Front Body, RH
2023-01 → 2024-01 ended
TGN121 SA —
61103G — Gusset Sub-assy, Front Body Pillar, Lower RH
61103-KK010 Gusset Sub-assy, Front Body Pillar, Lower RH
2022-08 → 2023-09 ended
GUN126 IND,MMR —
61103-KK010 Gusset Sub-assy, Front Body Pillar, Lower RH
2022-08 → —
GUN126 PKN —
61103-KK010 Gusset Sub-assy, Front Body Pillar, Lower RH
2022-08 → 2024-03 ended
GUN125,126 GHA,KEN —
61103-KK010 Gusset Sub-assy, Front Body Pillar, Lower RH
2022-08 → 2024-01 ended
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136 SA —
61103-KK010 Gusset Sub-assy, Front Body Pillar, Lower RH
2022-08 → 2023-10 ended
GGN125,GUN125,126,13#,TGN126,136 AGTP —
61103-KK010 Gusset Sub-assy, Front Body Pillar, Lower RH
2022-08 → 2023-08 ended
GUN125,126 MA —
61103-KK010 Gusset Sub-assy, Front Body Pillar, Lower RH
2022-08 → 2023-07 ended
GGN125,GUN12#,13#,TGN12#,136 THP —
61108A — Reinforce Sub-assy, Front Body Pillar, Lower RH
61108-KK900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2022-08 → 2023-09 ended
GUN126 IND,MMR —
61108-KK900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2022-08 → —
GUN126 PKN —
61108-KK900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2022-08 → 2024-03 ended
GUN125,126 GHA,KEN —
61108-KK900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2022-08 → 2024-01 ended
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136 SA —
61108-KK900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2022-08 → 2023-08 ended
GUN125,126 MA —
61108-KK900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2022-08 → 2023-07 ended
GGN125,GUN12#,13#,TGN12#,136 THP —
61108-KK901 Reinforce Sub-assy, Front Body Pillar, Lower RH
2022-11 → 2023-10 ended
GGN125,GUN125,126,13#,TGN126,136 AGTP —
61201 — Rail Sub-assy, Roof Side, RH
61201-KK010 Rail Sub-assy, Roof Side, RH
2022-08 → 2023-07 ended
GGN125,GUN12#,13#,TGN12#,136 THP —
61201-KK010 Rail Sub-assy, Roof Side, RH
2022-08 → 2023-08 ended
GUN125,126 MA —
61201-KK010 Rail Sub-assy, Roof Side, RH
2022-08 → 2023-09 ended
GUN126 IND,MMR —
61201-KK010 Rail Sub-assy, Roof Side, RH
2022-08 → 2023-10 ended
GGN125,GUN125,126,13#,TGN126,136 AGTP —
61201-KK010 Rail Sub-assy, Roof Side, RH
2022-08 → 2024-01 ended
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136 SA —
61201-KK010 Rail Sub-assy, Roof Side, RH
2022-08 → 2024-03 ended
GUN125,126 GHA,KEN —
61201-KK010 Rail Sub-assy, Roof Side, RH
2022-08 → —
GUN126 PKN —
61211 — Rail, Roof Side, Outer RH
61211-KK010 Rail, Roof Side, Outer RH
2022-08 → 2023-07 ended
GGN125,GUN12#,13#,TGN12#,136 THP —
61211-KK010 Rail, Roof Side, Outer RH
2022-08 → —
GUN126 PKN —
61211-KK010 Rail, Roof Side, Outer RH
2022-08 → 2024-03 ended
GUN125,126 GHA,KEN —
61211-KK010 Rail, Roof Side, Outer RH
2022-08 → 2024-01 ended
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136 SA —
61211-KK010 Rail, Roof Side, Outer RH
2022-08 → 2023-09 ended
GUN126 IND,MMR —
61211-KK010 Rail, Roof Side, Outer RH
2022-08 → 2023-08 ended
GUN125,126 MA —
61211-KK010 Rail, Roof Side, Outer RH
2022-08 → 2023-10 ended
GGN125,GUN125,126,13#,TGN126,136 AGTP —
61301 — Pillar Sub-assy, Center Body, RH
61301-KK020 Pillar Sub-assy, Center Body, RH
2022-08 → 2024-03 ended
GUN125,126 GHA,KEN —
61301-KK020 Pillar Sub-assy, Center Body, RH
2022-08 → —
GUN126 PKN —
61301-KK020 Pillar Sub-assy, Center Body, RH
2022-08 → 2024-01 ended
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136 SA —
61301-KK020 Pillar Sub-assy, Center Body, RH
2022-08 → 2023-10 ended
GGN125,GUN125,126,13#,TGN126,136 AGTP —
61301-KK020 Pillar Sub-assy, Center Body, RH
2022-08 → 2023-09 ended
GUN126 IND,MMR —
61301-KK020 note Pillar Sub-assy, Center Body, RH
2022-08 → 2023-07 ended
GUN122 S GEN;GUN122 RHD +1 —
61301-KK020 Pillar Sub-assy, Center Body, RH
2022-08 → 2023-07 ended
TGN121 TGN126,136 ARL,GEN;GUN125 THP +6 —
61301-KK020 note Pillar Sub-assy, Center Body, RH
2022-08 → 2023-07 ended
GUN122 S GEN —
61301-KK020 Pillar Sub-assy, Center Body, RH
2022-08 → 2023-08 ended
GUN125,126 MA —
61301-KK030 Pillar Sub-assy, Center Body, RH
2022-08 → 2023-07 ended
GUN122 C,TH H,S;GUN122 RHD +6 —
61301-KK030 note Pillar Sub-assy, Center Body, RH
2023-01 → 2024-01 ended
TGN121 SA —
61303 — Reinforce Sub-assy, Center Body Pillar, Upper RH
61303-KK010 Reinforce Sub-assy, Center Body Pillar, Upper RH
2022-08 → 2023-09 ended
GUN126 IND,MMR —
61303-KK010 Reinforce Sub-assy, Center Body Pillar, Upper RH
2022-08 → —
GUN126 PKN —
61303-KK010 Reinforce Sub-assy, Center Body Pillar, Upper RH
2022-08 → 2024-03 ended
GUN125,126 GHA,KEN —
61303-KK010 Reinforce Sub-assy, Center Body Pillar, Upper RH
2022-08 → 2024-01 ended
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136 SA —
61303-KK010 Reinforce Sub-assy, Center Body Pillar, Upper RH
2022-08 → 2023-10 ended
GGN125,GUN125,126,13#,TGN126,136 AGTP —
61303-KK010 Reinforce Sub-assy, Center Body Pillar, Upper RH
2022-08 → 2023-08 ended
GUN125,126 MA —
61303-KK010 Reinforce Sub-assy, Center Body Pillar, Upper RH
2022-08 → 2023-07 ended
GGN125,GUN12#,13#,TGN12#,136 THP —
61411A — Reinforcement, Rocker Panel, NO.1 RH
61401-KK900 Reinforcement, Rocker Panel, NO.1 RH
2022-08 → —
GUN126 PKN —
61401-KK900 Reinforcement, Rocker Panel, NO.1 RH
2022-08 → 2024-03 ended
GUN125,126 GHA,KEN —
61401-KK900 Reinforcement, Rocker Panel, NO.1 RH
2022-08 → 2023-09 ended
GUN126 IND,MMR —
61401-KK900 Reinforcement, Rocker Panel, NO.1 RH
2022-08 → 2024-01 ended
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136 SA —
61401-KK900 Reinforcement, Rocker Panel, NO.1 RH
2022-08 → 2023-08 ended
GUN125,126 MA —
61401-KK900 Reinforcement, Rocker Panel, NO.1 RH
2022-08 → 2023-07 ended
GGN125,GUN12#,13#,TGN12#,136 THP —
61401-KK900 Reinforcement, Rocker Panel, NO.1 RH
2022-08 → 2023-10 ended
GGN125,GUN125,126,13#,TGN126,136 AGTP —
61415B — Extension, Rocker, Outer RH
61415-KK010 Extension, Rocker, Outer RH
2022-08 → 2023-07 ended
GGN125,GUN12#,13#,TGN12#,136 THP —
61415-KK010 Extension, Rocker, Outer RH
2022-08 → 2023-09 ended
GUN126 IND,MMR —
61511 — Pillar, Quarter Lock, RH
61501-KK010 Pillar, Quarter Lock, RH
2022-11 → 2023-10 ended
GGN125,GUN125,126,13#,TGN126,136 AGTP —
61501-KK020 note Pillar, Quarter Lock, RH
2022-08 → 2024-01 ended
TGN136 S SA;GUN125 (H,L) +4 —
61501-KK020 note Pillar, Quarter Lock, RH
2023-01 → 2024-01 ended
TGN121 SA —
61501-KK020 Pillar, Quarter Lock, RH
2022-08 → 2024-10 ended
TGN121 C,VN);GUN125 N125,TGN126 N120,126 +27 —
61501-KK021 Pillar, Quarter Lock, RH
2024-11 → —
GUN126 L,S —
61501-KK050 Pillar, Quarter Lock, RH
2022-08 → 2024-10 ended
GUN122 LHD C HP +55 —
61501-KK050 note Pillar, Quarter Lock, RH
2022-08 → 2024-01 ended
TGN121 5 26 CC,SA) +28 —
61501-KK051 Pillar, Quarter Lock, RH
2024-11 → —
GUN126 H —
67873H — Weatherstrip, Center Door, Upper NO.1
67873-0K041 Weatherstrip, Center Door, Upper NO.1
2022-08 → 2023-07 ended
GGN125,GUN12#,13#,TGN12#,136 THP —
67873-0K041 Weatherstrip, Center Door, Upper NO.1
2022-08 → 2023-09 ended
GUN126 MMR —
67873-0K041 Weatherstrip, Center Door, Upper NO.1
2022-08 → 2023-10 ended
GGN125,GUN125,126,13#,TGN126,136 AGTP —
67873-0K041 Weatherstrip, Center Door, Upper NO.1
2022-08 → —
GUN126 PKN —
67873-0K051 Weatherstrip, Center Door, Upper NO.1
2023-01 → 2024-01 ended
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136 SA —
67873-0K051 Weatherstrip, Center Door, Upper NO.1
2023-01 → 2024-03 ended
GUN125,126 GHA,KEN —
67873-0K061 Weatherstrip, Center Door, Upper NO.1
2022-10 → 2023-09 ended
GUN126 IND —
67873-0K081 Weatherstrip, Center Door, Upper NO.1
2022-09 → 2023-08 ended
GUN125,126 MA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
