Toyota Hilux (DOUBLE CAB)
2023-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,136 · catalogue 6733D0 · General
Supported model
Data version 2024-11

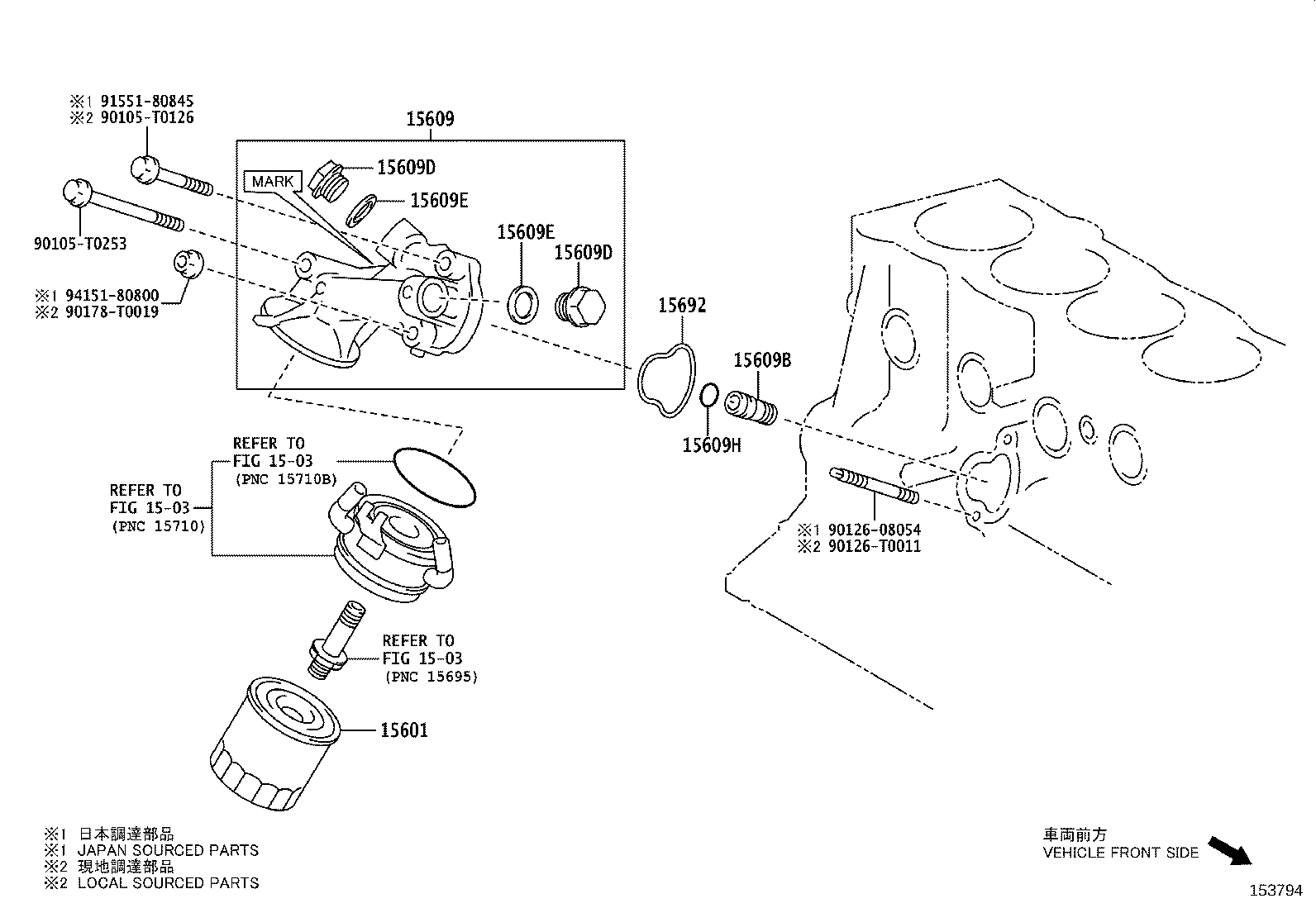

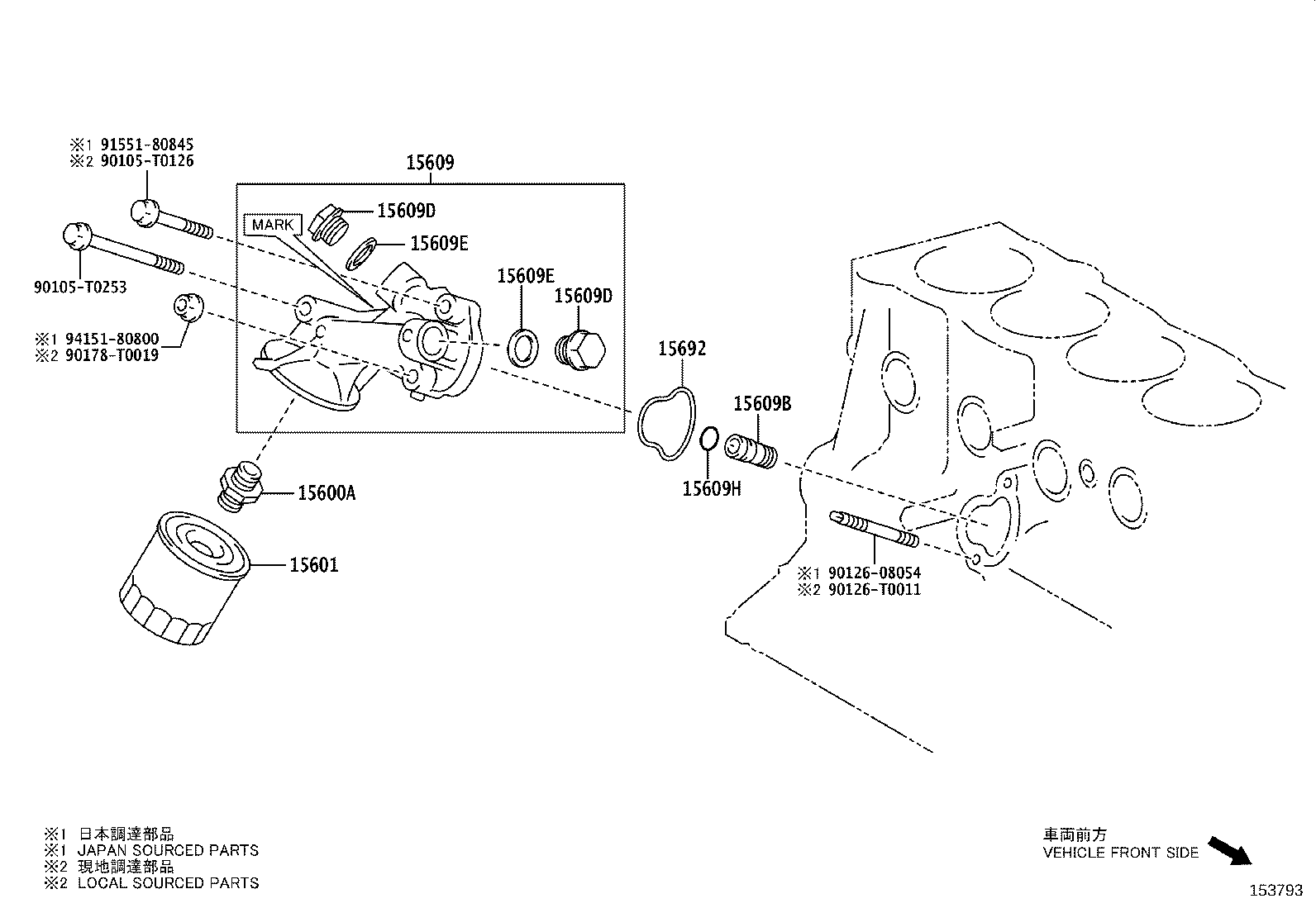

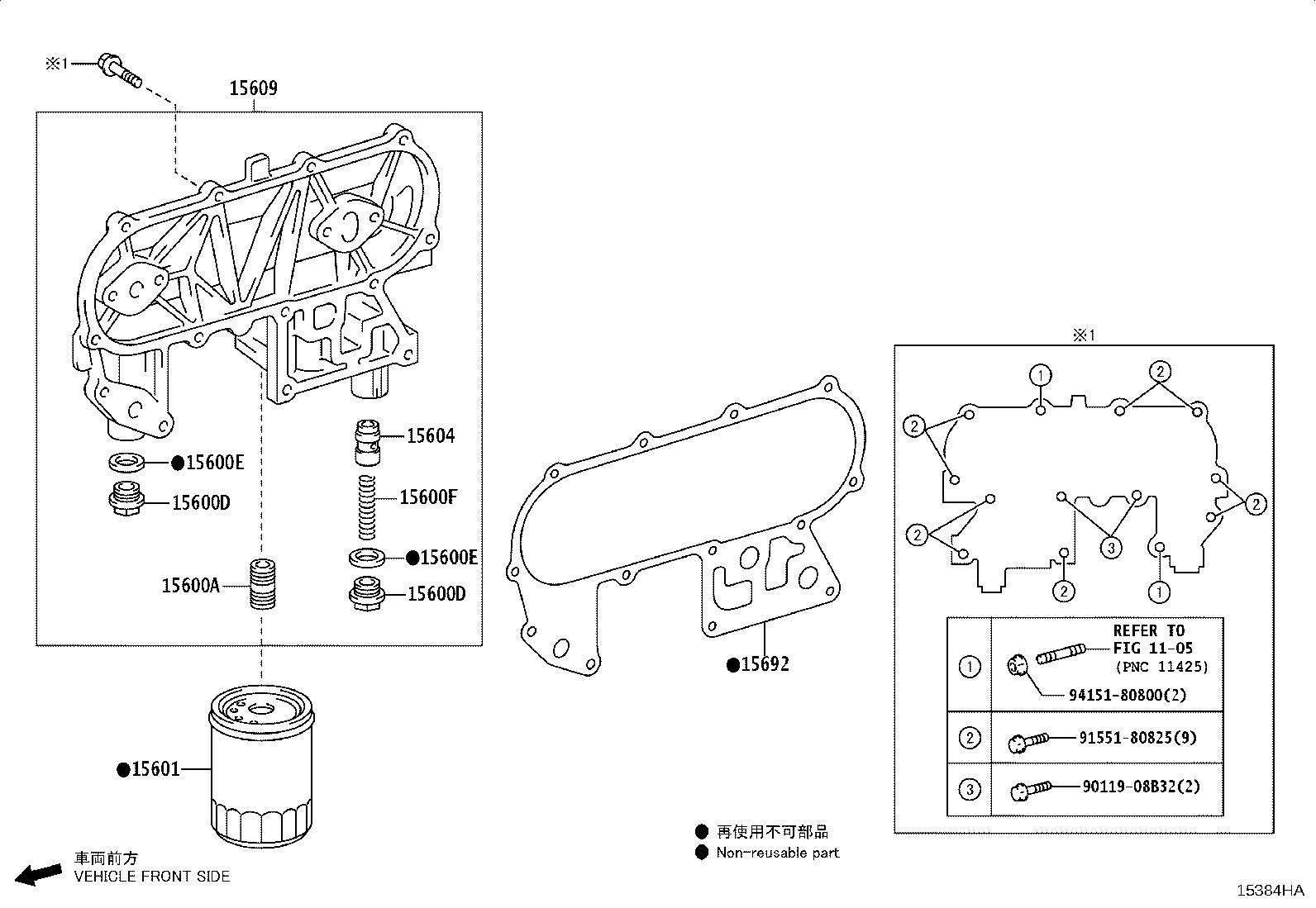

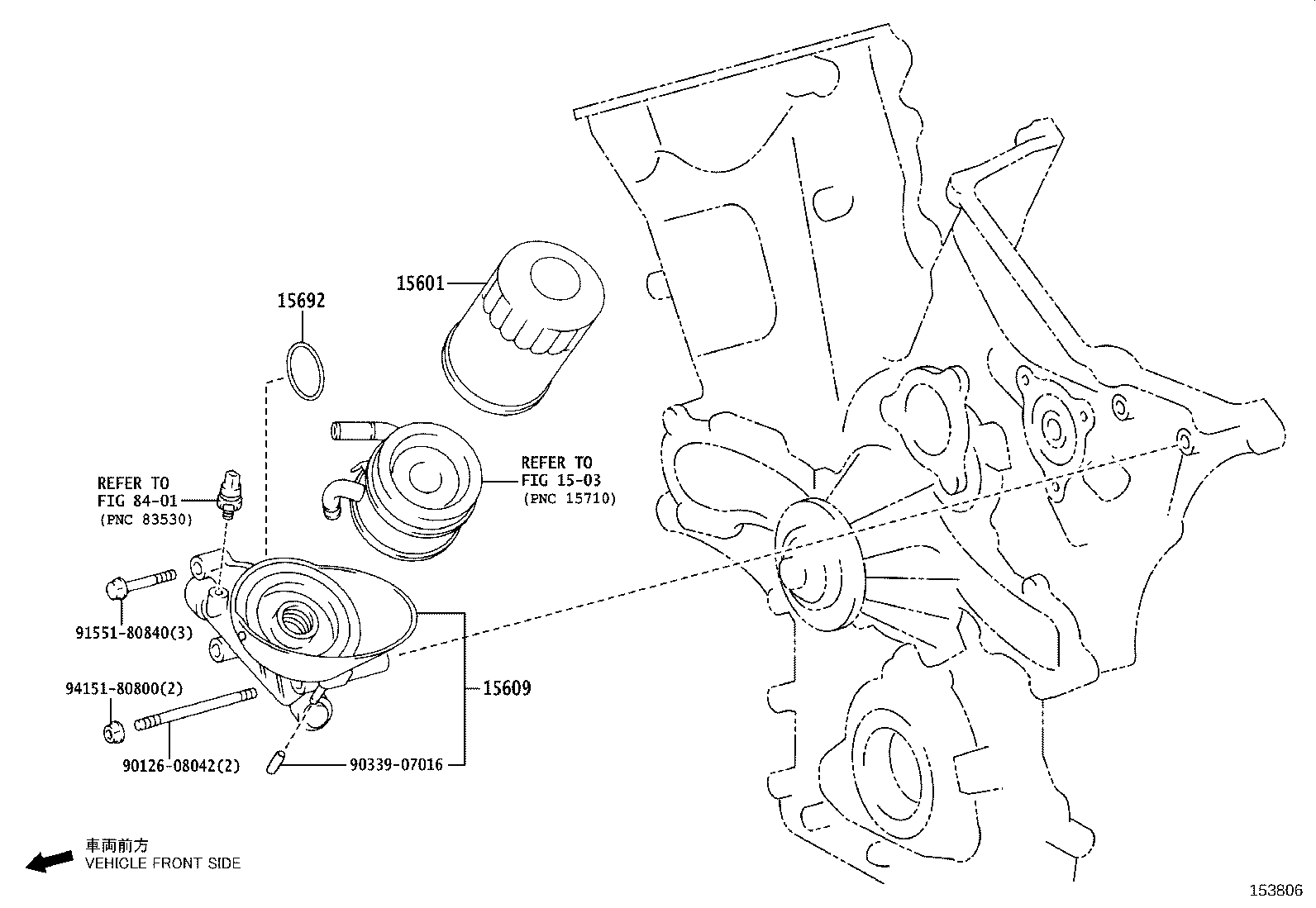

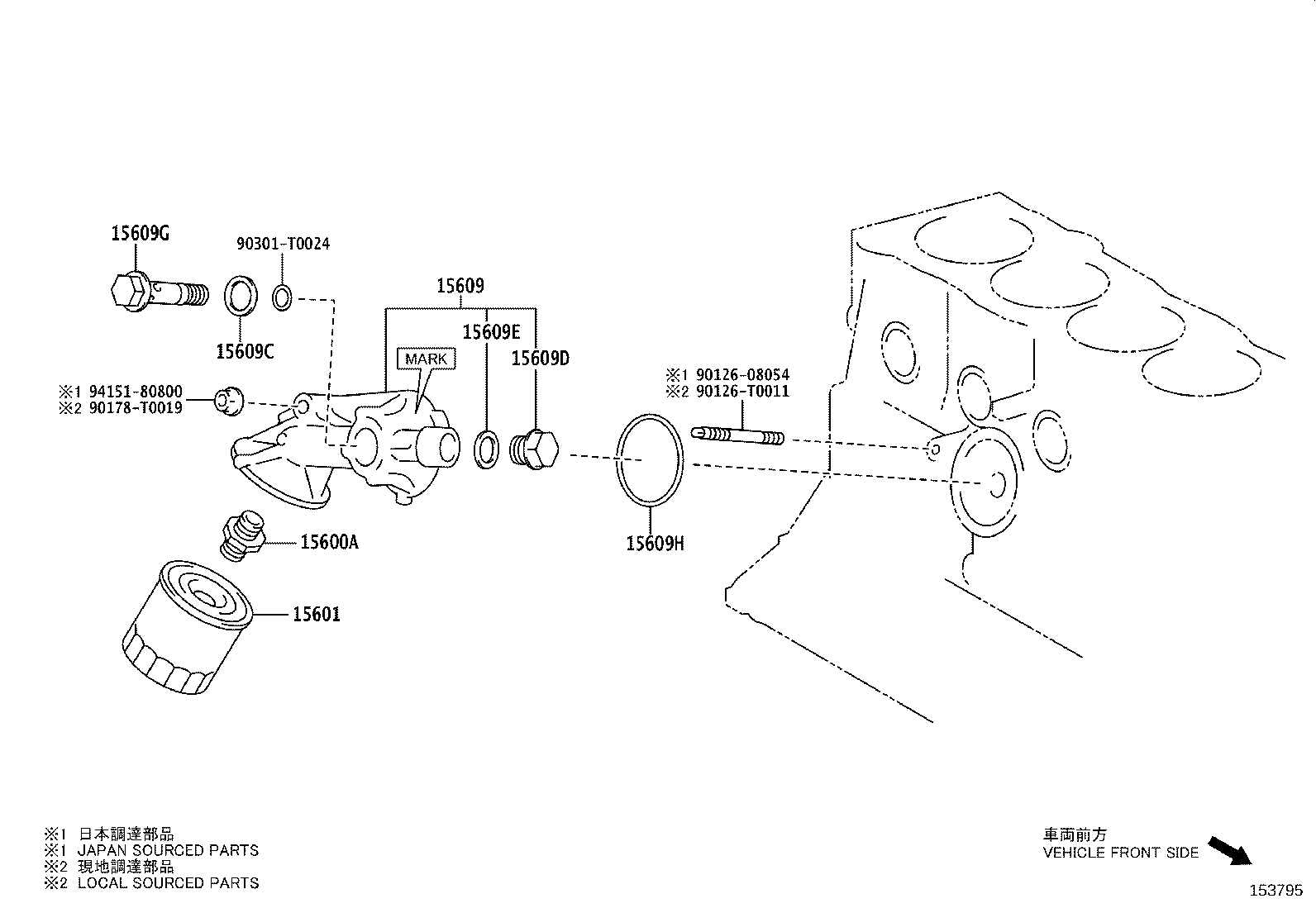

Oil Filter
15 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 15600A | Union(FOR OIL FILTER) |
| 15600D | Plug(FOR OIL FILTER) |
| 15600E | Washer(FOR OIL FILTER) |
| 15600F | Spring, Compression(FOR OIL FILTER) |
| 15601 | Filter Sub-assy, Oil |
| 15604 | Valve Sub-assy, Oil Safety |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15609B | Union(FOR OIL FILTER BRACKET) |
| 15609C | Gasket(FOR OIL FILTER BRACKET UNION) |
| 15609D | Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) |
| 15609E | Gasket, W/Head Straight Screw Plug |
| 15609G | Bolt, Union(FOR OIL FILTER BRACKET) |
| 15609H | Ring, O(FOR OIL FILTER BRACKET) |
| 15677 | Bracket, Oil Filter |
| 15692 | Gasket, Oil Filter Bracket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
