Toyota Hilux Champ

2023-12 → present · chassis GUN1##,TGN11# · catalogue 676210 · General

Supported model Data version 2023-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

Figure 11H6LN

11H6LN 2023-12 → —

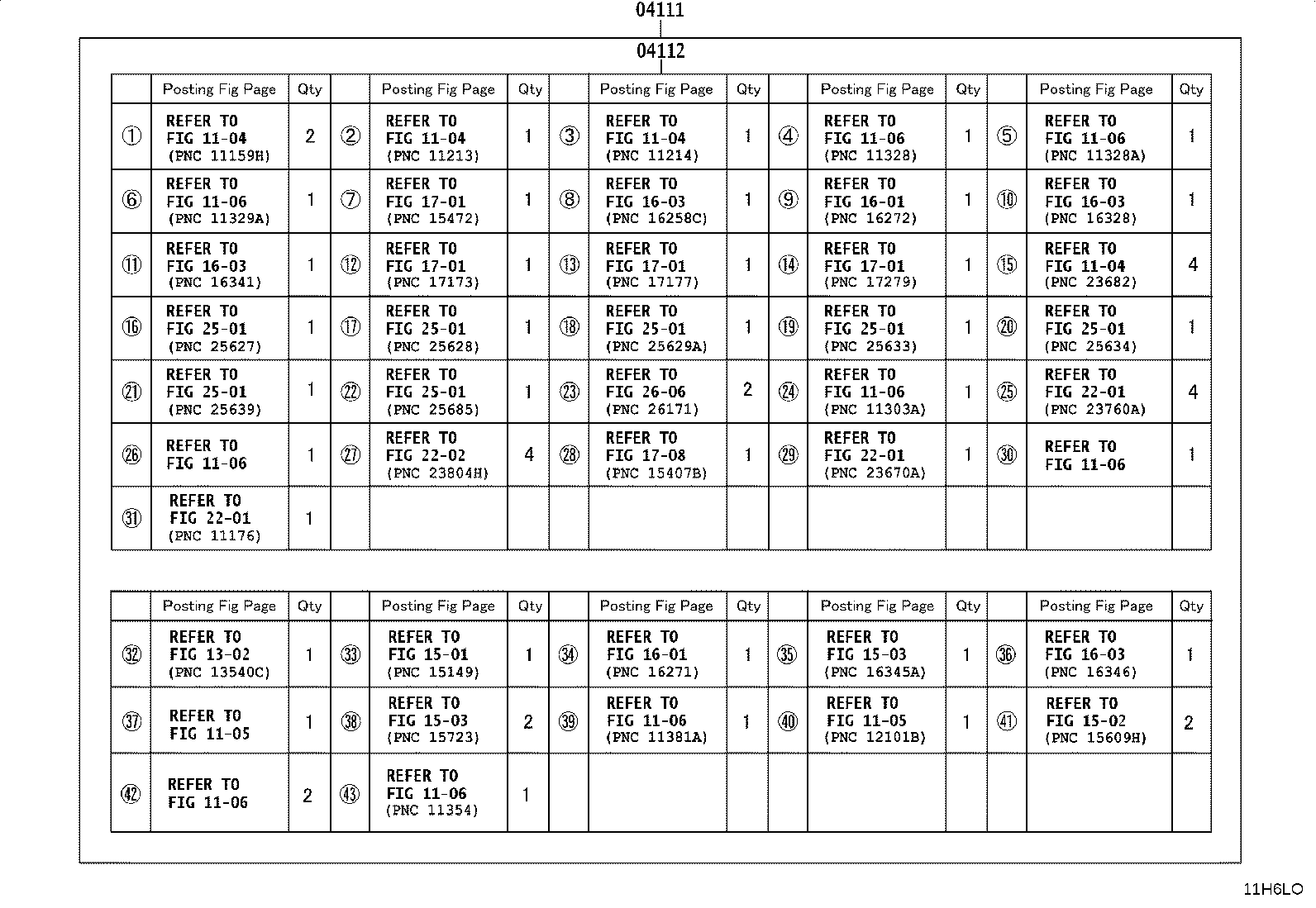

Figure 11H6LO

11H6LO 2023-12 → —

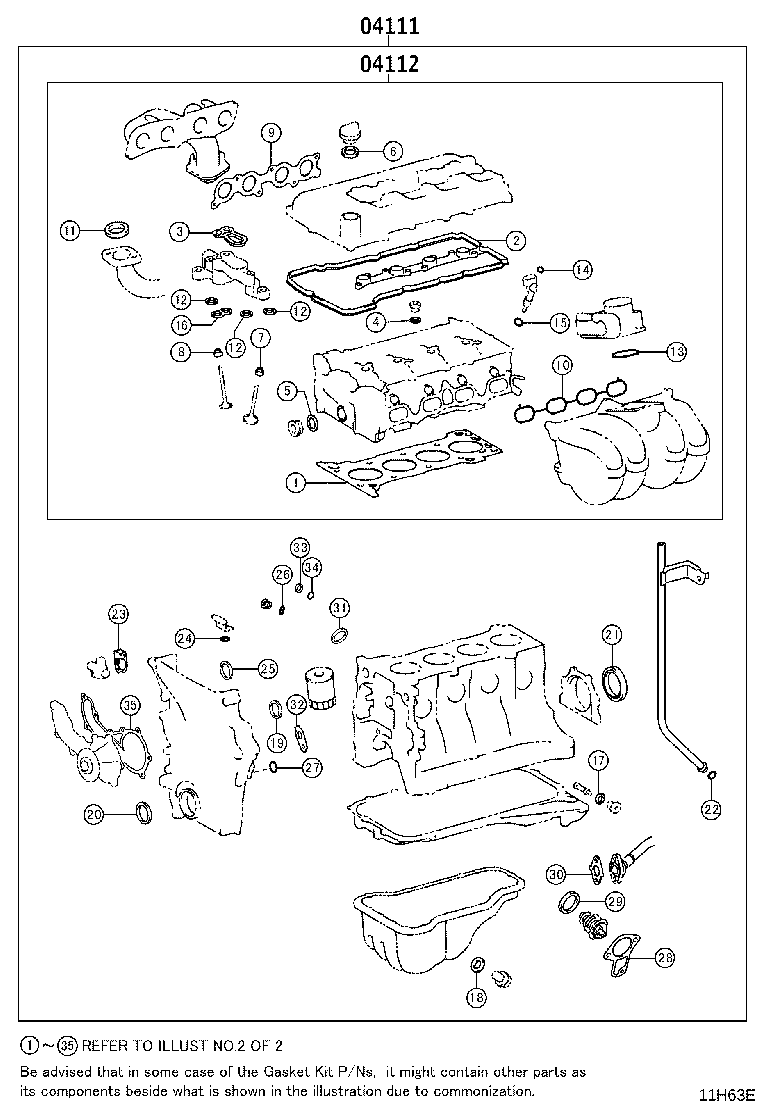

Figure 11H63E

11H63E 2023-12 → —

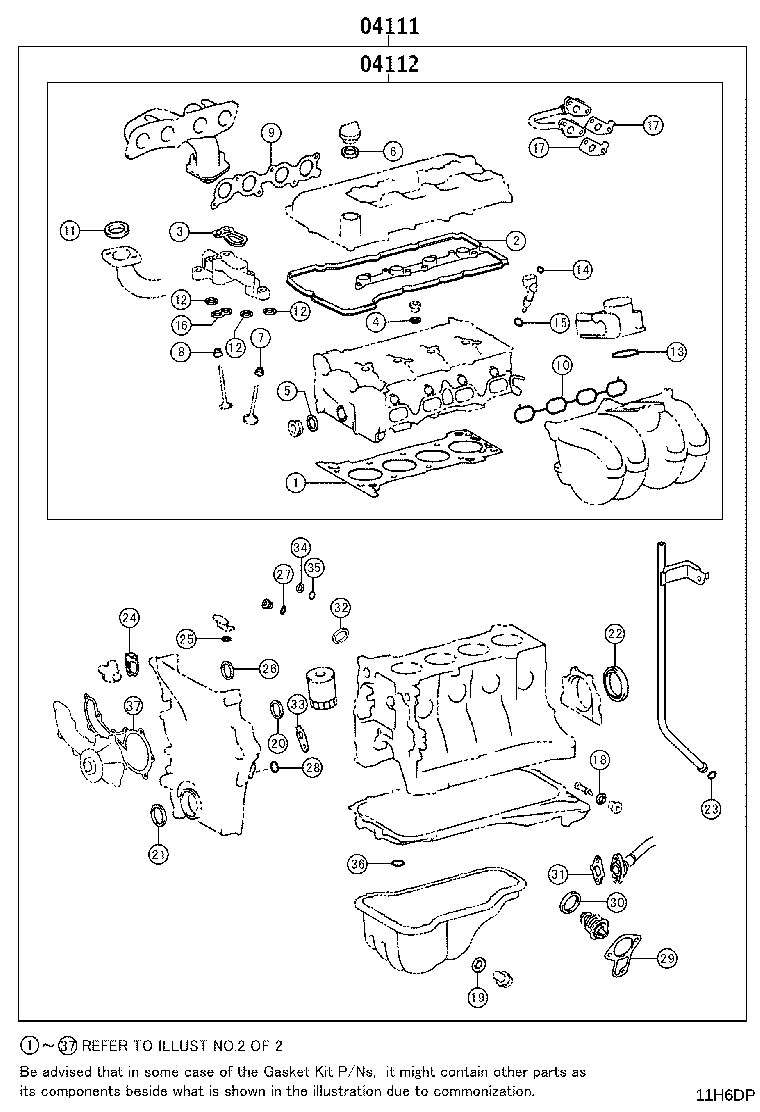

Figure 11H6DP

11H6DP 2023-12 → —

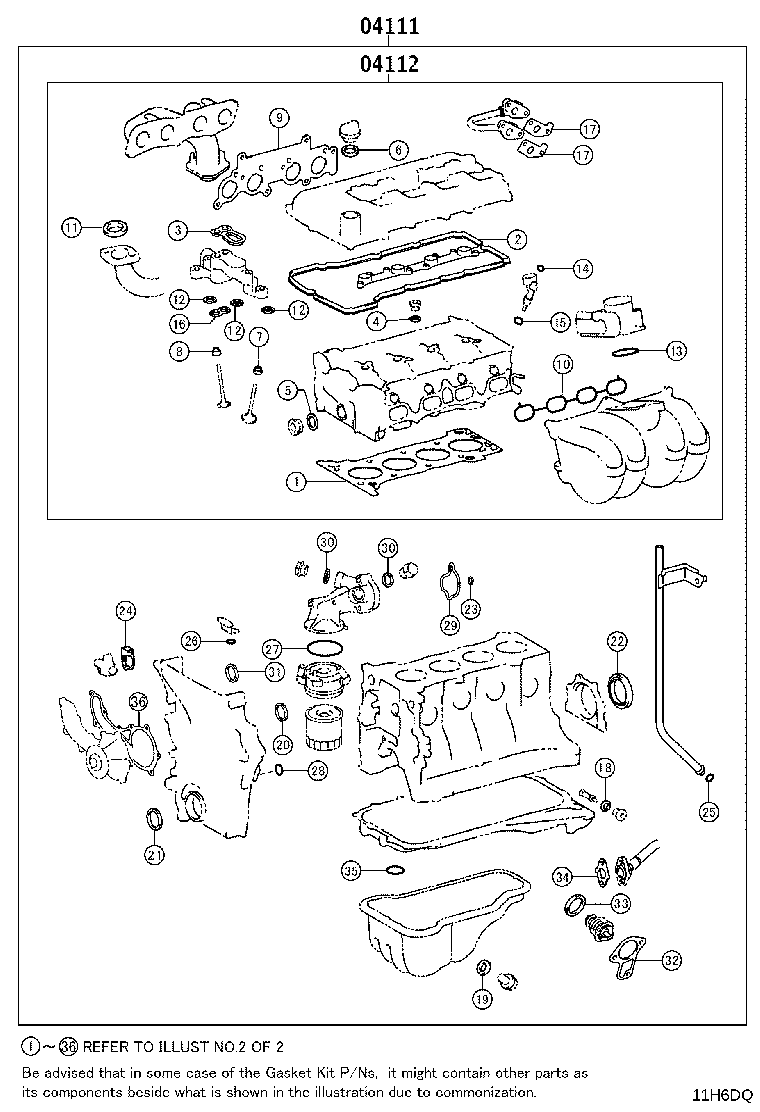

Figure 11H6DQ

11H6DQ 2023-12 → —

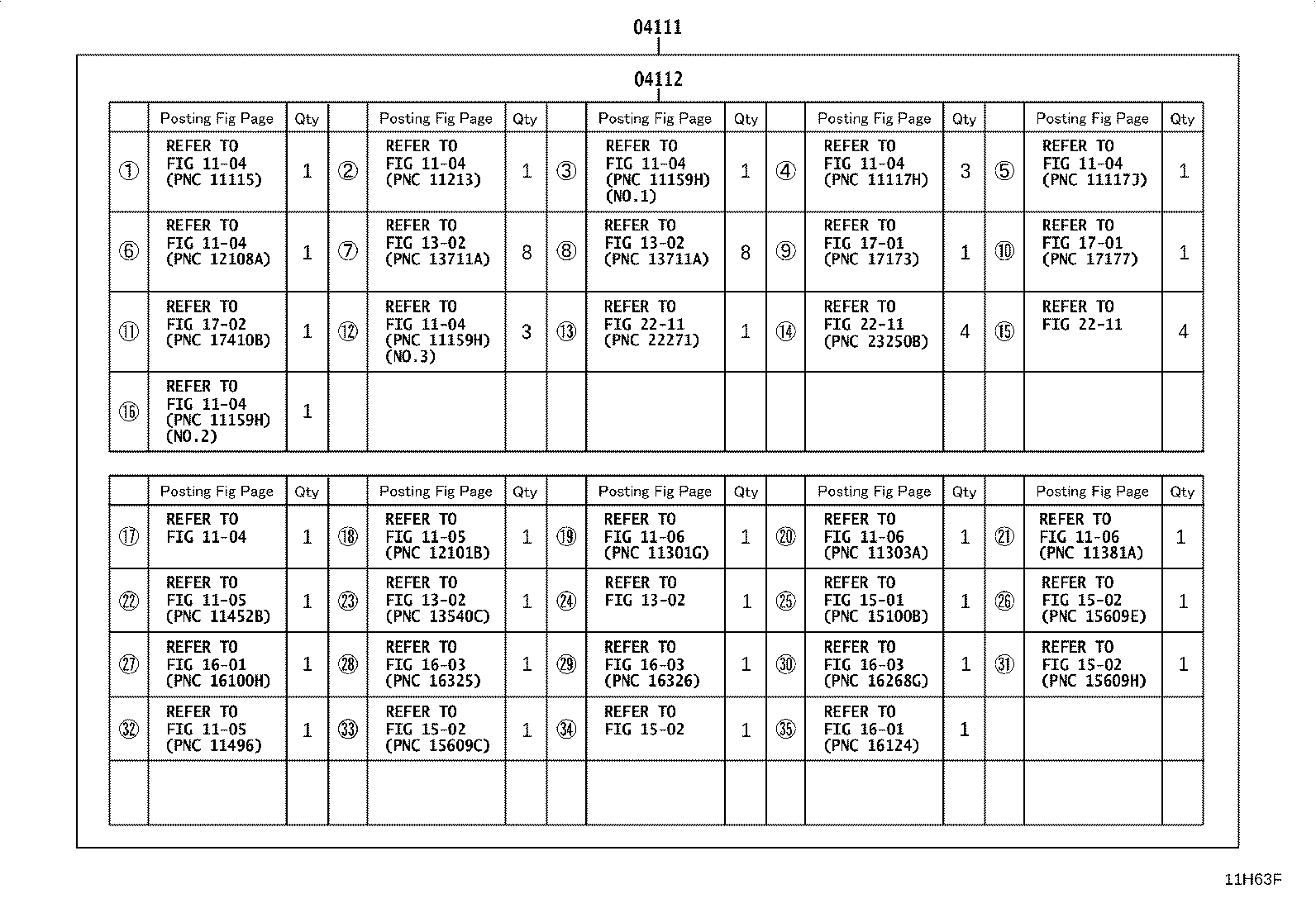

Figure 11H63F

11H63F 2023-12 → —

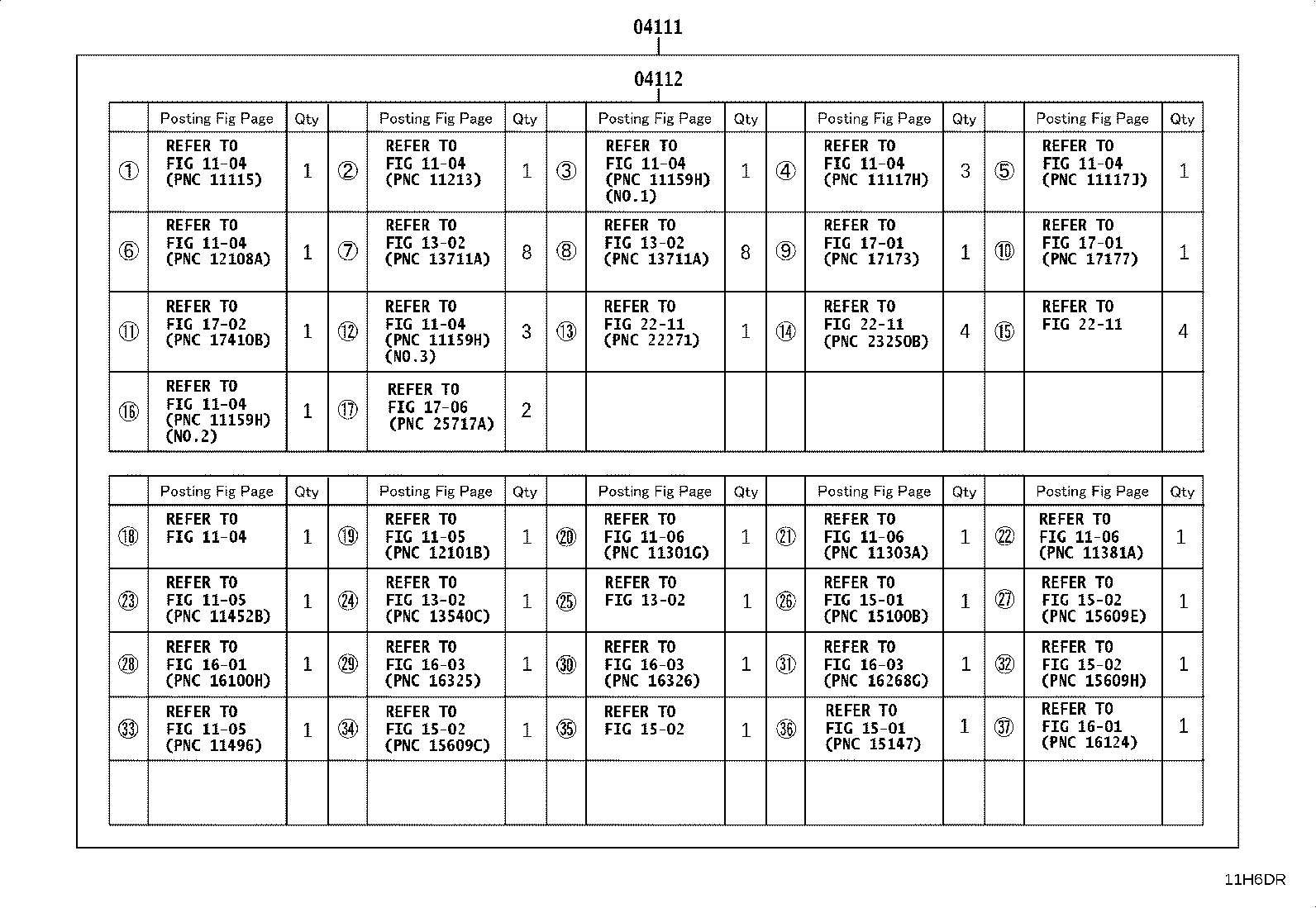

Figure 11H6DR

11H6DR 2023-12 → —

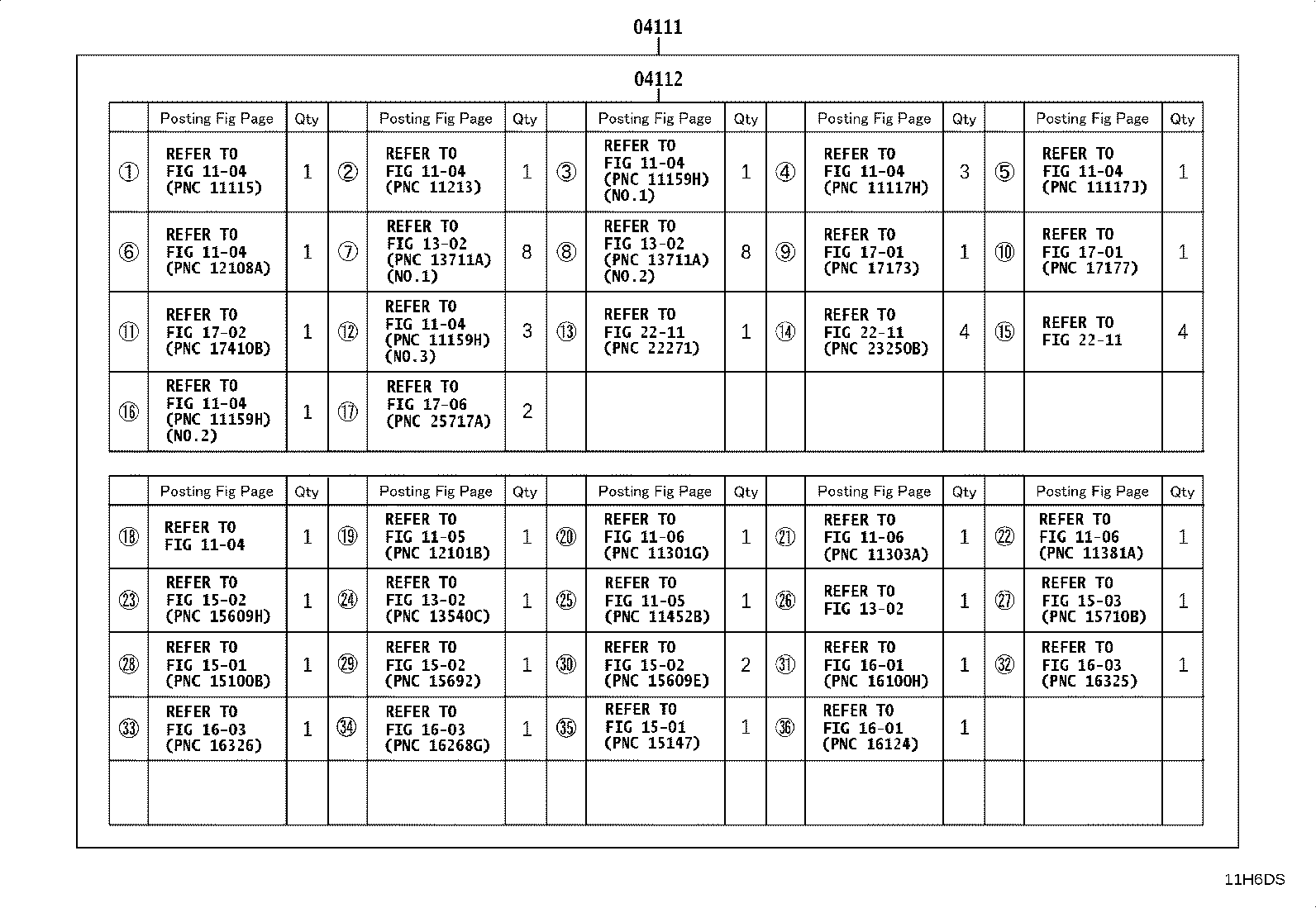

Figure 11H6DS

11H6DS 2023-12 → —

Part groups

PNC	Description
04111	Gasket Kit, Engine Overhaul
04112	Gasket Kit, Engine Valve Grind

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
