Oil Cooler & Tube (ATM)

12 part groups · 2 illustrations

Illustrations

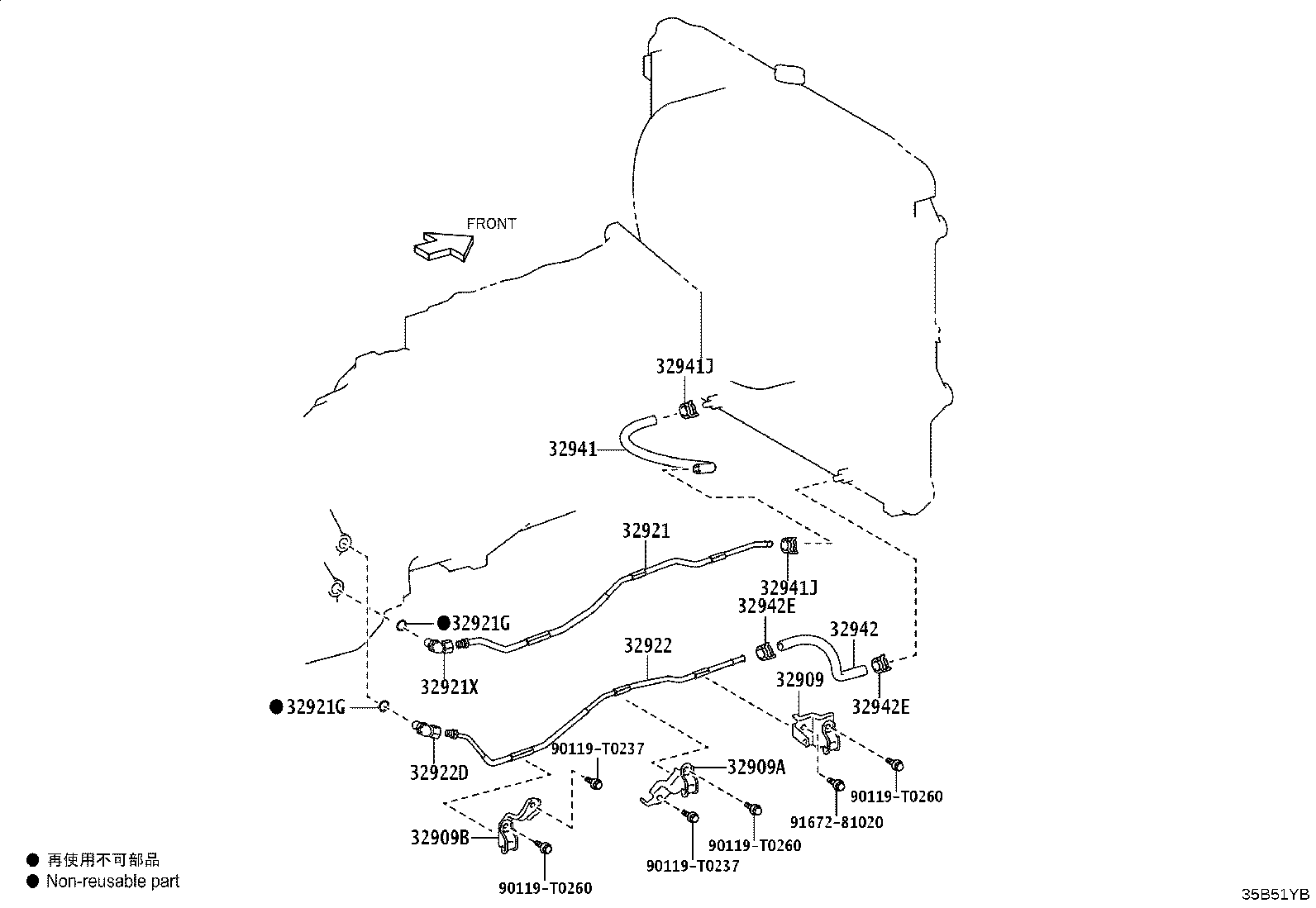

Figure 35B51XB 35B51XB 2023-12 → — Figure 35B51YB 35B51YB 2023-12 → —

Part groups

PNCDescription
32909 Clamp Sub-assy, Transmission Oil Cooler Tube, NO.1
32909A Clamp Sub-assy, Transmission Oil Cooler Tube, NO.2
32909B Clamp Sub-assy, Transmission Oil Cooler Tube, NO.3
32921 Tube, Oil Cooler Inlet, NO.1
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921X Union OR Elbow, Oil Cooler Inlet
32922 Tube, Oil Cooler Outlet, NO.1
32922D Union OR Elbow, Oil Cooler Outlet
32941 Hose, Oil Cooler Inlet, NO.1
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942E Clip, NO.2(FOR OIL COOLER HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
