Toyota Hilux Champ
2023-12 → present · chassis GUN1##,TGN11# · catalogue 676210 · General
Supported model
Data version 2023-11

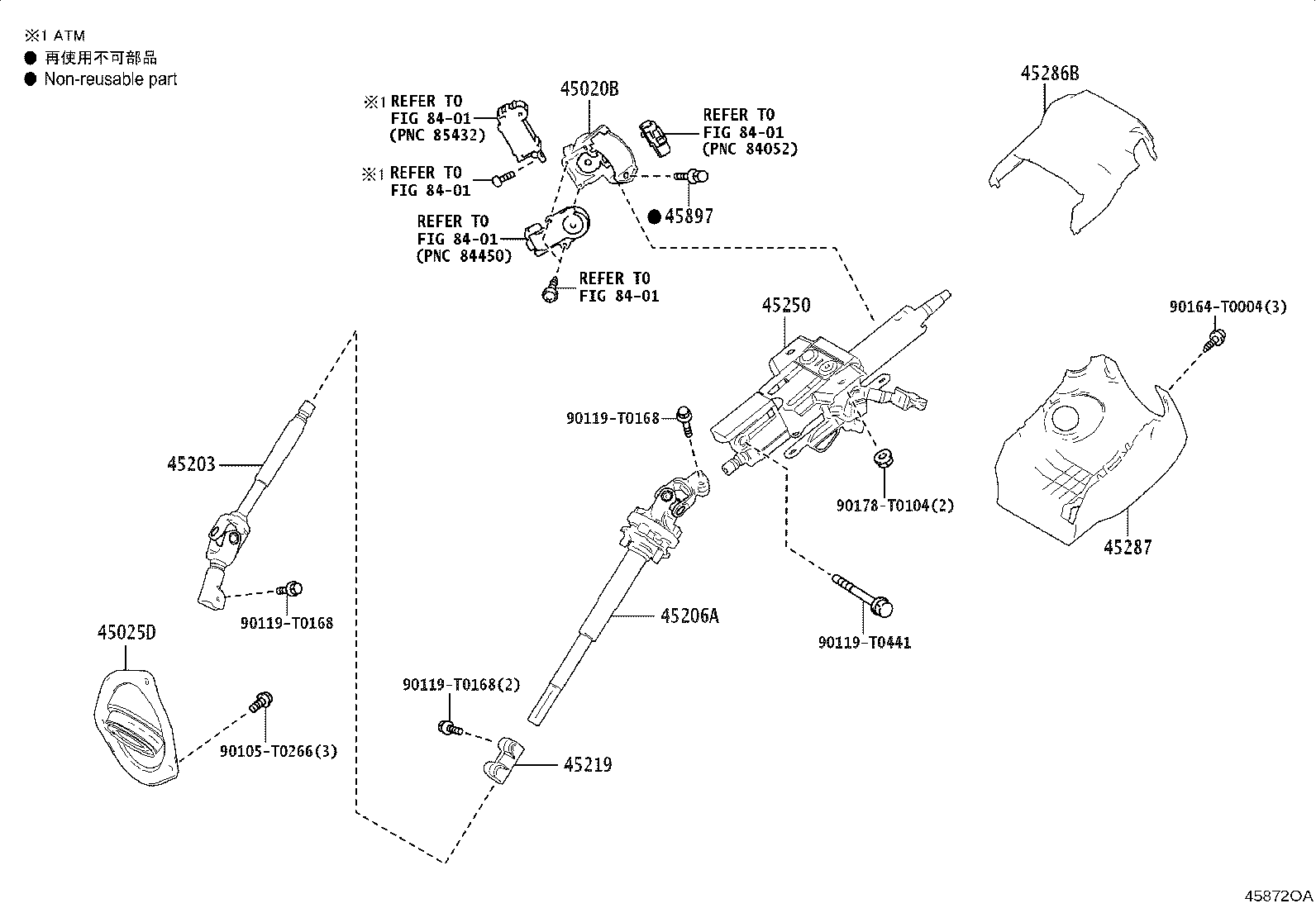

Steering Column & Shaft
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45020B | Actuator OR Upper Bracket Assy, Steering Lock |
| 45025D | Cover Sub-assy, Steering Column Hole, NO.1 |
| 45203 | Shaft Sub-assy, Steering Intermediate, NO.2 |
| 45206A | Yoke Sub-assy, Steering Sliding W/Coupling |
| 45219 | Yoke, Steering Sliding |
| 45250 | Column Assy, Steering |
| 45286B | Cover, Steering Column, Upr |
| 45287 | Cover, Steering Column, Lwr |
| 45897 | Bolt, Steering Lock Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
