Toyota Hilux Champ

2023-12 → present · chassis GUN1##,TGN11# · catalogue 676210 · General

Supported model Data version 2023-11

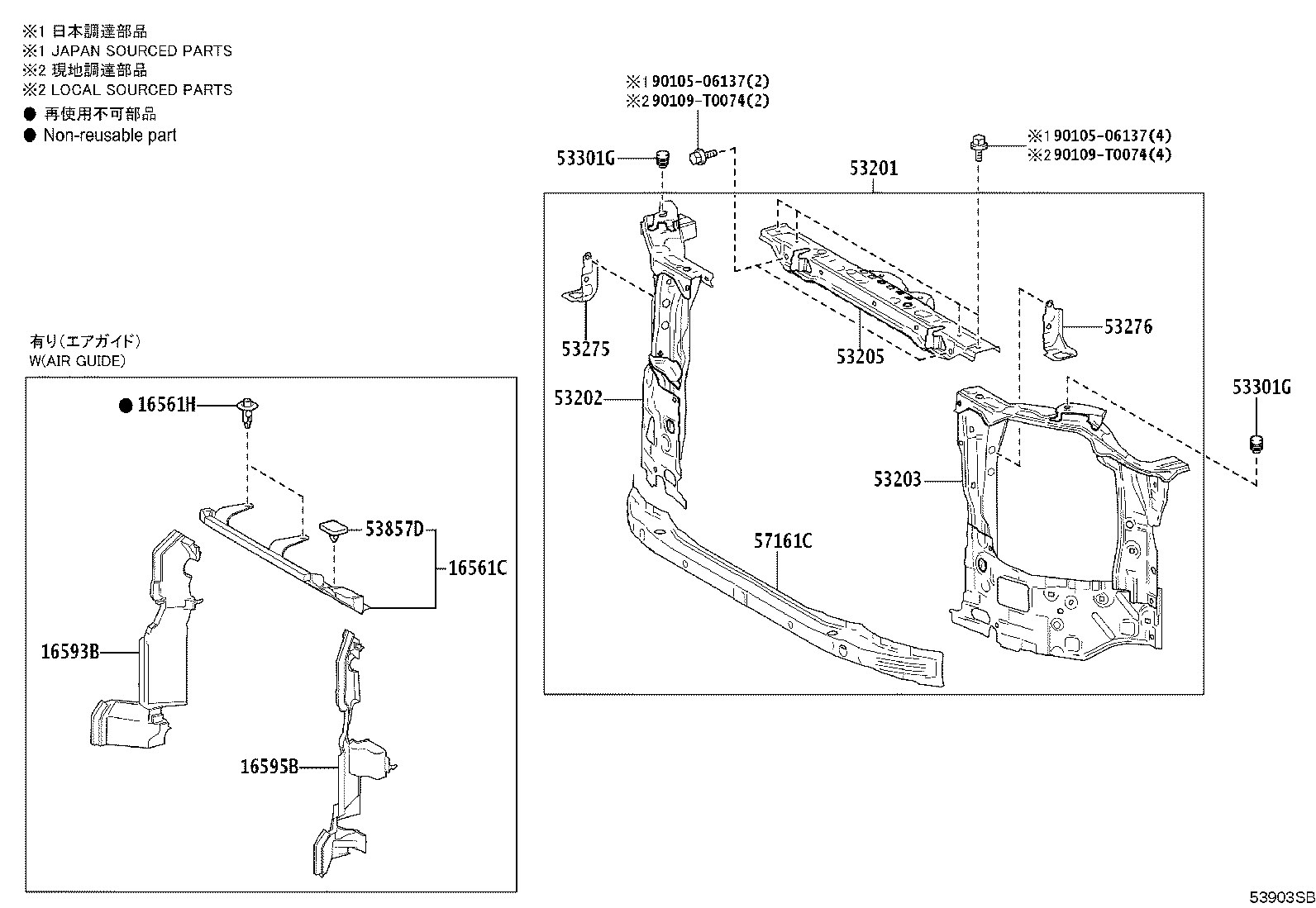

Front Fender Apron & Dash Panel

37 part groups · 4 illustrations

PNC	Description
16561C	Seal, Radiator TO Support, NO.1
16561H	Clip, Radiator TO Support Seal
16593B	Guide, Radiator Air, NO.1 RH
16595B	Guide, Radiator Air, NO.1 LH
53201	Support Sub-assy, Radiator
53202	Support Sub-assy, Radiator, RH
53203	Support Sub-assy, Radiator, LH
53205	Support Sub-assy, Radiator, Upper
53268A	Reinforcement, Radiator Mounting, RH
53269A	Reinforcement, Radiator Mounting, LH
53275	Bracket, Headlamp Door Mounting, NO.1 RH
53276	Bracket, Headlamp Door Mounting, NO.1 LH
53301G	Cushion, Hood Bumper
53701	Apron Sub-assy, Front Fender, RH
53702	Apron Sub-assy, Front Fender, LH
53704B	Support Sub-assy, Battery, LH
53705E	Member Sub-assy, Front Apron TO Cowl Side, RH
53706D	Member Sub-assy, Front Apron TO Cowl Side, LH
53707F	Gusset Sub-assy, Front Fender Apron, Lower RH
53708C	Gusset Sub-assy, Front Fender Apron, Lower LH
53713C	Extension, Front Fender Apron, Front RH
53714C	Extension, Front Fender Apron, Front LH
53715E	Extension, Front Fender Apron, Rear RH
53716E	Extension, Front Fender Apron, Rear LH
53717	Plate, Fender Apron, RH
53718	Plate, Fender Apron, LH
53735F	Seal, Front Fender Apron, Upper RH
53736L	Seal, Front Fender Apron, Upper LH
53803D	Bracket Sub-assy, Front Side Panel, RH
53804C	Bracket Sub-assy, Front Side Panel, LH
53857D	Retainer, Radiator TO Support Seal
53885H	Seal, Fender Apron Mudguard, RH
53886B	Seal, Fender Apron Mudguard, LH
55101	Panel Sub-assy, Dash
57161C	Member, Front Cross
57225	Brace, Front Mounting Bracket, RH
57226	Brace, Front Mounting Bracket, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
