Toyota Hilux Champ

2023-12 → present · chassis GUN1##,TGN11# · catalogue 676210 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

15 part groups · 3 illustrations

Illustrations

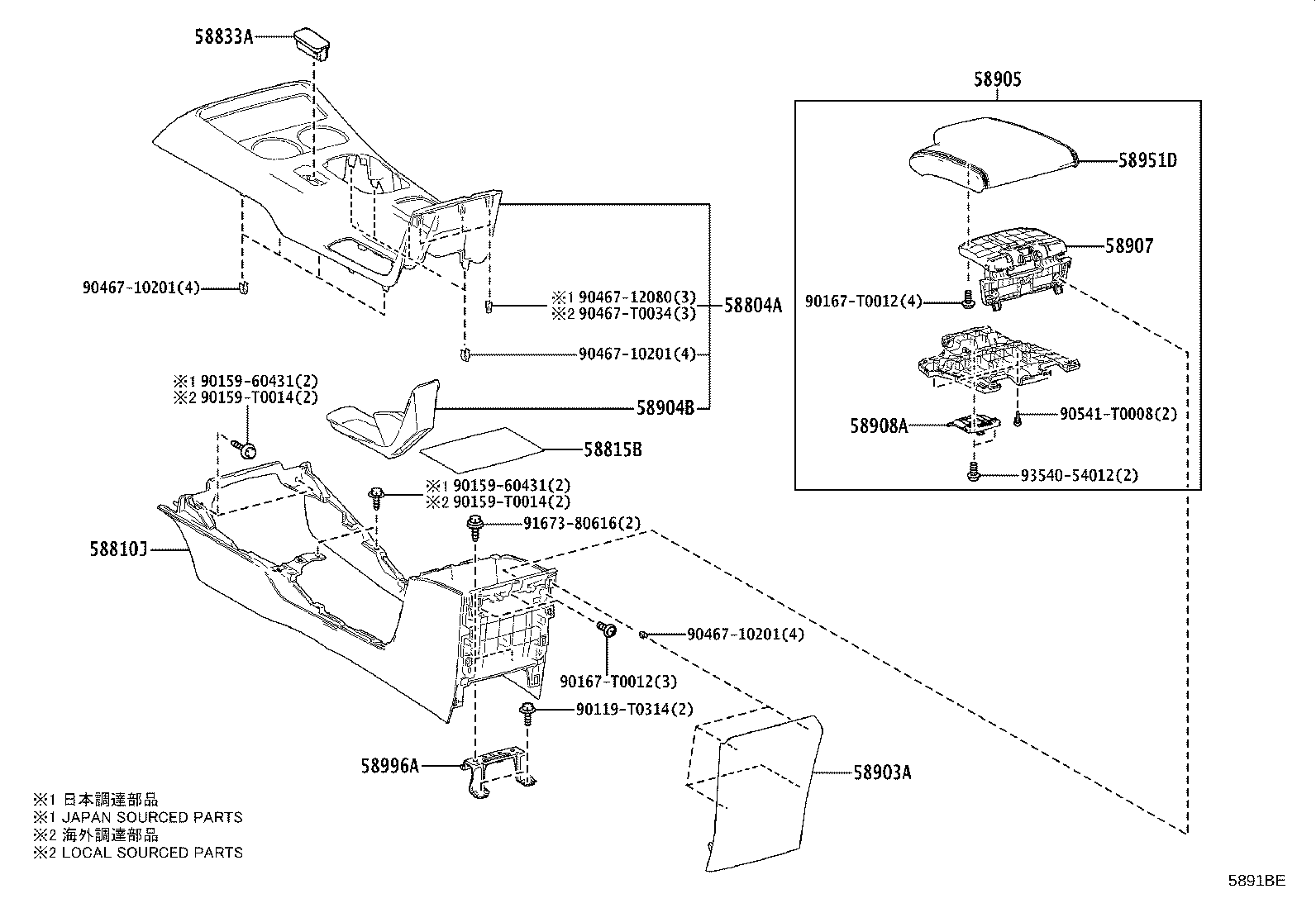

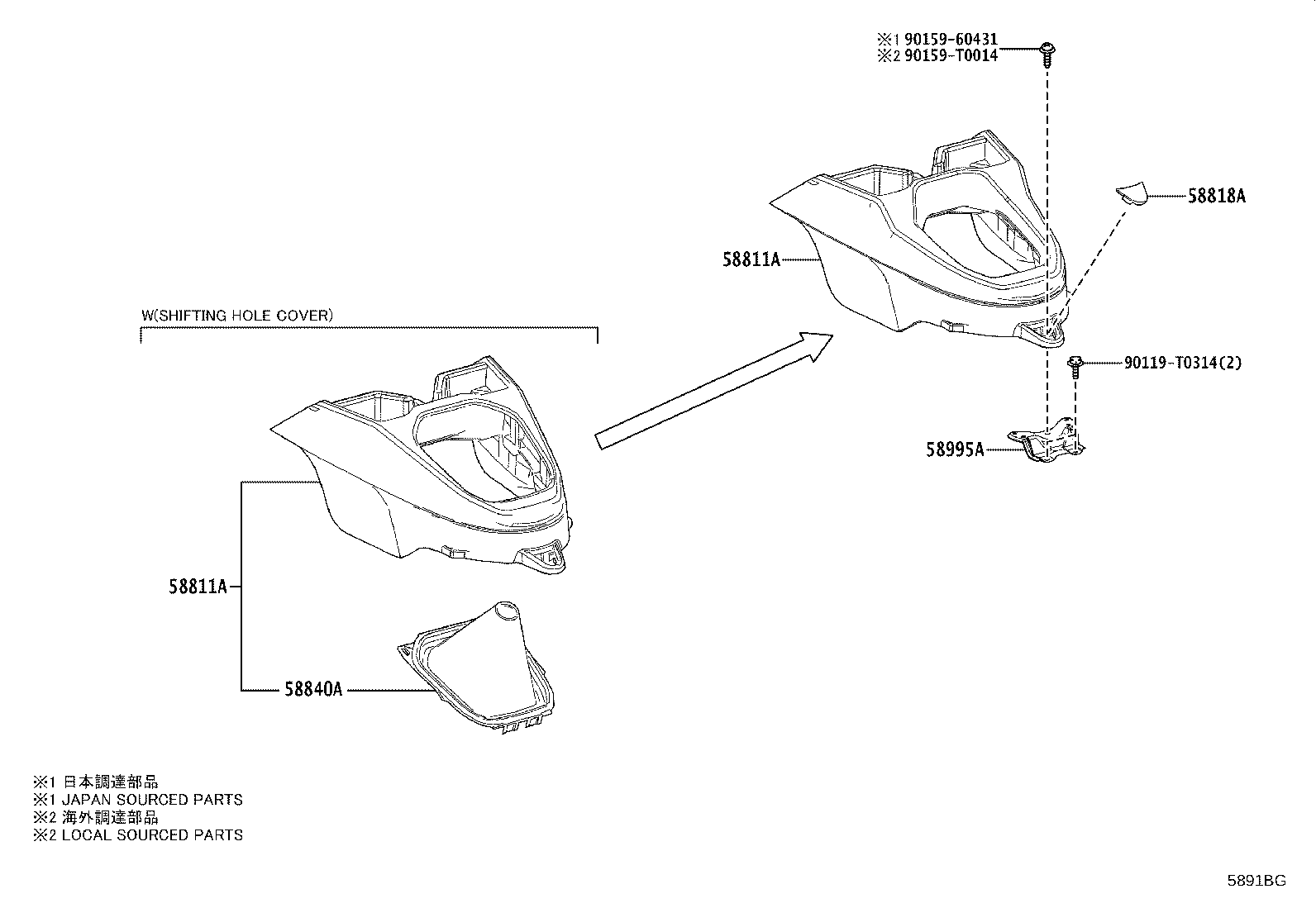

Figure 5891BF 5891BF 2023-12 → — Figure 5891BG 5891BG 2023-12 → — Figure 5891BE 5891BE 2023-12 → —

Part groups

PNCDescription
58804A Panel Sub-assy, Console, Upper
58810J Box Assy, Console
58811A Box, Console, Front
58815B Carpet, Console Box
58818A Cover, Console Box, FR
58833A Cover, Console, Upper
58840A Cover Assy, Shifting Hole
58903A Panel Sub-assy, Console Rear End
58904B Cover Sub-assy, Parking Brake Hole
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58951D Door, Console Compartment, Outer
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
