Toyota Hilux Champ

2023-12 → present · chassis GUN1##,TGN11# · catalogue 676210 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

31 part groups · 3 illustrations

Illustrations

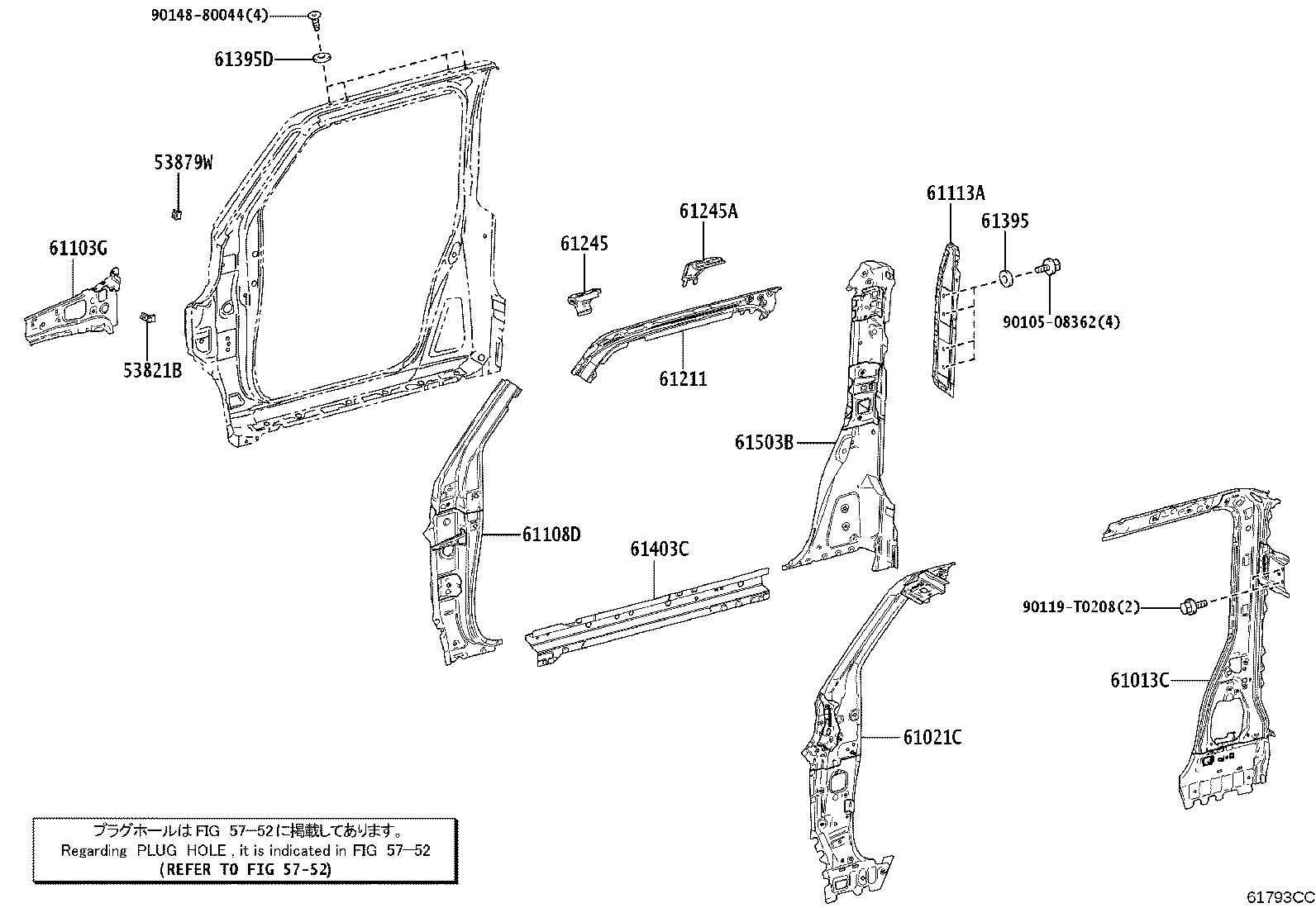

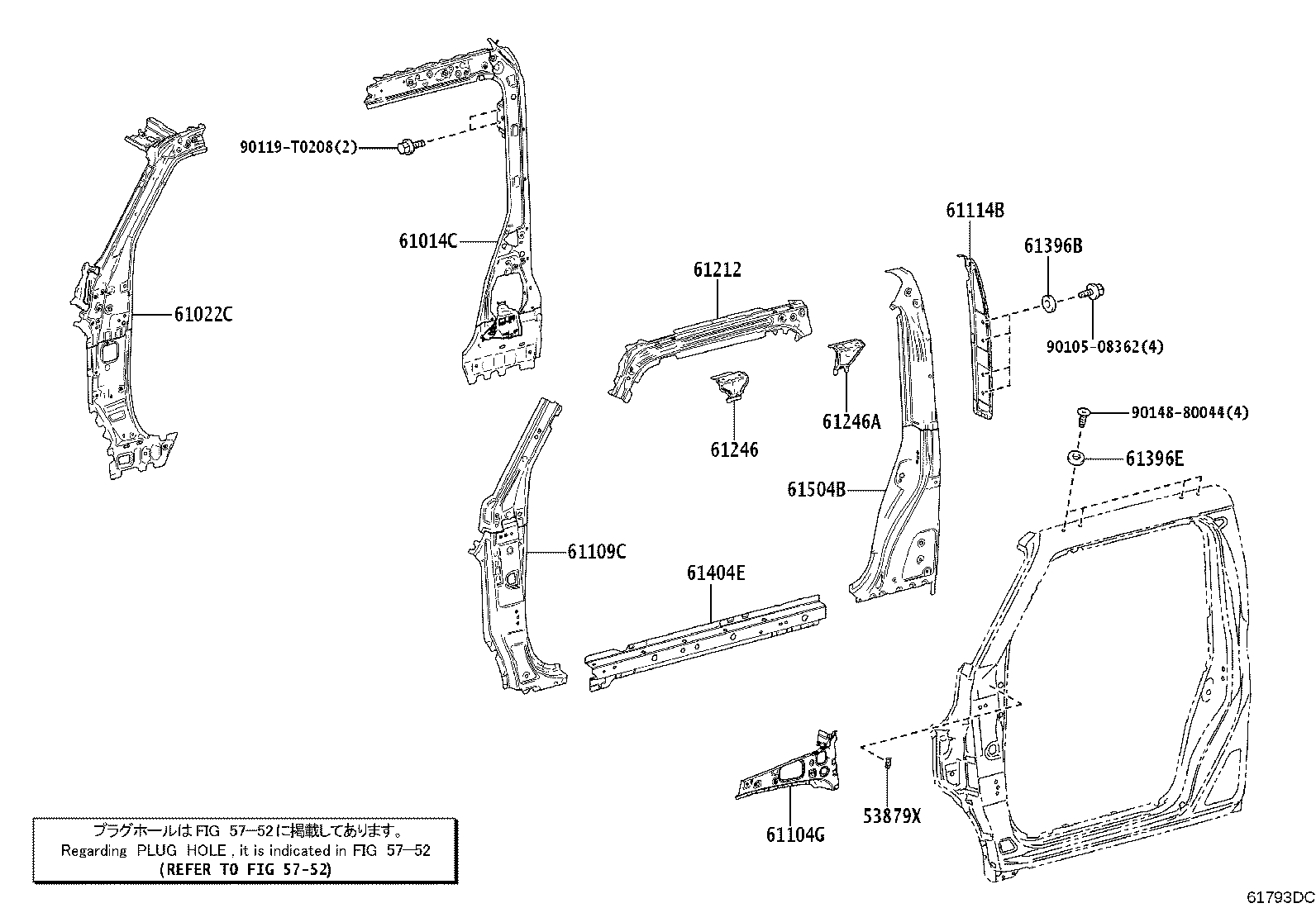

Figure 61793B 61793B 2023-12 → — Figure 61793CC 61793CC 2023-12 → — Figure 61793DC 61793DC 2023-12 → —

Part groups

PNCDescription
53821B Bracket, Front Fender, Rear RH
53879W Bracket, Front Fender Rear Side Panel, Center RH
53879X Bracket, Front Fender Rear Side Panel, Center LH
61013C Panel Sub-assy, Side, Inner RH
61014C Panel Sub-assy, Side, Inner LH
61021C Pillar Sub-assy, Front Body, RH
61022C Pillar Sub-assy, Front Body, LH
61103G Gusset Sub-assy, Front Body Pillar, Lower RH
61104G Gusset Sub-assy, Front Body Pillar, Lower LH
61108D Reinforcement Sub-assy, Front Pillar, Lower RH
61109C Reinforcement Sub-assy, Front Pillar, Lower LH
61113A Panel, Side, Outer NO.2 RH
61114B Panel, Side, Outer NO.2 LH
61131 Pillar, Front Body, Upper Outer RH
61132 Pillar, Front Body, Upper Outer LH
61211 Rail, Roof Side, Outer RH
61212 Rail, Roof Side, Outer LH
61245 Reinforcement, Roof Side Rail, Outer RH
61245A Reinforcement, Roof Side Rail, Outer NO.2 RH
61246 Reinforcement, Roof Side Rail, Outer LH
61246A Reinforcement, Roof Side Rail, Outer NO.2 LH
61395 Seal, Center Body Pillar, RH
61395D Seal, Center Body Pillar, NO.2 RH
61396B Seal, Center Body Pillar, LH
61396E Seal, Center Body Pillar, NO.2 LH
61403C Reinforce Sub-assy, Rocker, Outer RH
61404E Reinforce Sub-assy, Rocker, Outer LH
61503B Reinforcement Sub-assy, Quarter Lock Pillar, RH
61504B Reinforcement Sub-assy, Quarter Lock Pillar, LH
61611 Panel, Quarter, RH
61612 Panel, Quarter, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
