Toyota Hilux Champ
2023-12 → present · chassis GUN1##,TGN11# · catalogue 676210 · General
Supported model
Data version 2023-11

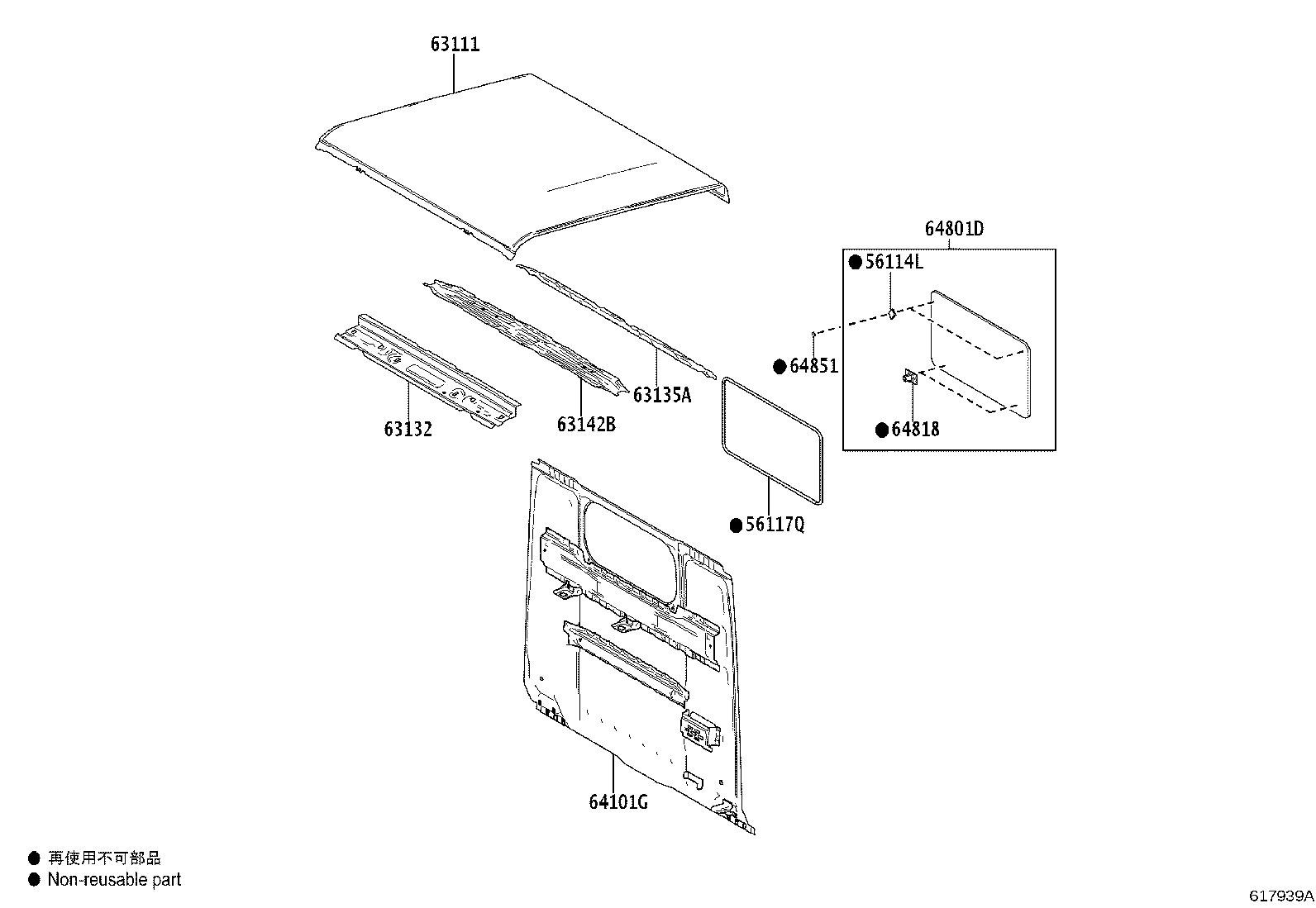

Roof Panel & Back Panel
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 56114L | Retainer, Back Window Glass |
| 56117Q | Dam, Window Glass Adhesive |
| 63111 | Panel, Roof |
| 63132 | Panel, Windshield Header, Inner |
| 63135A | Frame, Back Door Opening, Lower |
| 63142B | Reinforcement, Roof Panel, Rear |
| 64101G | Panel Sub-assy, Back |
| 64801D | Glass Sub-assy, Back Window |
| 64818 | Spacer, Back Window Glass |
| 64851 | Stop, Back Window Slide Glass |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
