Toyota Hilux Champ

2023-12 → present · chassis GUN1##,TGN11# · catalogue 676210 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

23 part groups · 3 illustrations

Illustrations

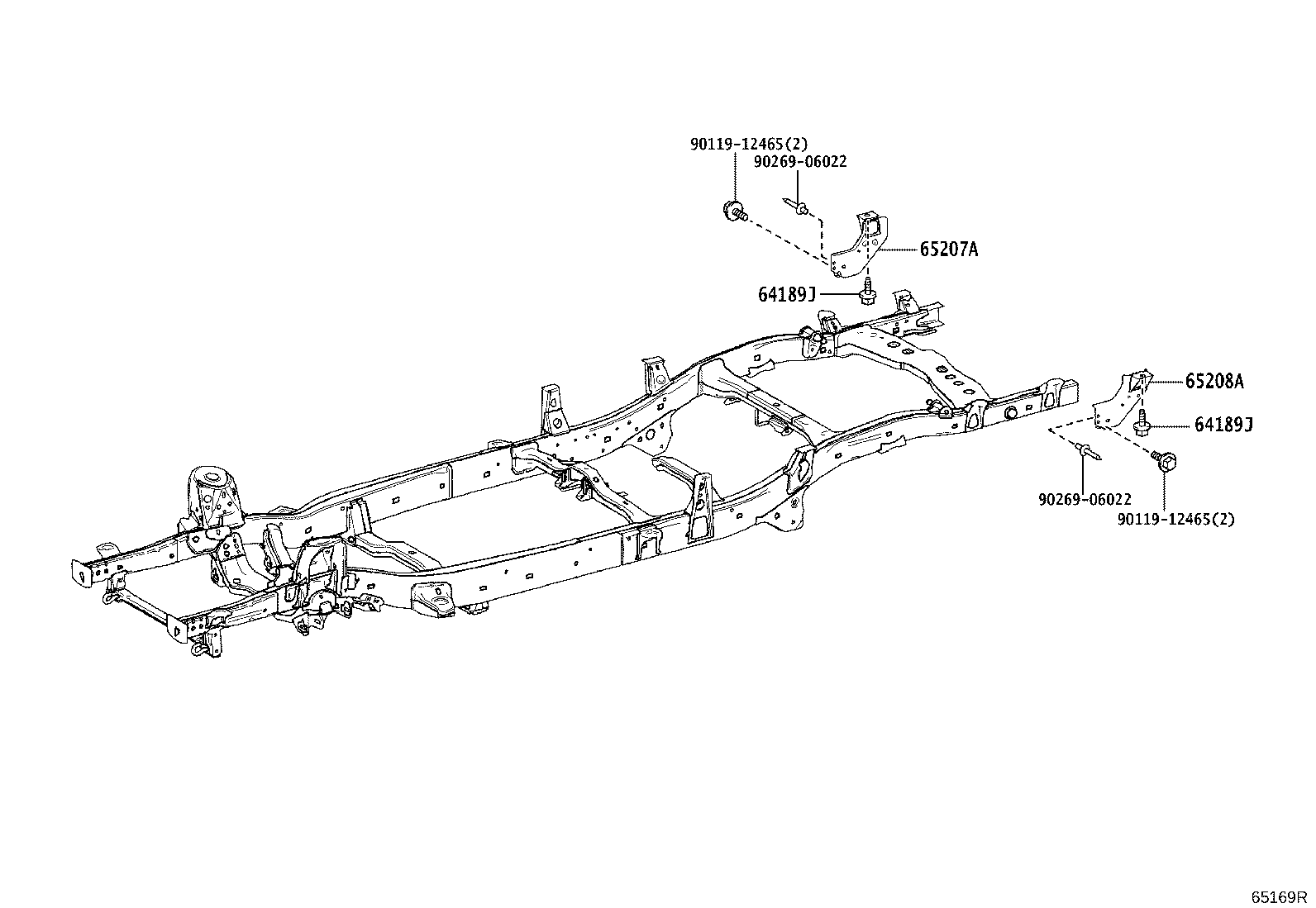

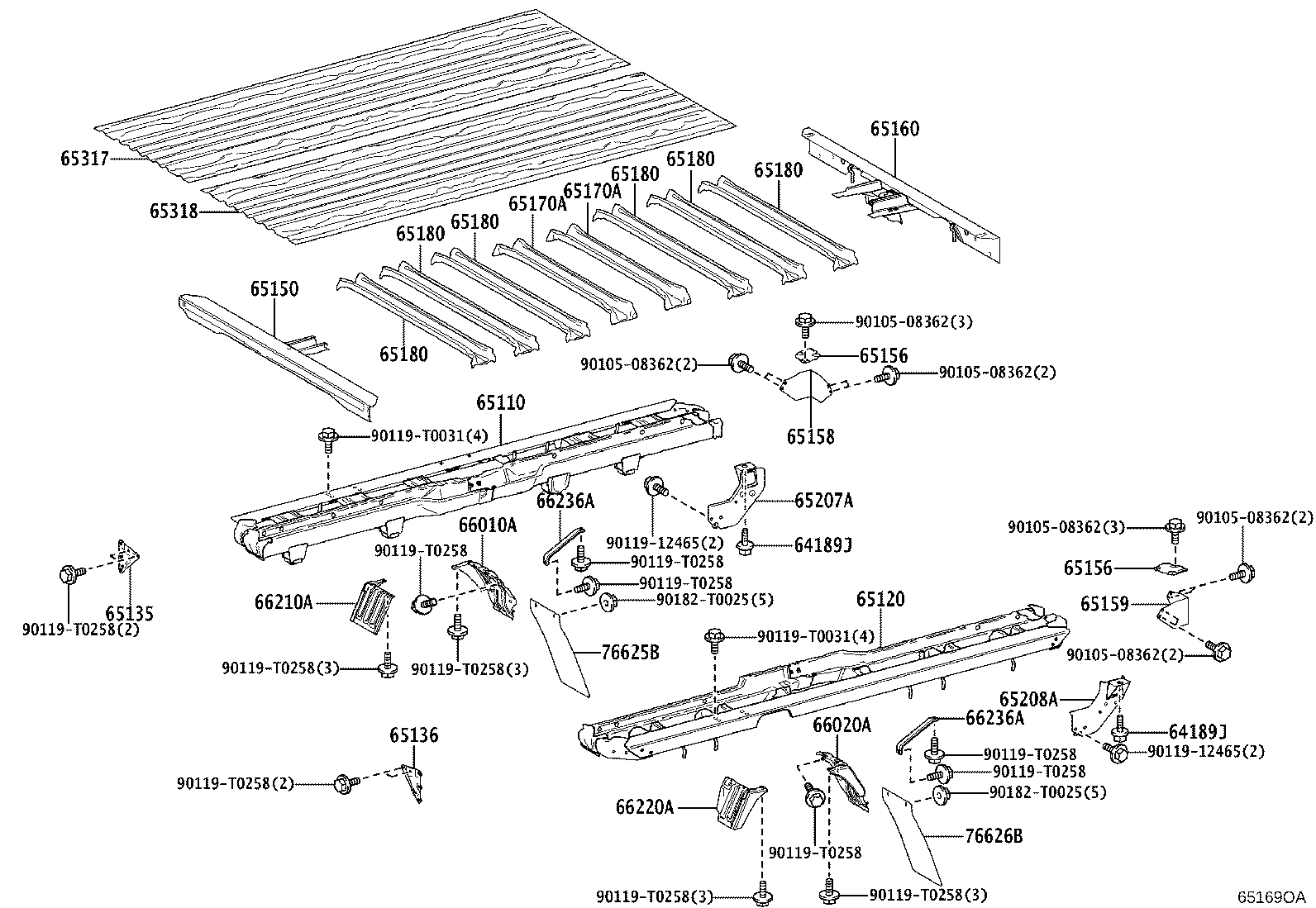

Figure 65169NA 65169NA 2023-12 → — Figure 65169OA 65169OA 2023-12 → — Figure 65169R 65169R 2023-12 → —

Part groups

PNCDescription
64189J Bolt, Rear Body Mounting
65110 Sill Assy, Main, RH
65120 Sill Assy, Main, LH
65135 Patch, Main Sill
65136 Patch, Main Sill, NO.2
65150 Sill Assy, Cross, NO.1
65156 Cover, Cross Sill End, RH
65158 Cover, Rear Cross Sill End, RH
65159 Cover, Rear Cross Sill End, LH
65160 Sill Assy, Cross, NO.2
65170A Sill Assy, Cross, NO.3
65180 Sill Assy, Cross, NO.4
65207A Gusset Sub-assy, Cross Sill, RH
65208A Gusset Sub-assy, Cross Sill, LH
65317 Panel, Floor Side, RH
65318 Panel, Floor Side, LH
66010A Fender Assy, Rear NO.2 RH
66020A Fender Assy, Rear NO.2 LH
66210A Fender Assy, Rear NO.1 RH
66220A Fender Assy, Rear NO.1 LH
66236A Stay, Rear Fender, NO.2
76625B Mudguard, Rear Body, RH
76626B Mudguard, Rear Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
