Toyota Hilux Champ

2023-12 → present · chassis GUN1##,TGN11# · catalogue 676210 · General

Supported model Data version 2023-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

5 part groups · 4 illustrations

Illustrations

Figure 71F989A

71F989A 2023-12 → —

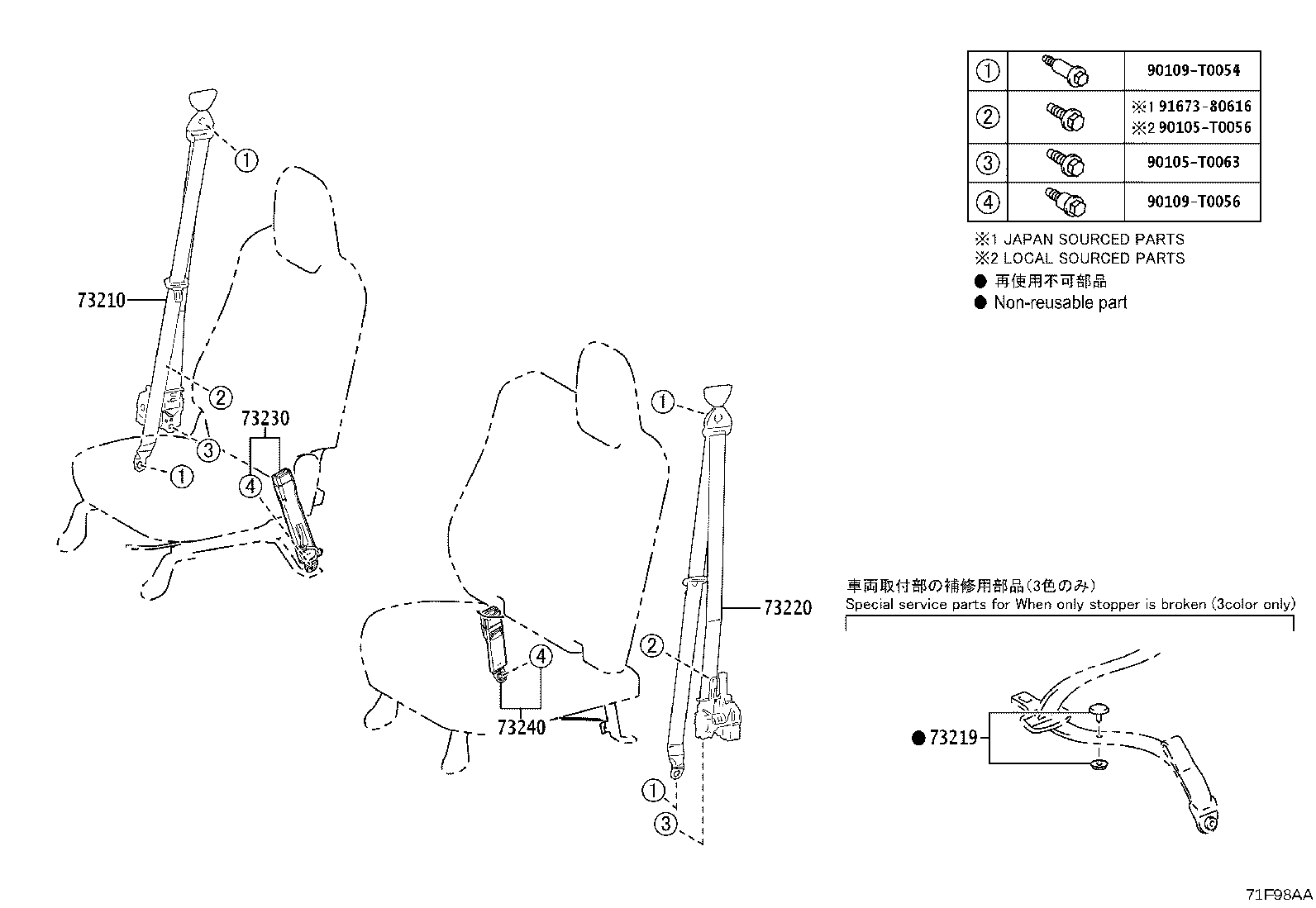

Figure 71F98AA

71F98AA 2023-12 → —

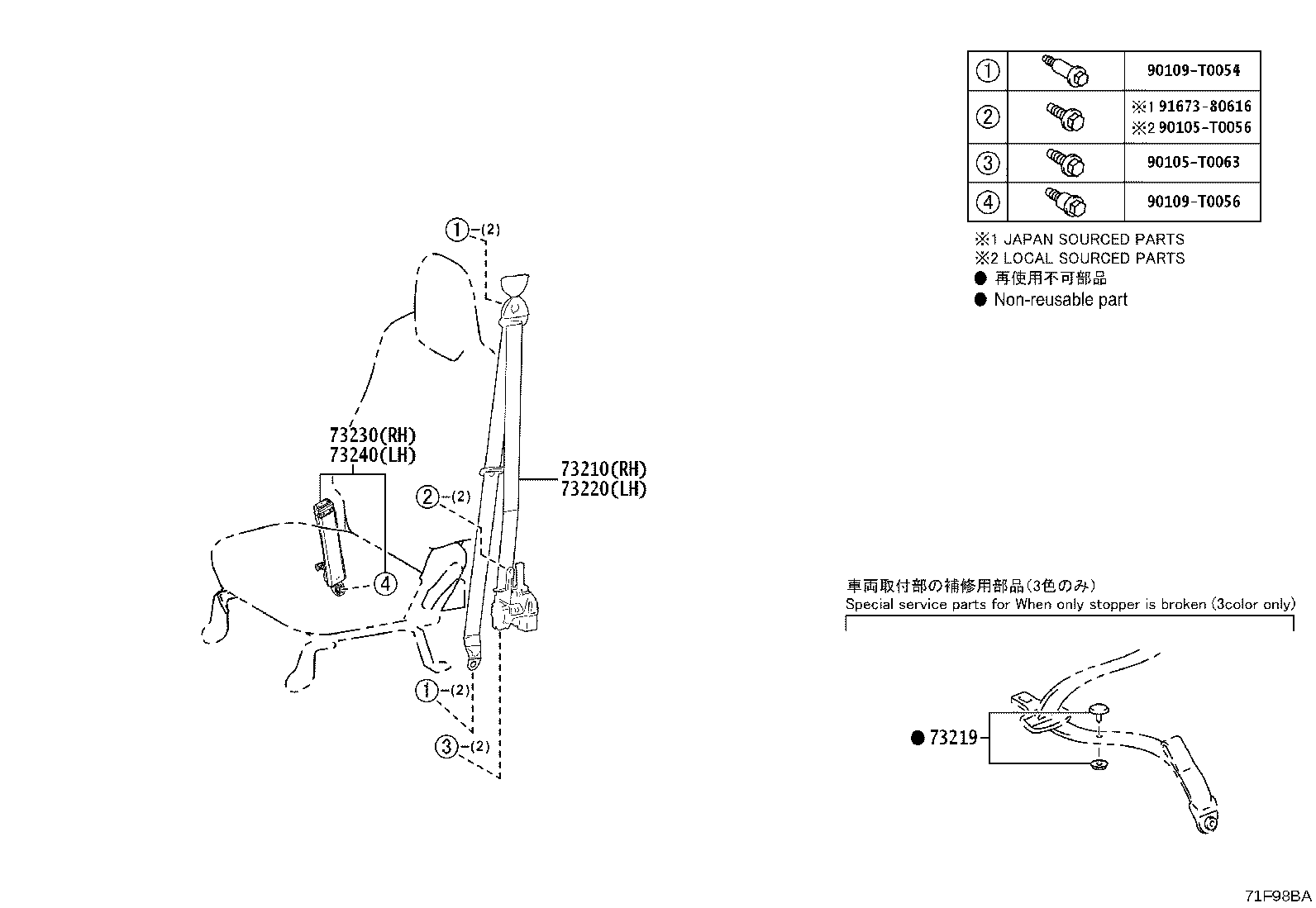

Figure 71F98BA

71F98BA 2023-12 → —

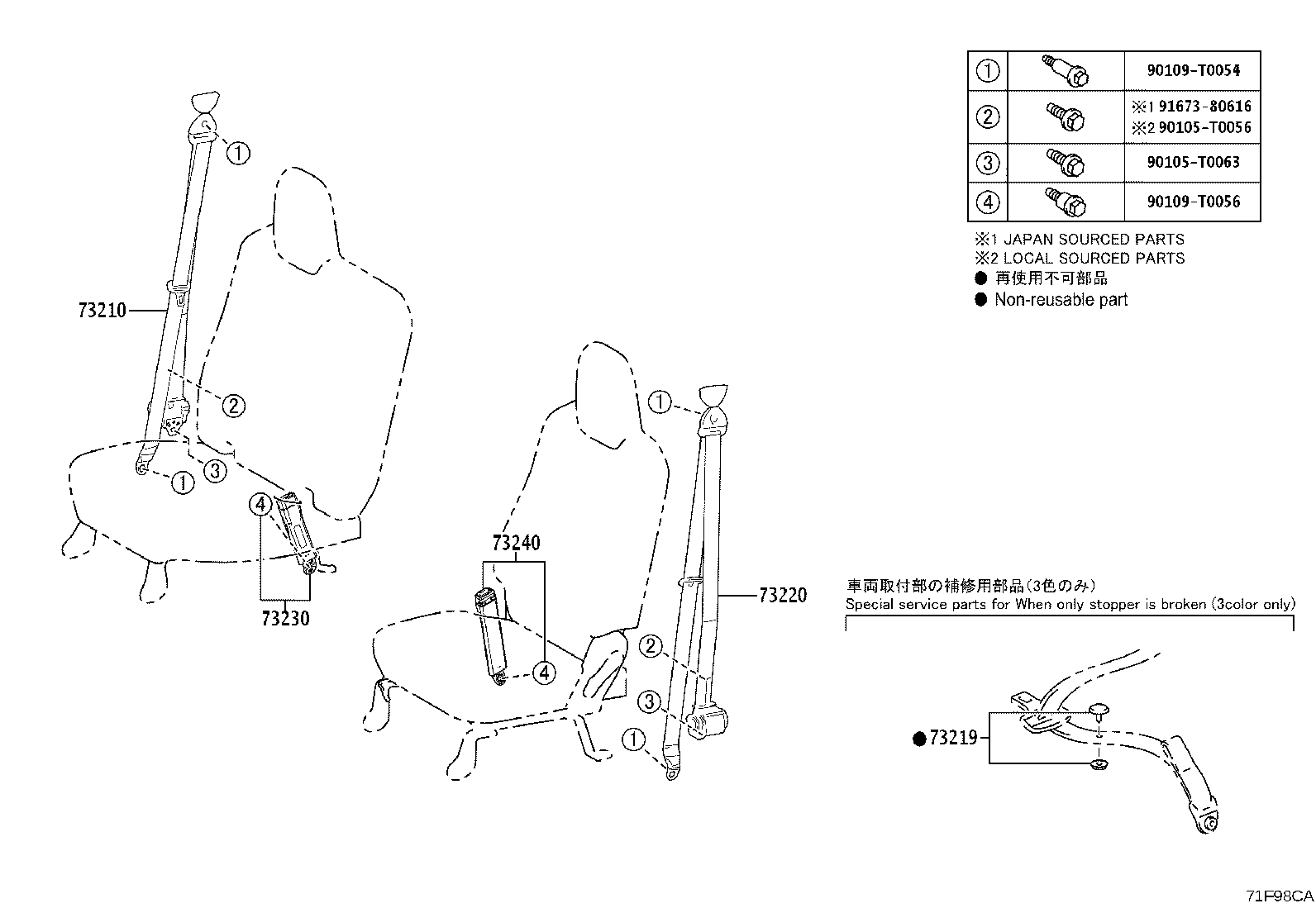

Figure 71F98CA

71F98CA 2023-12 → —

Part groups

PNC	Description
73210	Belt Assy, Front Seat Outer, RH
73219	Stopper, Tongue Plate
73220	Belt Assy, Front Seat Outer, LH
73230	Belt Assy, Front Seat Inner, RH
73240	Belt Assy, Front Seat Inner, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
