Toyota Hilux Champ

2023-12 → present · chassis GUN1##,TGN11# · catalogue 676210 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

23 part groups · 5 illustrations

Illustrations

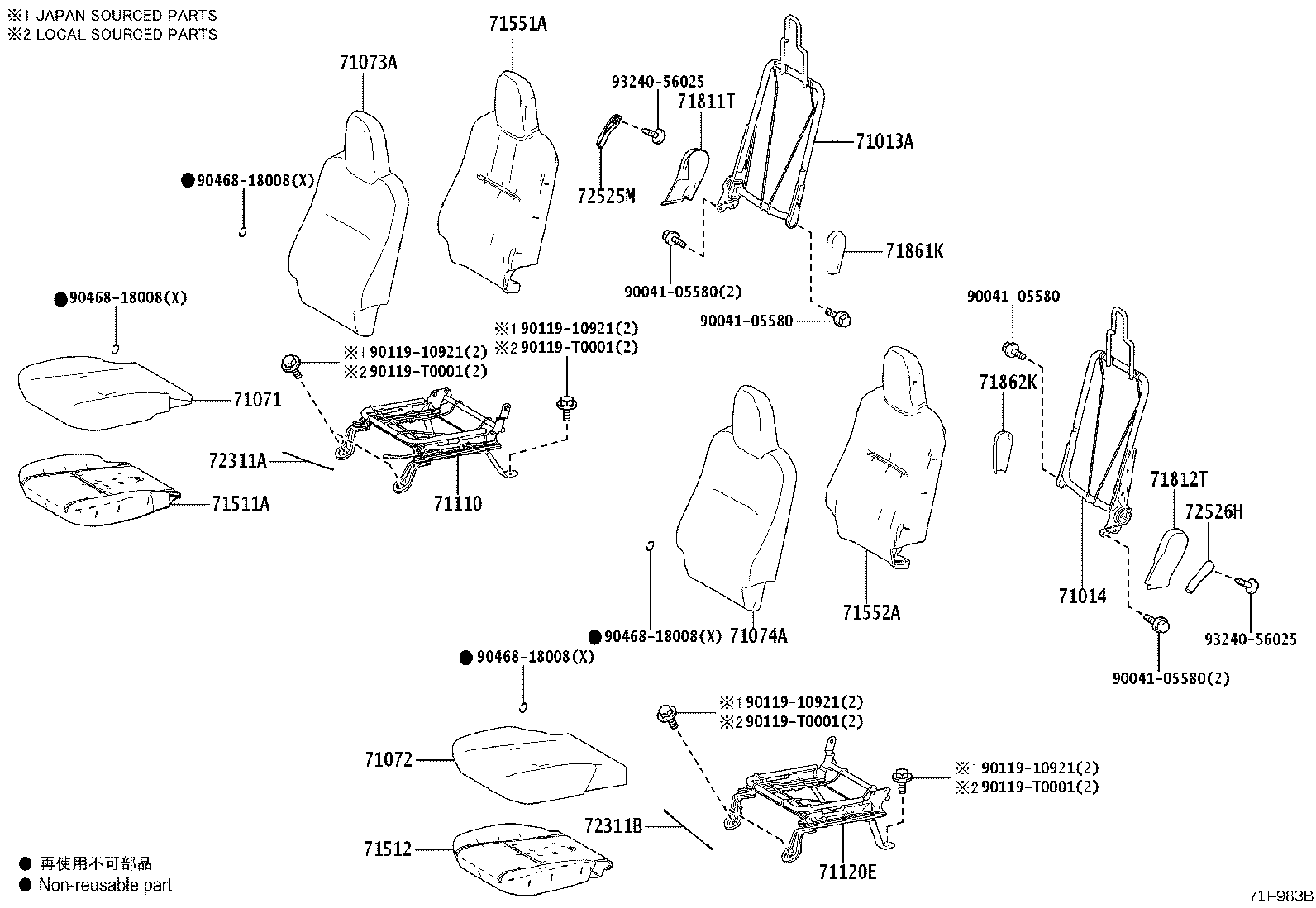

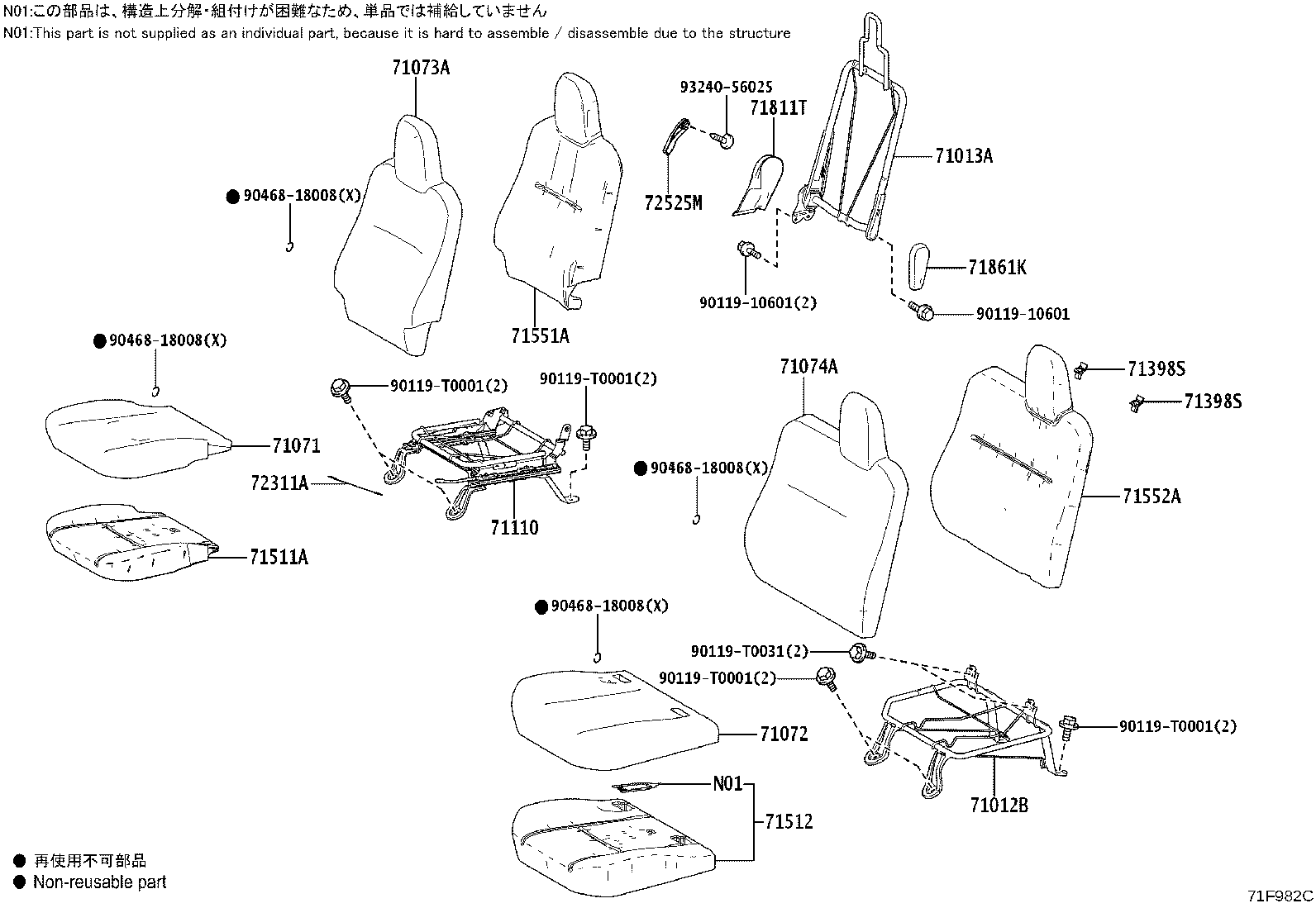

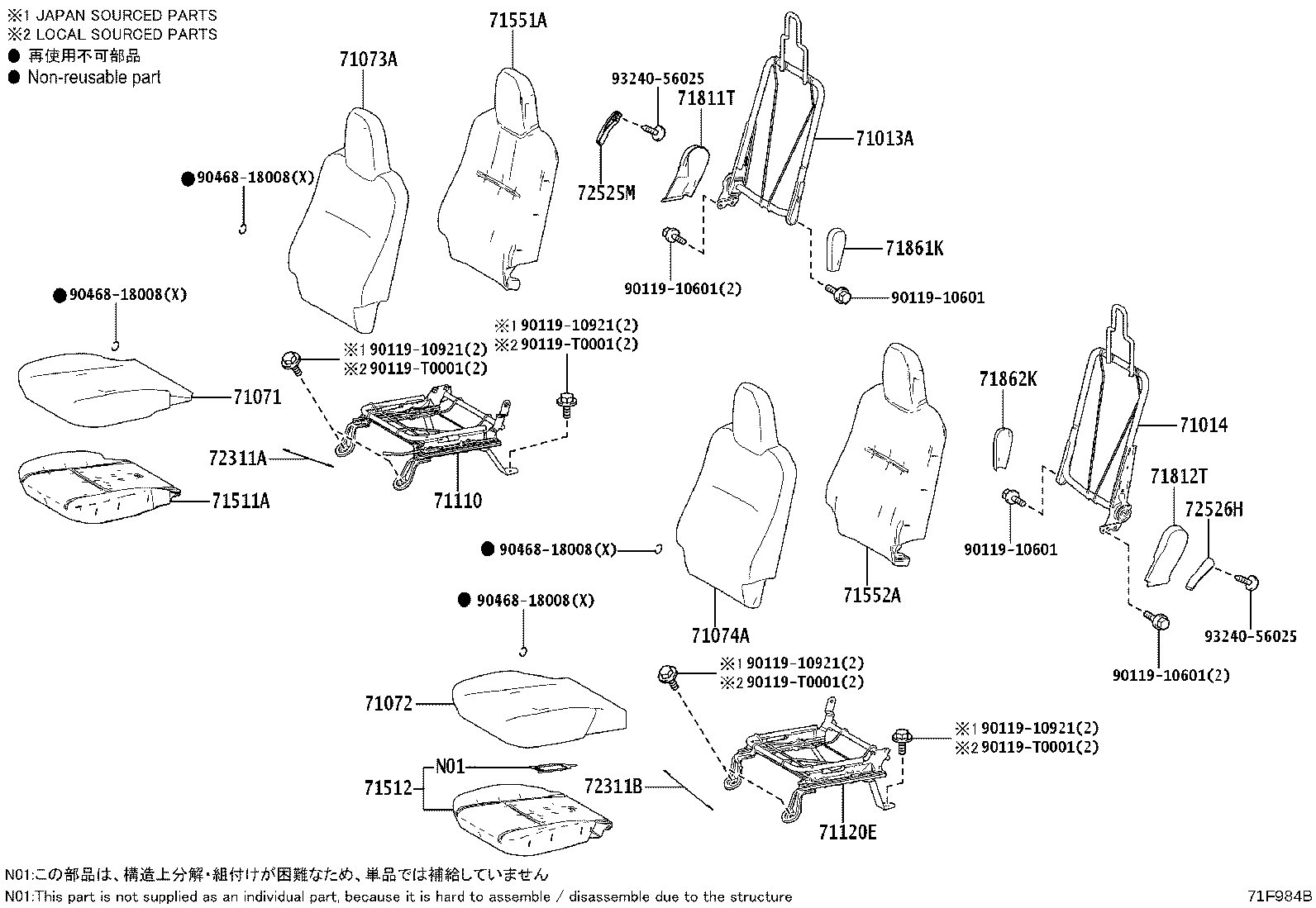

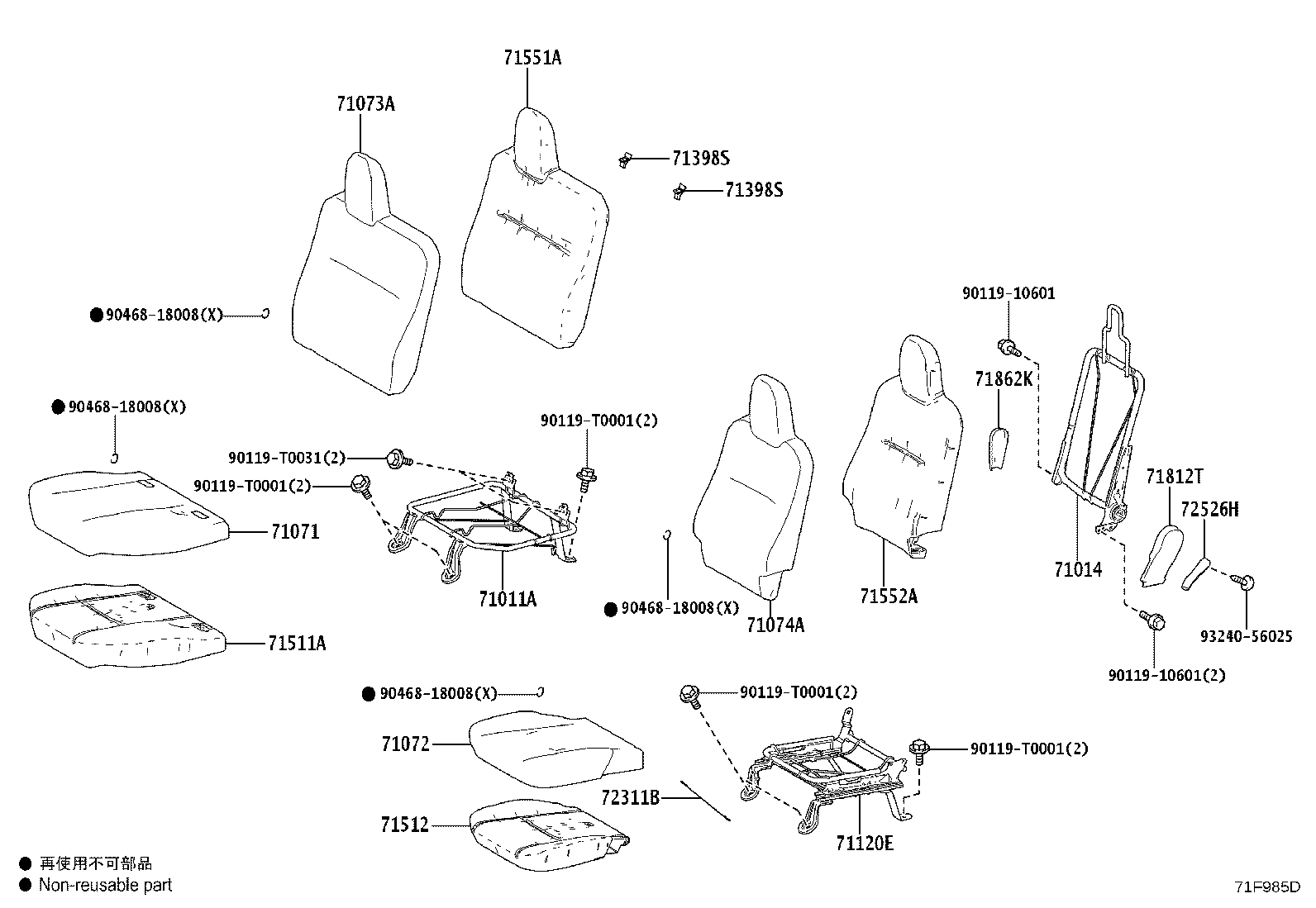

Figure 71F981C 71F981C 2023-12 → — Figure 71F982C 71F982C 2023-12 → — Figure 71F984B 71F984B 2023-12 → — Figure 71F983B 71F983B 2023-12 → — Figure 71F985D 71F985D 2023-12 → —

Part groups

PNCDescription
71011A Frame Sub-assy, Front Seat Cushion, RH
71012B Frame Sub-assy, Front Seat Cushion, LH
71013A Frame Sub-assy, Front Seatback, RH
71014 Frame Sub-assy, Front Seatback, LH
71071 Cover Sub-assy, Front Seat Cushion, RH
71072 Cover Sub-assy, Front Seat Cushion, LH
71073A Cover Sub-assy, Front Seatback, RH
71074A Cover Sub-assy, Front Seatback, LH
71110 Frame Assy, Front Seat W/Adjuster, RH
71120E Frame Assy, Front Seat W/Adjuster, LH
71398S Holder, Front Seatback
71511A Pad, Front Seat Cushion, RH
71512 Pad, Front Seat Cushion, LH
71551A Pad, Front Seatback, RH
71552A Pad, Front Seatback, LH
71811T Shield, Front Seat Cushion, RH
71812T Shield, Front Seat Cushion, LH
71861K Shield, Front Seat Cushion, Inner RH
71862K Shield, Front Seat Cushion, Inner LH
72311A Wire, Seat Track Equalizing, RH
72311B Wire, Seat Track Equalizing, LH
72525M Handle, Reclining Adjuster Release, RH
72526H Handle, Reclining Adjuster Release, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
