Toyota Hilux Champ
2023-12 → present · chassis GUN1##,TGN11# · catalogue 676210 · General
Supported model
Data version 2023-11

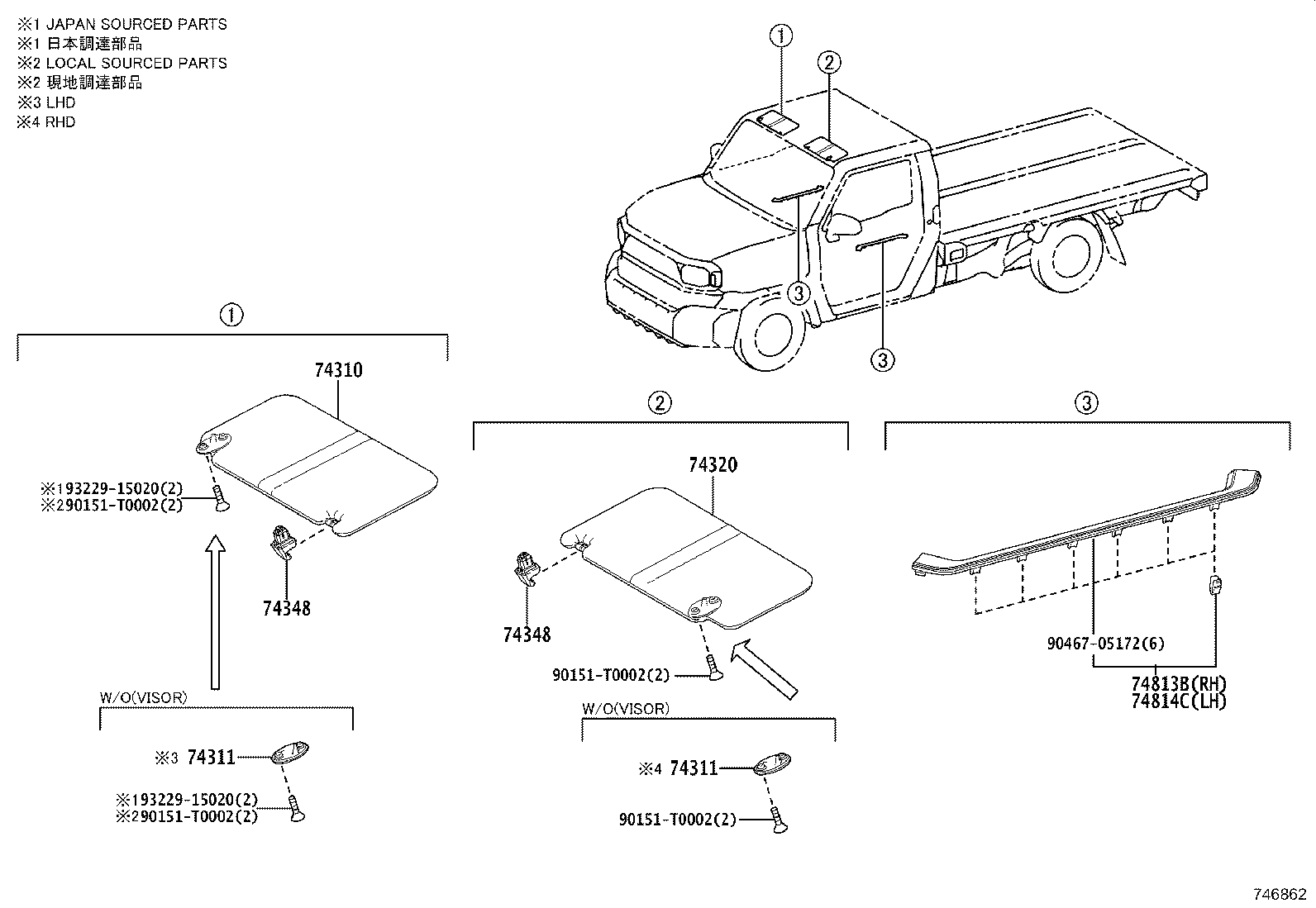

Armrest & Visor
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74311 | Bracket, Visor |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74813B | Handle, Front Door Pull, RH |
| 74814C | Handle, Front Door Pull, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
